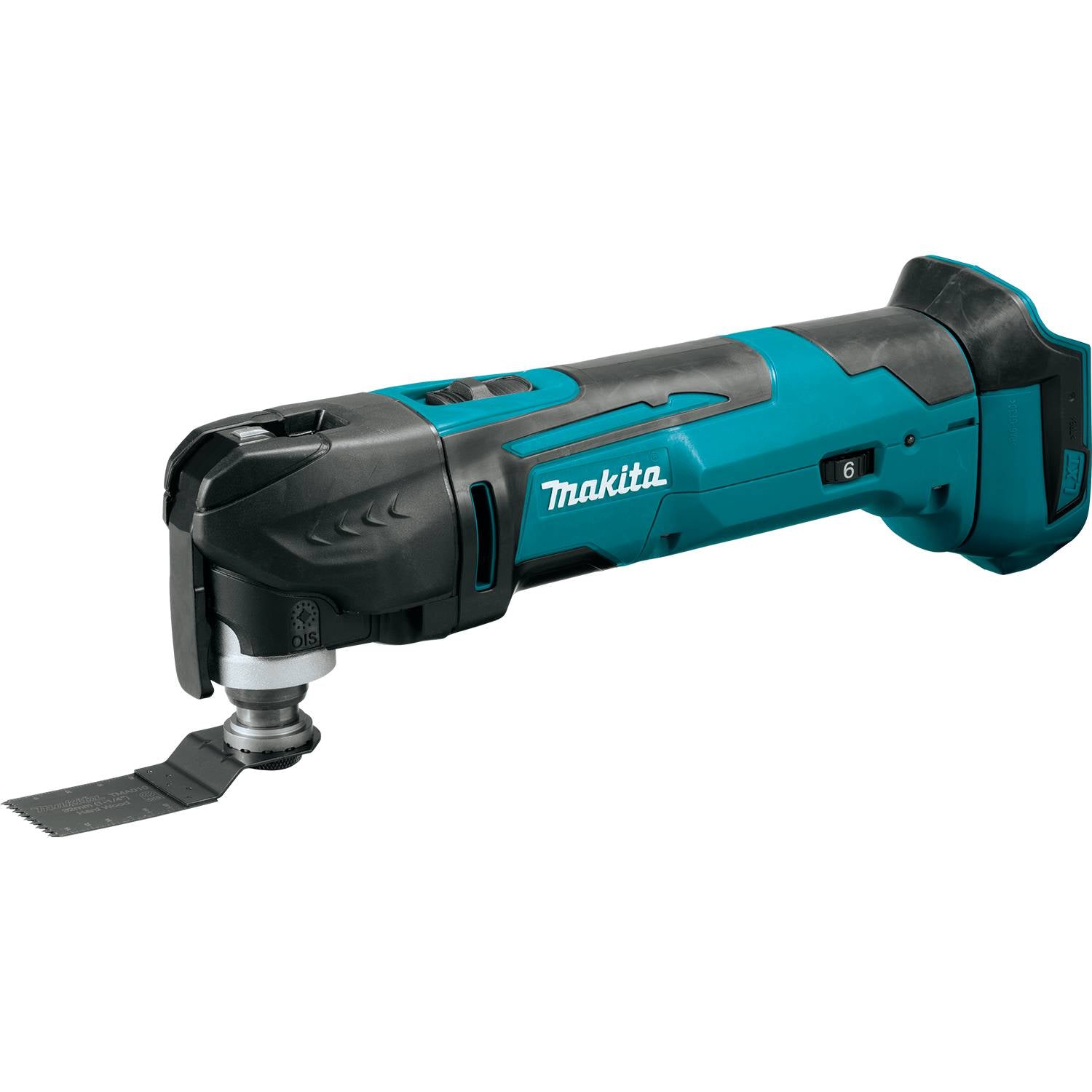

Makita XMT03Z 18V LXT Lithium-Ion Cordless Multi-Tool

Name: Makita XMT03Z 18V LXT Lithium-Ion Cordless Multi-Tool
Brand: Makita
SKU: XMT03Z
Price: 237.80 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Makita SKU: XMT03Z UPC: 088381667708

$237.80 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: XMT03Z

Revision: 2-14

Data Source:
Makita XMT03Z Parts Breakdown (PDF, 886KB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Figure	Quantity	Component	Changed	Description	Notes
1	1.00	455272-6		Upper Head Cover, Xmt03
2	1.00	319059-9		Lever, Tm3010C
3	1.00	313268-2		Turn Block, Tm3010C
4	1.00	911102-6		Pan Head Screw M4X6, Tm3010C
5	1.00	232282-8		Leaf Spring, Tm3010C
6	4.00	266424-2		Tapping Screw 4X20, Tm3000C
7	1.00	268306-4		Pin 5, Tm3010C
8	1.00	326409-1		Holder Bolt, Xmt03
9	2.00	266424-2		Tapping Screw 4X20, Tm3000C
10	1.00	454635-3		Lower Head Cover, Tm3010C
11	1.00	213343-3		Spo Ring 35, Fs2701
12	1.00	326347-7		Bearing Box, Tm3010C
13	1.00	961003-8		Retaining Ring S-7, Lxmt02
14	1.00	211392-4		Sphere Bearing, Tm3000C
15	1.00	253133-2		F. Washer 7, Lxmt02
16	1.00	313245-4		Balancer, Tm3000C
17	1.00	211092-6		B. Bearing 629Ddw, Bo4556
18	1.00	285857-2		Bearing Retainer, Tm3000C
19	1.00	240140-4		Fan 46, Tm3000C
20	1.00	519338-7		Armature Ass'Y, Xmt03
21	1.00	210023-2		Ball Bearing 627Ddw, Rt0701C
22	1.00	455017-2		Baffle Plate, Xmt03
23	1.00	632B69-4		Yoke Unit, Xmt03
24	1.00	632B88-0		Brush Holder Cpl., Xmt03
27	1.00	632B89-8		Brush Holder Cpl., Xmt03
30	1.00	455013-0		Motor Housing, Xmt03
31	1.00	455016-4		Switch Knob, Xmt03
32	1.00	455015-6		Switch Lever, Xmt03
33	1.00	234263-8		Compression Spring 5, Tm3000C
34	1.00	255058-6		Rivet 2, 9227C
35	1.00	233002-3		Compression Spring 3,9227C
36	1.00	455018-0		Switch Case, Xmt03
37	1.00	651423-1		Switch, Hm1307Cb
38	1.00	620270-1		Controller, Xmt03
39	1.00	271617-8		Dial 28, Lxmt02
40	1.00	142617-4		Handle Cover Cpl., Xmt03
41	1.00	643852-2		Terminal, Lxfd01Cw
42	1.00	424476-1		Cushion, Xph03
43	1.00	263036-2		Rubber Pin 5, Btw251
44	1.00	268184-2		Pin 1.5, Btw251
45	1.00	424473-7		Cushion Rubber, Lxmt02
46	1.00	187848-8		Battery Housing Set, Xmt03
47	1.00	142502-1		Crank Housing Cpl., Xmt03
48	2.00	266424-2		Tapping Screw 4X20, Tm3000C
49	1.00	424473-7		Cushion Rubber, Lxmt02
50	1.00	187848-8		Battery Housing Set, Xmt03
51	1.00	815M49-3		Xmt03 Name Plate
52	4.00	266429-2		Tapping Screw 3X16, Bcl180Zw
53	1.00	423404-3		Sponge Sheet, Xmt03

Electrical
Amperage:

Battery System:

18V LXT

Contact Form:

Frequency:
Protection Type:

Terminal Type:

Voltage:

18VDC
