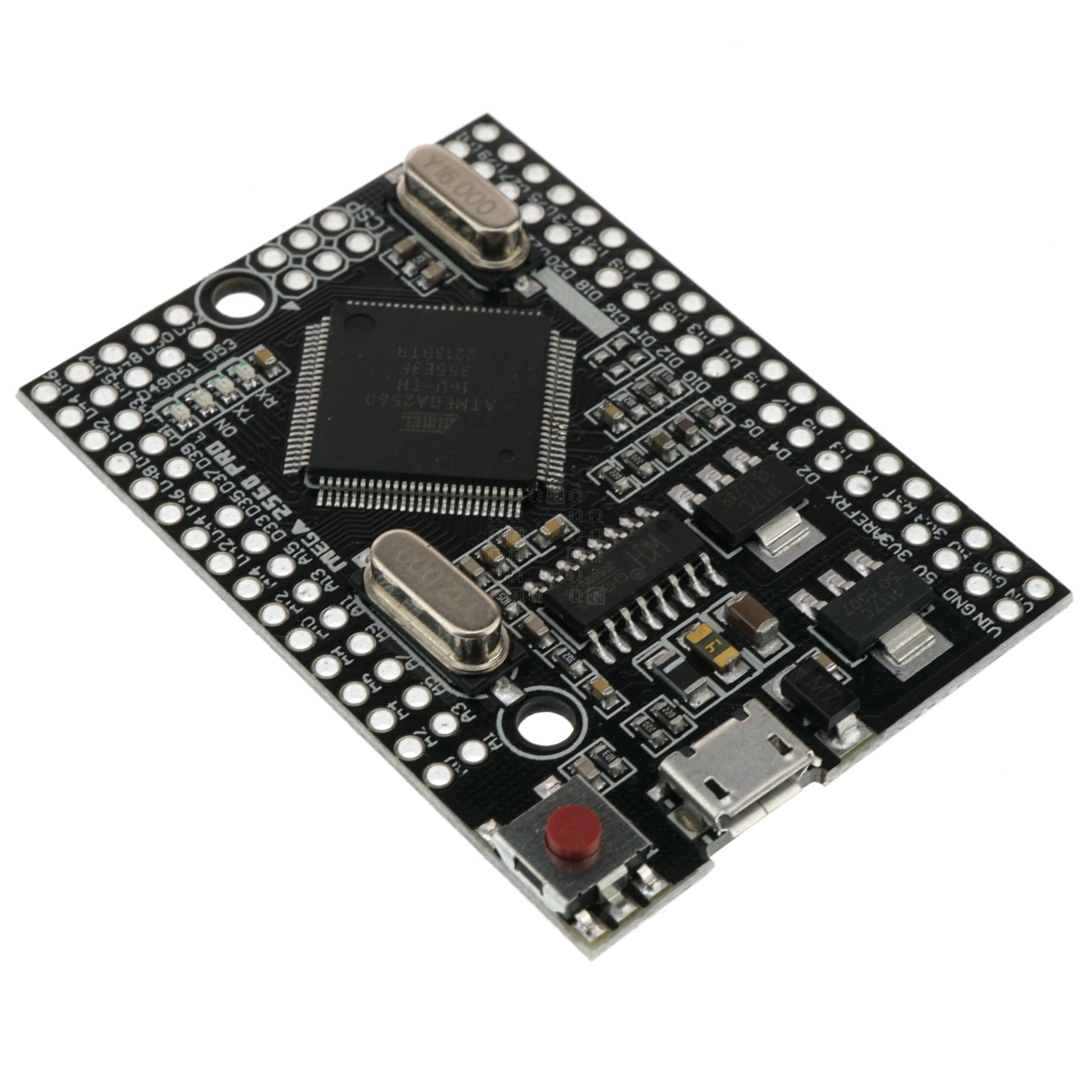

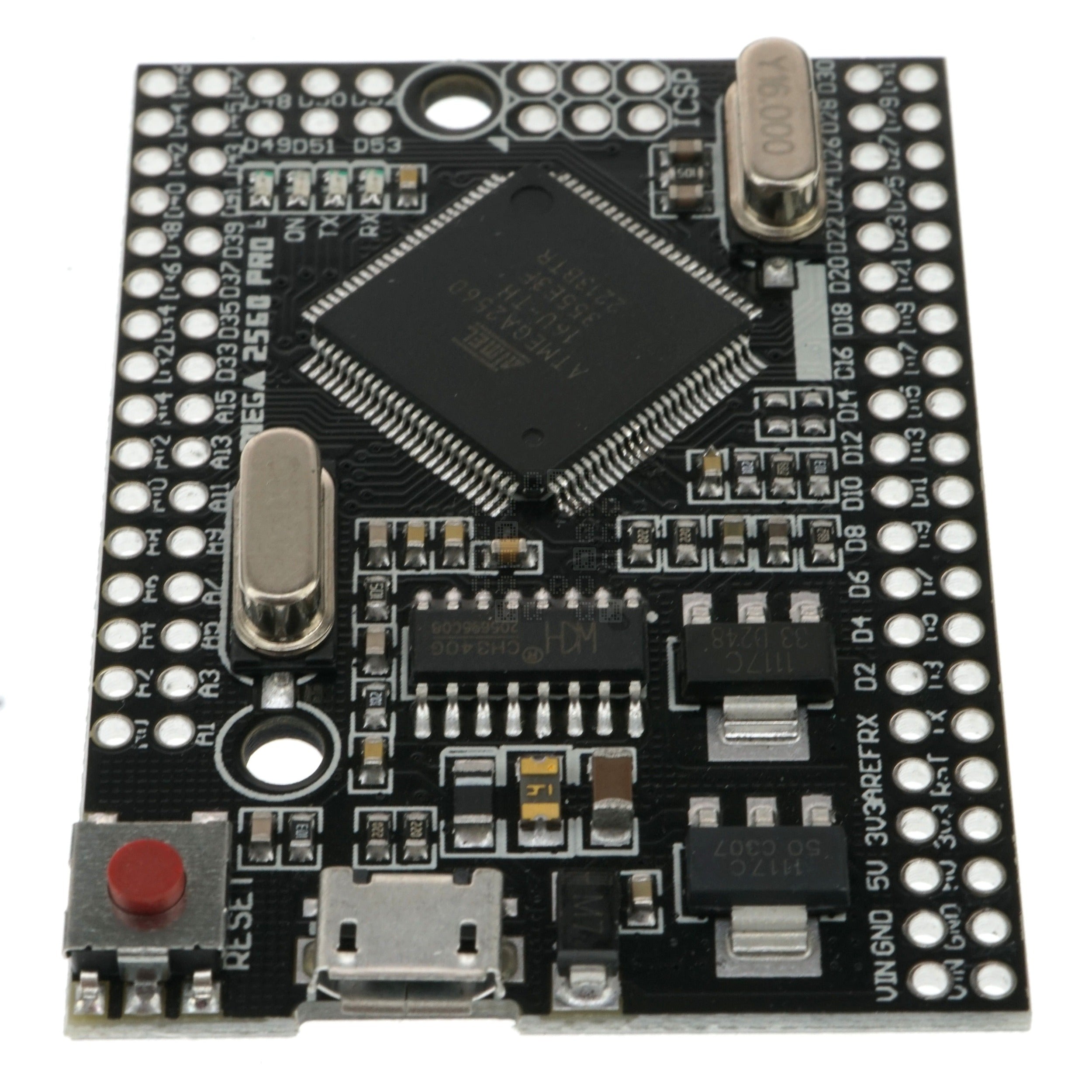

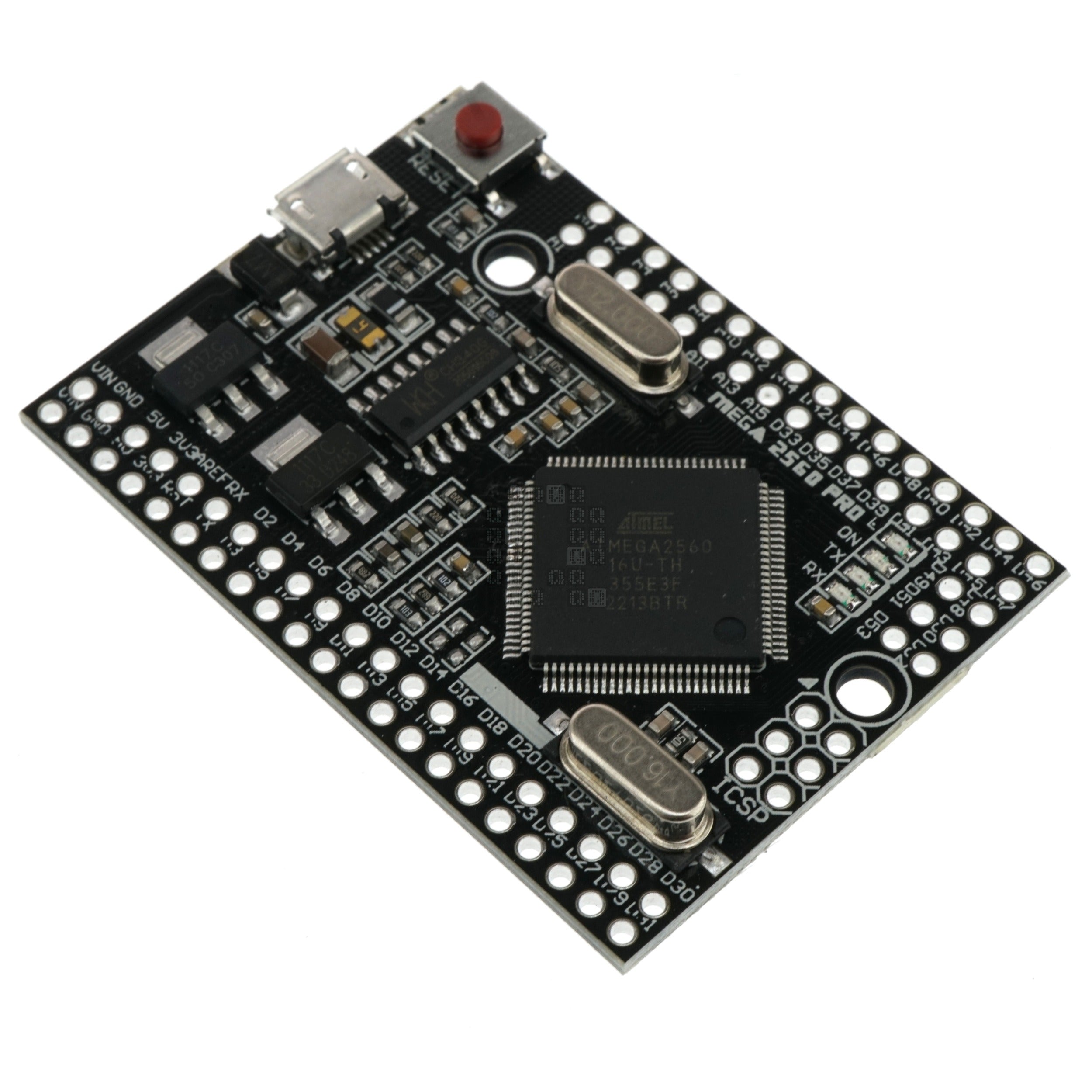

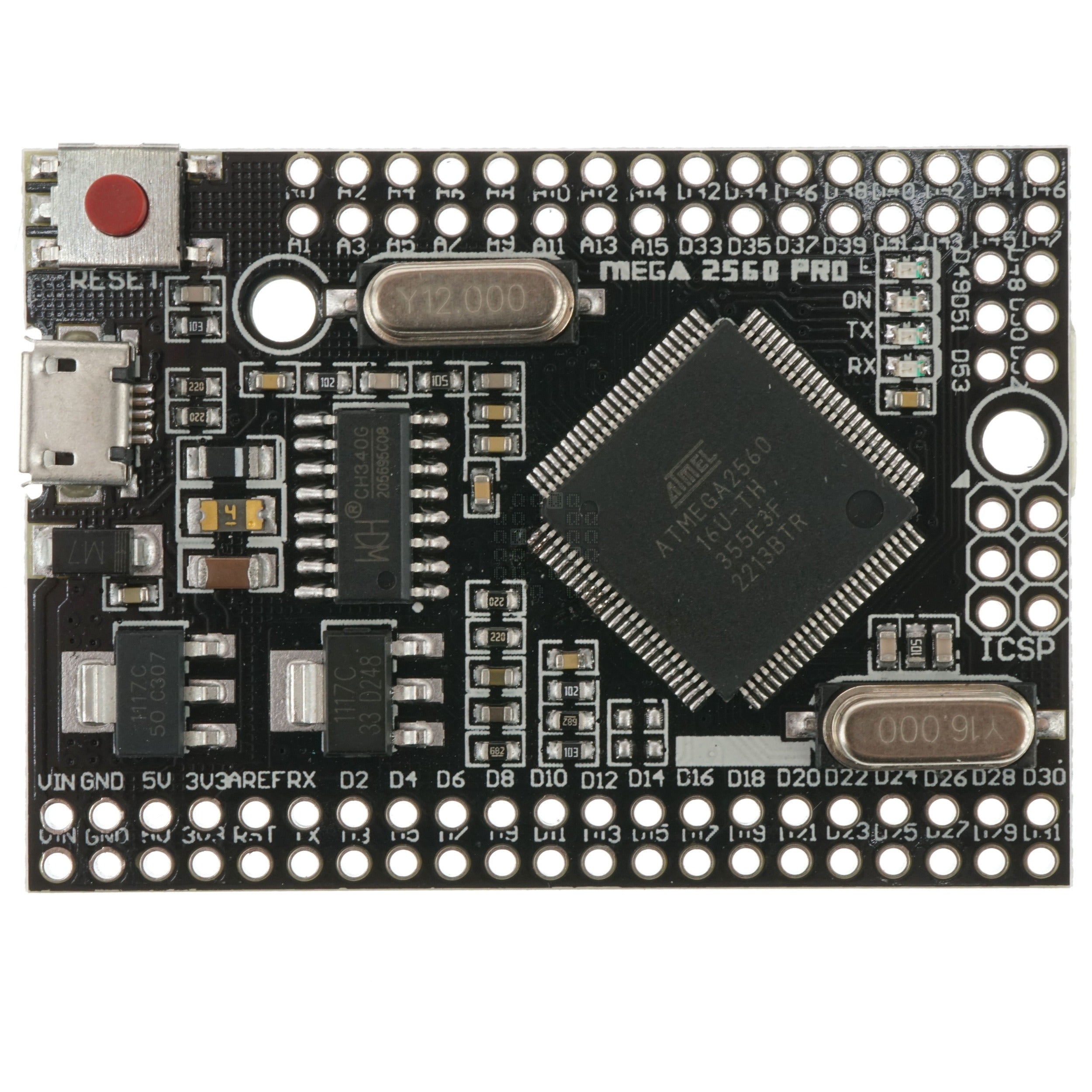

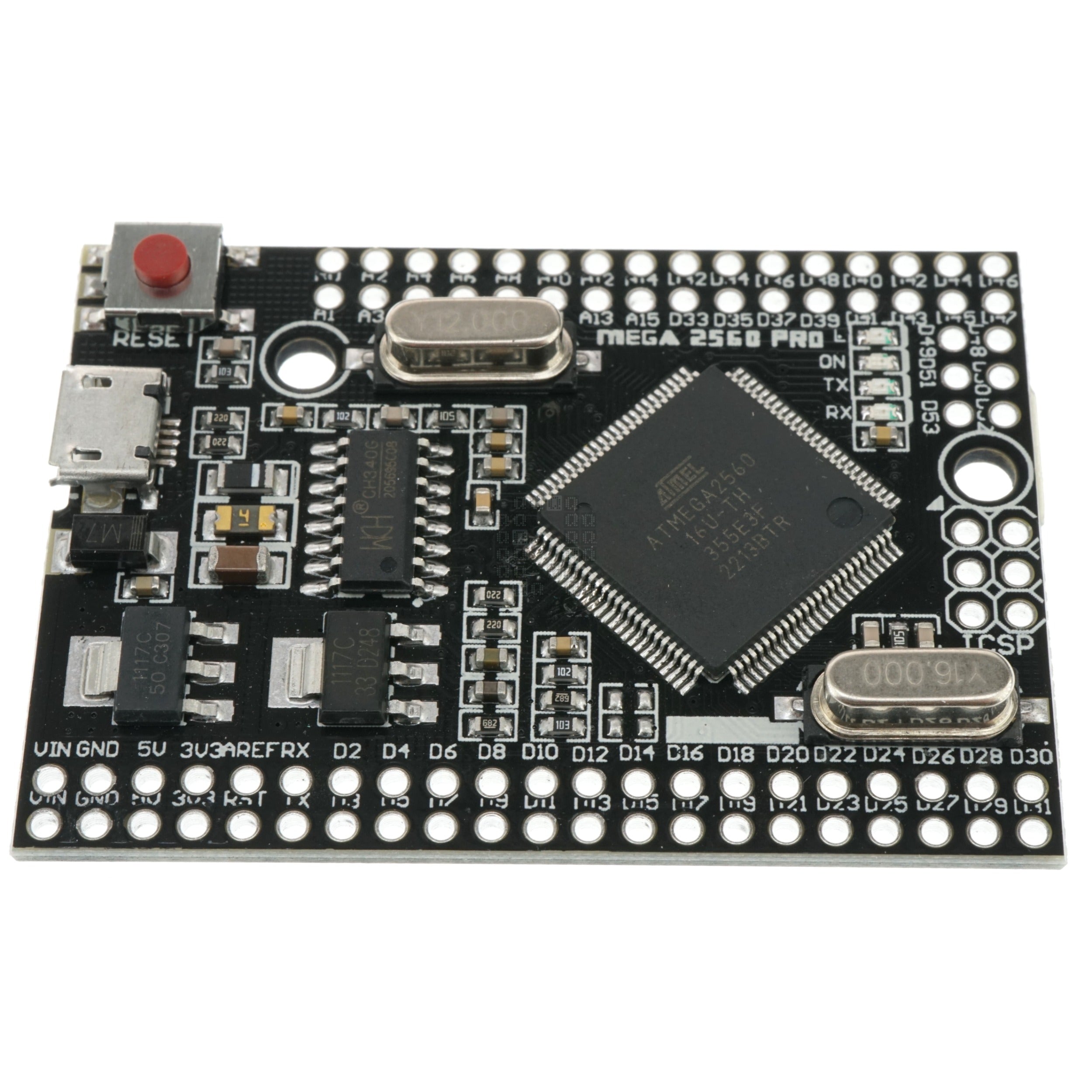

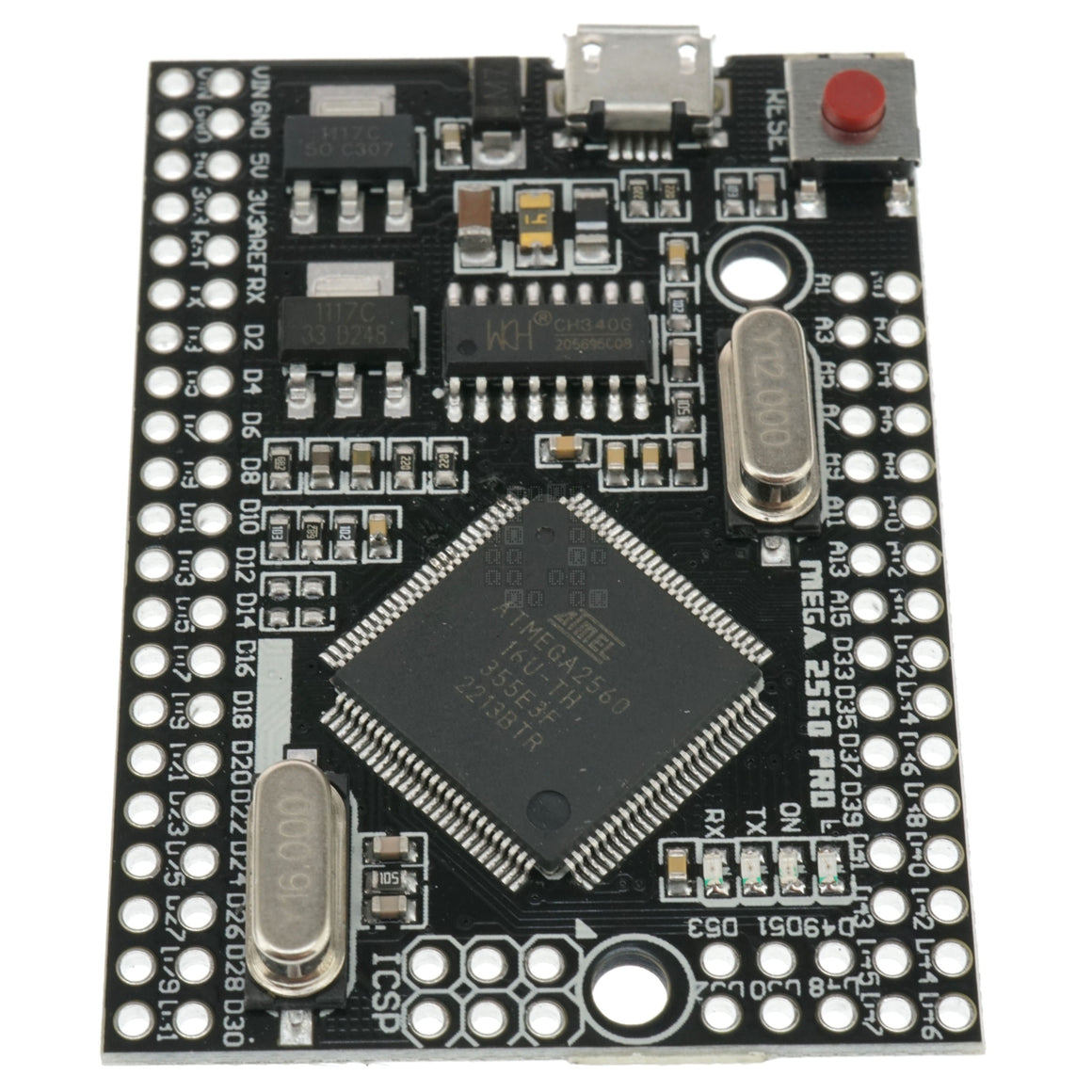

Brand Unbranded

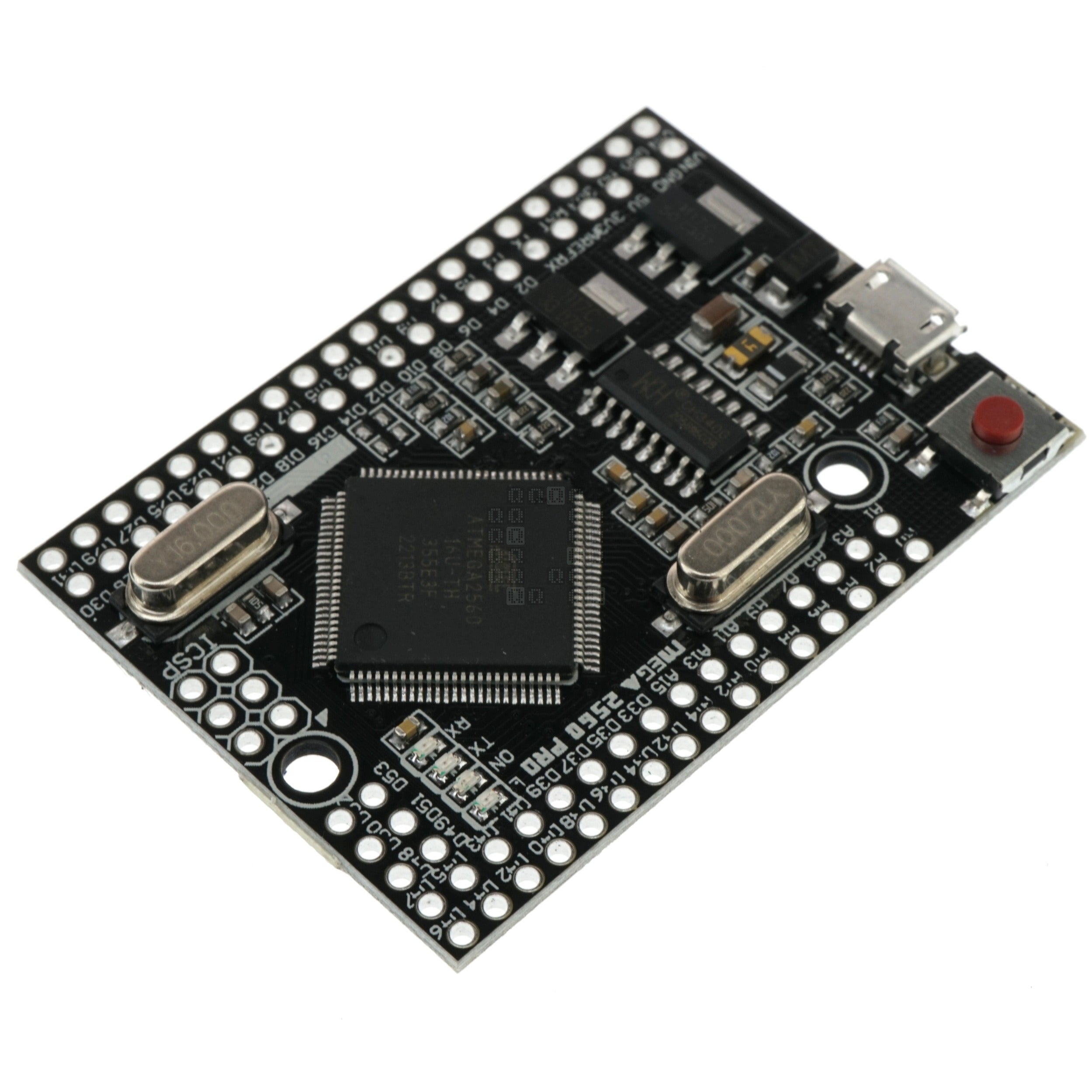

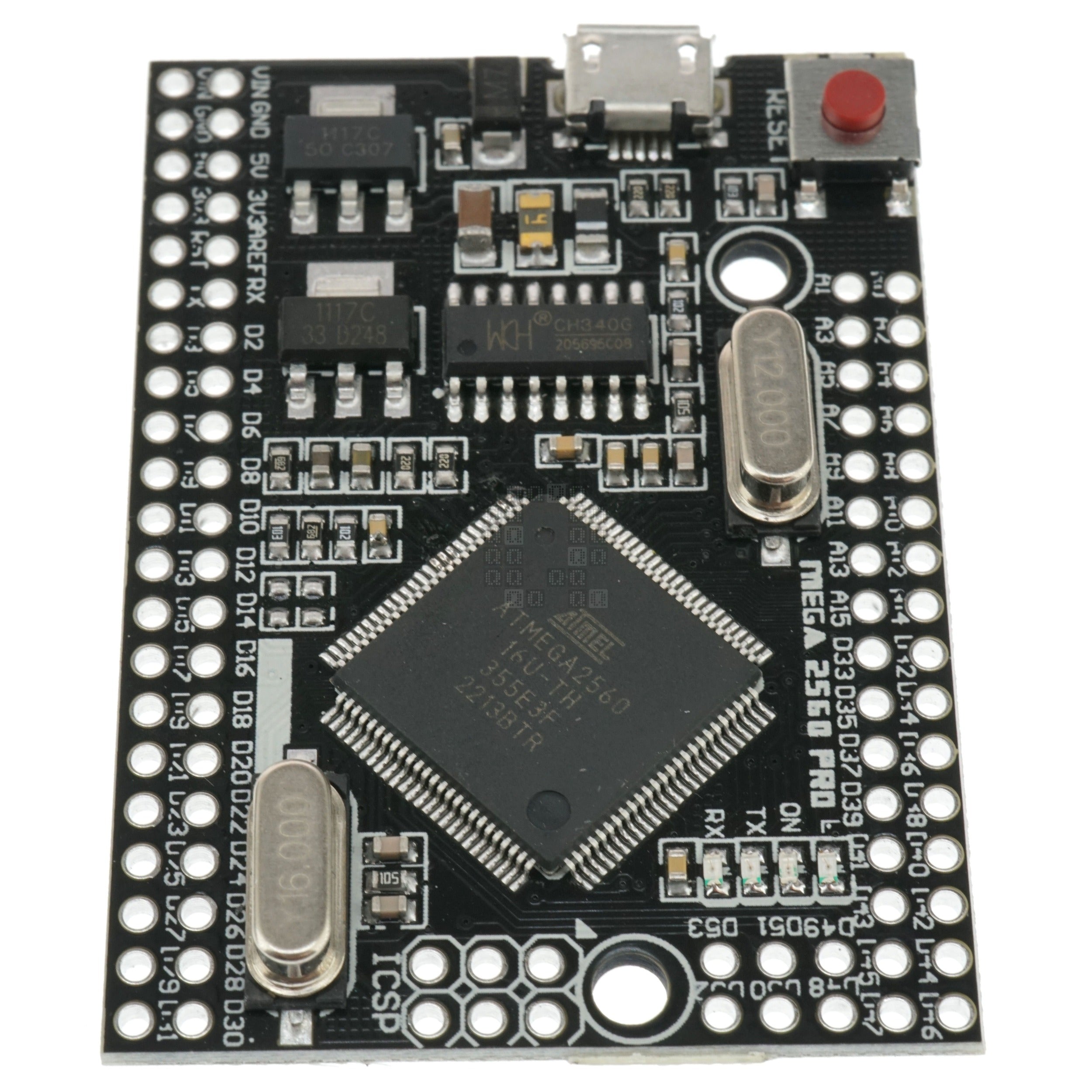

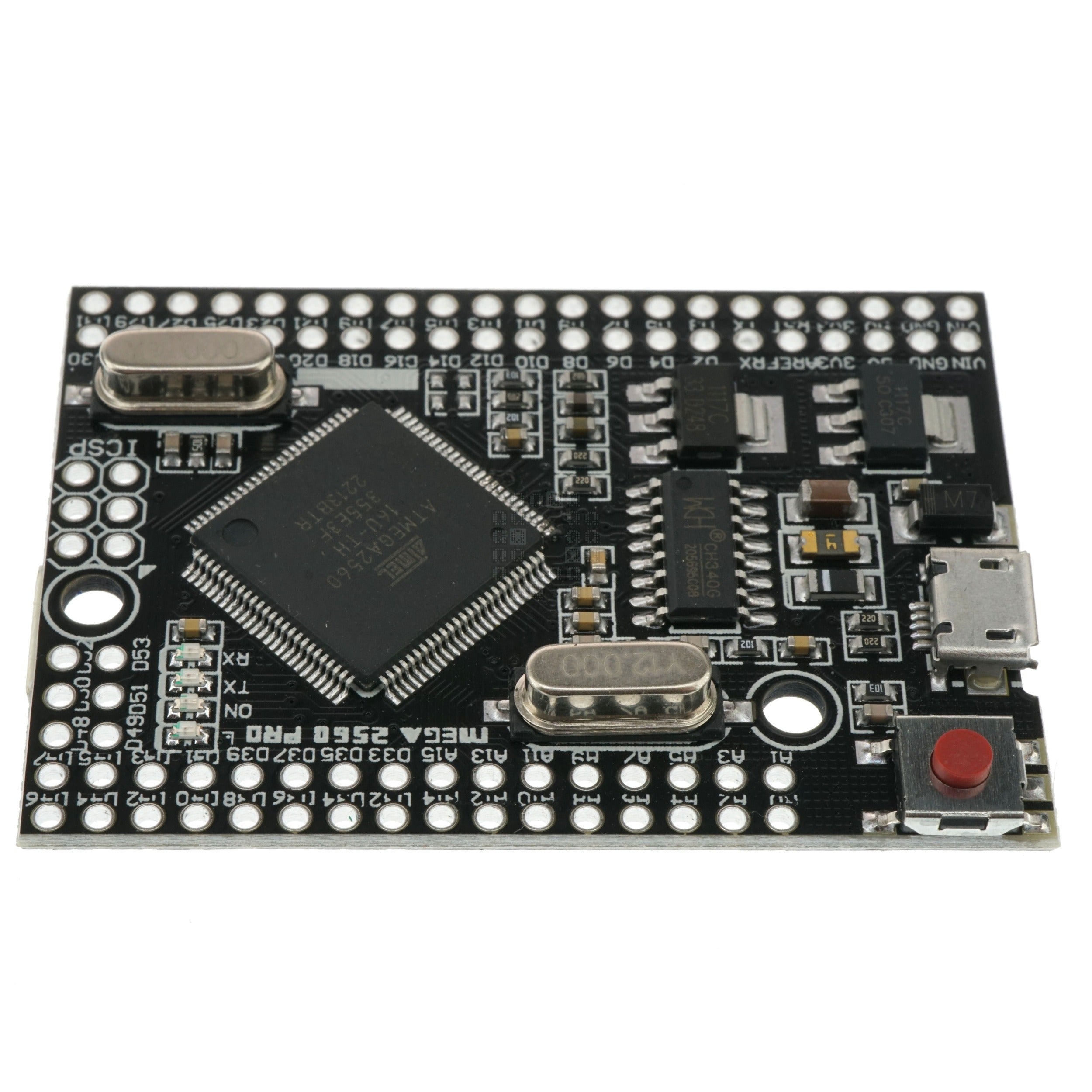

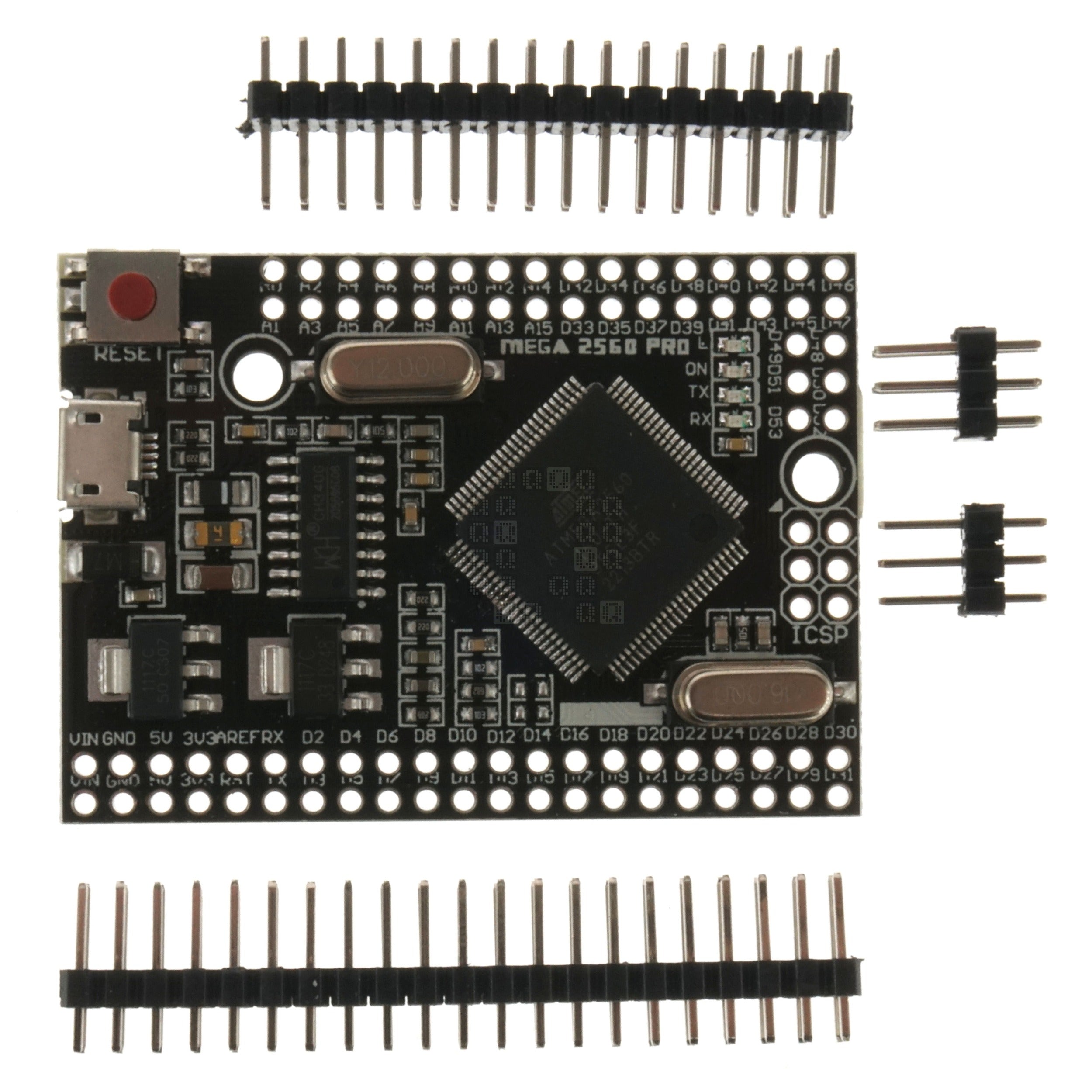

Manufacturer Part Number MEGA2560PRO

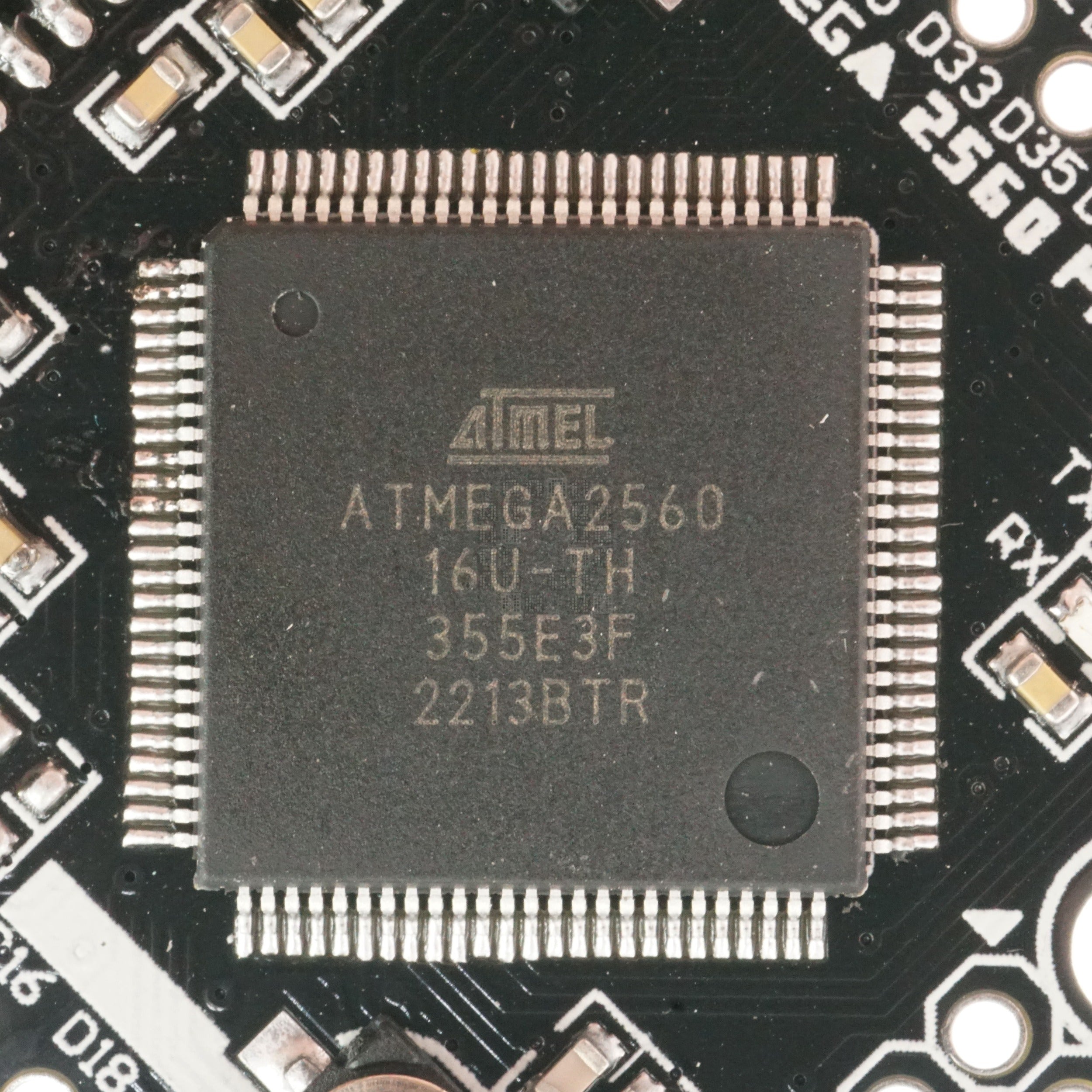

Microcontroller ATMEGA2560-16U-TH

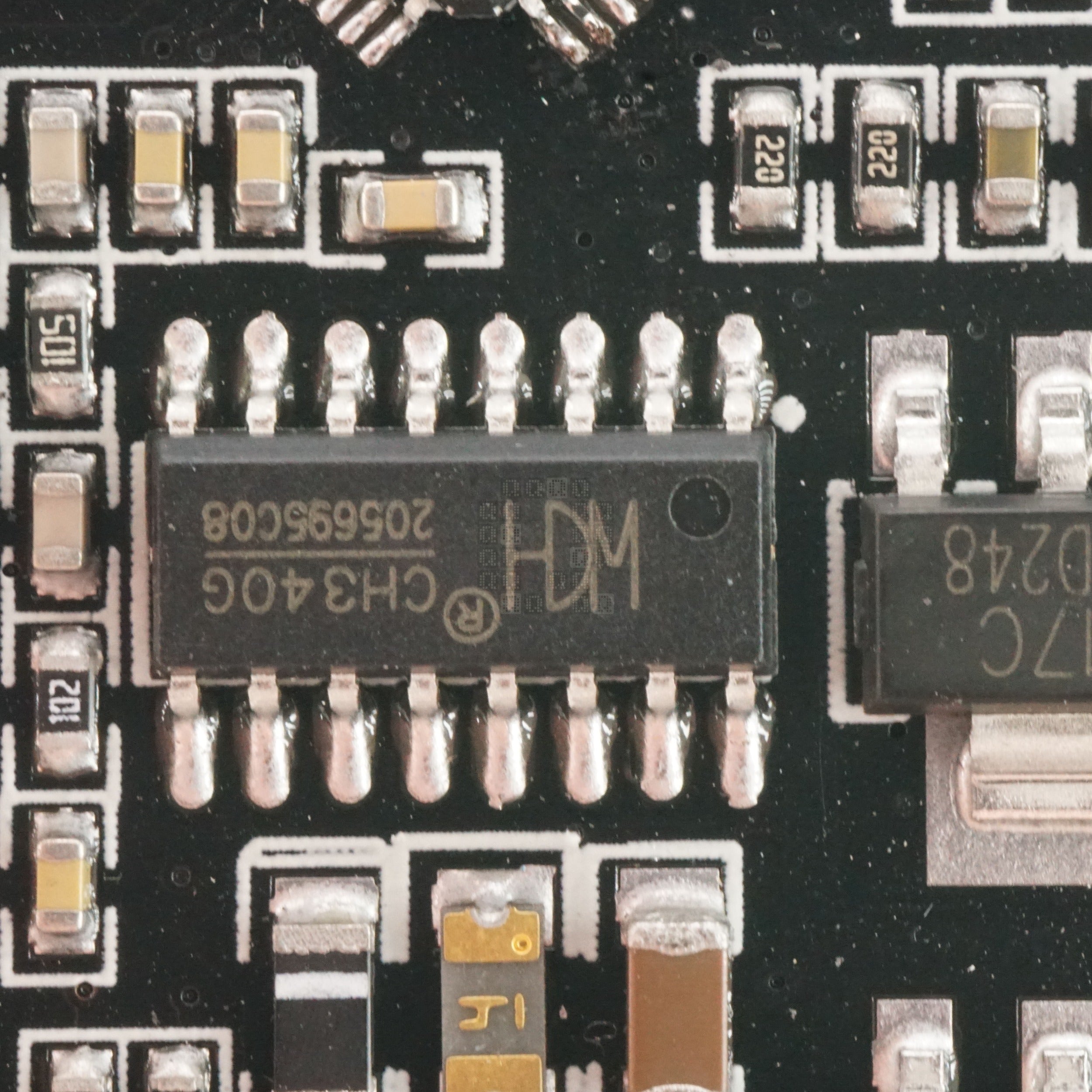

USB to Serial CH340G
Voltage 3.3 to 5VDC
7-12VDC
I/O Pins 54

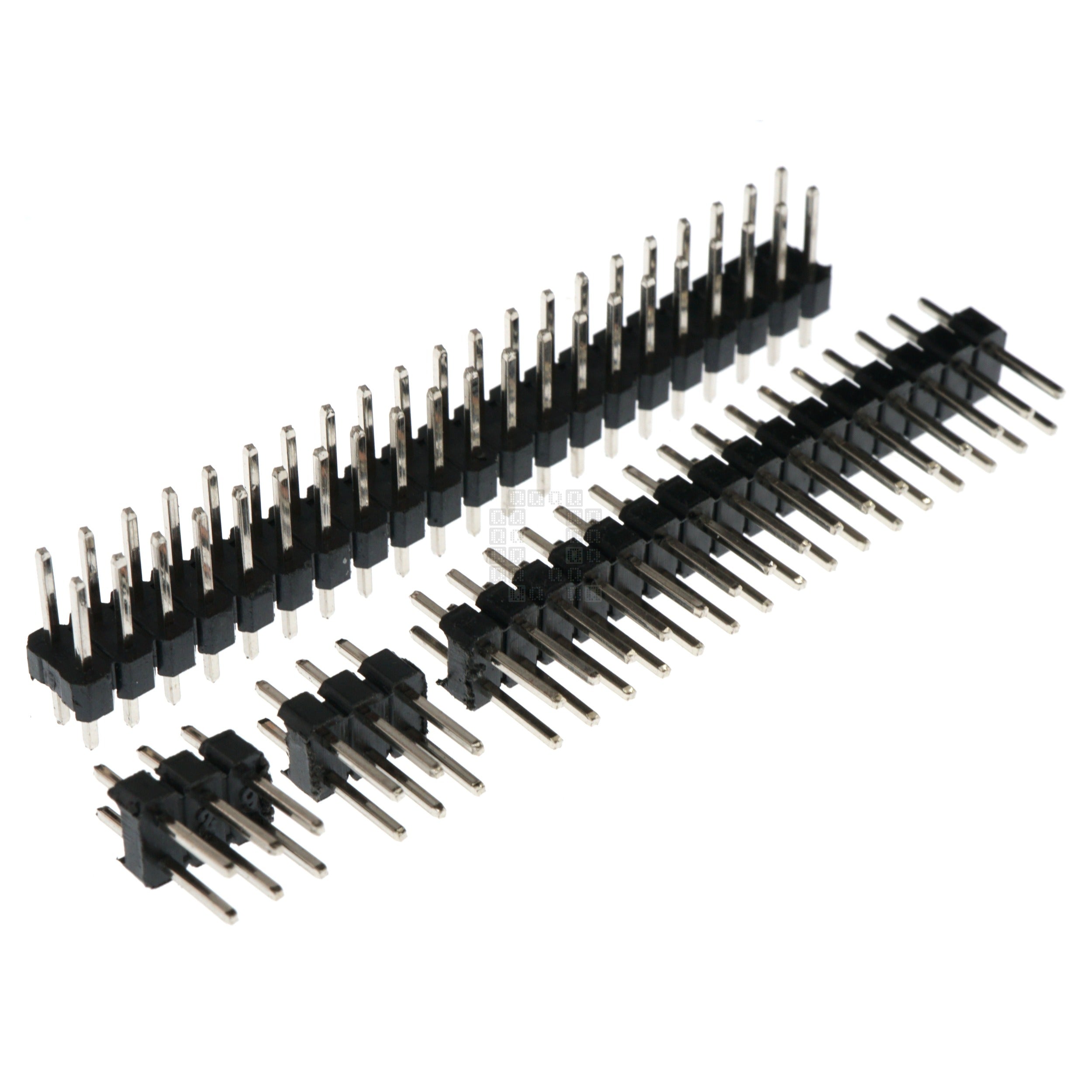

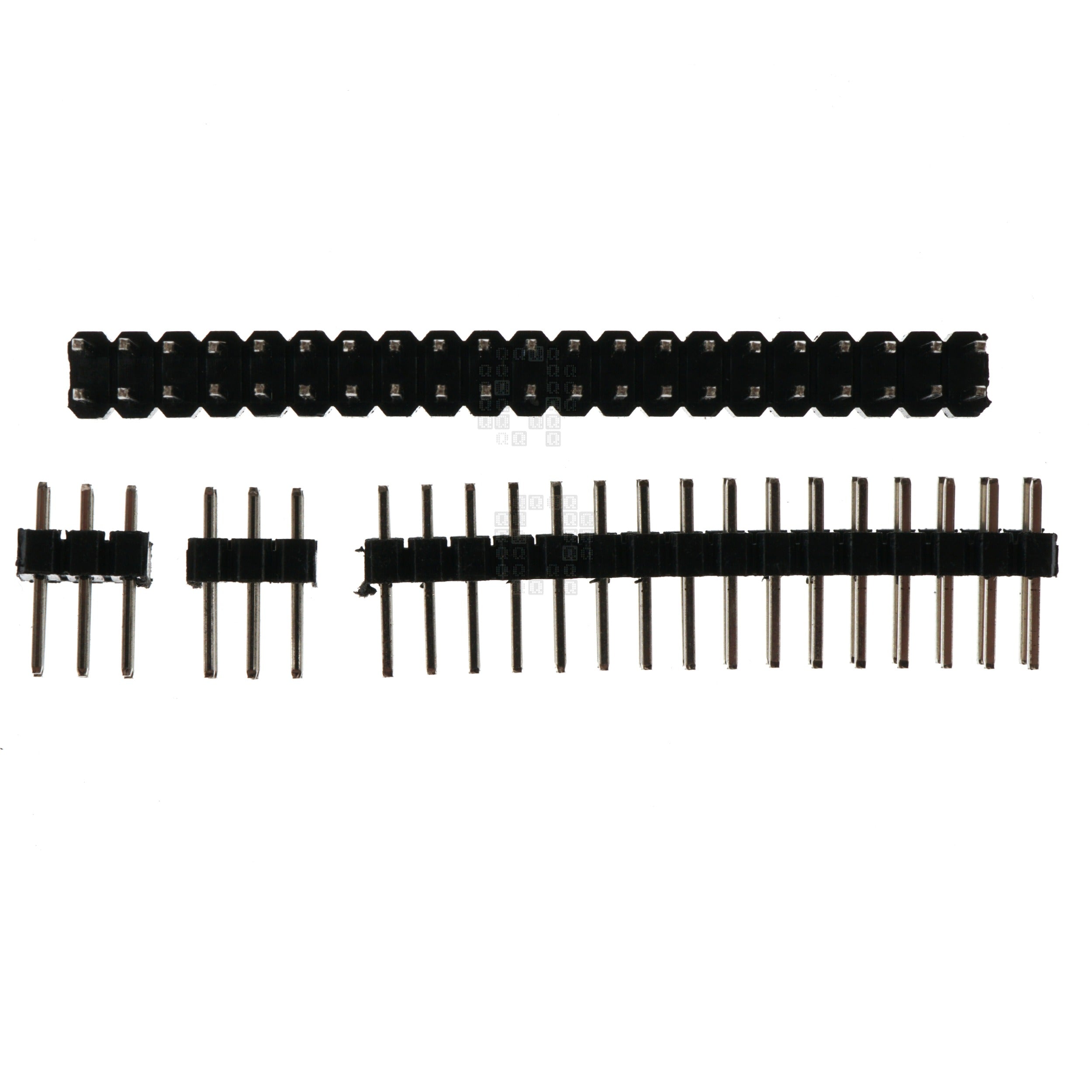

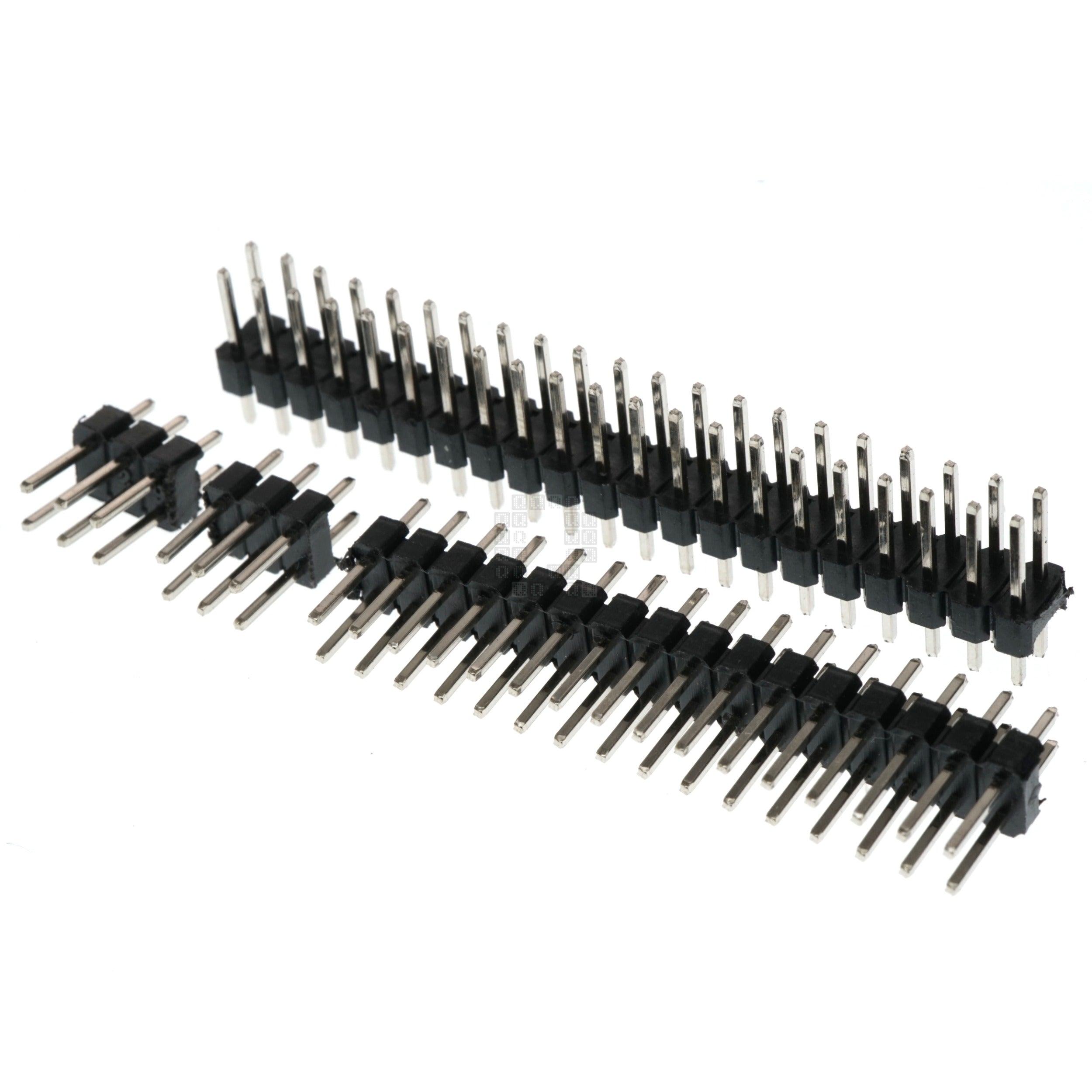

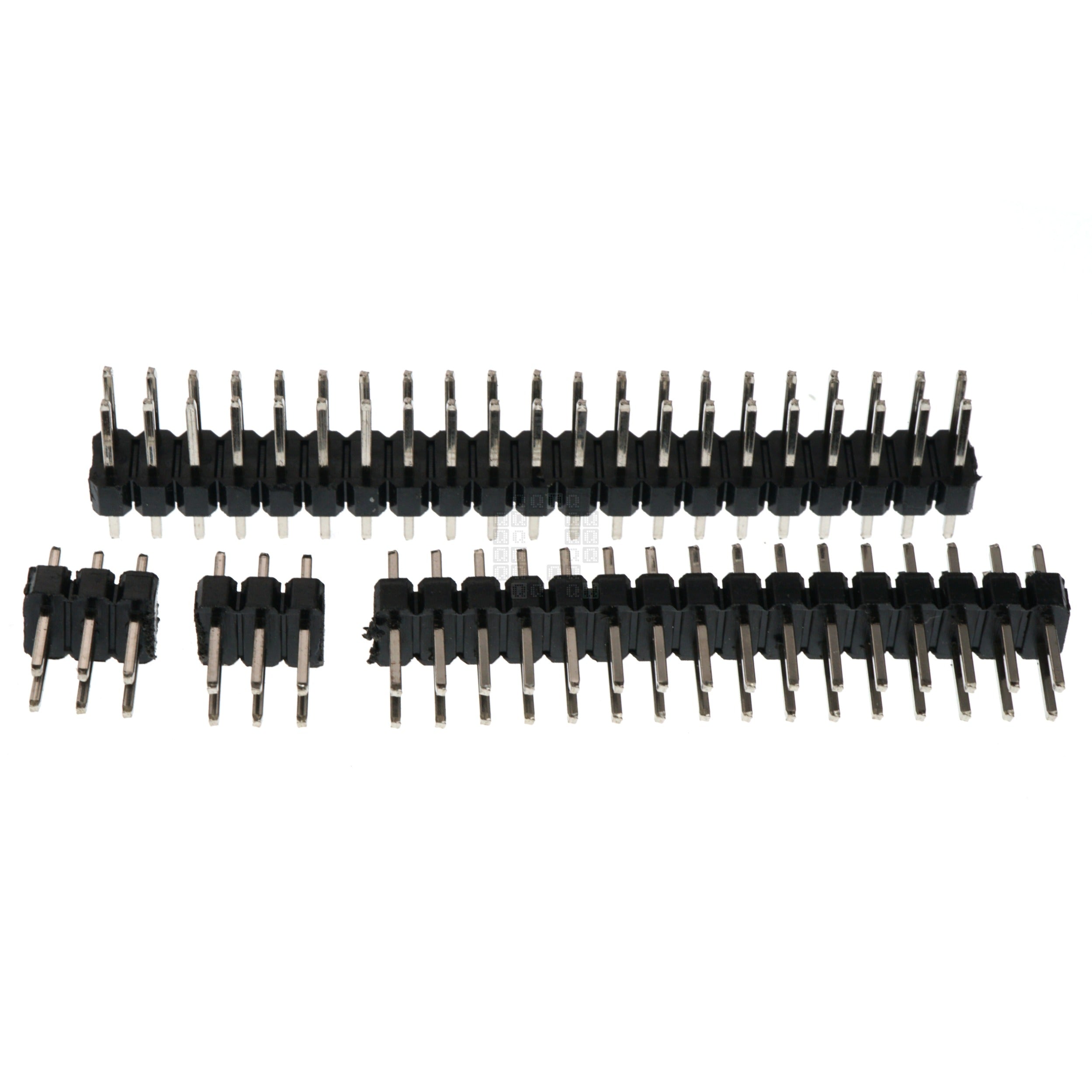

Headers Two (2) 2x3 (6-Pin)
One (1) 2x16 (32-Pin)
One (1) 2x21 (42-Pin)
Male, Straight
0.100" (2.54mm) Pitch
Flash 256KB Total
8KB used for Bootloader
SRAM 8KB
EEPROM 4KB
Clock 16Mhz
LEDs L (D13)
On (Power)
TX (Transmit)
RX (Receive)
Pushbutton Reset

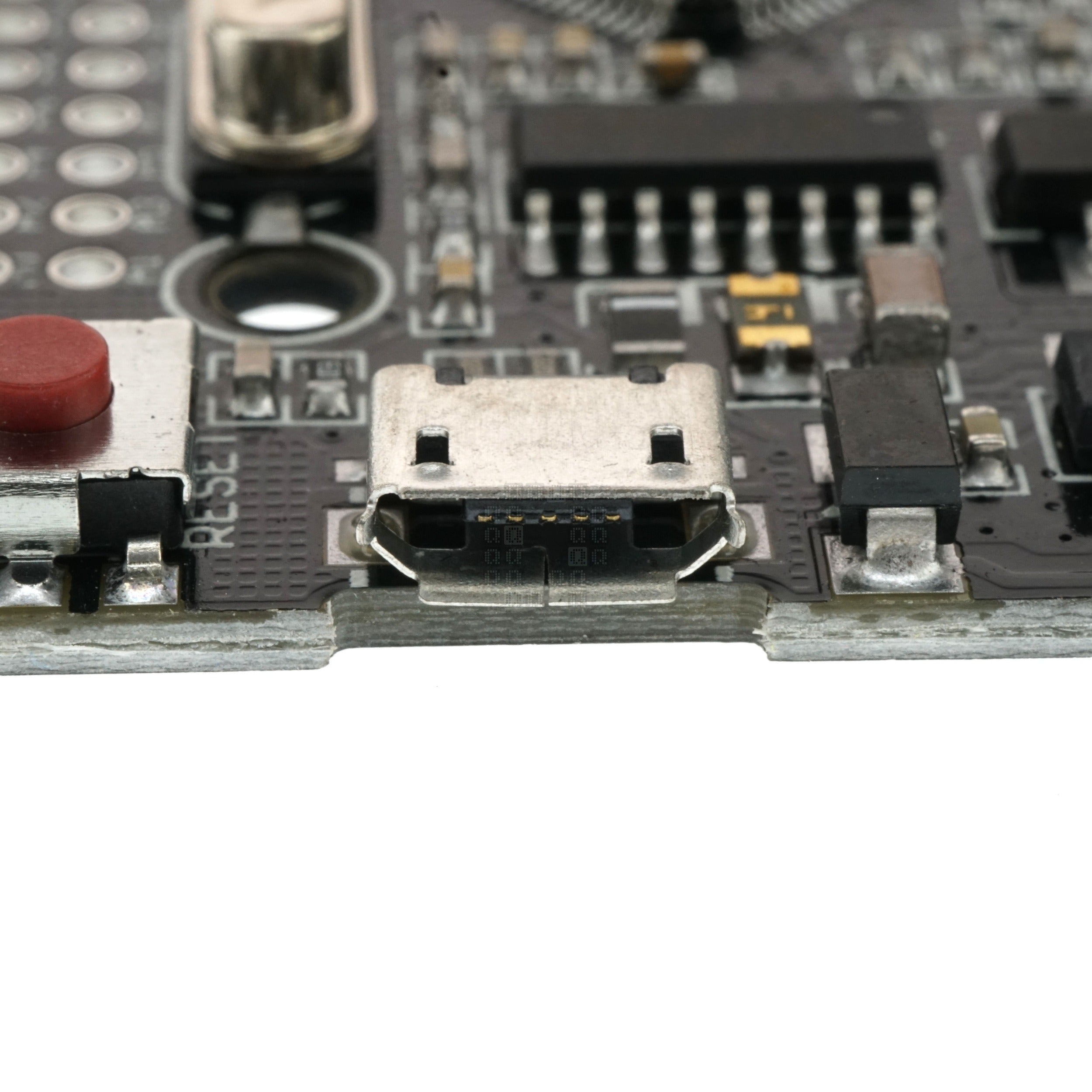

USB Female Micro-USB
Dimensions 2.135" x 1.515"
UPC N/A
Country of Origin China
Notes New.
Sanni Cart Reader HW5 compatible
