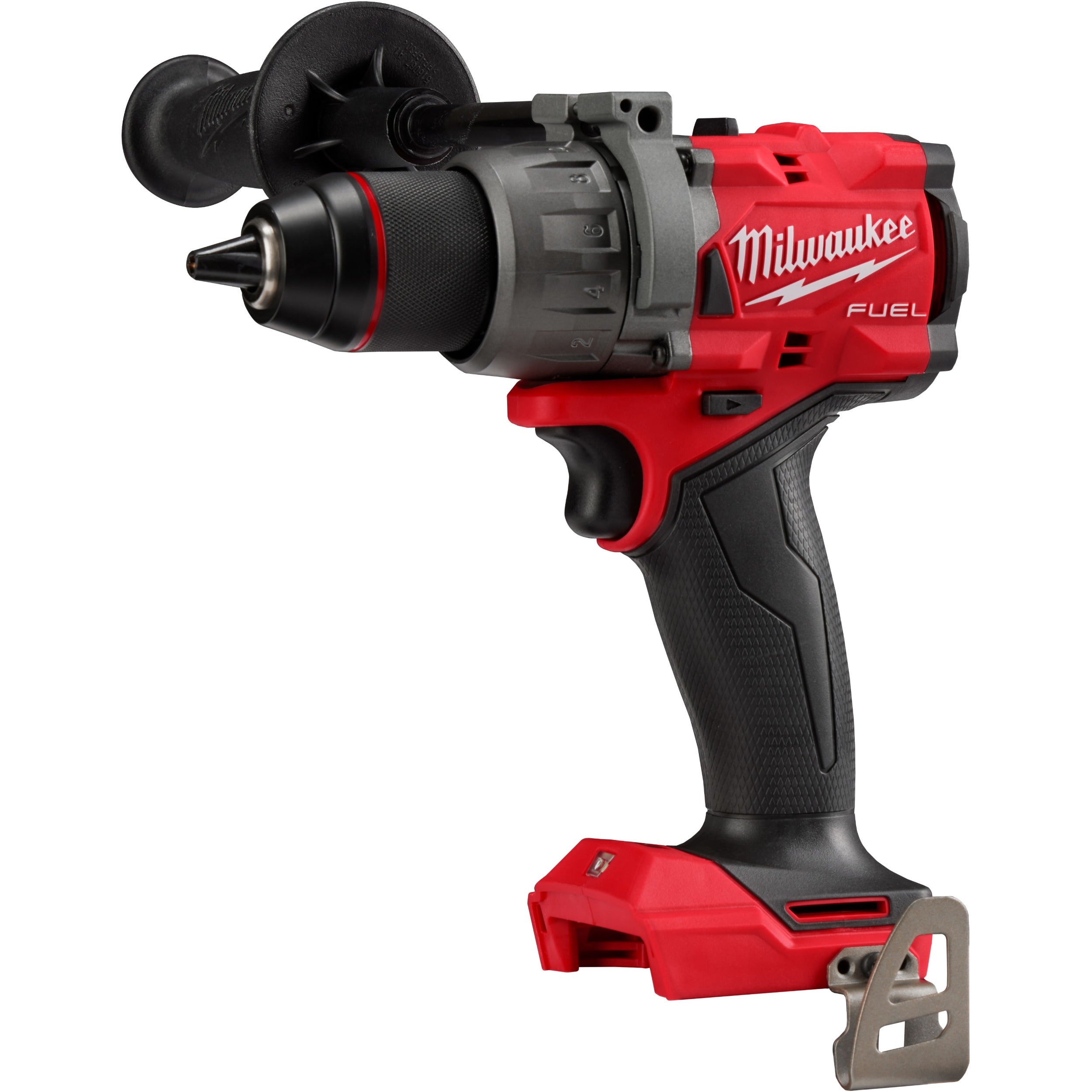

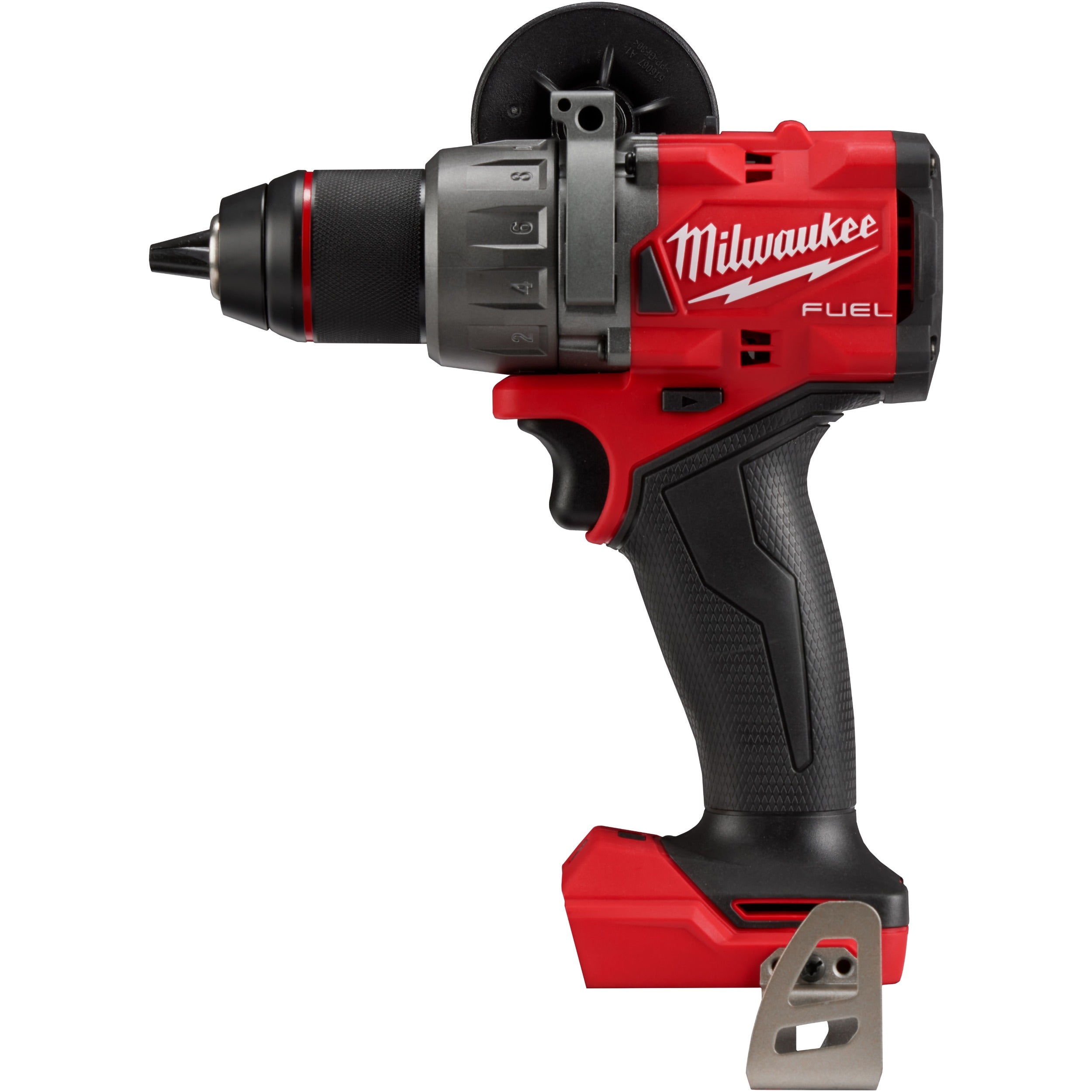

Milwaukee Tool 2904-20 M18 FUEL Brushless Hammer-Drill

Name: Milwaukee Tool 2904-20 M18 FUEL Brushless Hammer-Drill
Brand: Milwaukee Tool
SKU: 2904-20_M64A
Price: 342.00 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2904-20_M64A UPC: 045242637720

$342.00 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2904-20

For Serial Numbers starting with M64A

Revision: February 2022

Data Source: Milwaukee 2904-20 Service Parts List, Serial M64A (PDF, 1.83MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Figure	Quantity	Component	Changed	Description	Notes
1	1.00	05-88-0019		Chuck Screw, M8.0-1.00 Lh, T-40
2	1.00	42-66-1006		1/2" Chuck
13	1.00	06-82-7336		#4 3/4" Plas Screwtorx
14	1.00	06-82-7337		Screw/Washer
16	1.00	42-42-3001		Plastic, Reversing Shuttle
17	1.00	45-24-1045		Shift Spring
19	1.00	---		Left Housing Half – Support
20	1.00	---		Belt Clip
21	1.00	06-82-2500		#6-32 X 5/16" Slotted T-15 Torx Machine Screw
31	1.00	---		Secondary Clamp Body
32	1.00	---		Primary Clamp Body
33	1.00	---		Threaded Side Handle
34	1.00	44-10-4002		Speed Selector
35	1.00	40-50-9001		Detent Spring
36	1.00	---		Right Housing Half – Cover
38	1.00	---		Bit Holder with Clip
39	1.00	06-82-6350		T10 M3 Handle Screw
40	1.00	06-82-2367		M3 X 38Mm Pan Head Self-Tapping T10 Torx Screw
43	1.00	12-20-0478		Service Nameplate
50	1.00	43-72-0950		Bit Holder Assembly
51	1.00	31-44-1004		Housing Assembly
52	1.00	42-70-0950		Belt Clip Kit
53	1.00	14-29-1014		Gear Train Assy
54	1.00	16-07-1016		Armature/Rotor/Backplate Assembly
55	1.00	14-20-1120		Stator & Pcba Assembly
56	1.00	42-62-1002		Side Handle Assembly
57	1.00	42-55-9005		Blow Molded Carrying Case
	1.00	10-20-1048		Warning Label

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:
Protection Type:

Terminal Type:

Voltage:

18VDC

Packaging & Dimensions:
Inside Diameter:

Outside Diameter:

Overall Length:

6.900 in

Packaging Type:

Package Length:

Package Width:

Package Height:

Sold As:Each

Threads
Flute Direction:

Number of Flutes:

Pitch:

Thread Size:

Thread Direction:

TPI:

Milwaukee Tool

Milwaukee Electric Tool Corporation, more commonly known as Milwaukee Tool or simply Milwaukee, is an American company that develops, manufactures and markets power tools, hand tools, tool accessories, tool storage and personal protective equipment. The company operates as an independent subsidiary of TTI Group alongside brands like AEG, Ryobi, Hoover, Dirt Devil, and Vax.

Milwaukee tools are manufactured globally in China, Germany, Mexico, the United States and Vietnam. Their product line includes corded and cordless power tools, hand tools, pliers, hand saws, screwdrivers, utility knives, impact drivers, and much more. They also distribute various other tools such as multimeters, thermal imaging equipment, oscillating multi-tools, drilling devices, chargers. Well-known Milwaukee Tool trademarks include M12, M18, MX FUEL, and PACKOUT.

Links:

Milwaukee Tool - The Milwaukee Story
Milwaukee Tool - Registration & Warranty
Milwaukee Tool - Manuals & Downloads
Milwaukee Tool - e-Service Tool Repair

Handling:

Most orders are shipped within 2 business days.

Carriers & Shipping Services:

USPS:
- Typical pickup time is around 1PM EST.
- USPS Ground Advantage: (Continental USA) Typically 2-5 business days. Up to 70lbs. $100 Insurance & Tracking included. More info at USPS.
- USPS Priority Mail: (Continental USA) Typically 1-3 business days. Up to 70lbs. $100 Insurance & Tracking included. More info at USPS.
- USPS Priority Mail International (Canada Only): Typically 6-10 business days. Up to 70lbs. $200 Insurance and Tracking included. More info at USPS.
- USPS First-Class Package International (Canada Only): Up to 4lbs. No Insurance. Tracking in USA. Delivery Confirmation. More info at USPS.

UPS
- Typical pickup time is around 3-5PM EST.
- UPS Ground: (Continental USA) Typically 1-5 business days. Up to 150lbs. $100 Insurance & Tracking included. More info at UPS.
- UPS Worldwide Saver (Canada Only): Typically 1-3 business days. $100 Insurance & Tracking included. More info at UPS.

Local pickups are not available at this time. (We don't have a physical storefront.)

All applicable duties, provincial sales taxes (PST), harmonized sales taxes (HST), goods and services taxes (GST), tariffs, etc are to be paid & remitted by the purchaser. These taxes are not calculated, prepaid or otherwise included in the sale of any goods or services purchased on this website.

Shipping Holidays:

Estimated Delivery Maps:

USPS Ground Advantage

USPS Priority Mail

UPS Ground

Unsorted:
Warranty:

5 Year Limited

Location:
Condition:New
Capacitance:

Branding:

Bolt Clearance:

Finish:

Application:

Theme:

Gauge:

BPM:0 to 33,000
Abrasive:

Material:

Thread Direction:

Input Drive:

Drive Type:

Shape:

Mounting Type:

Point Type:

System of Measurement:

Point Angle:

Shank:

Output Drive:

Operating Temperature Minimum °C:

Operating Temperature Maximum °C:

Operating Temperature Minimum °F:

Operating Temperature Maximum °F:

Outlet:

Nut Depth:

Socket Shape:

Standard:

Inlet:

Head Type:

Speed:

0 to 2,100

Pressure:

Grit:

Cross Section:

Torque:

1,400 in-lbs

Gauge:

Brush Width:
Brush Height:
