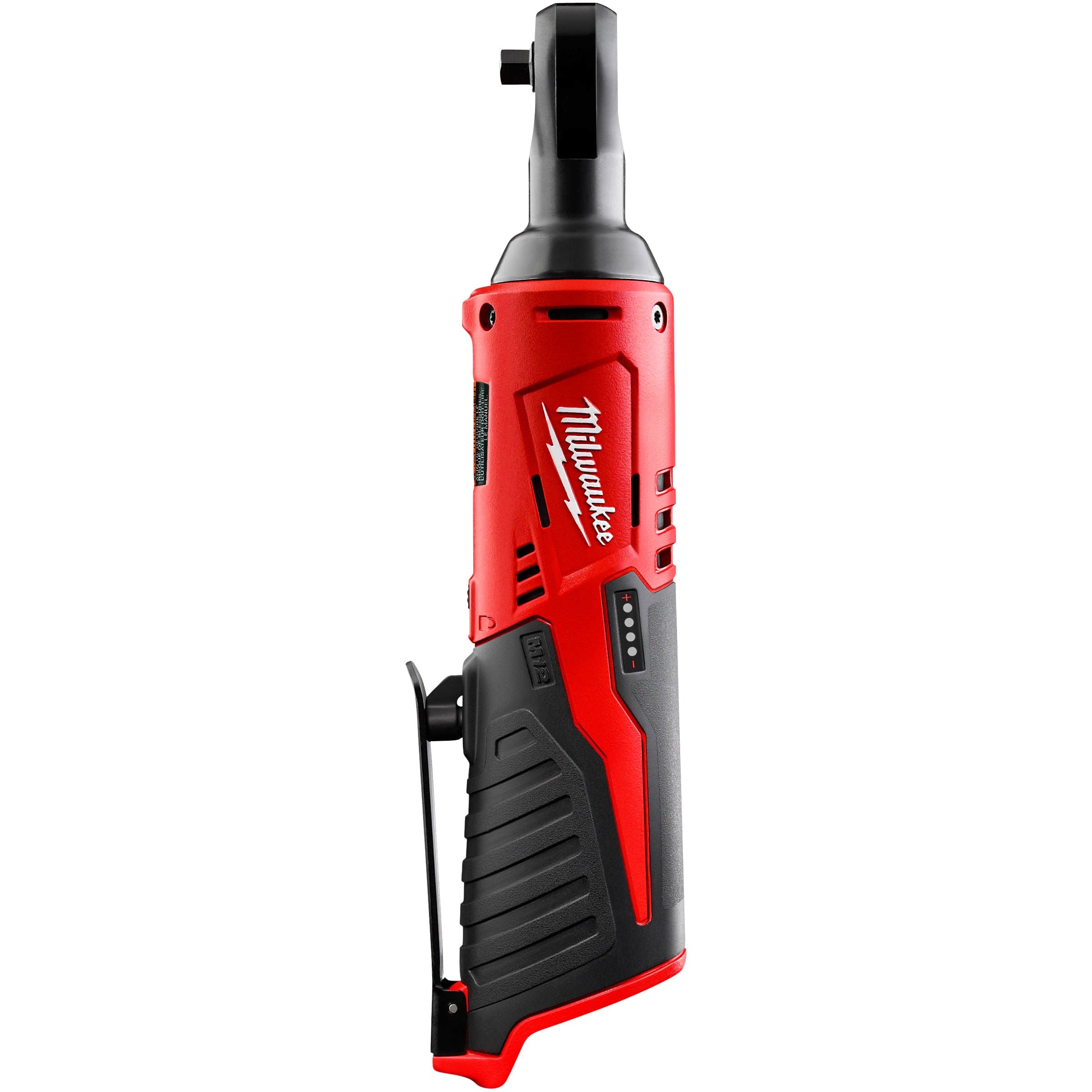

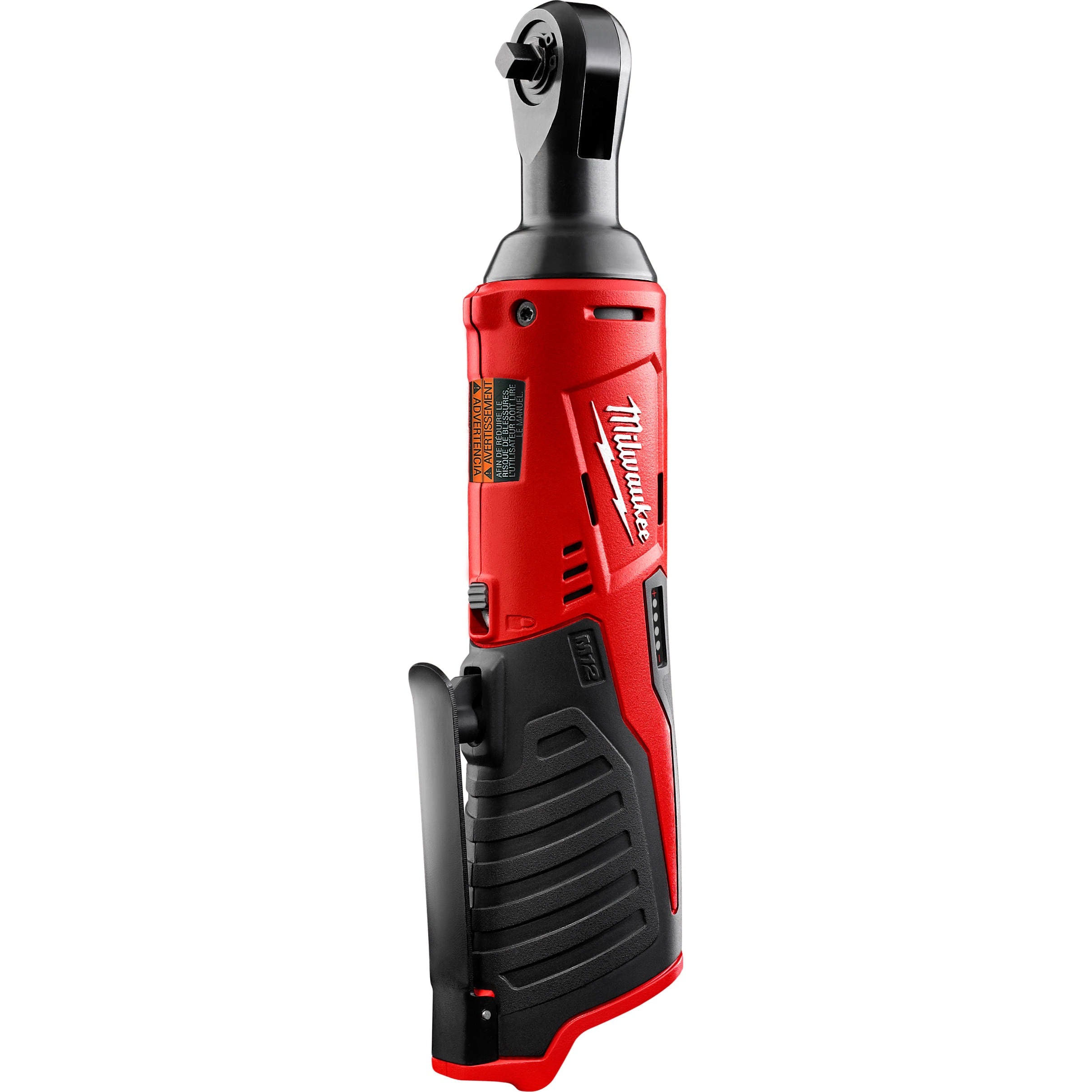

Milwaukee Tool 2456-20 M12 Cordless 1/4" Ratchet

Name: Milwaukee Tool 2456-20 M12 Cordless 1/4" Ratchet
Brand: Milwaukee Tool
SKU: 2456-20_D53A
Price: 260.00 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2456-20_D53A UPC: 045242257553

$260.00 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2456-20

For Serial Numbers starting with D53A & D53B.

Revision: October 2019

Data Sources:
Milwaukee 2456-20 Service Parts List, for Serial D53A (PDF, 558KB)
Milwaukee 2456-20 Service Parts List, for Serial D53B (PDF, 570KB)
Milwaukee 2456-20 & 2457-20 Operator's Manual (PDF, 12 Pages, 1.04MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

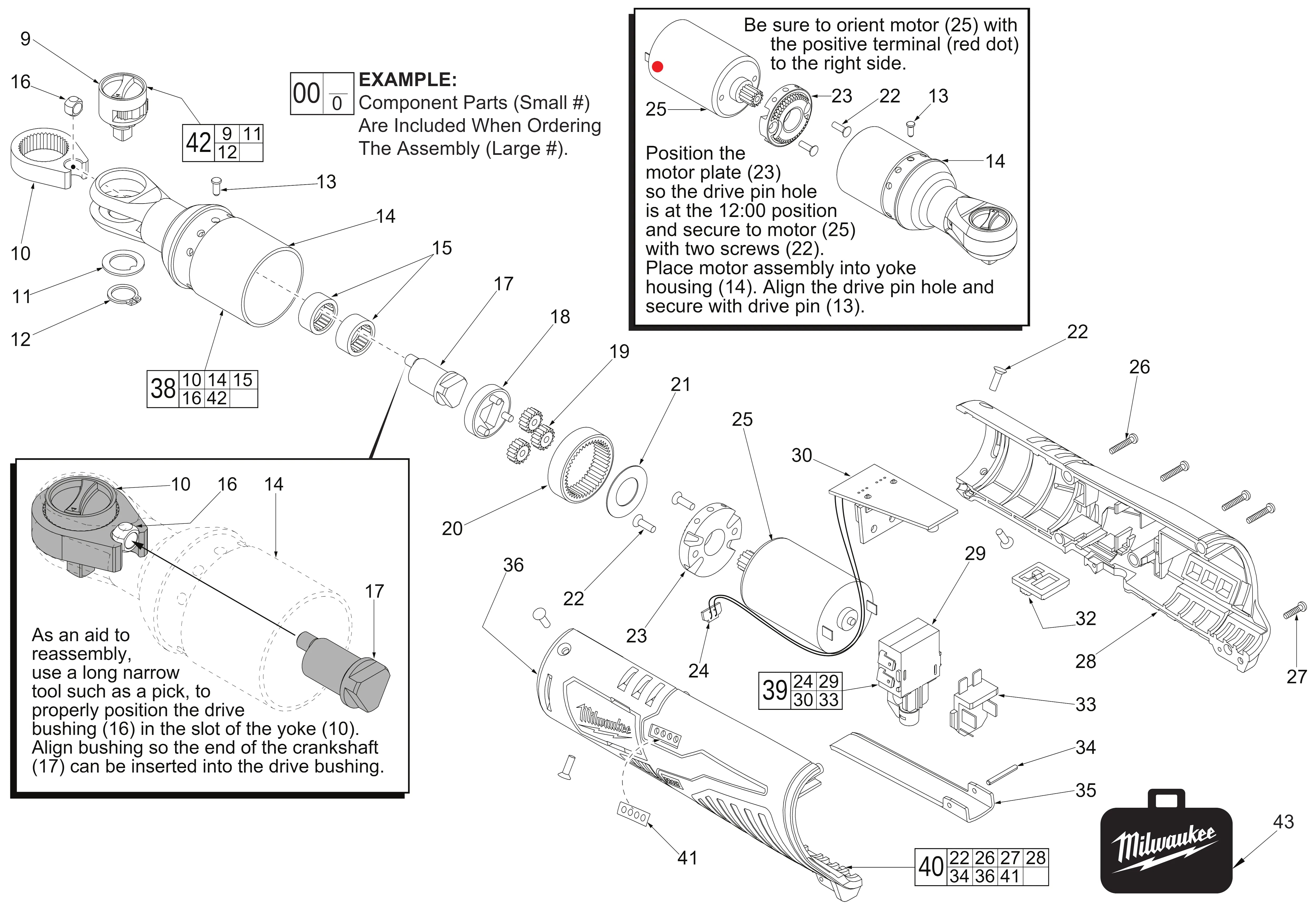

Figure	Quantity	Component	Changed	Description	Notes
9	1.00	---		1/4" Anvil Assembly
10	1.00	---		Yoke
11	1.00	---		Friction Plate
12	1.00	---		Retaining Ring
13	1.00	44-60-0890		Drive Pin
14	1.00	---		Yoke Housing
15	1.00	---		Needle Bearing
16	1.00	---		Driver Bushing
17	1.00	36-17-0300		Crankshaft
18	1.00	28-23-0500		Gear Carrier Assembly
19	1.00	32-62-0400		Planet Gear
20	1.00	32-65-0350		Ring Gear
21	1.00	45-88-2105		Washer
22	1.00	05-81-0105		Screw, M3-0.50 x 10mm, T10 Torx	D53A Only
22	1.00	---		M3 x 12 T-10 Screw	D53B Only
23	1.00	44-66-1240		Motor Plate	D53A Only
23	1.00	44-66-1241		Motor Plate Service Kit	D53B Only
24	1.00	---		LED Assembly
25	1.00	23-30-0650		Brushed 12VDC Electric Motor Assembly
26	1.00	06-82-2385		Screw, M3 x 14mm, T10
27	1.00	06-82-2395		Pan Head Plastite T8 Torx Screw, M2.6 x 10mm
28	1.00	---		Handle Cover - Right
29	1.00	---		Switch
30	1.00	---		Printed Circuit Board (PCB) Assembly with LED
31	1.00	12-20-2454		Service Nameplate
32	1.00	23-66-2910		Lockout Switch
33	1.00	---		Battery Connector
34	1.00	44-60-0575		Spring Pin
35	1.00	44-10-0740		Switch Paddle
36	1.00	---		Handle Support - Left
38	1.00	14-46-2450		1/4" Yoke Housing Assembly
39	1.00	23-66-3020		Electronics & Switch Assembly
40	1.00	31-44-2710		Handle Housing Kit With Screws
41	1.00	---		Fuel Gauge Label
42	1.00	42-06-1005		1/4 Square Anvil Assy
43	1.00	42-55-2456		Contractors Bag
	1.00	49-08-4122		Grease Type E 14 Oz
