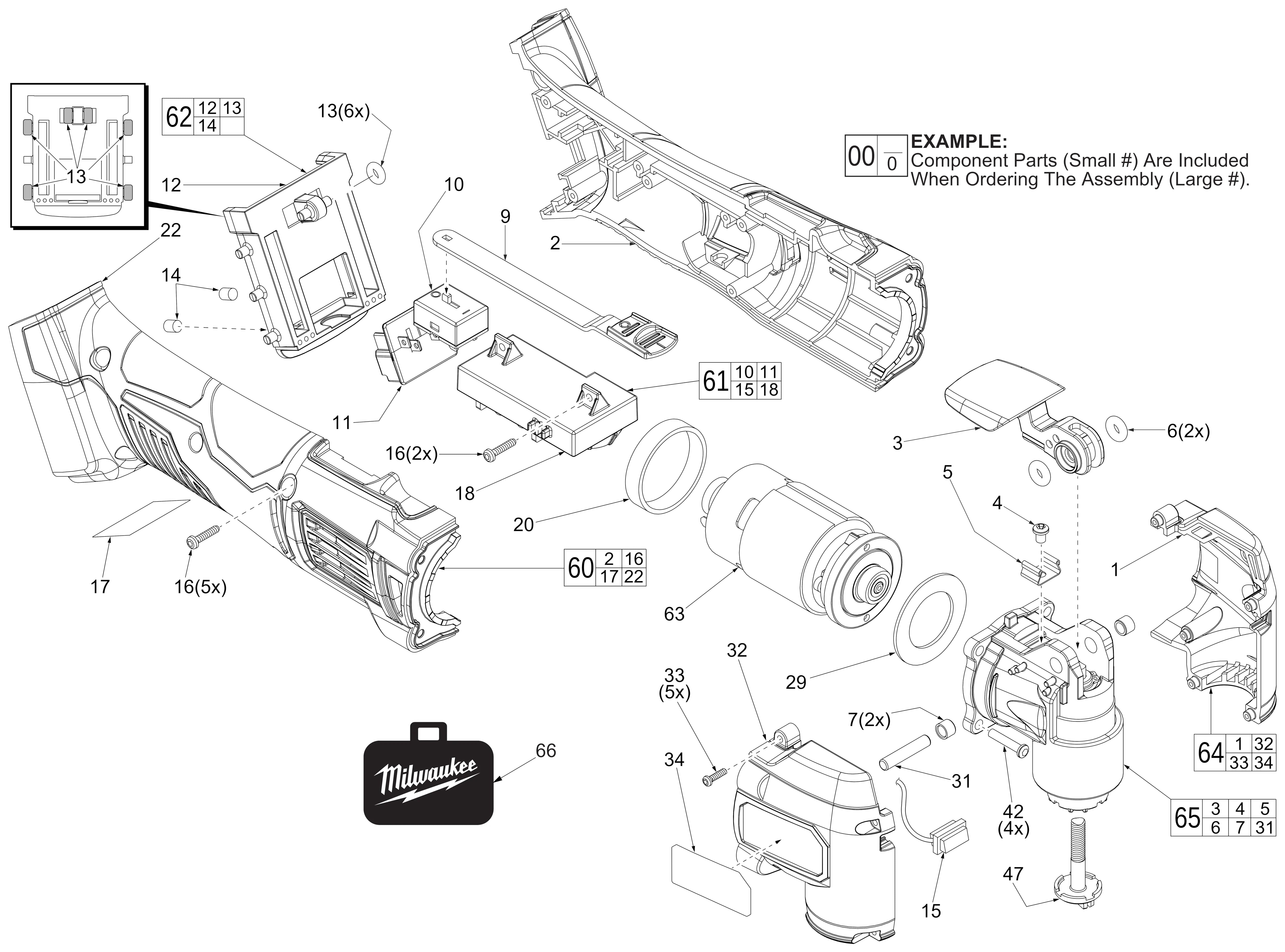

Figure Quantity Component Changed Description Notes
1 1.00 --- Front Housing - Left
2 1.00 --- Rear Handle - Left
3 1.00 44-10-0225 Quick Release Lever
4 1.00 05-88-0045 5mm Pan Head Taptite T-20 Screw
5 1.00 42-70-0510 Clip
6 2.00 34-40-0077 Rubber O-Ring
7 2.00 42-40-0125 Nylon Bushing
9 1.00 45-24-1030 Switch Slide
10 1.00 --- On-Off Switch
11 1.00 --- Terminal Block
12 1.00 44-66-0392 Terminal Block Plate
13 6.00 43-86-0005 Rubber Isolators
14 2.00 45-30-1000 Rubber Slug
15 1.00 --- LED Assembly
16 7.00 06-82-1080 M3 x 14mm Pan Head Self-Tapping T-10 Screw
17 1.00 10-20-2743 Warning Label
18 1.00 --- Printed Circuit Board Assembly (PCBA)
20 1.00 42-16-0450 Motor Band (Rubber)
22 1.00 --- Rear Handle - Right
29 1.00 45-88-0088 Washer
31 1.00 44-60-0605 5.0 x 26.3mm Pin
32 1.00 --- Front Housing - Right
33 5.00 06-82-2385 Screw, M3 x 14mm, T10 TORX
34 1.00 12-20-2638 Service Nameplate
42 4.00 05-88-0400 M4 x 20mm Pan Head T-20 TORX Screw
47 1.00 06-75-0025 Blade Backing Pad Screw
60 1.00 31-44-1055
31-44-1057
Rear Handle Assembly F40A Only
F40B Only
61 1.00 14-20-2626 Switch Electronics Assembly
62 1.00 14-67-0130 Terminal Block Plate Assembly
63 1.00 14-50-0705
14-50-0707
Motor Assembly F40A Only
F40B Only
64 1.00 14-38-2000 Front Housing Assembly
65 1.00 14-29-2626 Gearcase Assembly
66 1.00 48-55-3500 Contractors Bag
1.00 49-08-4220 Grease, Type J, 1Lb
70 1.00 --- Angle Blade Guard with Warning Label
71 1.00 --- Angle Blade Adapter
72 1.00 --- Angle Blade Screw
73 1.00 14-32-0300 Angled Blade Installation Guard Kit
