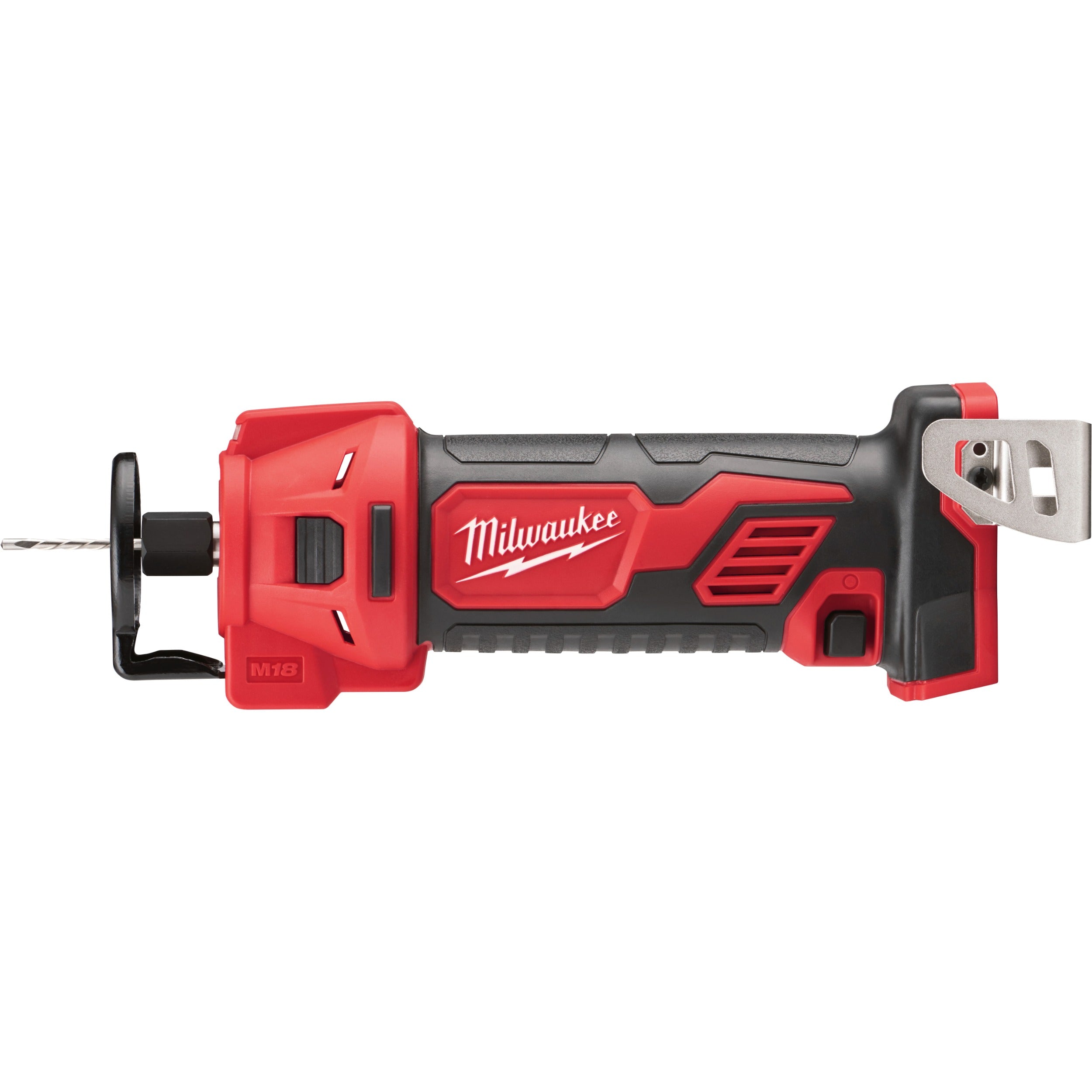

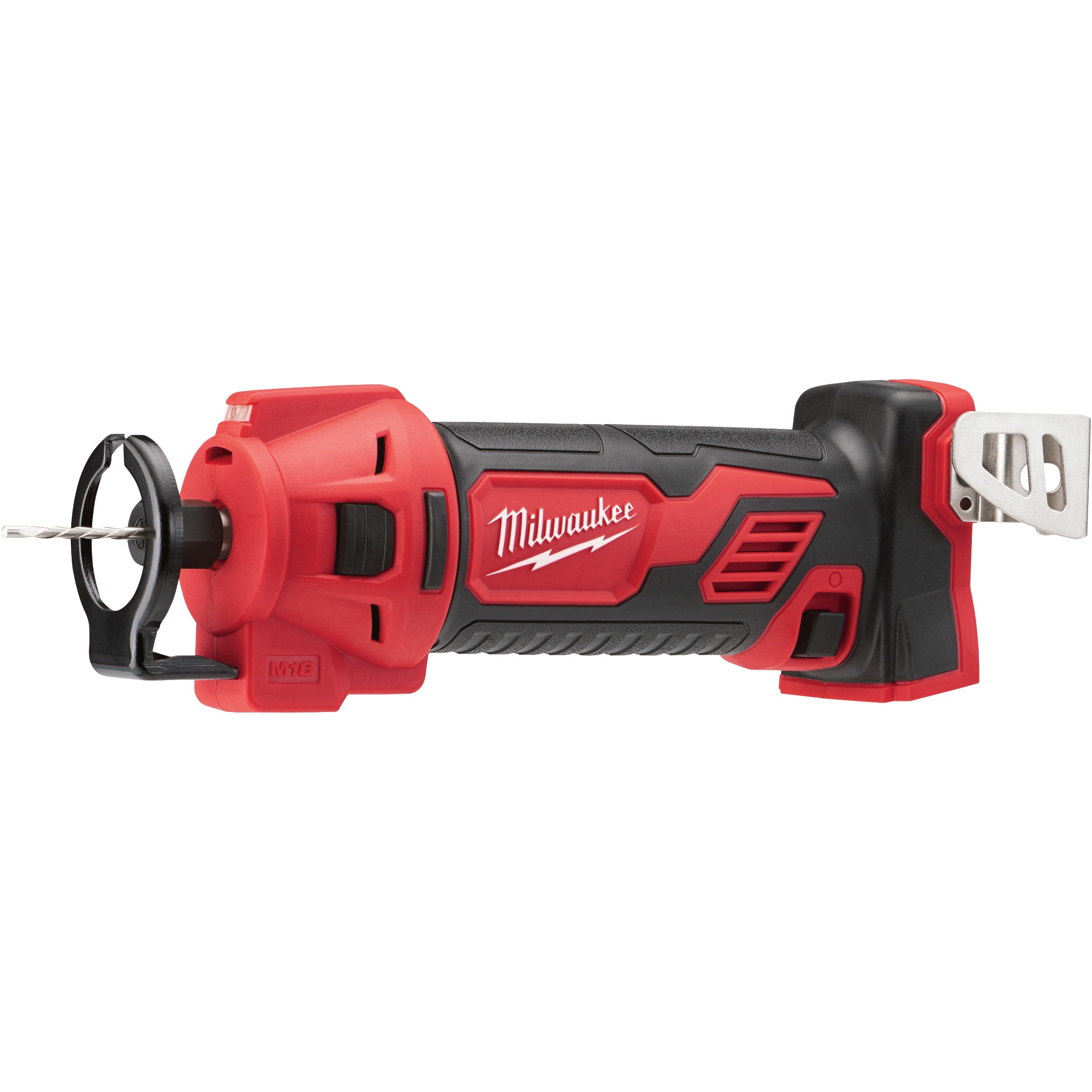

Milwaukee Tool 2627-20 M18 Cut-Out Tool

Name: Milwaukee Tool 2627-20 M18 Cut-Out Tool
Brand: Milwaukee Tool
SKU: 2627-20_H54A
Price: 216.00 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2627-20_H54A UPC: 045242475384

$216.00 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2627-20

For Serial Numbers starting with H54A

Revision: April 2022

Data Source:
Milwaukee 2627-20 Service Parts List, Serial H54A, September 2016 (PDF, 2.7MB)
Milwaukee 2627-20 Service Parts List, Serial H54A, April 2022 (PDF, 830KB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Figure	Quantity	Component	Changed	Description	Notes
1	1.00	43-46-0171		Depth Gauge Guide
2	1.00	---		Depth Gauge Stopper
3	1.00	---		Depth Gauge Sleeve
4	2.00	40-50-1660		Spring
5	2.00	48-38-0020		1/8" x 64mm Hi-Speed Steel Cutter Bit
6	1.00	48-68-0060		Collet Nut
7	1.00	48-66-0320		1/8" Collet
7a	1.00	48-66-0325		1/4" Collet
8	1.00	34-60-0760		Retaining Ring
9	1.00	02-04-1816		Ball Bearing, 6002NRS
10	16.00	45-30-0305		Rubber Slug
11	1.00	44-90-0203		Cushion Ring
12	1.00	44-90-0204		Stamped Ring
13	1.00	34-40-0370		O-Ring
14	2.00	45-30-0310		Felt Cushion / Seal
20	1.00	43-44-0515		Motor Cap Seal
23	1.00	42-42-0425		On-Off Switch Shuttle
24	1.00	40-50-1090		Terminal Block Compression Spring
25	1.00	44-90-0990		C-Ring
26	1.00	---		Spindle Lock Button
27	1.00	---		Housing Support – Left Housing Half
28	1.00	---		Housing Cover – Right Housing Half
29	1.00	12-20-0084		Service Nameplate
30	7.00	06-82-2025		Handle Screw
32	1.00	49-96-0011 49-96-4090		Wrench, 16mm	September 2016 Service Parts List April 2022 Service Parts List
33	1.00	---		Belt Clip
34	1.00	06-82-0130		Belt Clip Screw
39	1.00	42-55-6148		Canvas Tool Bag
50	1.00	31-44-0059		Housing Assembly
51	1.00	42-70-2653		Belt Clip Assembly
52	1.00	14-50-0081		Motor/Electronic/Spindle Assy
53	1.00	44-20-0075		Spindle Lock Assembly
54	1.00	42-42-0415		Depth Gauge Adjustment Assembly
55	1.00	23-66-0635		Switch
32	1.00	49-96-4090		11/16" Open Ended Wrench

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:
Protection Type:

Terminal Type:

Voltage:

18VDC

Packaging & Dimensions:
Inside Diameter:

Outside Diameter:

Overall Length:

Packaging Type:

Package Length:

Package Width:

Package Height:

Sold As:

Threads
Flute Direction:

Number of Flutes:

Pitch:

Thread Size:

Thread Direction:

TPI:

Milwaukee Tool

Milwaukee Electric Tool Corporation, more commonly known as Milwaukee Tool or simply Milwaukee, is an American company that develops, manufactures and markets power tools, hand tools, tool accessories, tool storage and personal protective equipment. The company operates as an independent subsidiary of TTI Group alongside brands like AEG, Ryobi, Hoover, Dirt Devil, and Vax.

Milwaukee tools are manufactured globally in China, Germany, Mexico, the United States and Vietnam. Their product line includes corded and cordless power tools, hand tools, pliers, hand saws, screwdrivers, utility knives, impact drivers, and much more. They also distribute various other tools such as multimeters, thermal imaging equipment, oscillating multi-tools, drilling devices, chargers. Well-known Milwaukee Tool trademarks include M12, M18, MX FUEL, and PACKOUT.
