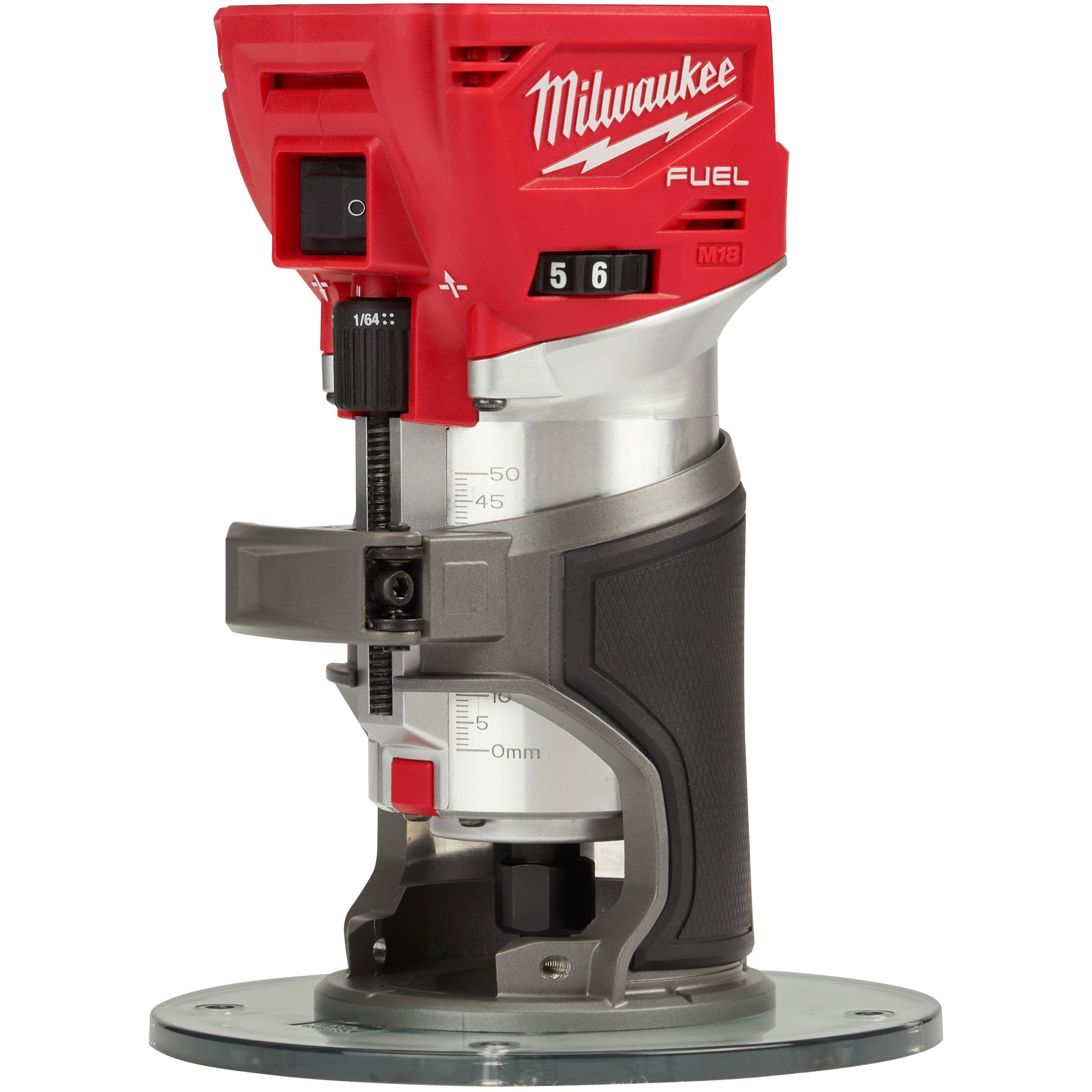

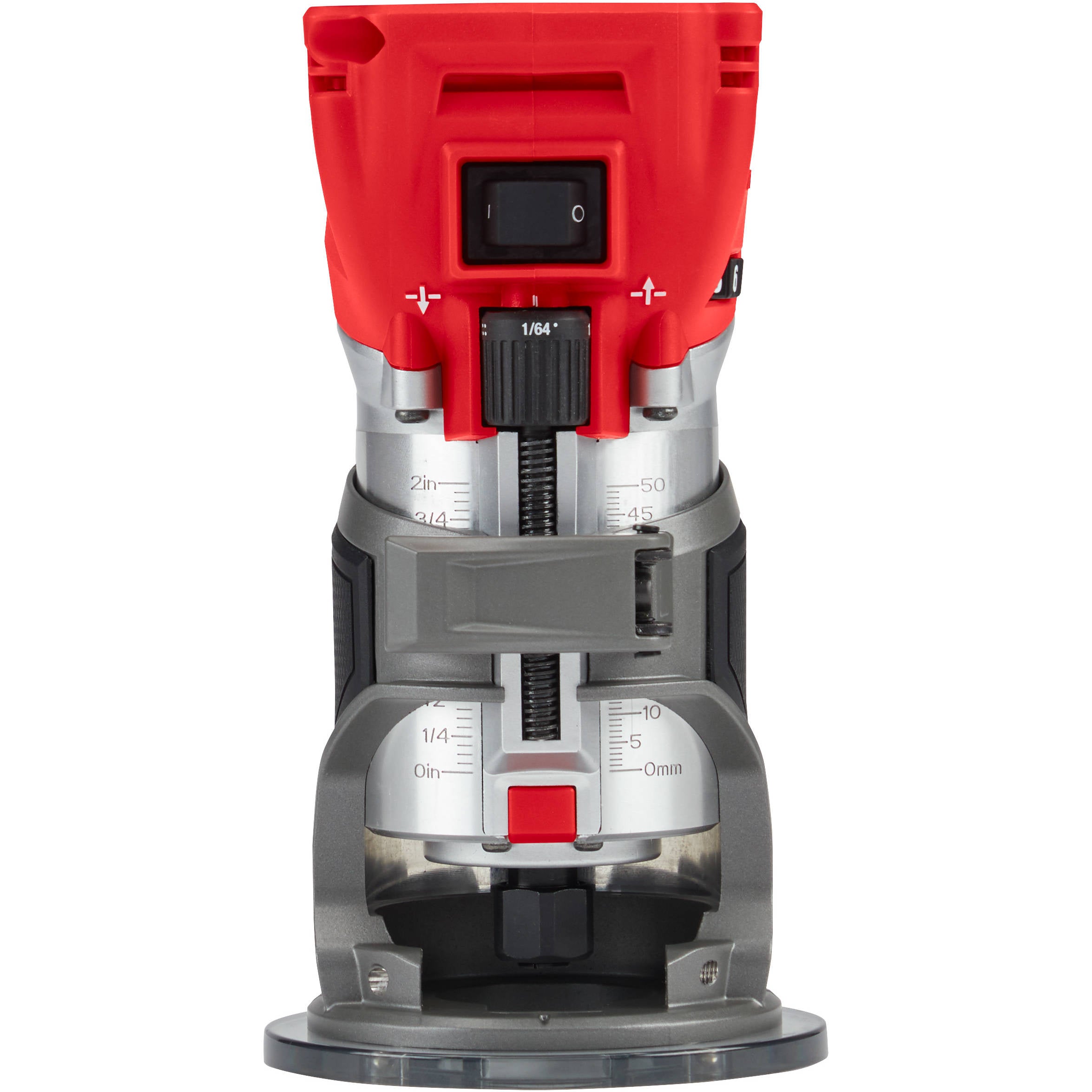

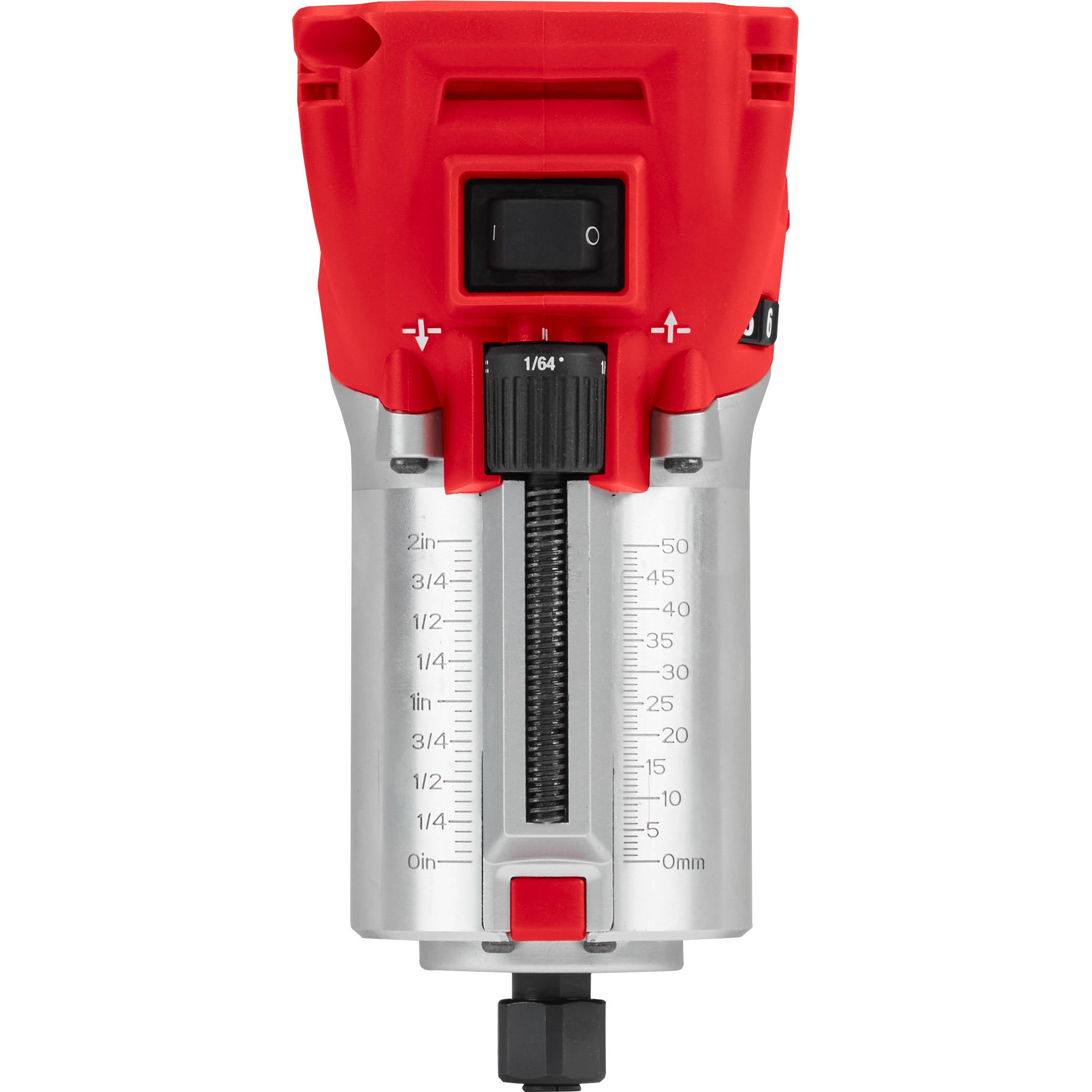

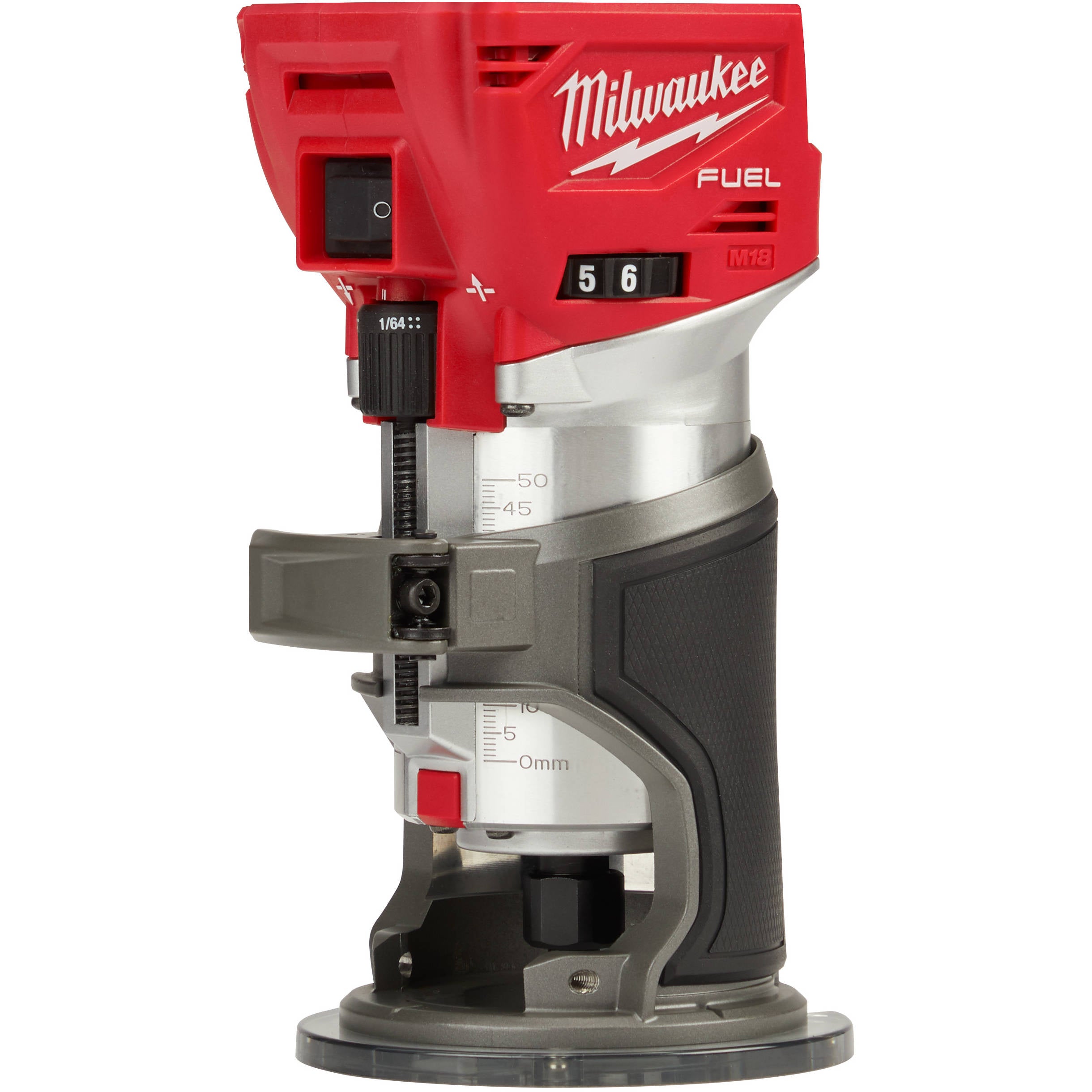

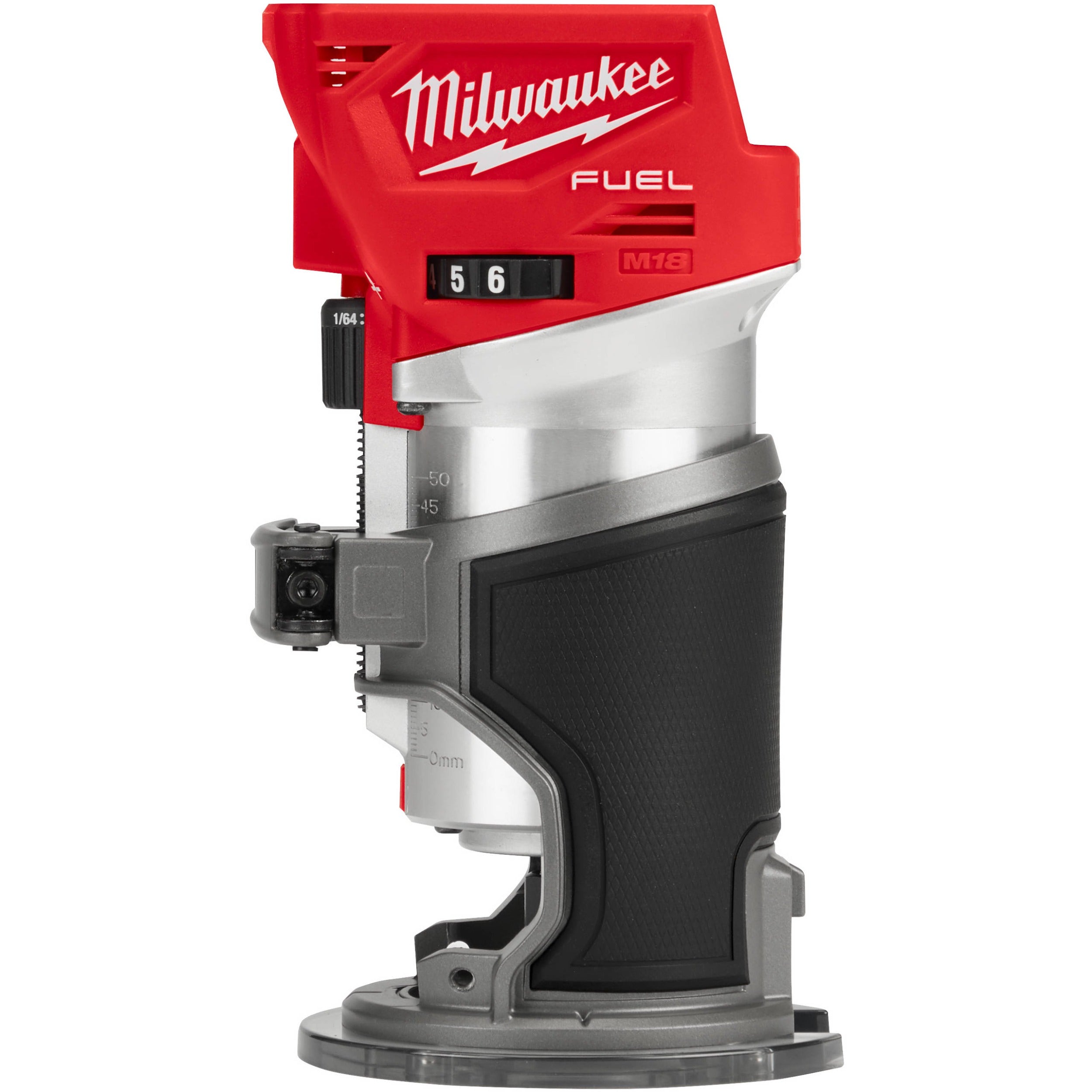

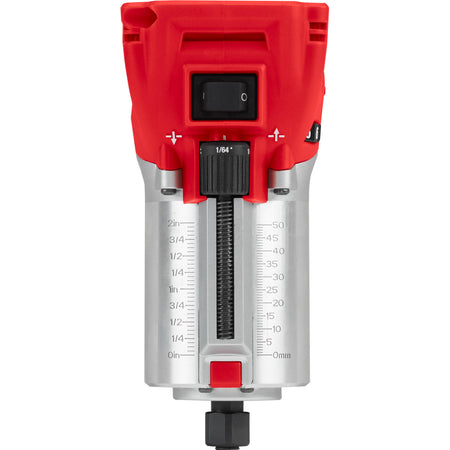

Milwaukee Tool 2723-20 M18 FUEL Compact Router

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2723-20_K91A UPC: 045242541010
$330.00 USD
Out of stock
Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2723-20

For Serial Numbers starting with K91A.

Revision: August 2022

Data Sources:
Milwaukee 2723-20 Service Parts List, Serial K91A, October 2025 (PDF, 1.90MB)
Milwaukee 2723-20 Service Parts List, Serial K91A, August 2022 (PDF, 1.93MB)
Milwaukee 2723-20 Service Parts List, Serial K91A, November 2019 (PDF, 1.83MB)
Milwaukee 2723-20 Operator's Manual, November 2019 (PDF, 15.7MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling

Figure Quantity Component Changed Description Notes
1 1.00 05-78-0042 M4 X 0.7 Pan Head T-20 Phillips Head Screw
2 3.00 05-81-0066 M4 x 16mm T-15 Ph Screw
3 1.00 --- Housing Cover
4 2.00 05-78-0044 M3 x 1.27mm T-10 Ph Screw
5 1.00 --- Speed Dial Clamp Cover
6 2.00 05-10-0068 M3 X 6Mm Torx Ph Recess Phillips #2 Screw
7 1.00 --- Printed Circuit Board Assembly (PCBA)
8 1.00 42-92-0076 Rubber Switch Cover
9 1.00 --- Housing Support
10 1.00 --- Motor Housing Support
12 1.00 --- Motor Stator
13 1.00 --- Motor Housing Cover
18 1.00 --- LED Assembly
19 1.00 22-09-0024 LED Carrier
20 1.00 --- Alloy Outer Housing
21 1.00 --- Height Adjustment Knob
22 1.00 --- Threaded Rod Support
23 1.00 --- Spring
24 1.00 --- Spindle Lock Button
25 2.00 05-81-0071 M3 X 8Mm T-10 Bh Screw
26 2.00 05-78-0039 M4 X 10Mm T-20 Ph Taptite Screw
27 1.00 23-16-0021 Bearing Insulator
28 1.00 --- Ball Bearing
29 1.00 --- Bearing Retaining Nut
30 1.00 --- 9/16" Hex Nut August 2022 SPL Onward
31 1.00 43-44-0043 1/4" Steel Collet
32 1.00 48-68-0031 1/4" Collet Nut
64 1.00 12-20-0216 Service Nameplate
65a 1.00 10-20-3114 Warning Label
65b 1.00 10-20-3116 Warning Label
70 1.00 14-20-0136 Motor & PCB Assembly
71 1.00 14-38-0053 Motor Housing Assembly
72 1.00 16-01-0027 Motor Assembly
73 1.00 45-60-0017 Upper Bearing Assembly
74 1.00 31-44-0142 Handle Housing Assembly
75 1.00 42-98-0020 Barrel Kit
76 1.00 14-46-0122 Spindle Lock Kit
77 1.00 44-40-0021 Spindle Lock W/Knob Assembly
78 1.00 14-46-0152 Lower Bearing Assembly
79 1.00 14-46-0167 1/4" Collet With Nut Kit

33 1.00 --- Fixed Base Barrel
34 1.00 --- Spring Pin
35 1.00 --- Threaded Capture
36 1.00 --- Spring
37 1.00 --- M4-0.7mm Hex Nut
39 1.00 --- Wear Plate
40 1.00 --- Locking Yoke
41 1.00 --- Base Locking Lever
42 1.00 --- Rivet Pin
43 1.00 --- E-Ring
44 1.00 --- M4-0.70mm Metric 3mm Hex Recess
45 1.00 --- Standard Subbase Plate
46 1.00 --- M4 Pan Head Recess Phillips #2 Screw
47 1.00 43-98-0031 Thumb Knob Screw
48 1.00 --- Dust Extractor Hood
49 1.00 --- Adjustment Bracket
50 1.00 --- Spring Washer
51 1.00 --- Washer
52 1.00 --- Thumb Knob
53 1.00 --- M6 x 18mm Square Shoulder Metric Screw
54 1.00 --- Base Bracket
55 1.00 --- Thumb Lock
57 1.00 --- Oversized Subbase Plate
60 1.00 44-60-0115 7/16" Stamped Open End Wrench
61 1.00 49-96-4090 11/16" Open Ended Wrench
73 1.00 23-50-0015 Rubber Spacer
81 1.00 14-70-0041 Barrel Latching Assembly Kit

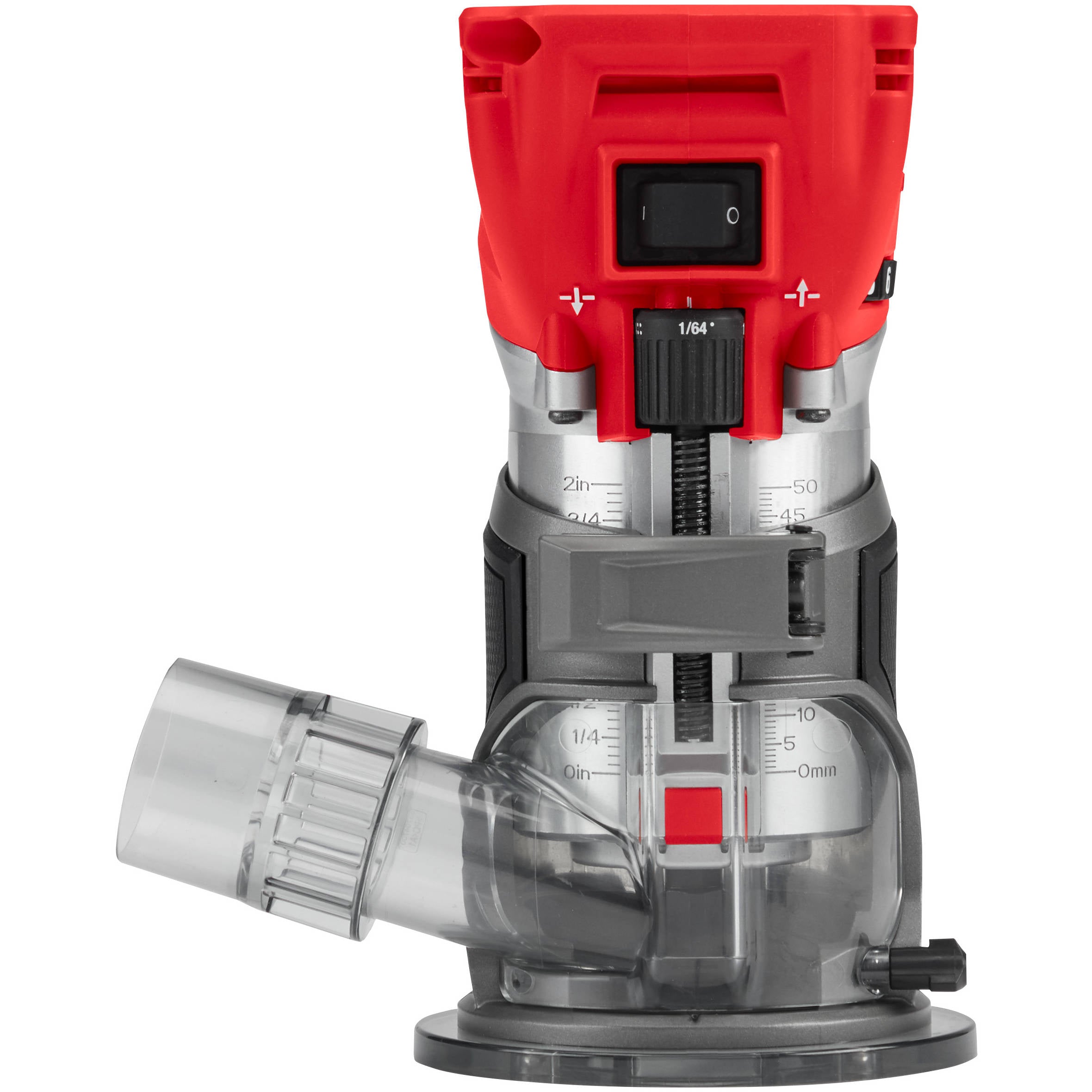

82 1.00 22-84-0015 Dust Extraction Fitting With Knob Assembly

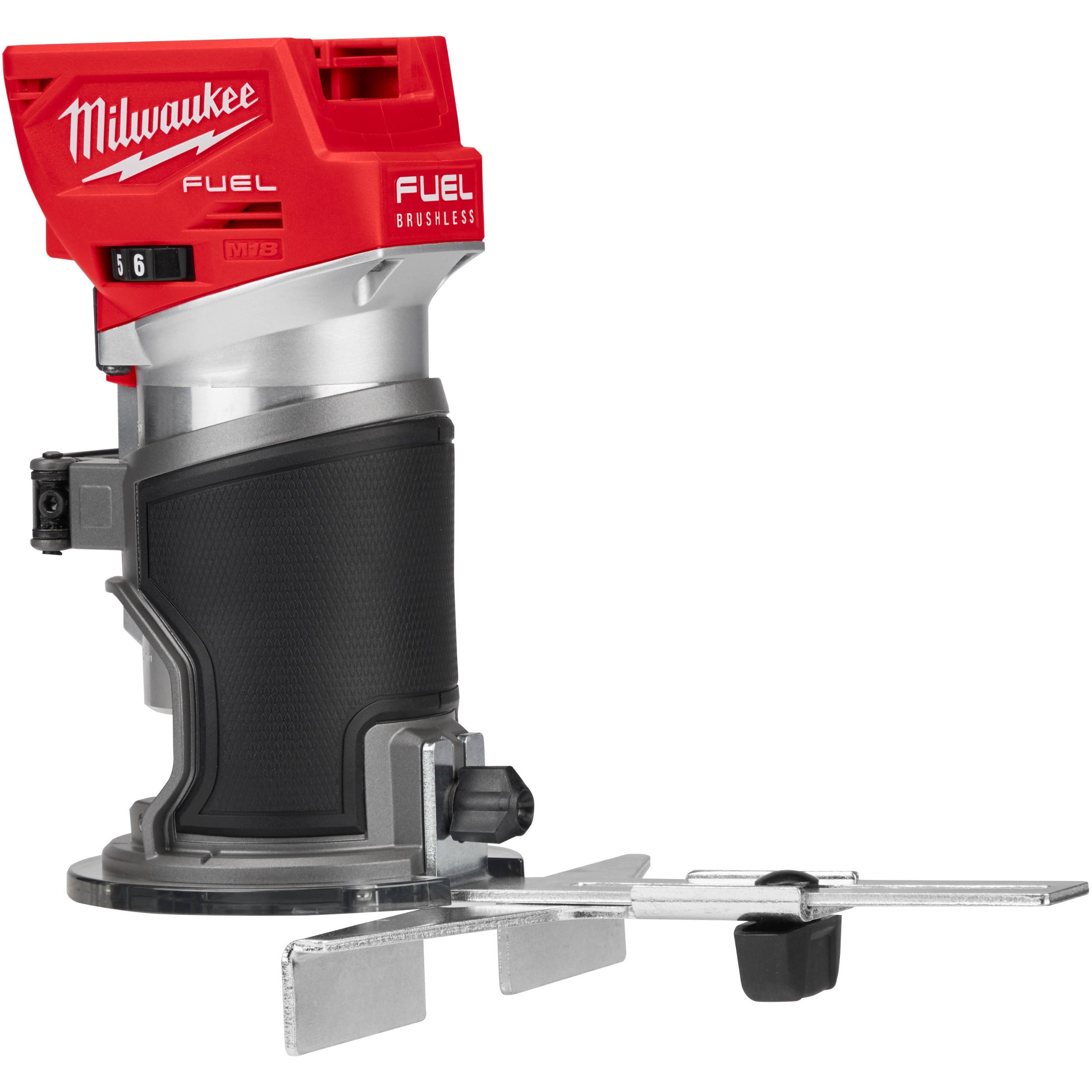

83 1.00 43-98-0091 Edge Guide Assembly
84a 1.00 31-06-0032 Standard Fixed Base Plate Assembly
84b 1.00 31-06-0034 Oversized Base Assembly
85 1.00 31-06-0036 Fixed Base Assembly
