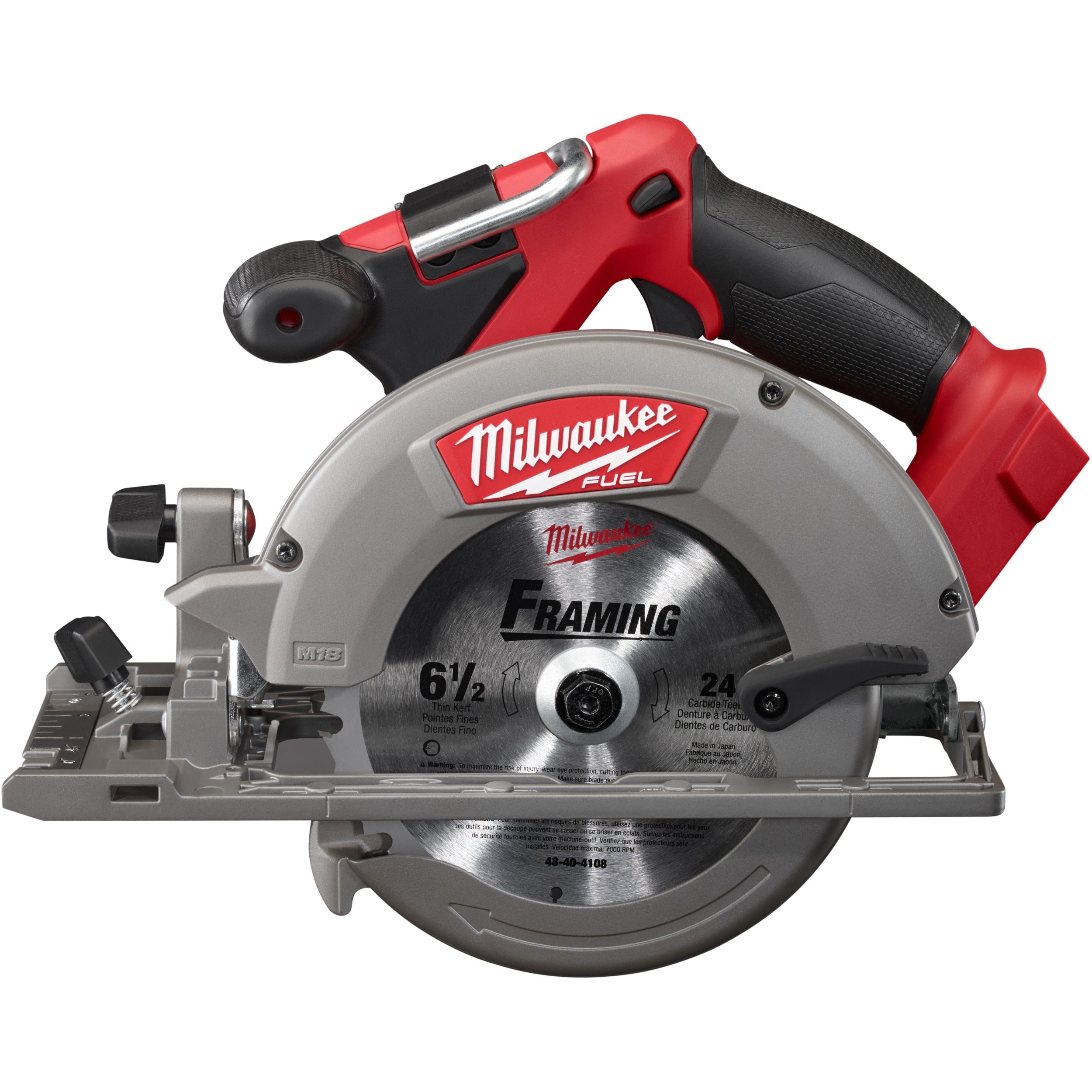

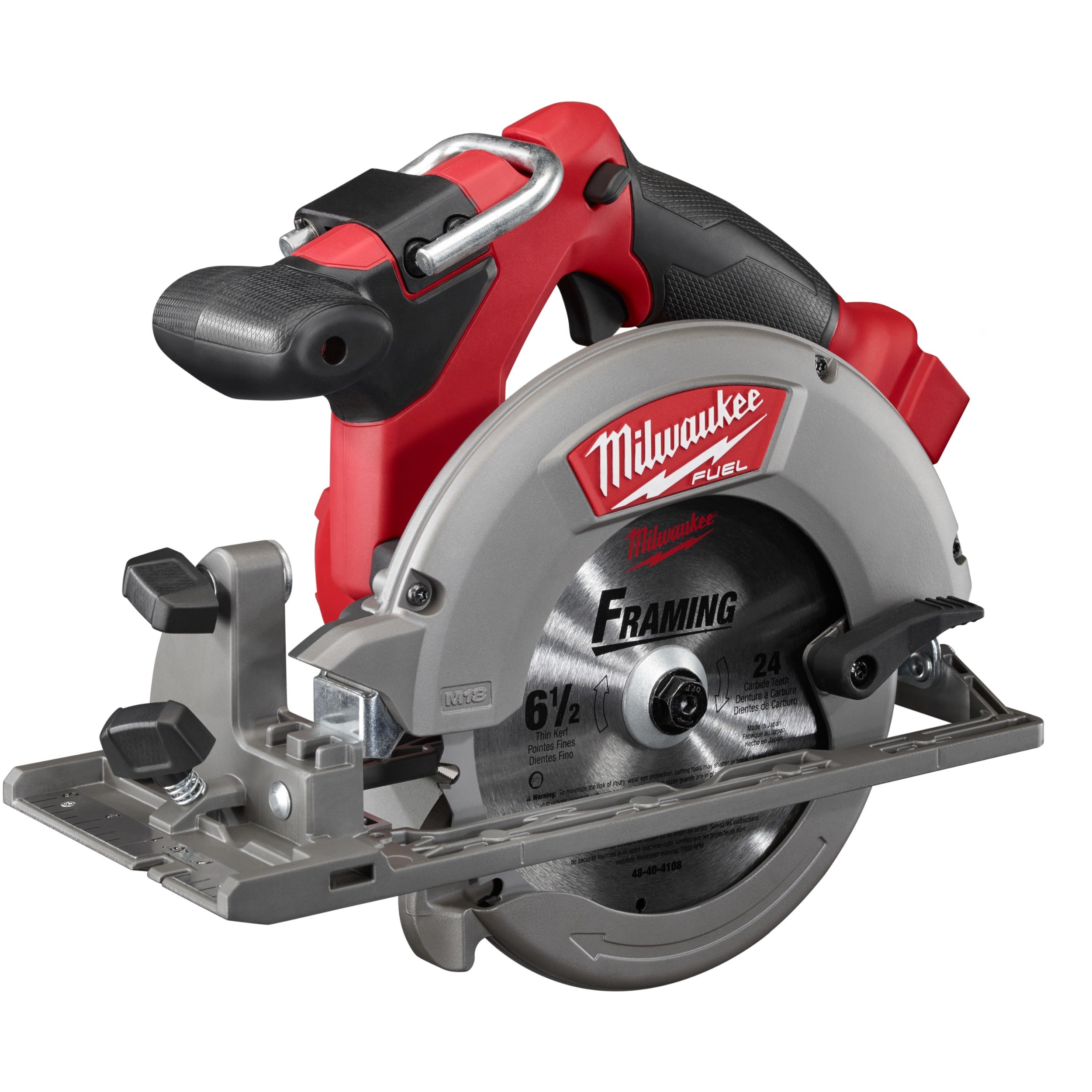

Milwaukee Tool 2730-20 M18 FUEL 6-1/2" Circular Saw

Name: Milwaukee Tool 2730-20 M18 FUEL 6-1/2" Circular Saw
Brand: Milwaukee Tool
SKU: 2730-20_F31A
Price: 364.00 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2730-20_F31A UPC: 045242291335

$364.00 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2730-20

For Serial Numbers starting with F31A

Revision: August 2023

Data Sources:
Milwaukee 2730-20 Service Parts List, Serial F31A, January 2019 (PDF, 2.31MB)
Milwaukee 2730-20 Service Parts List, Serial F31A, August 2023 (PDF, 2.32MB)
Milwaukee 2730-20 Operator's Manual (PDF, 5.42MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Figure	Quantity	Component	Changed	Description	Notes
1	1.00	06-75-1010		Blade Cap Screw, Left Hand Thread
2	1.00	43-34-0795		Outer Blade Flange
5	1.00	05-78-5316		#8-36 T20 Torx Taptite Screw
6	1.00	28-20-0025		Upper Guard Assembly
7	1.00	43-34-0790		Inner Blade Flange
8	1.00	34-60-0860		External Retaining Ring
9	1.00	06-82-5314		Pan Head Torx Screw, #10-24 X 1/2"
10	1.00	44-10-0005		Lower Guard Lever
11	1.00	28-41-0100		Lower Guard
12	1.00	40-50-0045		Guard Spring
13	1.00	06-82-5285		6-32 X 1/2 Tt Torx Pan Hd
14	1.00	44-66-0395		Retaining Plate
15	1.00	45-04-0485		Screw Bumper 10-32X13/16
16	1.00	42-38-0222		Bumper
17	1.00	31-15-0260		Spindle And Led Cover
18	1.00	22-06-2730		Led Assembly
19	1.00	38-50-0155		Output Shaft Assembly
23	1.00	45-06-0720		Felt Seal
24	1.00	40-50-8046		Spindle Lock Compression Spring
25	1.00	44-20-0651		Spindle Lock
26	1.00	42-42-1030		Spindle Lock Button
27	1.00	44-60-0741		Pivot Pin
28	1.00	06-75-2010		1/4"-20 X 3/4" Hex Head Screw, Left Hand Thread
31	1.00	31-05-0250		Dust Blower
32	1.00	06-82-2660		Taptite Screw
36	1.00	40-50-0650		Compression Spring
37	1.00	43-98-0605		Rip Fence Knob
38	1.00	43-98-0705		Bevel Adjustment Knob
39	1.00	45-88-1560		Washer
40	1.00	06-10-0110		Carriage Bolt, M6-1.00X28Mm
41	1.00	---		Shoe
42	1.00	45-88-1515		Washer Flat 1/4
43	1.00	45-08-0155		Depth Shaft
44	1.00	34-40-0360		O-Ring
45	1.00	02-04-0795		Ball Bearing
46	1.00	34-60-0610		Retaining Ring
47	1.00	---		Rotor
48	1.00	02-04-5382		Ball Bearing
49	1.00	---		Stator with PCBA
55	1.00	23-16-0095		Motor Insulator Bottom
56	1.00	23-16-0090		Motor Insulator Top
57	1.00	06-82-1080		M3 X 14Mm Pan Hd St T-10 Screw
58	1.00	31-44-0984		Housing Support Left Halve
59	1.00	05-88-5380		Torx Head Metric Screw, M3.5-0.6 X 12Mm
60	1.00	23-66-2635		On/Off Switch	January 2019 Revision
60	1.00	23-66-0098		On/Off Switch	August 2023 Revision
62	1.00	23-38-2840		Diode Assembly With Terminals
63	1.00	40-50-1760		Lock Out Spring
64	1.00	42-42-0345		Switch Lock Out Button
65	1.00	31-44-0985		Housing Support Right
66	1.00	06-82-7470		Screw 6 X 11/16 Plastite
67	1.00	34-40-4480		O-Ring
68	1.00	49-96-0600		3/16" Hex Key
69	1.00	06-82-0052		M6 X 2.69 X 32Mm T-25 Pt Screw
70	1.00	44-60-0565		Saw Hook Pin
71	1.00	45-88-2200		Washer
72	1.00	43-76-0025		Saw Hook Housing
73	1.00	40-50-0985		Saw Hook Spring
74	1.00	45-22-1000		Detent Sleeve
75	1.00	43-74-0060		Saw Hook Bar
76	1.00	44-10-0007		Depth Lever
77	1.00	31-51-0125		Bevel Scale
78	1.00	31-51-0130		Front Scale
79	1.00	06-81-0015		Phillips Screw
80	1.00	---		Micro Switch
81	1.00	---		Battery Connector Block
82	1.00	06-83-1600		Screw, Bevel Zero
85	1.00	14-74-0500		Shoe Assembly
86	1.00	23-58-7110		Stator/Electronics Assembly
88	1.00	23-40-7110		Rotor Assembly
89	1.00	23-16-0005		Motor Insulator Assembly
90	1.00	28-14-0170		Upper Guard Gearcase Assembly
91	1.00	14-38-0015		Housing Assembly
92	1.00	48-55-3500		Contractors Bag
93	1.00	49-22-1005		Rip Fence
94	1.00	12-20-2636		Service Nameplate
95	1.00	10-20-0359		Warning Label
