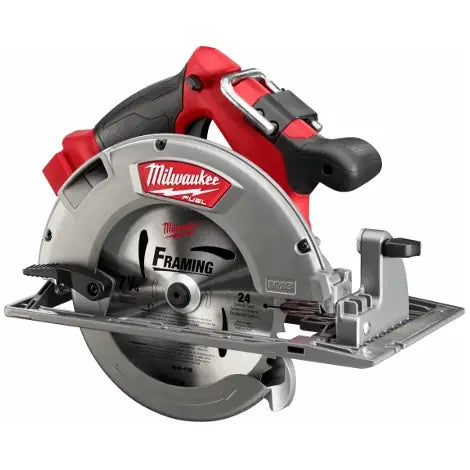

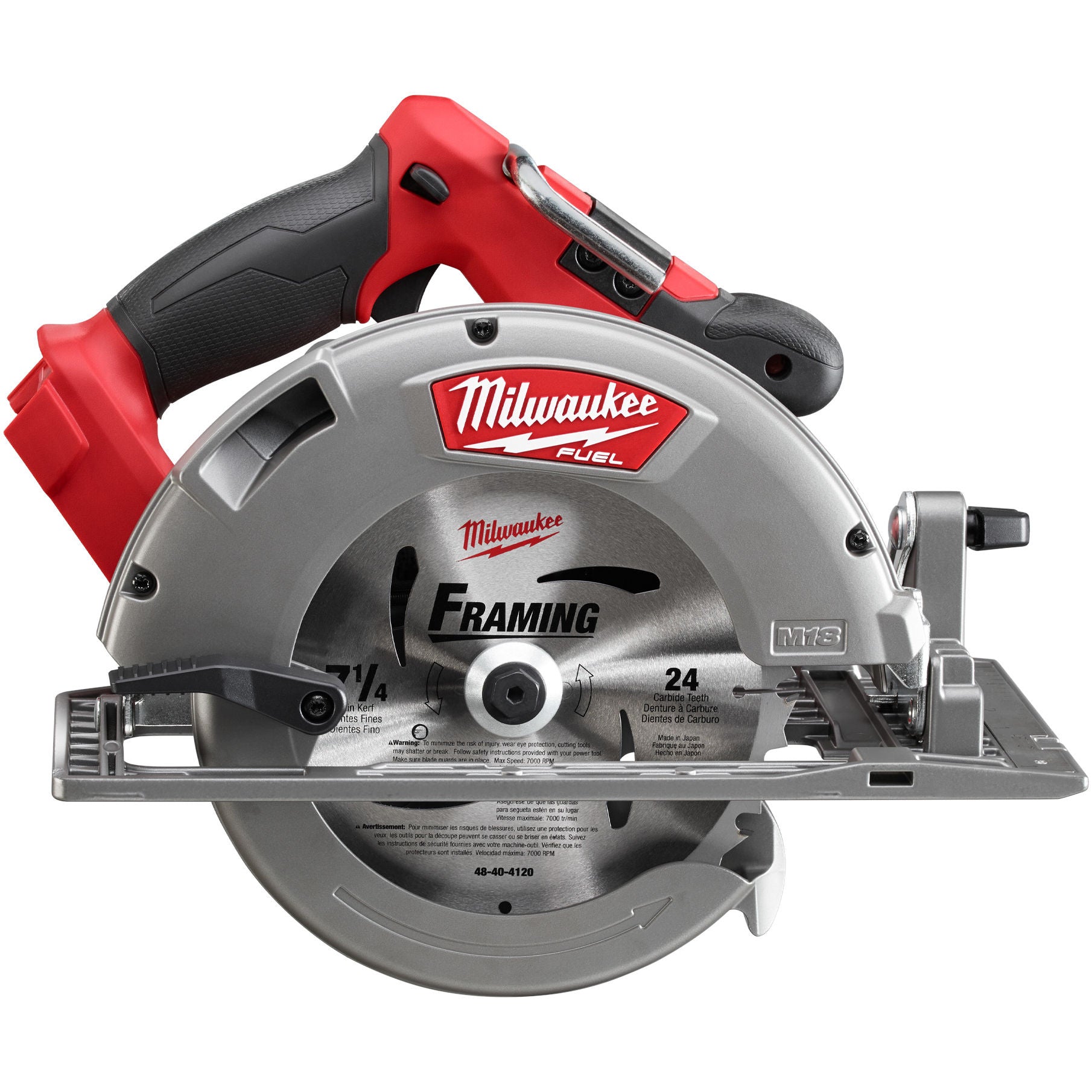

Milwaukee Tool 2731-20 M18 FUEL 7-1/4" Circular Saw

Name: Milwaukee Tool 2731-20 M18 FUEL 7-1/4" Circular Saw
Brand: Milwaukee Tool
SKU: 2731-20_F95A
Price: 397.00 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2731-20_F95A UPC: 045242319398

$397.00 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2731-20

For Serial Numbers starting with F95A

Revision: August 2020

Data Sources:
Milwaukee 2731-20 Service Parts List, Serial F95A, January 2019 (PDF, 2.21MB)
Milwaukee 2731-20 Service Parts List, Serial F95A, August 2020 (PDF, 2.20MB)
Milwaukee 2731-20 Operator's Manual (PDF, 7.97MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

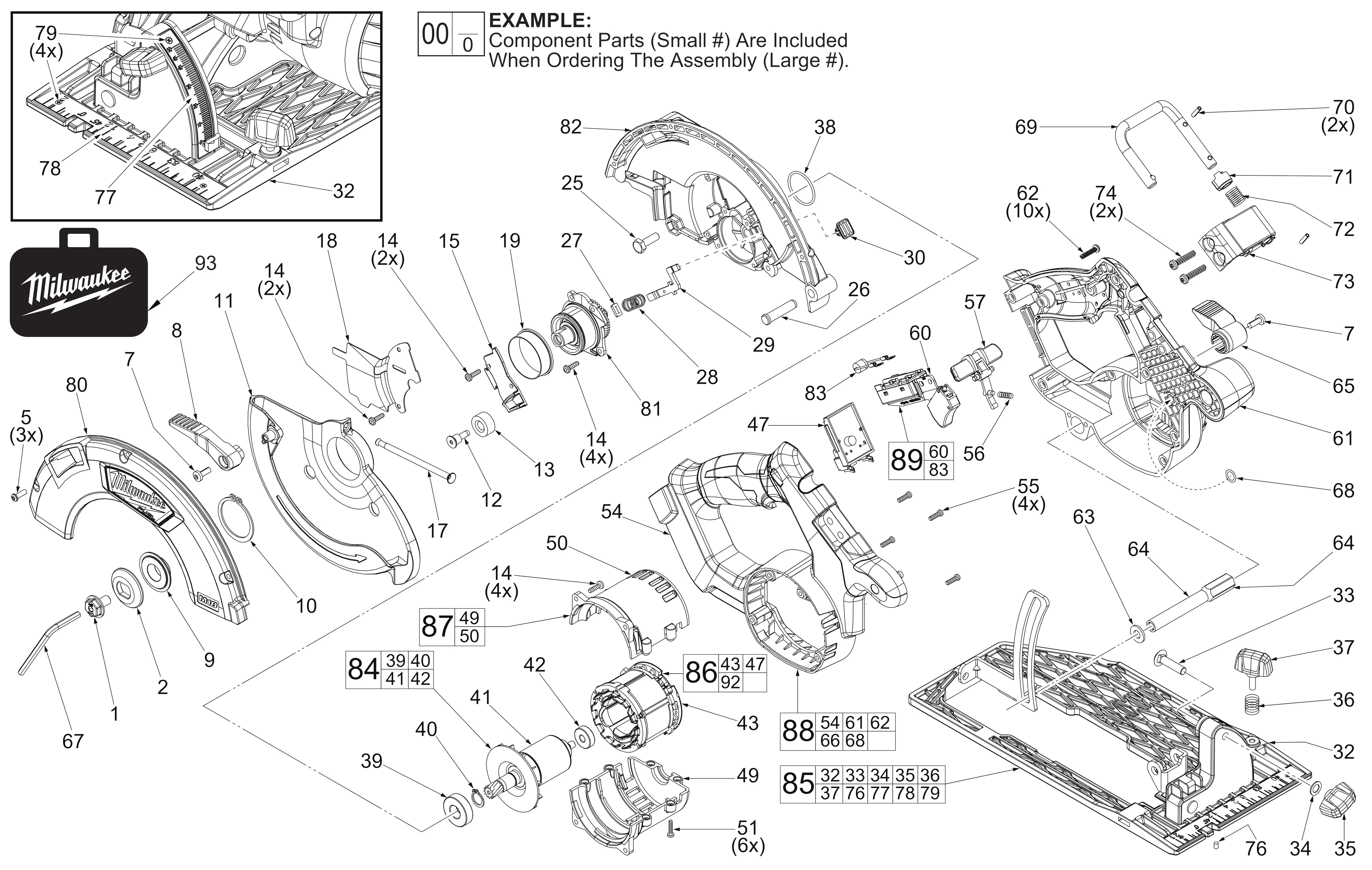

Figure	Quantity	Component	Changed	Description	Notes
1	1.00	06-75-1012		Blade Clamp Screw
2	1.00	43-34-0795		Outer Blade Flange
5	1.00	05-78-5316		#8-36 T20 Torx Taptite Screw
7	1.00	06-82-5314		Pan Head Torx Screw, #10-24 X 1/2"
8	1.00	44-10-1008		Lower Guard Lever
9	1.00	43-34-0790		Inner Blade Flange
10	1.00	34-60-0860		External Retaining Ring
11	1.00	28-41-0101		Lower Guard
12	1.00	45-04-0485		Screw Bumper #10-32 x13/16"
13	1.00	42-38-0222		Bumper
14	1.00	06-82-5285		#6-32 x 1/2" Tt Torx Pan Head
15	1.00	31-15-0265		Spindle/Led Cover
16	1.00	22-06-2732		Led Assembly
17	1.00	40-50-0045		Guard Spring
18	1.00	44-66-0398		Retaining Plate
19	1.00	45-14-0015		Plastic Sleeve Ring
25	1.00	06-75-5860		Scr Hex Hd 1/4-20
26	1.00	44-60-0741		Pivot Pin
27	1.00	45-06-0720		Felt Seal
28	1.00	40-50-8046		Spindle Lock Compression Spring
29	1.00	44-20-0653		Spindle Lock Plate
30	1.00	42-42-1030		Spindle Lock Button
32	1.00	---		Shoe
33	1.00	06-10-0110		Carriage Bolt, M6-1.00X28Mm
34	1.00	45-88-1560		Washer
35	1.00	43-98-0705		Bevel Adjustment Knob
36	1.00	40-50-0650		Compression Spring
37	1.00	43-98-0605		Rip Fence Knob
38	1.00	34-40-0360		O-Ring
39	1.00	02-04-0795		Ball Bearing
40	1.00	34-60-0610		Retaining Ring
41	1.00	---		Rotor
42	1.00	02-04-5382		Ball Bearing
43	1.00	---		Stator with PCBA
47	1.00	---		Battery Connector Block
49	1.00	23-16-0090		Motor Insulator Top
50	1.00	23-16-0095		Motor Insulator Bottom
51	1.00	06-82-1080		M3 X 14mm Pan Head Self-Tapping T-10 Screw
52	1.00	23-94-2731		High Voltage Wire W/Terminal
53	1.00	10-20-0359		Warning Label
54	1.00	31-44-0983		Left Housing Halve
55	1.00	05-88-5380		Torx Head Metric Screw, M3.5-0.6 X 12Mm
56	1.00	40-50-1760		Lock Out Spring
57	1.00	42-42-0345		Switch Lock Out Button
60	1.00	23-66-2635		On/Off Switch
61	1.00	31-44-0986		Right Housing Halve
62	1.00	06-82-7470		Screw 6 X 11/16 Plastite
63	1.00	45-88-1515		Washer Flat 1/4
64	1.00	45-08-0395		Depth Shaft
65	1.00	44-10-0018		Depth Lever
66	1.00	12-20-0041		Service Nameplate
67	1.00	49-96-0600		3/16" Hex Key
68	1.00	34-40-4480		O-Ring
69	1.00	43-74-0065		Saw Hook Bar
70	1.00	44-60-0585		Saw Hook Pin
71	1.00	45-22-1005		Detent Sleeve
72	1.00	40-50-0985		Saw Hook Spring
73	1.00	43-76-0035		Saw Hook Housing
74	1.00	06-82-0052		M6 X 2.69 X 32Mm T-25 Pt Screw
75	1.00	22-56-0150		Wire Crimp Connector
76	1.00	06-83-1600		Screw, Bevel Zero
77	1.00	31-51-0137		Bevel Scale
78	1.00	31-51-0132		Front Scale
79	1.00	06-81-0015		Phillips Screw
80	1.00	28-20-0027		Upper Guard Cover Assembly
81	1.00	38-50-0160		Output Shaft Assembly
82	1.00	28-14-0172		Upper Guard Gearcase Assembly
83	1.00	23-38-2840		Diode Assembly With Terminals
84	1.00	23-40-7115		Rotor Assembly
85	1.00	14-74-0505		Shoe Assembly
86	1.00	23-58-7115		Stator/Electronics Assembly
87	1.00	23-16-0005		Motor Insulator Assembly
88	1.00	14-38-0020		Housing Assembly
89	1.00	23-66-2639		Switch & Diode Assembly
91	1.00	49-22-2731		Rip Fence
92	1.00	---		Micro Switch (Not Shown)
93	1.00	48-55-3500		Contractors Bag
	1.00	49-08-5270		Type "Y" Grease, 6Oz Tube
