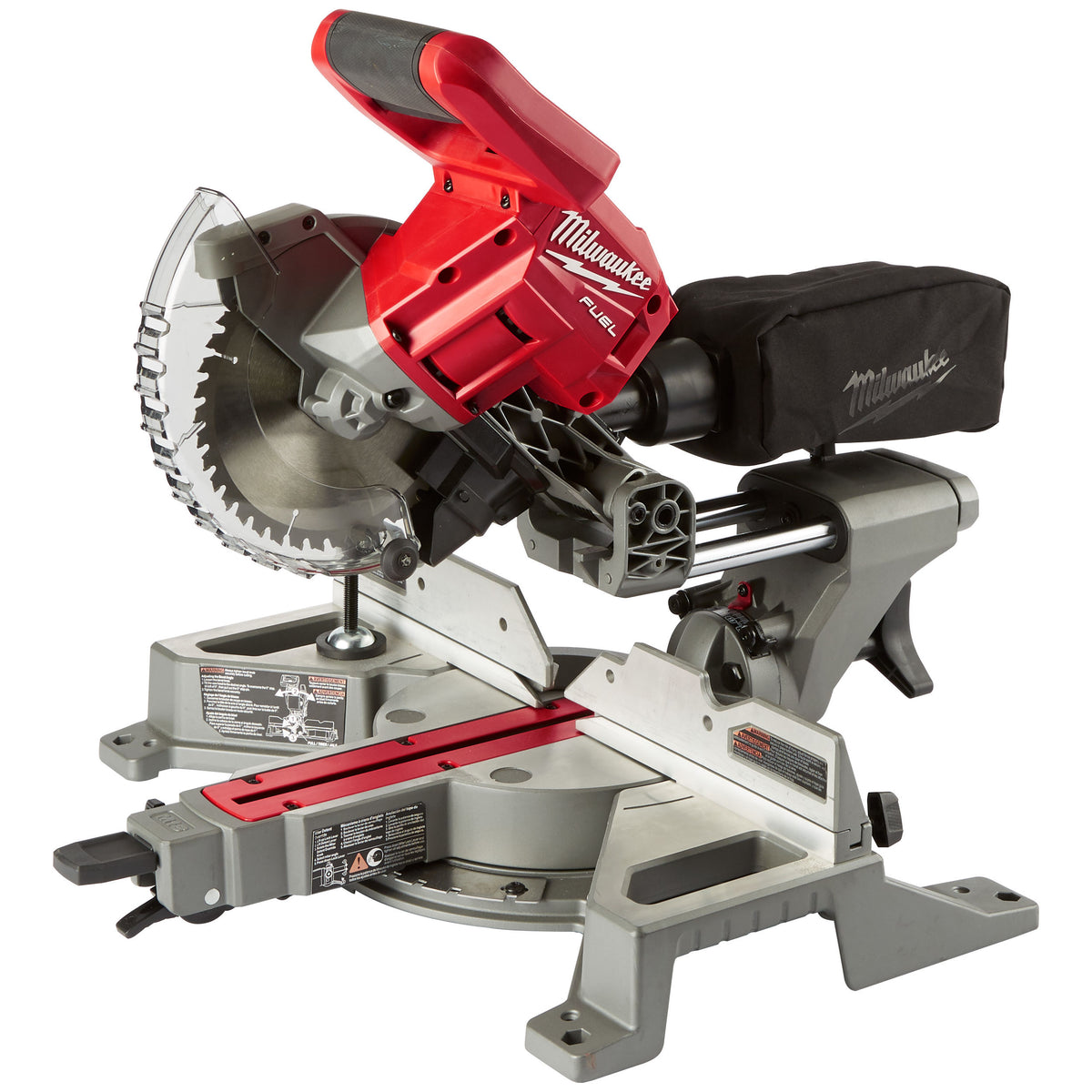

Milwaukee Tool 2733-20 M18 FUEL 7-1/4" Dual Bevel Sliding Compound Miter Saw
Milwaukee Tool 2733-20 M18 FUEL 7-1/4" Dual Bevel Sliding Compound Miter Saw

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2733-20_J04A UPC: 045242508150
$791.00 USD
Out of stock
Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2733-20

For Serial Numbers starting with J04A

Revision: January 2024

Data Sources:
Milwaukee 2733-20 Service Parts List, Serial J04A, January 2024 (PDF, 2.94MB)
Milwaukee 2733-20 Service Parts List, Serial J04A, April 2023 (PDF, 2.93MB)
Milwaukee 2733-20 Operator's Manual (PDF, 19 Pages, 4.97MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling

Figure Quantity Component Changed Description Notes
39 2.00 06-81-1705 M5 x 10mm Flat Head T-25 Machine Screw
44 2.00 06-75-1280 Hex Socket Screw
45 1.00 43-34-0132 Inner Blade Flange
47 1.00 43-34-0142 Outer Blade Flange
48 1.00 45-04-0410 Blade Retaining Screw
49 6.00 06-82-0225 Pan Head T-20 Machine Screw
50 1.00 31-15-0276 Dust Chute Exhaust
82 1.00 06-83-0985 Set Screw
203 1.00 44-66-1075 Bearing Retaining Plate
205 2.00 06-82-0235 Pan Head T-20 Self Tapping Screw
206 1.00 --- Shadow Line Housing - Left
207 1.00 44-06-0021 Optic
208 1.00 14-20-0102 Shadow Line Led
209 1.00 --- Shadow Line Housing - Right
213 2.00 06-82-0240 Pan Head T-20 Self Tapping Screw
214 1.00 --- Dust Chute Housing - Left
215 1.00 --- Dust Chute Housing - Right
217 1.00 42-38-0285 Dust Boot
218 2.00 44-06-0107 Cover Block
307 2.00 --- Guard Roller
308 2.00 --- Retaining Clip
311 1.00 44-14-0018 Guard Link Arm
312 2.00 42-40-0936 Lower Guard Linkage Bushing
313 2.00 05-81-0817 Pan Head T-25 Machine Screw
314 1.00 45-88-7104 Wave Washer
315 2.00 05-81-0418 M5 x 12mm Pan Head T-25 Machine Screw
601 1.00 14-32-0250 Lower Guard Assembly
602 1.00 14-38-0695 Motor Arm Assembly
603 1.00 --- Shadow Line Kit
606 1.00 38-50-2733 Spindle Assembly
617 1.00 31-44-0897 Dust Chute Housing Kit
625 1.00 31-44-1121 Carrying Handle Assembly
628 1.00 42-16-0625 Dust Bag Assembly
630 2.00 14-46-0096 Guard Roller Kit
632 1.00 42-86-0155 Connector Kit

23 1.00 06-82-0220 Pan Head T-20 Torx Screw
49 4.00 06-82-0225 Pan Head T-20 Machine Screw
227 2.00 05-81-0411 Pan Head T-25 Machine Screw
233 1.00 --- Motor Insulator - Left
234 1.00 --- Motor Insulator - Right
235 6.00 06-82-0245 M3 x 14mm Pan Head T-10 Self Tapping Screw
236 9.00 06-82-2500 #6-32 x 5/16" Slotted T-15 Torx Machine Screw
237 1.00 --- Handle Top
240 1.00 23-66-0044 On-Off Switch
241 1.00 --- Handle Bottom
242 1.00 --- Housing Half - Left
242A 1.00 12-20-0113 Nameplate Service
243 2.00 05-74-1010 Pan Head T-25 Self Tapping Machine Screw
244 1.00 --- Housing Half - Right
245 4.00 05-81-0812 Pan Head T-25 Machine Screw
253 2.00 06-82-0255 Pan Head Self Tapping T-20 Screw
604 1.00 16-01-2733 Rotor Assembly
605 1.00 31-50-2733 Motor Insulator Kit
607 1.00 31-44-0521 Left Housing Kit
610 1.00 --- Electronics Assembly
624 1.00 31-01-0004 LED Button Assembly
626 1.00 31-44-1119 Main Handle Kit
627 1.00 31-92-0211 Trigger Paddle Assembly
632 1.00 42-86-0155 Connector Kit

21 3.00 05-81-0164 M4 x 10mm Pan Head T-20 Machine Screw
55 1.00 34-60-0087 Retaining Ring
56 1.00 40-50-0143 Conical Spring
57 2.00 45-04-0735 Shoulder Screw
58 2.00 45-88-0168 Wave Washer
59 2.00 45-52-0045 Bevel Stop
60 1.00 --- Bevel Arm
61 1.00 44-72-0120 Bevel Pointer
62 1.00 44-20-0652 Lock Knob, Slide
63 4.00 45-06-0235 Felt Seal
64 1.00 42-92-1521 Back Bearing Cover
65 2.00 45-88-1701 Buffer Pad
66 2.00 45-88-1731 Flat Washer
67 4.00 06-83-0980 Set Screw
68 1.00 --- Rail Clamp
69 1.00 42-92-1522 Front Bearing Cover
70 1.00 40-50-0196 Axle Spring
71 2.00 42-40-0194 Pivot Spring Bushing
72 1.00 05-89-0521 Screw Stop
73 1.00 44-60-0003 Down Lock Pin
74 1.00 34-40-0251 O-Ring
76 1.00 42-12-0222 Bevel Axle
77 1.00 45-88-1732 Flat Washer
78 1.00 43-98-0087 Bevel Knob
79 1.00 44-60-0066 Bevel Stop Pin
80 2.00 45-88-1767 Washer
81 1.00 05-59-0145 M12 Hex Nut
83 1.00 40-50-1017 Slide Lock Compression Spring
90 1.00 45-88-2209 Bevel Stop Washer
613 1.00 43-70-0075 Arm Hinge/Slide Rail Assembly
614 1.00 42-68-0512 Slide Rail Clamp Assembly
622 1.00 14-29-0062 Bevel Arm Assembly

16A 1.00 --- Table with Bevel Scale
16B 2.00 10-20-2239 Label, Warning
16C 1.00 10-20-1404 Warning Label
16D 1.00 10-20-1400 Label Warning
17 1.00 06-14-0032 Hex Bolt
18 2.00 05-55-0050 Hex Nut
19 2.00 06-14-0034 Hex Bolt
20 1.00 06-83-0975 Set Screw
21 1.00 05-81-0164 M4 x 10mm Pan Head T-20 Machine Screw
22 1.00 44-72-0115 Miter Pointer
23 1.00 06-82-0220 Pan Head T-20 Torx Screw
24 1.00 --- Knob
25 1.00 40-50-0088 Torsion Spring
26 1.00 --- Knob Hub
28 2.00 05-81-0167 M4 x 10mm Pan Head T-20 Machine Screw
29 1.00 44-66-0223 Spring Plate
30 2.00 05-74-1015 T25 Torx Screw, #10-32
31 1.00 44-94-0271 Miter Lock Rod
32 1.00 44-60-0063 Lock Rod Pivot Nut
33 1.00 43-62-1053 Miter Lock Handle
34 1.00 44-66-0242 Kerf Plate
35 6.00 05-78-0905 Pan Head T-20 Torx Machine Screw,
36 1.00 45-72-0091 Detent Release Trigger
37 1.00 44-60-0064 Handle Pivot Pin
38 1.00 40-50-1021 Detent Spring
42 1.00 45-58-0135 Bevel Stud
84 1.00 44-66-0282 Retaining Plate
85 1.00 40-50-0086 Detent Slider Spring
86 1.00 44-66-0007 Detent Slider
87 1.00 06-82-0230 Screw
88 2.00 05-78-0915 Screw
89 2.00 45-88-2208 Detent Slider Washer
95 1.00 05-80-0520 Flat Head Machine Screw
96 1.00 44-66-0291 Plate
615 1.00 28-06-1037 Table Assembly
618 1.00 44-20-0237 Miter Override Lock Assembly

1 1.00 45-08-0471 Table Bolt
2 4.00 40-50-8621 Springs, Belleville
3 4.00 44-34-0017 Base Foot
4 1.00 --- Base
4A 1.00 10-20-1398 Label Warning
4B 1.00 10-20-1399 Label Warning
5 1.00 22-90-0185 Grommet, Wrench
6 1.00 49-96-0185 Wrench
7 1.00 45-06-0225 Felt Ring
8A 2.00 --- Thrust Bearing
8B 2.00 --- Thrust Washer
9 1.00 42-92-1156 Detent Plate/Scale
10 4.00 05-89-0533 M5 x 13mm Pan Head T-25 Screw
11 1.00 28-35-0125 Fixed Fence
12 4.00 05-81-0149 M8 x 25mm Pan Head T-30 Machine Screw
13 2.00 43-98-0046 Fence Lock Knob
14 1.00 --- Sliding Fence - Right
14B 1.00 10-20-1397 Label Warning
15 1.00 --- Sliding Fence - Left
15B 1.00 10-20-1396 Label Warning
21 1.00 05-81-0164 M4 x 10mm Pan Head T-20 Machine Screw
401 1.00 43-98-0043 Threaded Vise Knob
402 1.00 06-82-0066 Vice Screw, M6-1.00
403 1.00 45-16-0115 Clamp Shoe
404 1.00 45-88-1786 Flat Washer
406 1.00 45-16-0105 Rubber Shoe
407 1.00 34-60-0088 Retaining Ring
408 1.00 42-30-0356 Clamp Body
409 1.00 44-94-0272 Vice Rod
616 1.00 28-06-1121 Base Assembly
619 1.00 28-35-0130 Left Fence Assembly
620 1.00 28-35-0135 Right Fence Assembly
621 1.00 42-38-0087 Material Clamp Assembly
623 1.00 02-80-6002 Thrust Bearing Assembly
1.00 49-08-5270 Type "Y" Grease, 6Oz Tube
