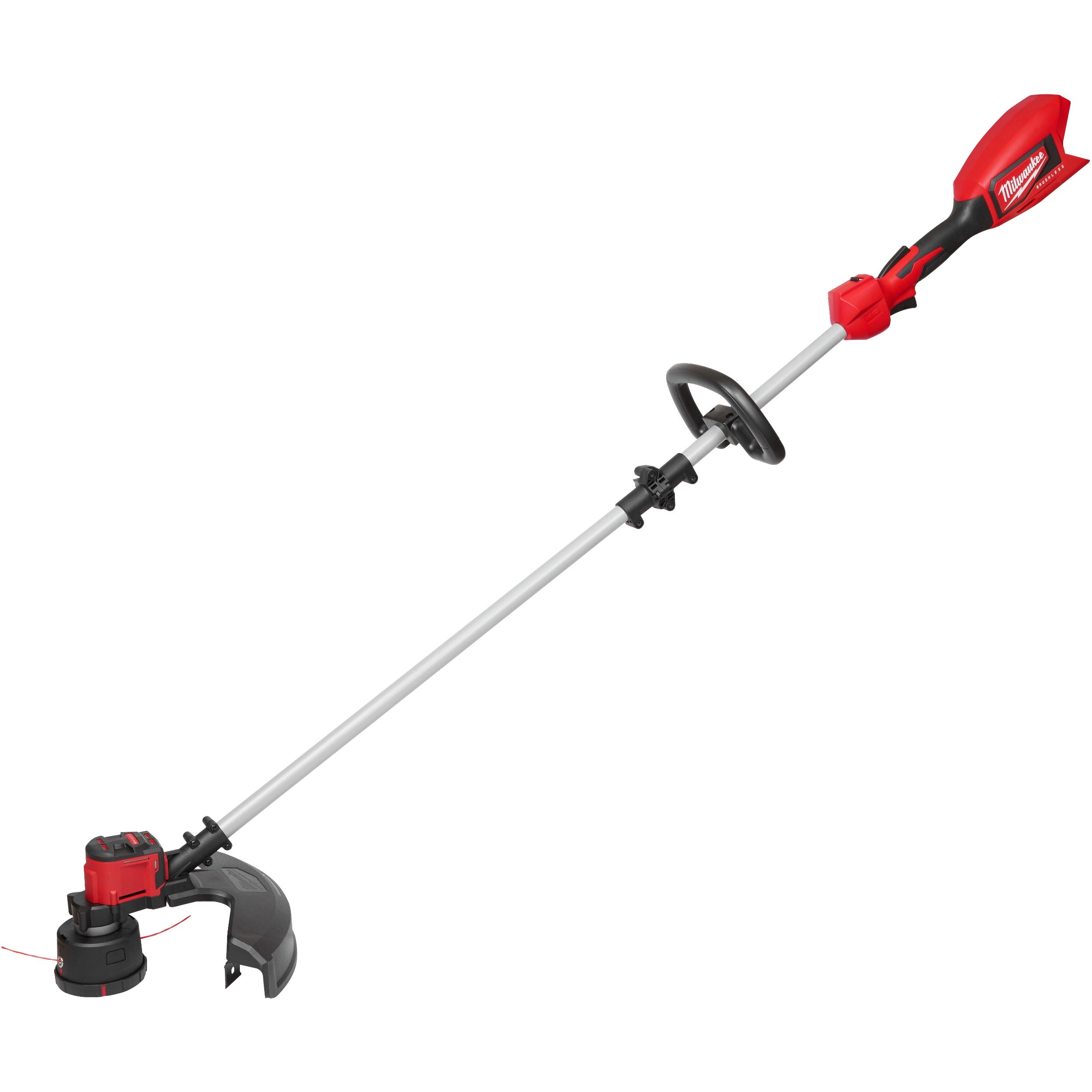

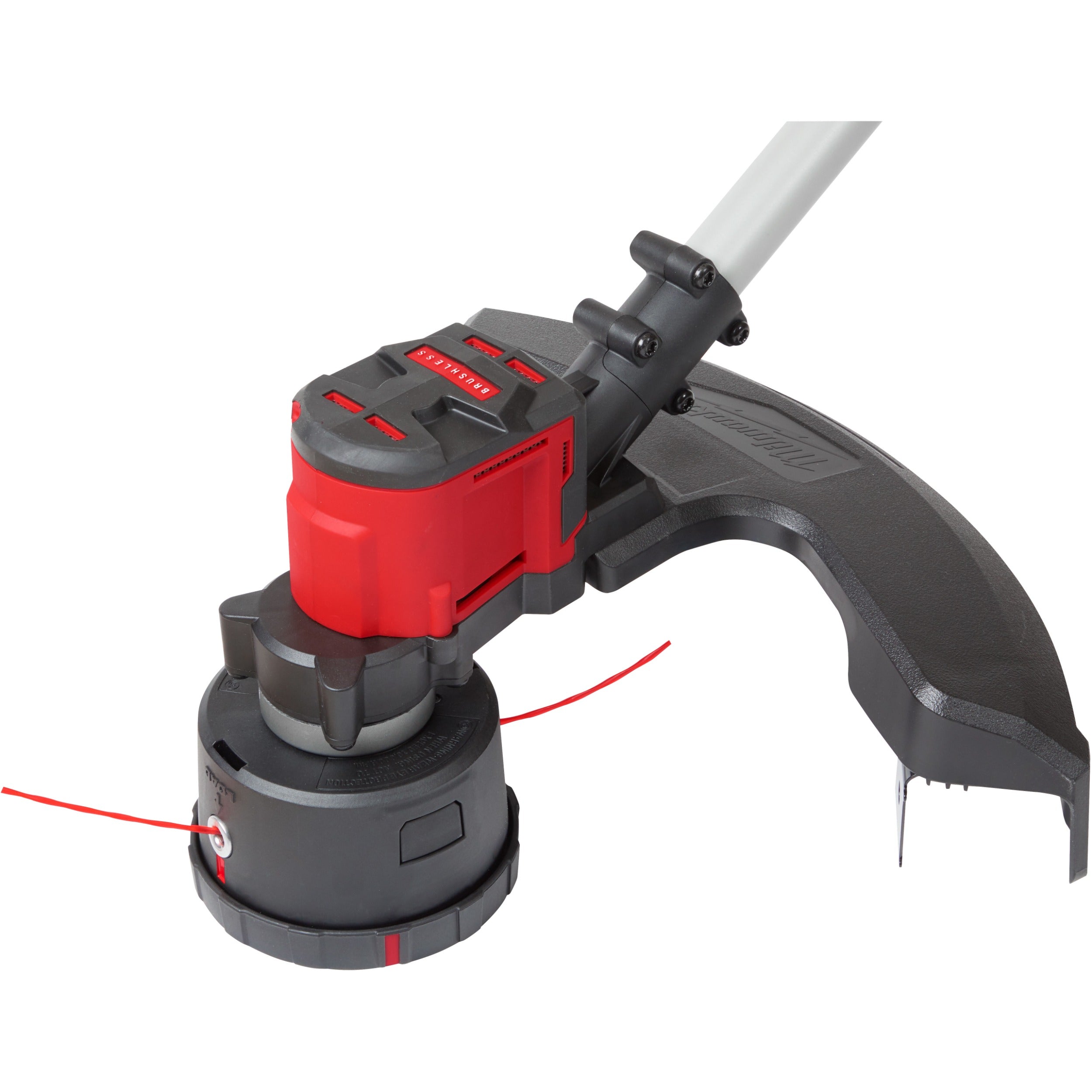

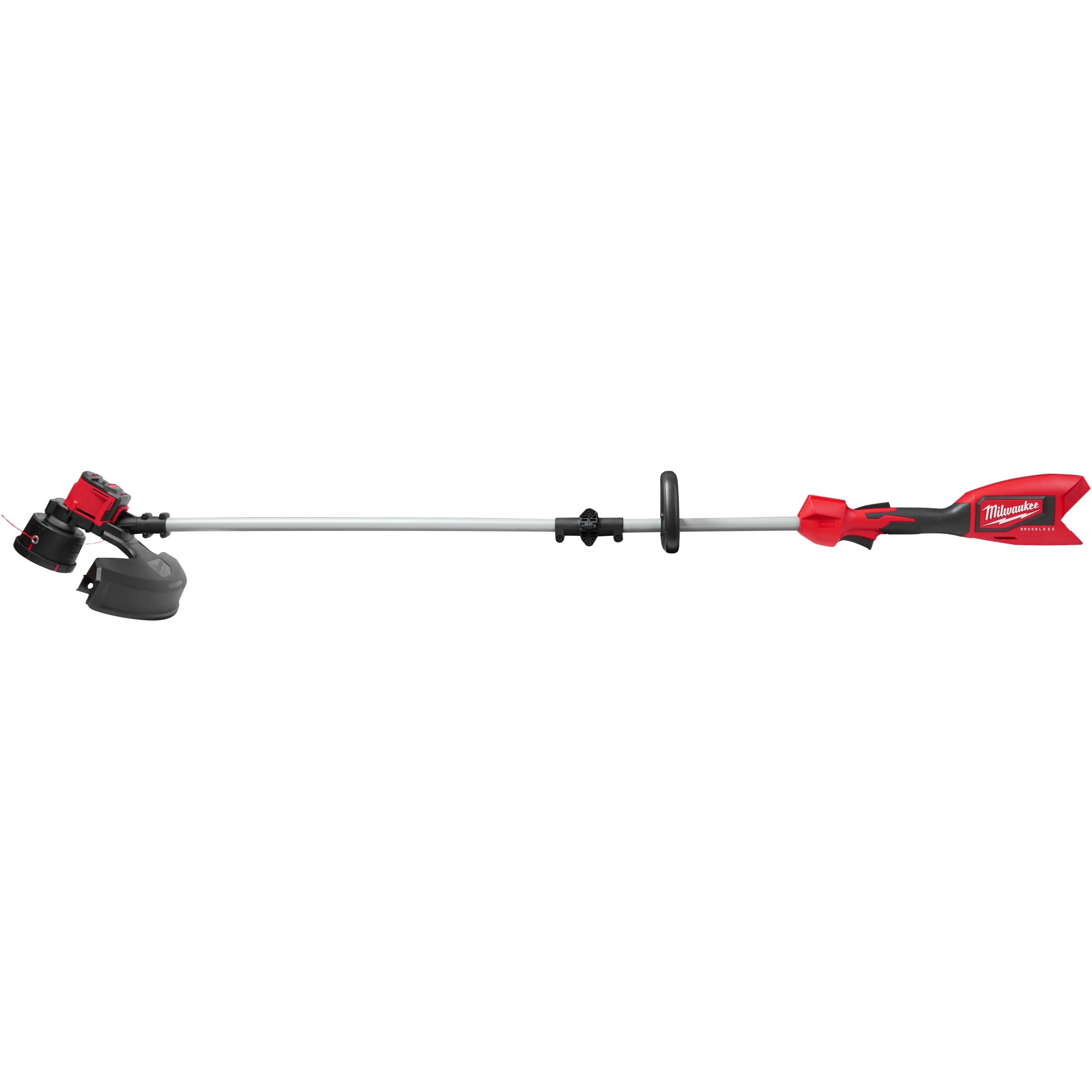

Milwaukee Tool 2828-20 M18 Brushless String Trimmer

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2828-20_L66A UPC: 045242572045
$304.00 USD
Out of stock
Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2828-20

For Serial Numbers starting with L66A

Revision: September 2022

Data Sources:
Milwaukee 2828-20 Service Parts List, Serial L66A (PDF, 2.39MB)
Milwaukee 2828-20 Operator's Manual (PDF, 8.89MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

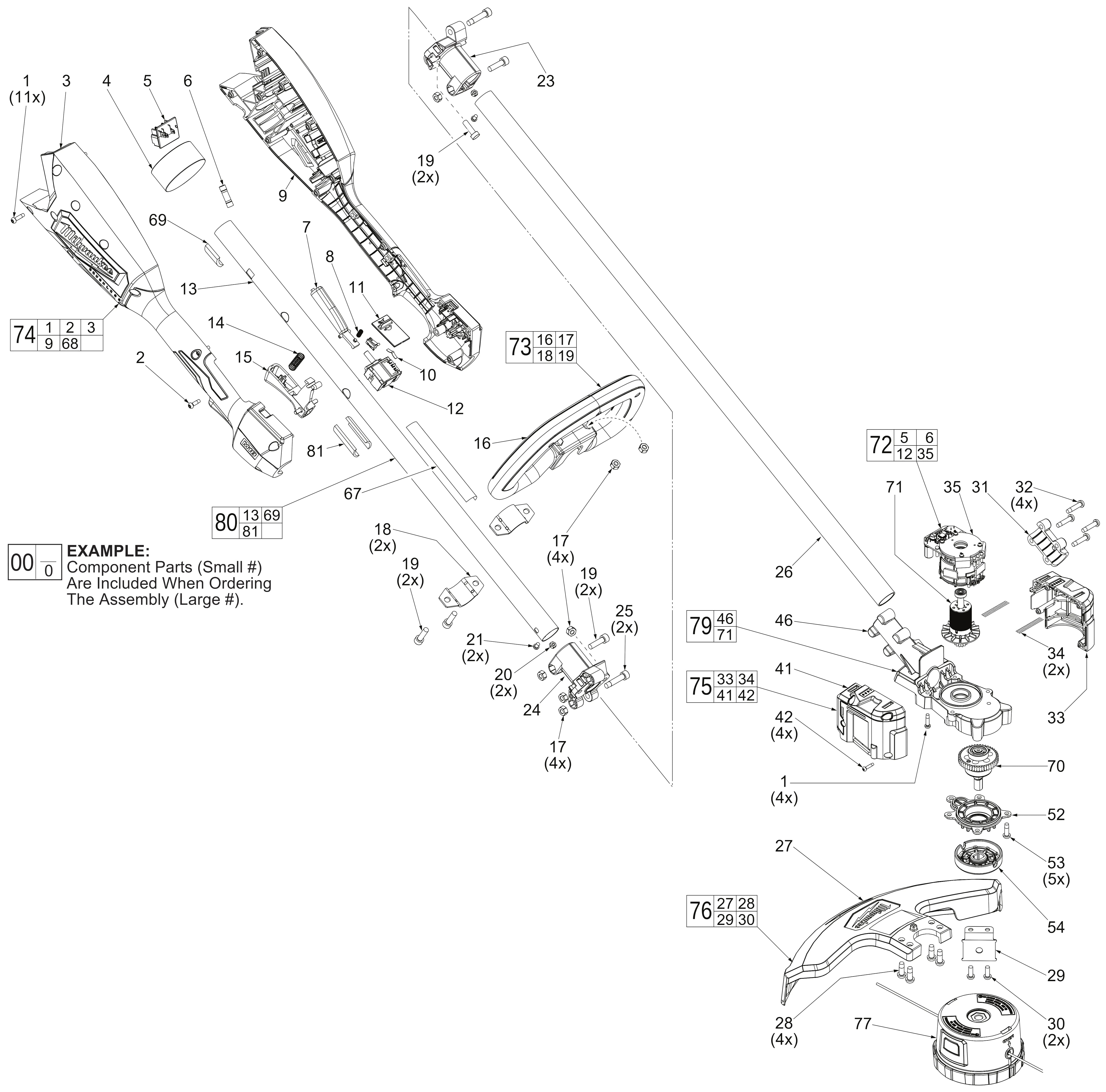

Figure Quantity Component Changed Description Notes
1 15.00 06-82-4003 M4 x 16mm Pan Head Self-Tapping T-20 Screw
2 1.00 05-88-5375 Screw, M4 X 13.5
3 1.00 --- Right Handle Half - Cover
4 1.00 42-87-0027 Counter Balance
5 1.00 --- Battery Terminal Block
6 1.00 22-56-0006 Wire Connector
7 1.00 45-72-0084 Release Trigger
8 1.00 40-50-0373 Spring
9 1.00 --- Left Handle Half - Support
10 1.00 40-50-0027 Spring Plate
11 1.00 45-24-0052 Speed Selector
12 1.00 --- Switch Assembly
13 1.00 45-08-0043 Rear Tube
14 1.00 40-50-0374 Bias Spring
15 1.00 45-72-0083 On-Off Trigger
16 1.00 --- Carrier Handle
17 8.00 05-55-0006 Metric Hex Nut, M6-1.00
18 2.00 42-68-0292 Carrier Handle Clamp
19 6.00 05-74-0015 M6-1.00 x 21.5mm Hex Socket Cap Screw
20 2.00 05-55-0004 M4 Hex Nut
21 2.00 06-82-0178 2 M Screw
23 1.00 42-90-0109 Front Coupler
24 1.00 42-90-0111 Rear Coupler
25 2.00 05-74-0083 M6 x 28.5mm Cap Head T30 Machine Screw
26 1.00 45-08-0106 Front Tube
27 1.00 --- String Guard
28 4.00 06-82-0247 M6 X 16mm Pan Head Self-Tapping T30 Screw
29 1.00 42-26-0024 Steel Line Cut-Off Blade
30 2.00 05-78-0032 M5-0.80 x 13mm Pan Head T25 Torx Machine Screw
31 1.00 44-66-0226 Clamp Plate
32 4.00 06-82-0152 Self-Tapping Screw M5 x 1.588 Phillips Head Torx T25 B
33 1.00 --- Motor Housing - Left
35 1.00 --- PCBA w/Stator
34 2.00 45-03-0013 Metal Mesh
41 1.00 --- Motor Housing - Right
42 4.00 06-82-1080 M3 x 14mm Pan Head Self-Tapping T10 Screw
46 1.00 28-14-0047 Gearcase
52 1.00 44-66-0108 Bearing Plate
53 5.00 06-82-0029 3.5 x 20 Pan Head Self-Tapping T15 Screw
54 1.00 44-66-0109 Lock Plate
67 1.00 10-20-1781 Label Warning 49-16-2717
68 1.00 12-20-0417 Nameplate Service, 2828-20
69 1.00 --- Rubber Foam Piece
70 1.00 14-73-0016 Spindle / Gear Assembly
71 1.00 16-01-0046 Rotor Assembly
72 1.00 14-20-0226 Electronic Assembly
73 1.00 14-34-0126 Front Handle Kit
74 1.00 14-38-0137 Handle Service Kit
75 1.00 31-50-0142 Motor Housing Service Kit
76 1.00 14-32-0119 String Guard Assembly
77 1.00 49-16-2714 Easy Load Trimmer Head
78 1.00 49-96-0055 Hex Key T-30
79 1.00 14-30-0059 Gear Case And Rotor Assembly
80 1.00 14-46-0208 Tube And Foam Pad Assembly
81 2.00 --- Rubber Foam Pad
1.00 49-08-4220 Grease, Type J, 1Lb
