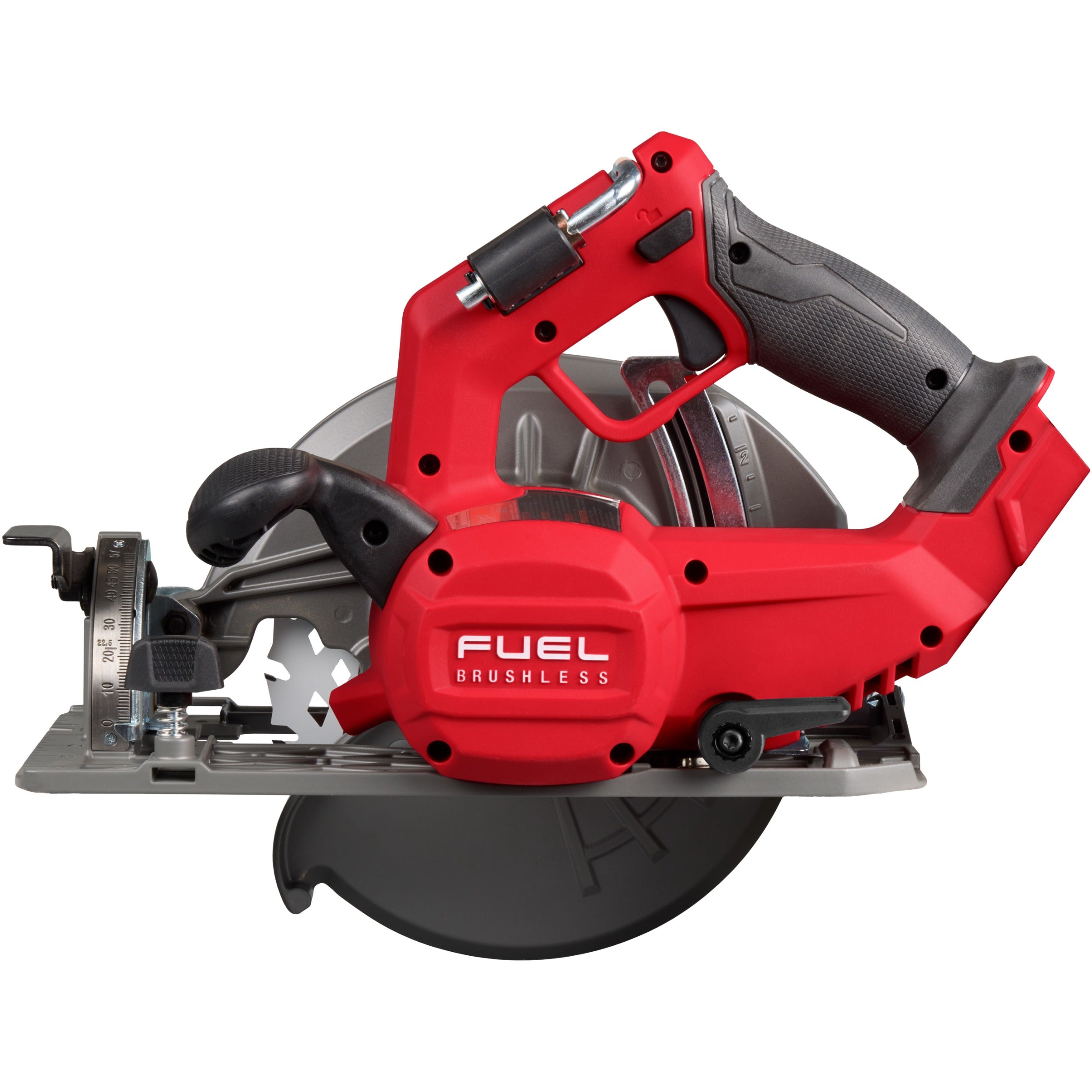

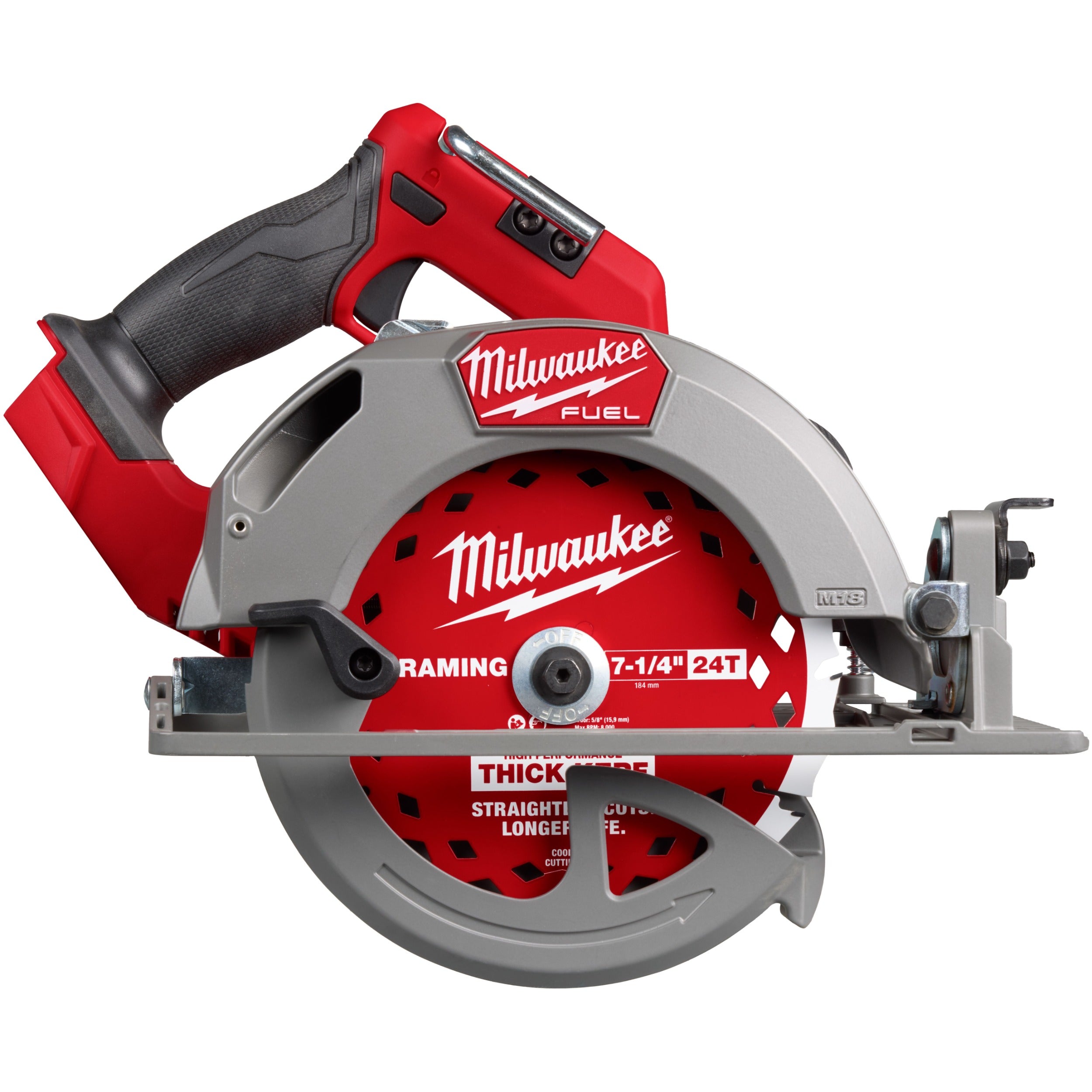

Milwaukee Tool 2834-20 M18 FUEL 7-1/4" Circular Saw

Name: Milwaukee Tool 2834-20 M18 FUEL 7-1/4" Circular Saw
Brand: Milwaukee Tool
SKU: 2834-20_N90A
Price: 418.00 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2834-20_N90A UPC: 045242869428

$418.00 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2834-20

For Serial Numbers starting with F49A and N90A

Revision: August 2025

Data Sources:
Milwaukee 2834-20 Service Parts List, Serial N90A, August 2025 (PDF, 16.9MB)
Milwaukee 2834-20 Service Parts List, Serial N90A, May 2024 (PDF, 2.66MB)
Milwaukee 2834-20 Operator's Manual (PDF, 13.8MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Figure	Quantity	Component	Changed	Description	Notes
1	1.00	---		Flange Bolt
2	1.00	---		Outer Flange
3	1.00	43-34-0790		Inner Blade Flange
4	1.00	---		External Retaining Ring
5	1.00	31-15-9005		Plastic Sleeve Ring
7	6.00	06-82-5285		6-32 x 1/2 Taptite Torx Pan Head Screw
8	1.00	---		Spindle Lock Cover
9	1.00	45-06-1260		Seal Felt
10	1.00	40-50-8046		Spindle Lock Compression Spring
11	1.00	---		Spindle Lock Plate
14	1.00	---		Output Gear Sub-Assembly	Not on August 2025 Service Parts List
15	1.00	---		Needle Bearing	Not on August 2025 Service Parts List
16	1.00	45-04-0485		M4 x 0.70mm Pan Head TORX T20 Taptite Screw
17	1.00	42-38-0224		Rubber Bumper
18	1.00	---		Pivot Shoulder Bolt
19	1.00	---		Upper Guard Gearcase
20	1.00	---		Hex Nut
21	1.00	---		Spindle Lock Button
22	1.00	06-82-5314		Pan Head Torx Screw, #10-24 X 1/2"
23	1.00	---		Lower Guard Lever
24	1.00	---		Lower Guard
25	1.00	40-50-0045 49-68-5212		Guard Spring	May 2024 Service Parts List August 2025 Service Parts List
26	1.00	05-78-1005		M3.5-0.6 x 12mm Pan Head Phillips Screw
27	1.00	---		Dust Port
28	1.00	---		Logo Label	Not on August 2025 Service Parts List
29	1.00	06-10-0110		Carriage Bolt, M6-1.00 x 28mm
30	1.00	---		Depth Detent Spring Assembly
31	1.00	---		Hex Nut
32	1.00	---		E-Ring

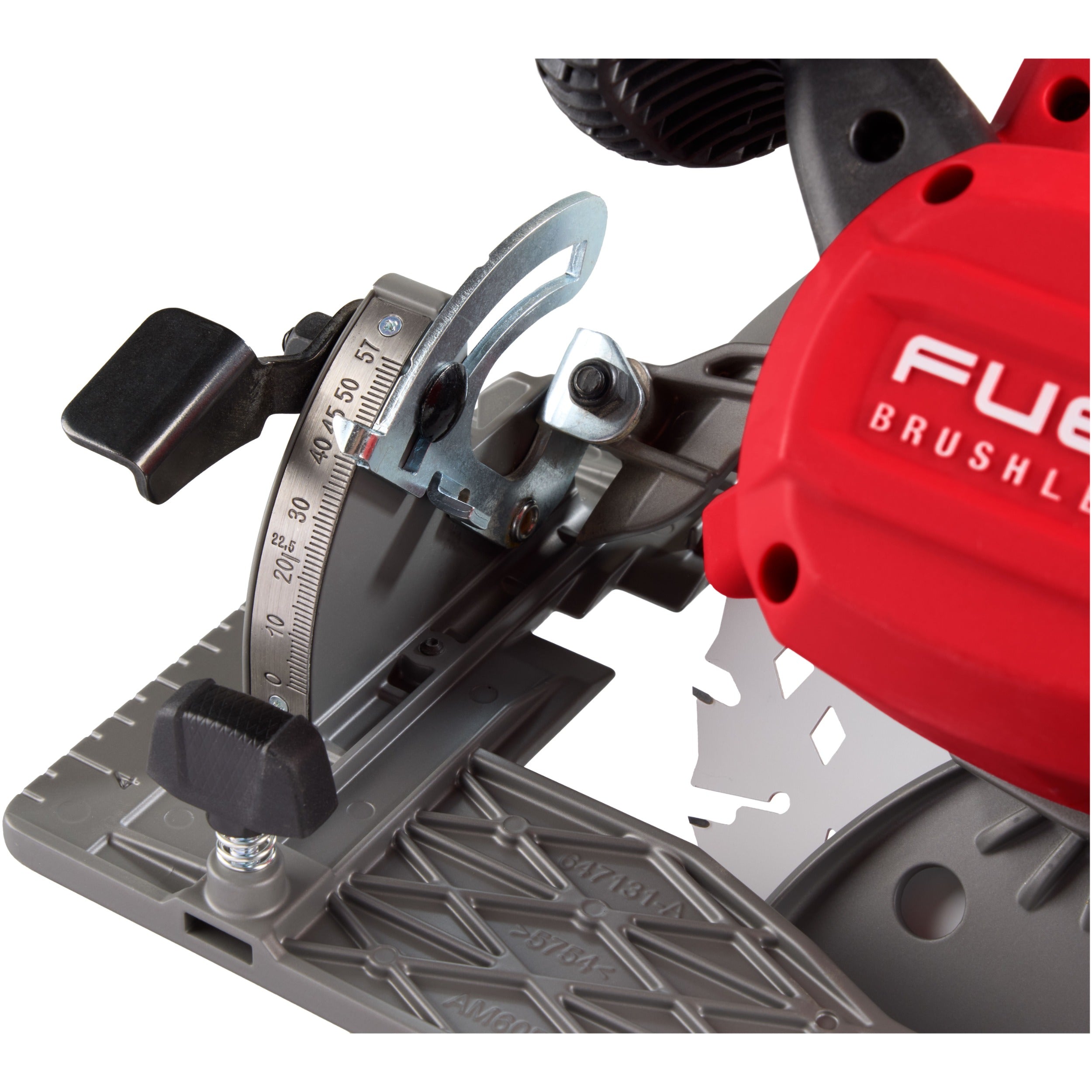

33	1.00	---		Bevel Lever
34	1.00	---		Washer
35	1.00	06-10-0025		M6-1.00 x 33mm Pan Head Bevel Screw
36	1.00	---		Shoe Assembly
37	1.00	40-50-0650		Compression Spring
38	1.00	---		Rip Fence Knob

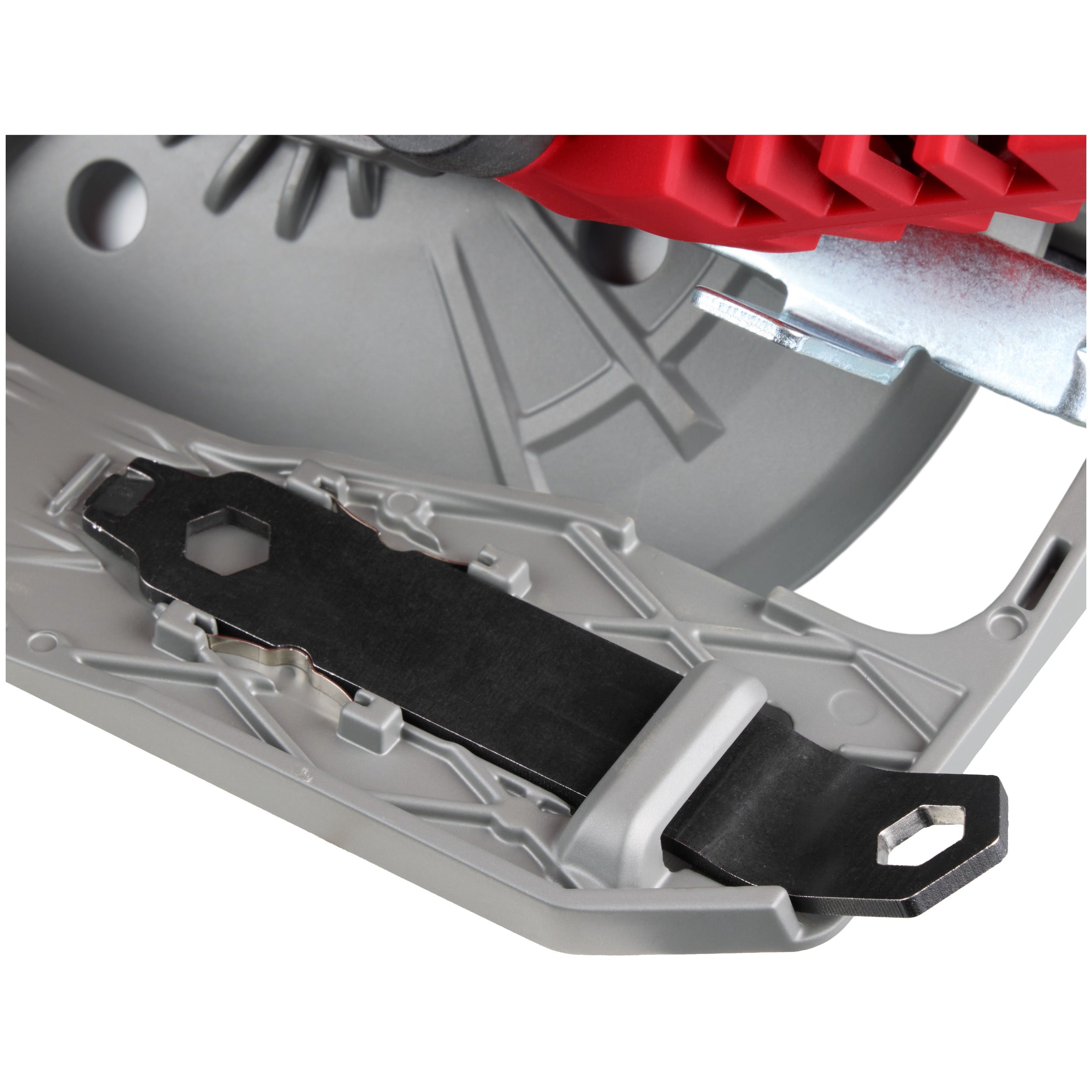

39	1.00	45-88-9320		Stamped Blade Bolt Wrench
40	1.00	---		O-Ring
44	2.00	05-74-1030		M5 x 0.80 TORX T25 Pan Head Screw
45	1.00	---		Rotor Sub-Assembly	Not on August 2025 Service Parts List
46	2.00	05-78-1010		M3.5 x 12mm Pan Head TORX T10 Machine Screw
47	3.00	42-32-0028		M4-0.70 Pan Head TORX T20 Screw
48	1.00	---		Stator
50	3.00	06-82-0243		M2 x 6mm TORX T6 PT Screw
51	2.00	06-82-9637		M6 - 1.814 x 28mm TORX T30 Pan Head Self Tapping Screw
56	1.00	---		Rafter Hook Sub-Assembly	Not on August 2025 Service Parts List
57	1.00	---		Right Handle
58	1.00	---		Button Flake
59	1.00	---		Switch Lock Button
60	1.00	23-66-0116		Switch, Marquardt 1269, 1 Amp @ 60Vdc
61	1.00	---		PCBA / Stator Sub-Assembly	Not on August 2025 Service Parts List
62	1.00	---		Left Handle
63	10.00	06-82-7470		#6-19 x 11/16" TORX T15 Plastite Screw
64	1.00	---		Washer
65	1.00	---		Depth Shaft
66	1.00	---		Depth Adjustment Lever
67	2.00	05-74-7190		M3.5 -1.27 Pan Head TORX T10 Self Tapping Screw
68	1.00	---		Front Pommel
69	1.00	---		M5 x 13mm Machine Screw	Error in datasheet; P/N not correct
70	1.00	---		M2 x 0.635 Pan Head TORX T6 Screw
71	1.00	---		Washer	Not on August 2025 Service Parts List
74	1.00	42-55-2743		Medium Contractor Bag
76	1.00	12-20-0387		Nameplate Service 2834-20
77	1.00	10-22-0653		Warning Label 2834-20
78	1.00	05-78-5320		M2.3 x 5mm Pan Head Torx T6 Screw
79	3.00	---		Washer
80	1.00	31-44-7270		Handle Service Kit
81	1.00	14-46-9961		Dust Tube Kit
82	1.00	14-46-9962		Spindle Lock Kit, 2834
83	1.00	14-47-1270		Output Gear Kit, 2834
84	1.00	14-46-9963		Gearcase Kit, 2834
85	1.00	14-46-9964		PCBA & Stator Kit, 2834
86	1.00	45-16-3260		Shoe Kit, 2834
87	1.00	16-01-6530		Rotor Kit, 2834
88	1.00	14-46-9965		Plunge Lever Kit, 2834
89	1.00	14-46-9966		Blade Retention Service Kit
90	1.00	14-46-9968		Lock Off Trigger Service Kit, 2834
91	1.00	31-44-7260		Pommel Service Kit, 2834
92	1.00	49-22-9940		Rip Fence Knob & Spring Kit
93	1.00	14-46-9967		Rafter Hook Service Kit, 2834
94	1.00	28-41-2040		Lower Guard Service Kit, 2834
95	1.00	49-22-2731		Rip Fence (Not Shown)	Not on May 2024 Service Parts List
	1.00	49-08-0021		Dech U-5215 Grease, 28-Oz
	1.00	44-22-0055		277 Red Loctite

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:
Protection Type:

Terminal Type:

Voltage:

18VDC

Packaging & Dimensions:
Inside Diameter:

Outside Diameter:

Overall Length:

Packaging Type:

Package Length:

Package Width:

Package Height:

Sold As:Each

Threads
Flute Direction:

Number of Flutes:

Pitch:

Thread Size:

Thread Direction:

TPI:

Milwaukee Tool

Milwaukee Electric Tool Corporation, more commonly known as Milwaukee Tool or simply Milwaukee, is an American company that develops, manufactures and markets power tools, hand tools, tool accessories, tool storage and personal protective equipment. The company operates as an independent subsidiary of TTI Group alongside brands like AEG, Ryobi, Hoover, Dirt Devil, and Vax.

Milwaukee tools are manufactured globally in China, Germany, Mexico, the United States and Vietnam. Their product line includes corded and cordless power tools, hand tools, pliers, hand saws, screwdrivers, utility knives, impact drivers, and much more. They also distribute various other tools such as multimeters, thermal imaging equipment, oscillating multi-tools, drilling devices, chargers. Well-known Milwaukee Tool trademarks include M12, M18, MX FUEL, and PACKOUT.
