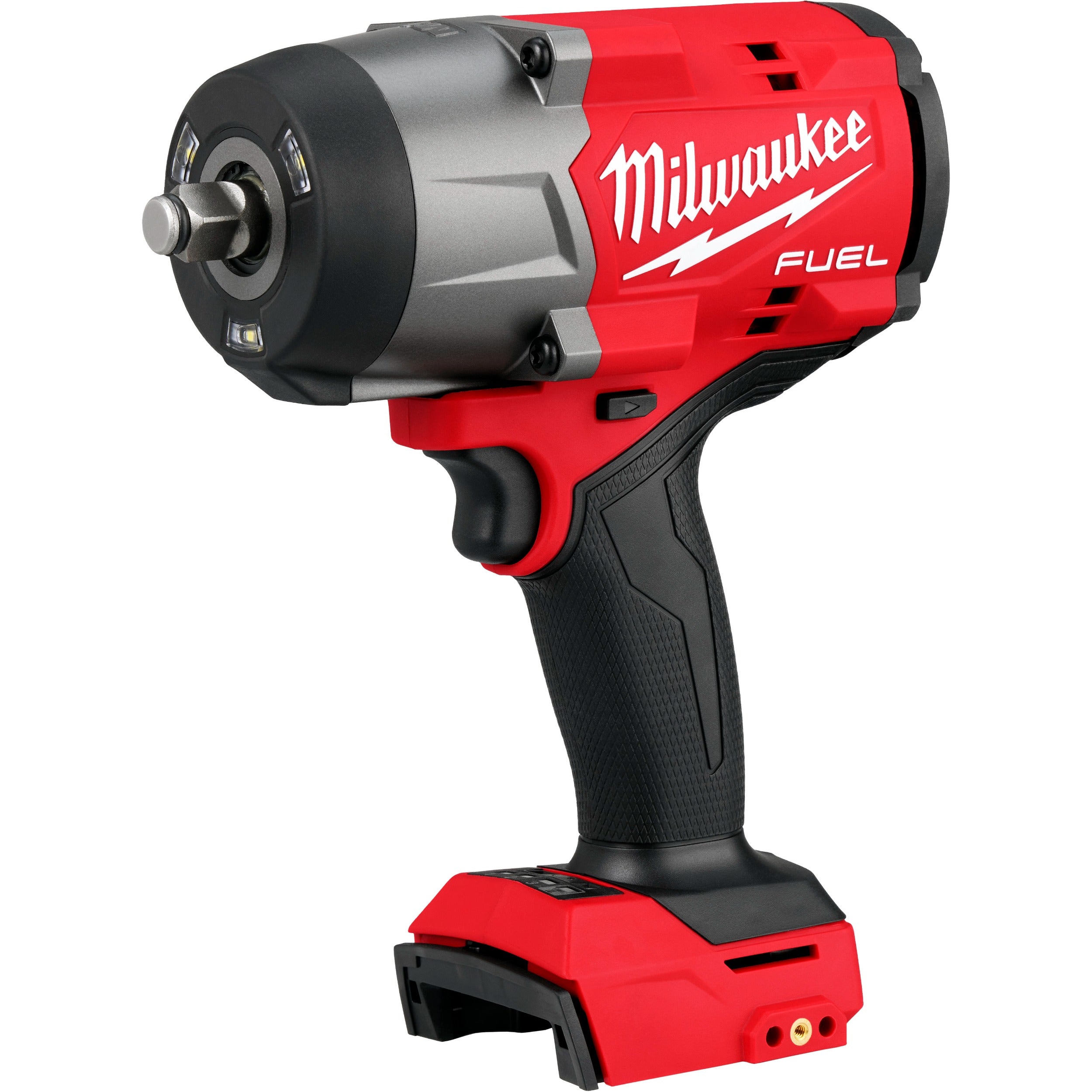

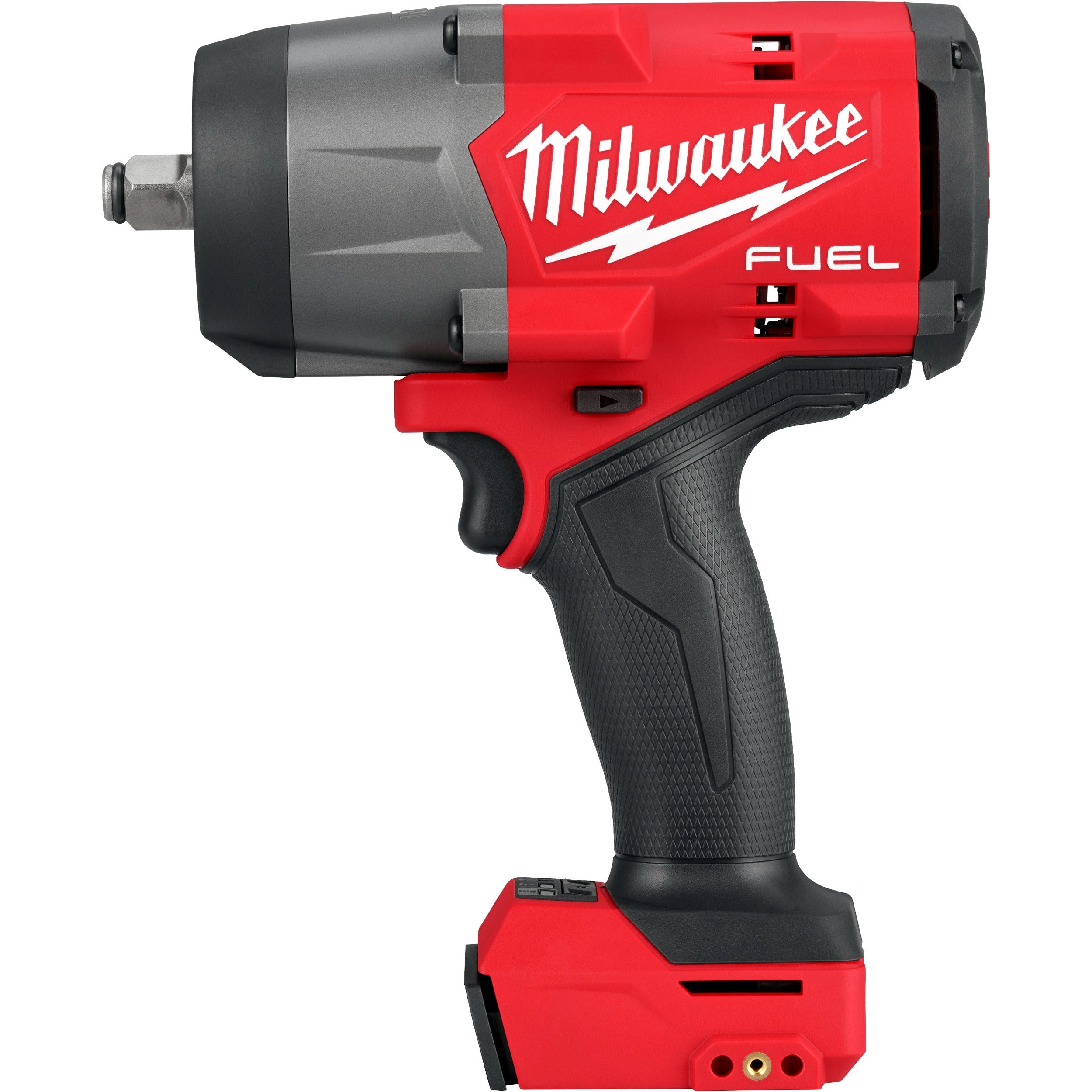

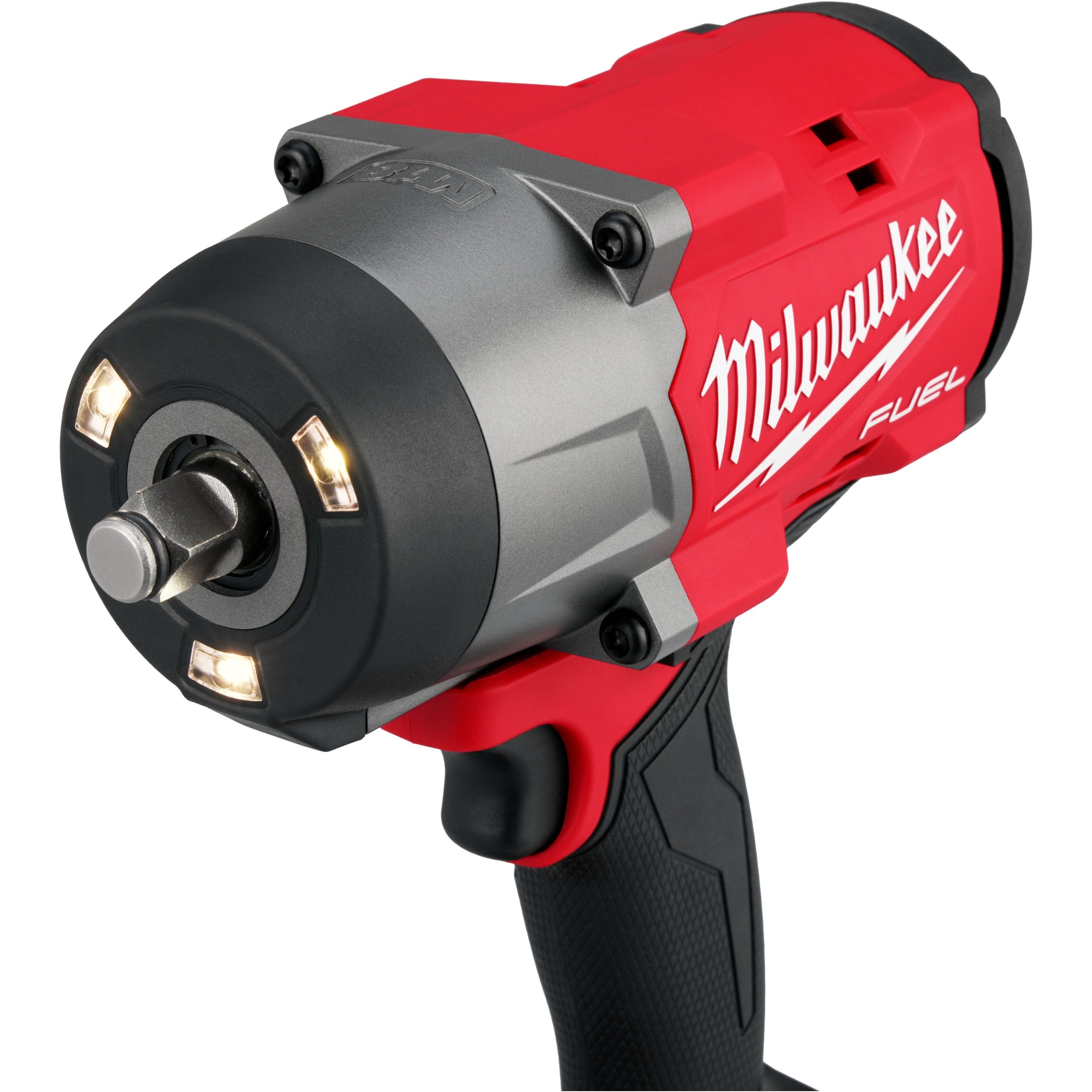

Milwaukee Tool 2967-20 M18 FUEL 1/2" High Torque Impact Wrench with Friction Ring

Name: Milwaukee Tool 2967-20 M18 FUEL 1/2" High Torque Impact Wrench with Friction Ring
Brand: Milwaukee Tool
SKU: 2967-20_N80A
Price: 498.00 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 2967-20_N80A UPC: 045242601554

$498.00 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 2967-20

For Serial Numbers starting with N80A.

Revision: September 2023

Data Sources:
Milwaukee 2966-20/2967-20 Service Parts List, Serial N80A, September 2023 (PDF, 2.12MB)
Milwaukee 2967-20 Operator's Manual (PDF, 3.73MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Figure	Quantity	Component	Changed	Description	Notes
1	1.00	---		Lens Assembly
2	1.00	44-86-0032		Retaining Ring
3	1.00	45-06-7070		Anvil Seal
4	1.00	---		Shadowless Retaining Clip
5	1.00	---		Gear Case
6	1.00	45-88-9125		Anvil Washer
7	1.00	---		Shadowless Wire Boat
8	1.00	---		Rubber Plug
9	1.00	44-90-4530		1/2" Friction Ring
10	1.00	34-40-0900		O-Ring
11	1.00	---		1/2" Friction Ring Anvil
12	1.00	02-02-2070		Steel Ball, 10mm
19	3.00	32-62-0705		Planet Gear
20	3.00	44-60-5430		Planet Gear Pin, 6.0mm
21	1.00	46-06-7060		Rubber Seal
22	2.00	45-88-9135		Thrust Washer
23	1.00	02-50-7035		Thrust Needle Bearing
24	1.00	32-65-2875		Ring Gear
28	1.00	02-04-7165		Bearing
29	1.00	42-40-7155		Rotor Shaft Bushing
30	1.00	---		Rotor
45	1.00	45-24-9040		Forward / Reverse Shuttle
46	1.00	---		Speed Select Board, Rubber
47	1.00	---		Mode Selector
48	1.00	---		Mode Select Button
49	1.00	---		Light Pipe, Mode Select
50	1.00	---		Bracket
51	1.00	---		Isolator
52	4.00	05-78-0088		M3 x 8mm Flat Head Self-tapping Phillips Screw
53	2.00	45-30-1060		Rubber Slug
54	4.00	45-30-1070		Rubber Bumper
55	4.00	06-81-9555		M5 x 23mm Pan Head Torx T25 Metric Screw
56	1.00	---		Handle Support
57	1.00	---		Handle Cover
58	6.00	06-82-0995		Handle Screw
59	2.00	06-82-4002		Pan Head Self-Tapping Screw, M4 X 35Mm
60	5.00	06-82-4001		M4 X 22Mm Pan Head Self-Tapping T20 Torx Screw
61	1.00	---		#6-32 Pan Head TORX T15 Slot B M Screw
62	1.00	---		Belt Hook
63	1.00	12-20-9945		Service Nameplate
67	1.00	42-55-9525		Blow Molded Carrying Case
68	1.00	49-16-2967		Rubber Boot
70	1.00	---		Rubber Plug
100	1.00	14-29-9045		Front Gearcase Assembly
102	1.00	42-06-5320		1/2" Friction Ring Anvil Assembly
104	1.00	14-30-6310		Impact System Assembly
106	1.00	14-34-7130		Handle Kit
107	1.00	42-70-0950		Belt Clip Kit
108	1.00	16-01-6035		Rotor Assembly
109	1.00	14-50-7015		Battery Isolator Kit
110	1.00	14-20-9345		Electronics Assembly
112	1.00	45-24-9050		Mode Selector Kit
	1.00	49-08-4220		Grease, Type J, 1Lb

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:
Protection Type:

Terminal Type:

Voltage:

18VDC

Packaging & Dimensions:
Inside Diameter:

Outside Diameter:

Overall Length:

7.600 in

Packaging Type:

Package Length:

Package Width:

Package Height:

Sold As:Each

Threads
Flute Direction:

Number of Flutes:

Pitch:

Thread Size:

Thread Direction:

TPI:
