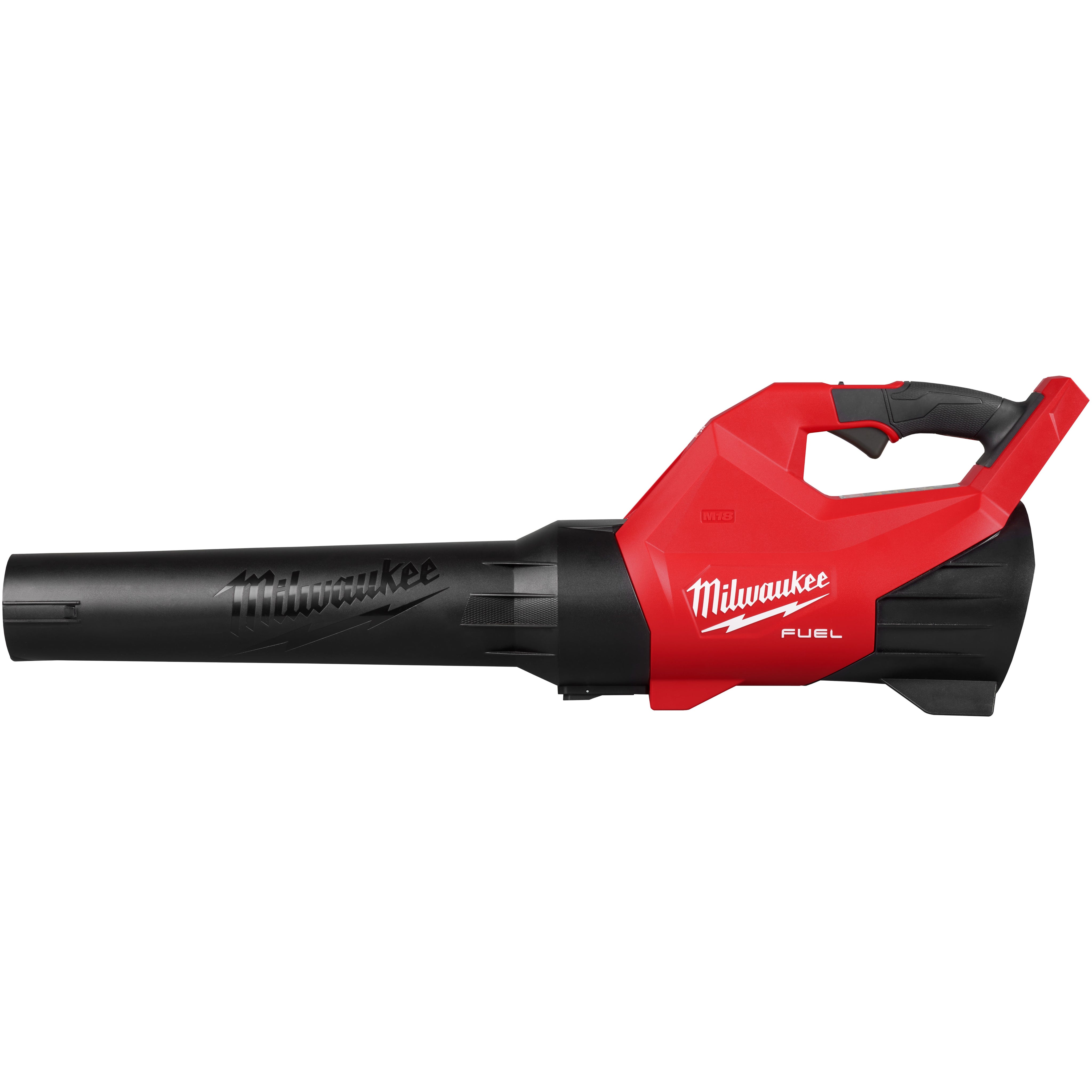

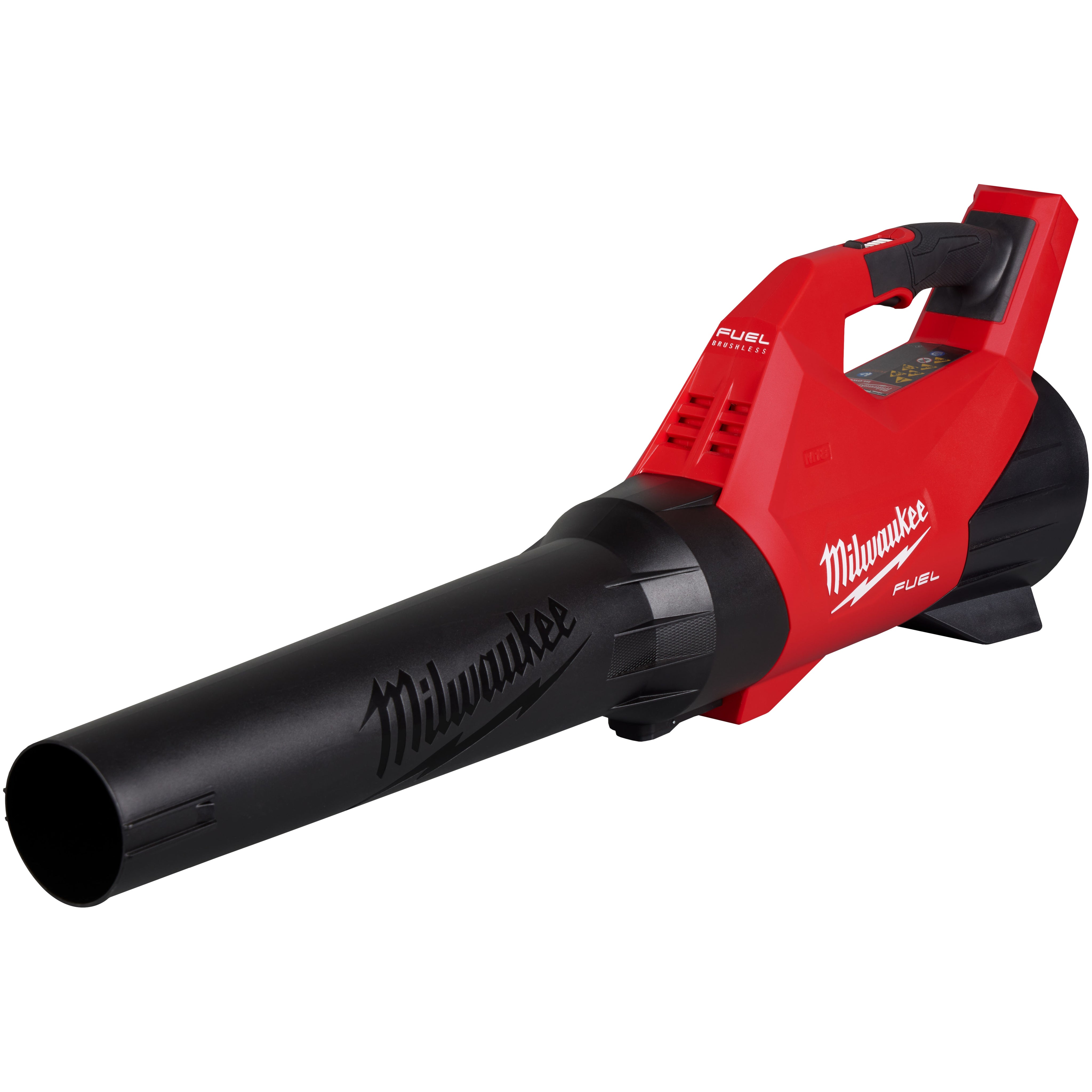

Milwaukee Tool 3017-20 M18 FUEL Leaf Blower

Name: Milwaukee Tool 3017-20 M18 FUEL Leaf Blower
Brand: Milwaukee Tool
SKU: 3017-20_P29A
Price: 359.19 USD
Availability: OutOfStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Milwaukee Tool SKU: 3017-20_P29A UPC: 045242823963

$359.19 USD

Out of stock

Out of Stock

This item is not for sale; this page is for part number reference only.

Catalog Number: 3017-20

For Serial Numbers starting with P29A

Revision: February 2026

Data Sources:

Milwaukee 3017-20 Service Parts List, December 2023 (PDF, 8.43MB)
Milwaukee 3017-20 Service Parts List, February 2026 (PDF, 9.39MB)
Milwaukee 3017-20 English/French/Spanish Operator's Manual (PDF, 4.47MB)

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Figure	Quantity	Component	Changed	Description	Notes
1	5.00	05-88-1220		M4 x 10 Black Pan Head T20 TORX Machine Screw
2	1.00	23-33-0067		Inlet Vent
3	1.00	05-55-0033 05-55-0022		M7 X 1 Hex Nut M5 Nylon Insert Nut	December 2023 Revision February 2026 Revision
4	1.00	---		Flat Washer
5	1.00	---		Fan Dome
6	1.00	---		Fan
7	1.00	---		Inlet Muffler Support with foam
10	1.00	---		Inlet Muffler Cover with foam
11	6.00	06-82-0032		M4 x 12mm Pan Head Self Tapping T-20 Screw
12	4.00	05-74-0203		Self Tapping Screw M3 x 1.058 Ch Hexagon
13	1.00	23-33-0069		Inlet Duct
19	4.00	---		Pan Head T10 TORX Screw
20	1.00	---		Motor Housing Support
21	1.00	---		Motor Housing Cover
22	1.00	23-33-0074		Outlet Duct
23	1.00	23-33-0076		Outlet Foam
28	1.00	---		Handle Support
29	1.00	---		Cruise Control Slider
30	1.00	22-38-0101		Stamping, Grounding Wire
31	1.00	---		Spring Plate
32	4.00	---		Rubber Grommet
33	1.00	---		Blower Trigger
34	1.00	---		Stator
36	1.00	---		Handle Cover
37	16.00	---		M4 x 1.41 Pan Head T20 Taptite Screw
47	1.00	12-20-0588		Service Nameplate 3017-20
48	1.00	10-22-0640		Label Warning 3017-20
60	1.00	14-46-0786		Housing Service Kit
61	1.00	14-46-0787		Service Electronics Assembly Kit
62	1.00	14-46-0788		Service Rotor Assembly Kit
63	1.00	14-46-0789		Service Motor Insulator Kit
64	1.00	14-46-0790		Service Trigger Kit
65	1.00	14-46-0792		Inlet Duct Service Kit
66	1.00	14-46-0794		Service Tube Assembly Kit
67	1.00	14-46-0793 14-46-0698		Service Fan Kit Fan Service Kit	December 2023 Revision February 2026 Revision
