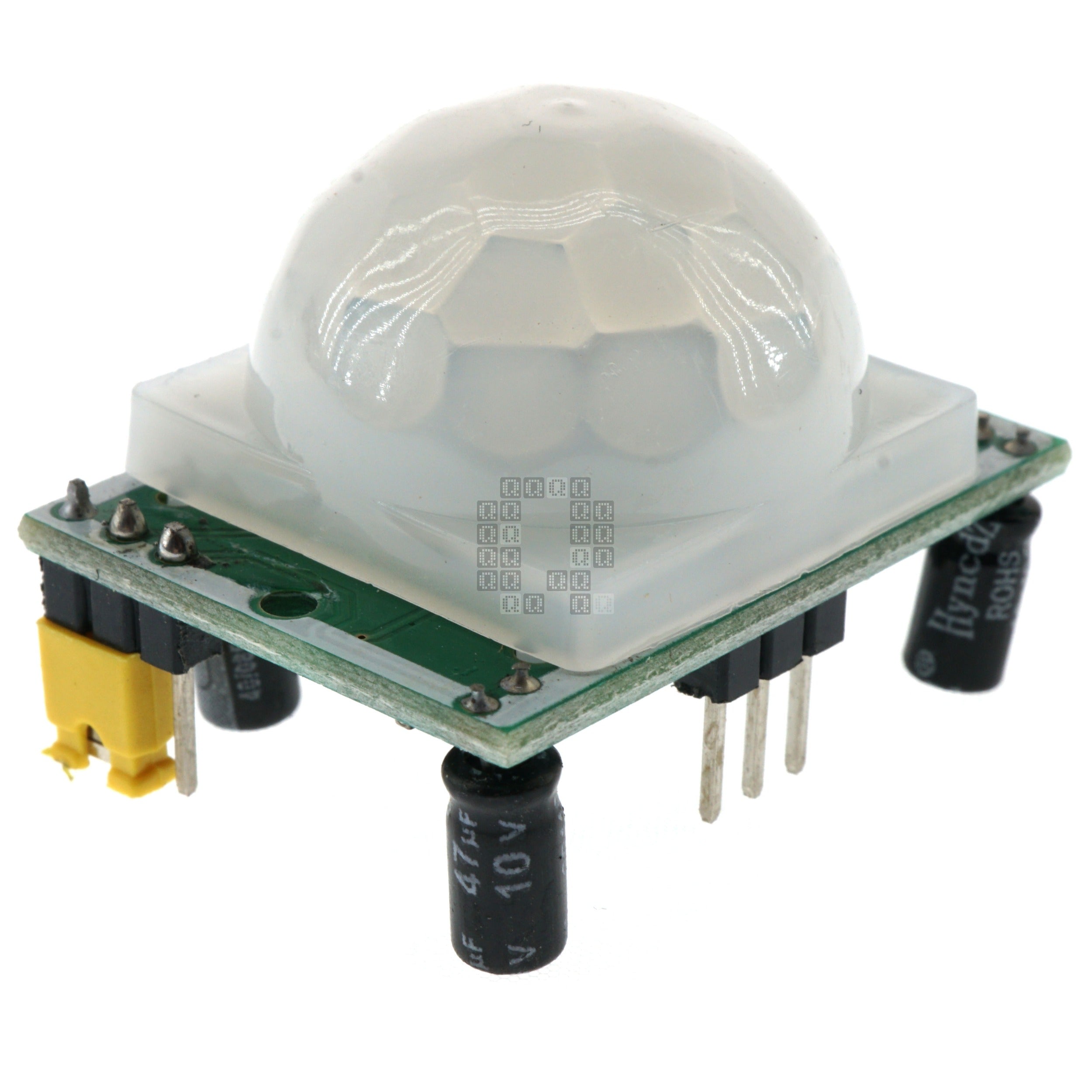

Brand Unbranded
Manufacturer Part Number HC-SR501
Cross Reference (Fit/Form/Function)

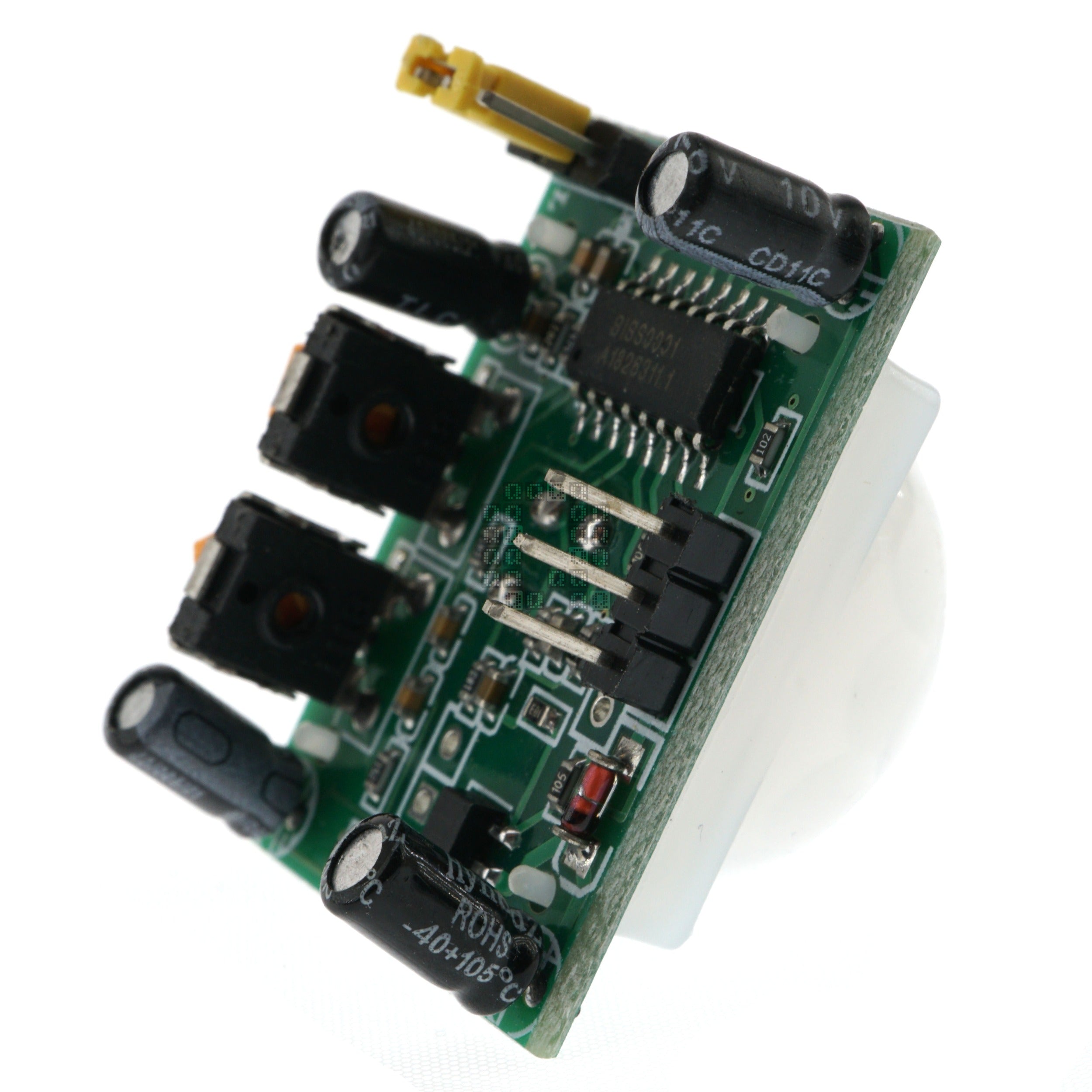

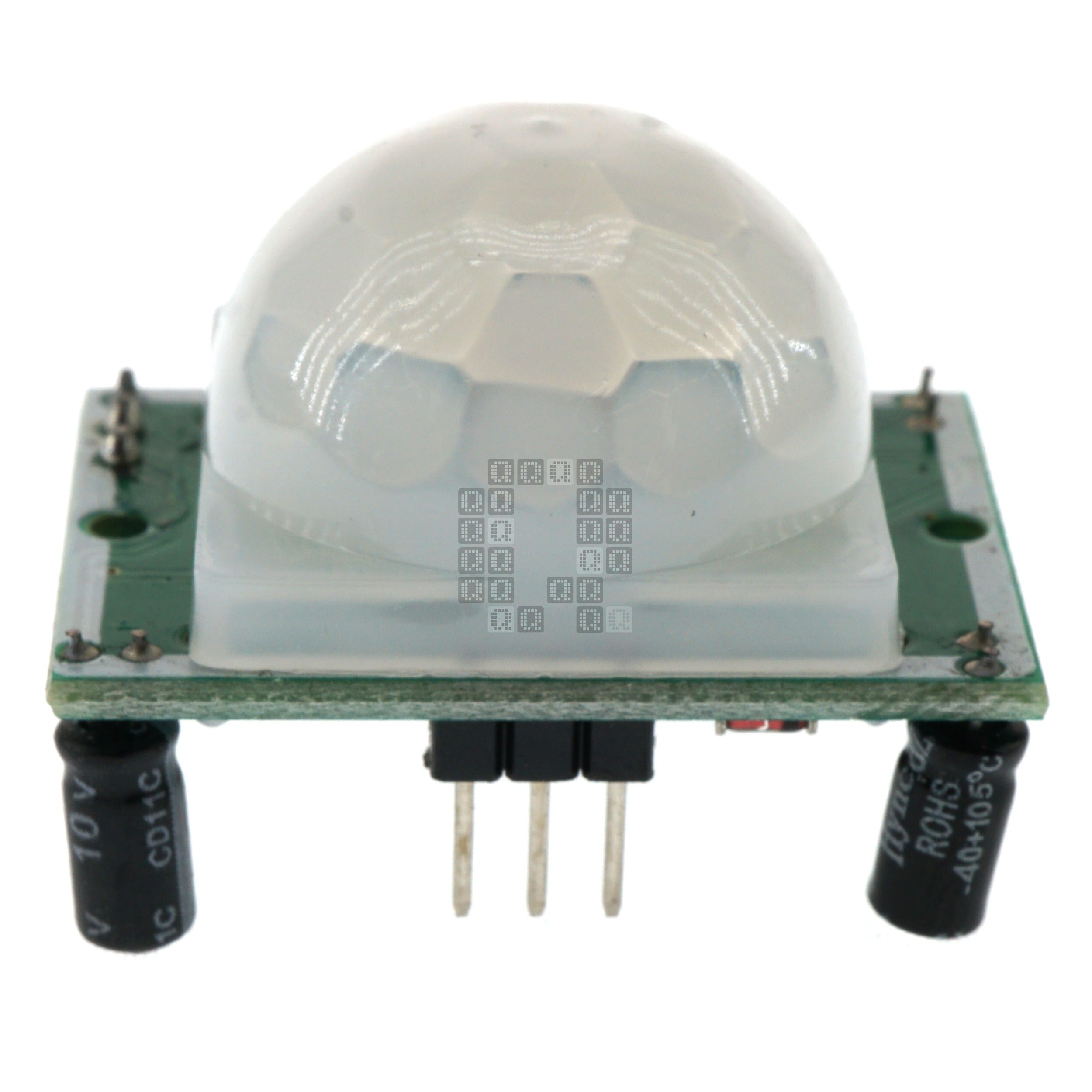

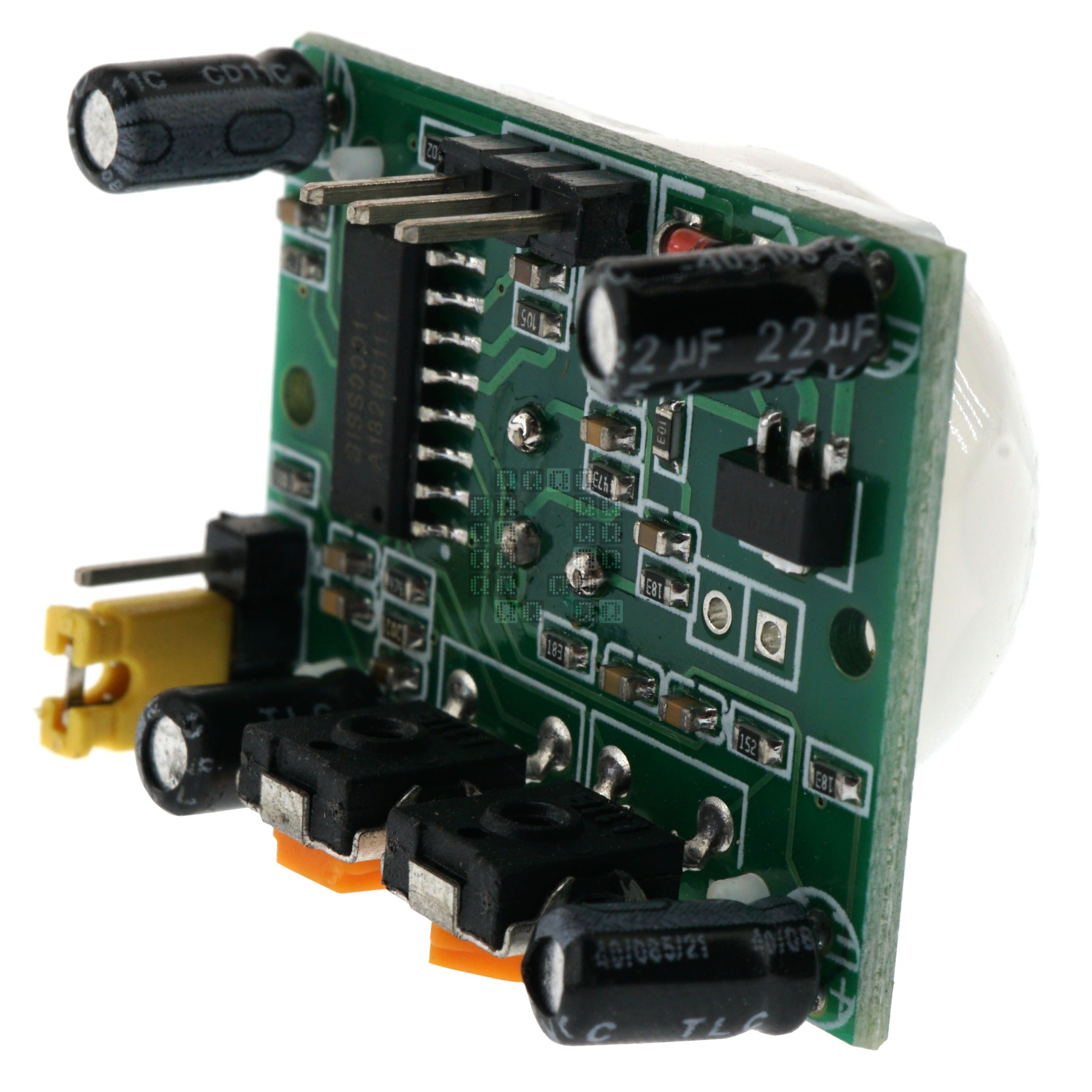

Pins Three (3) total
+ Positive
Digital Output
- Negative
Input Voltage 4.5-20VDC
Output 3.3VDC - High
0VDC - Low
Circuit Board Dimensions 1.29" Length
0.95" Width
Sensing Angle 100° Cone

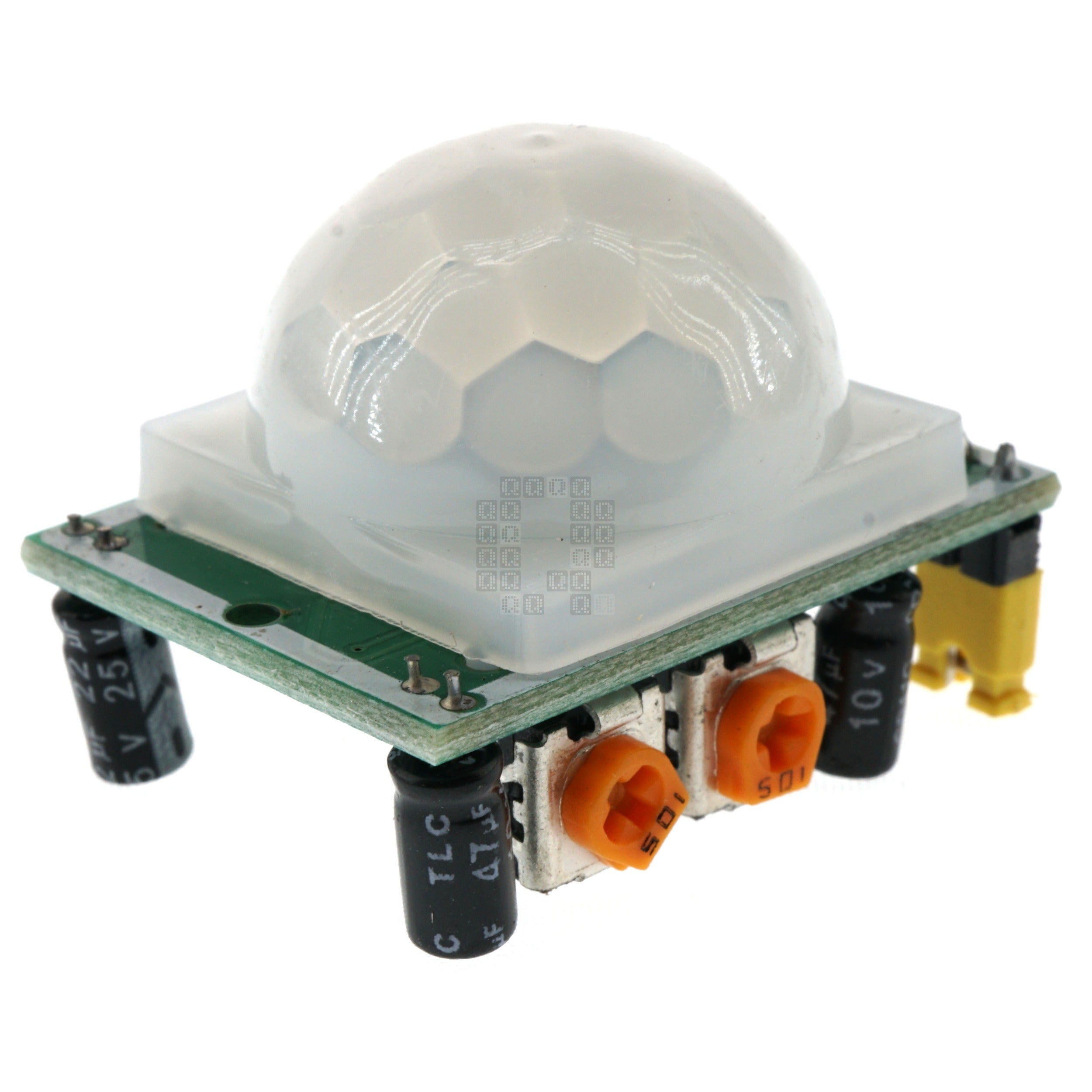

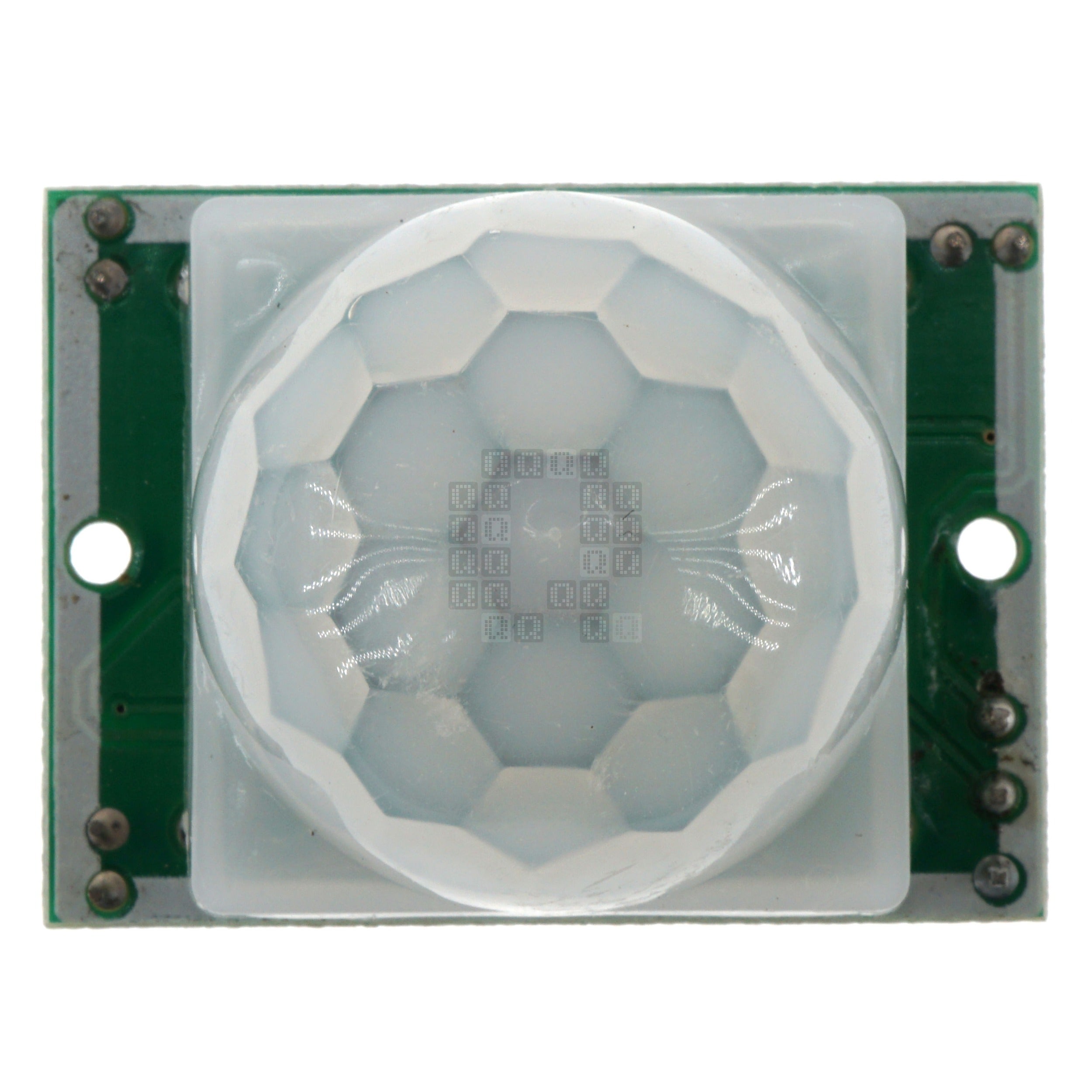

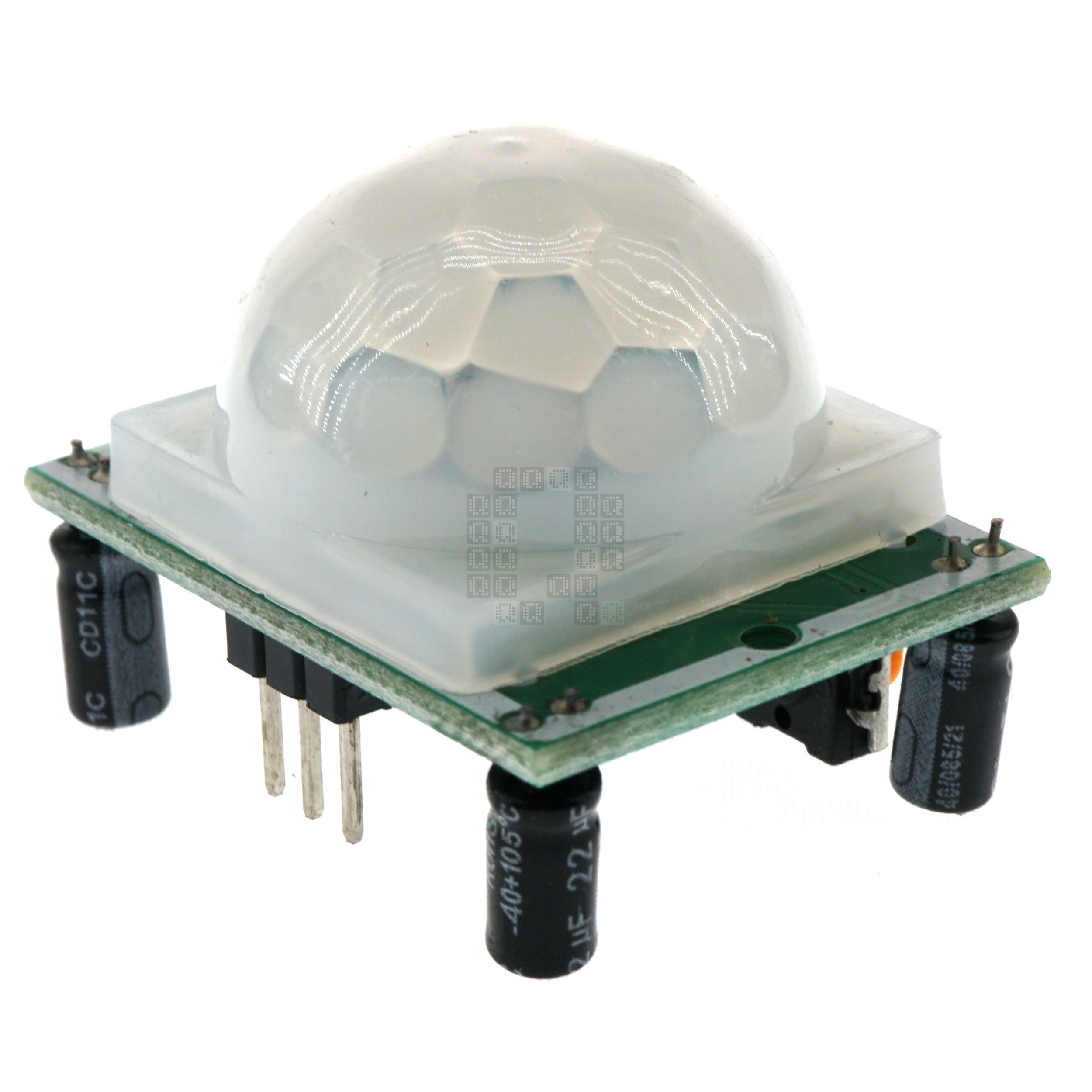

23mm Lens

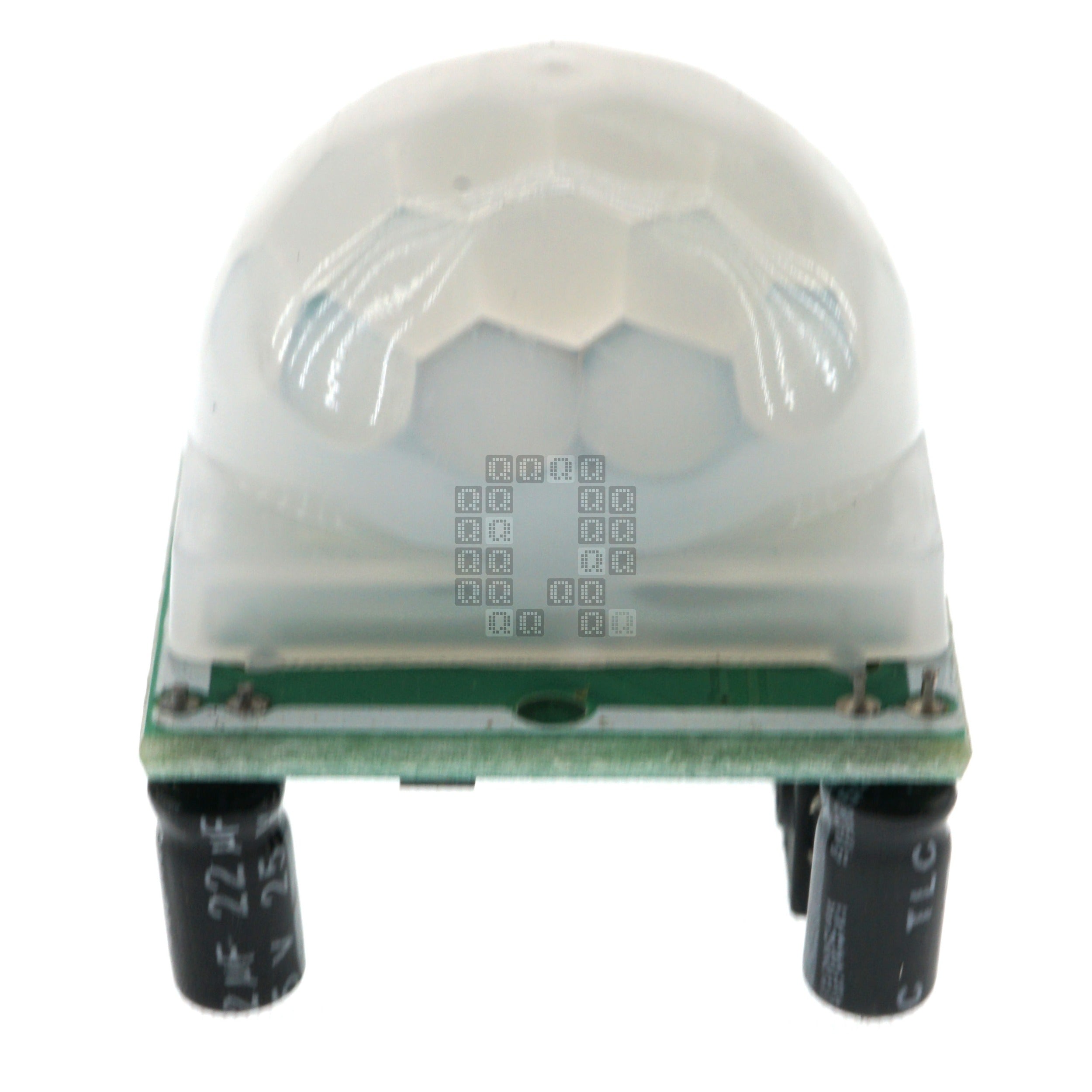

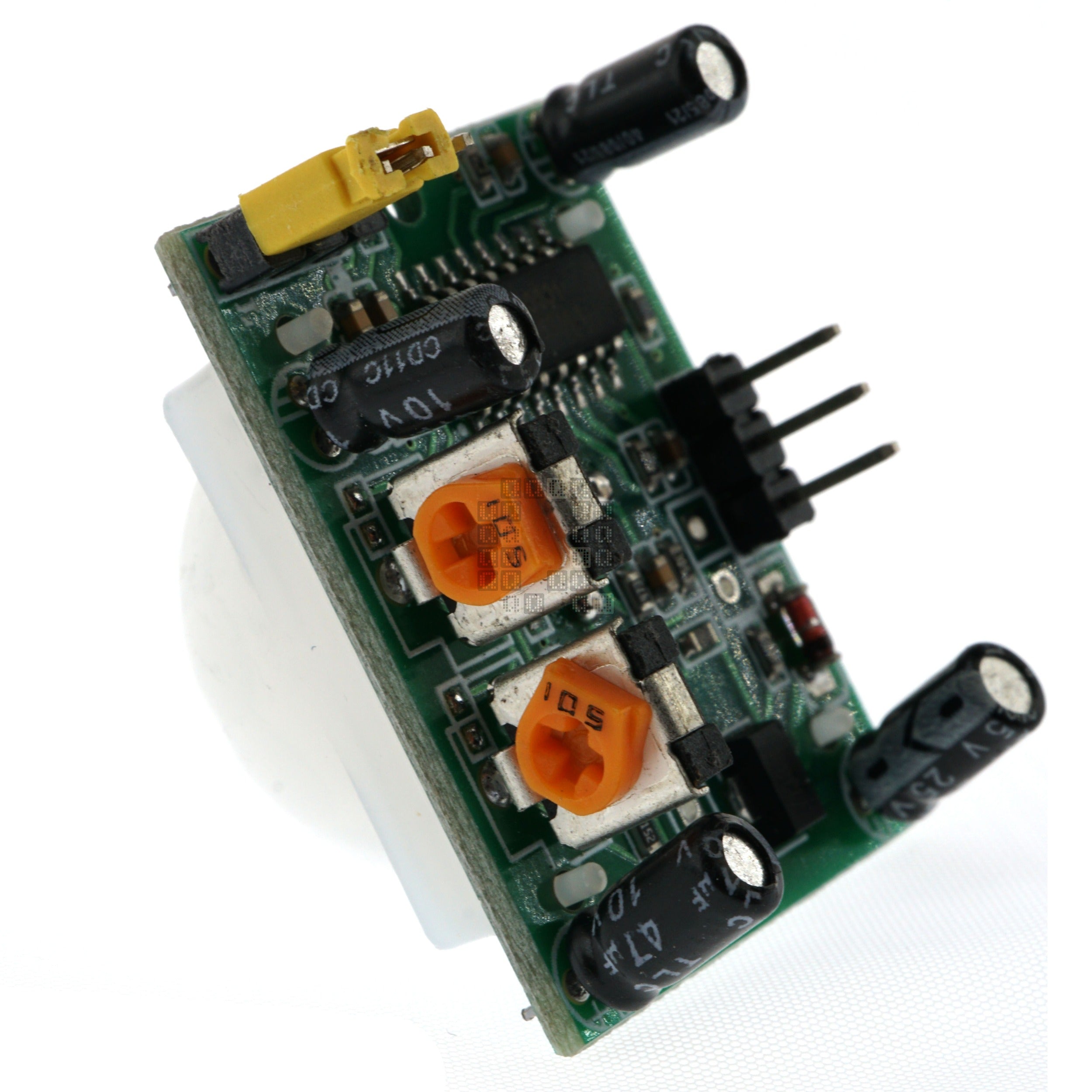

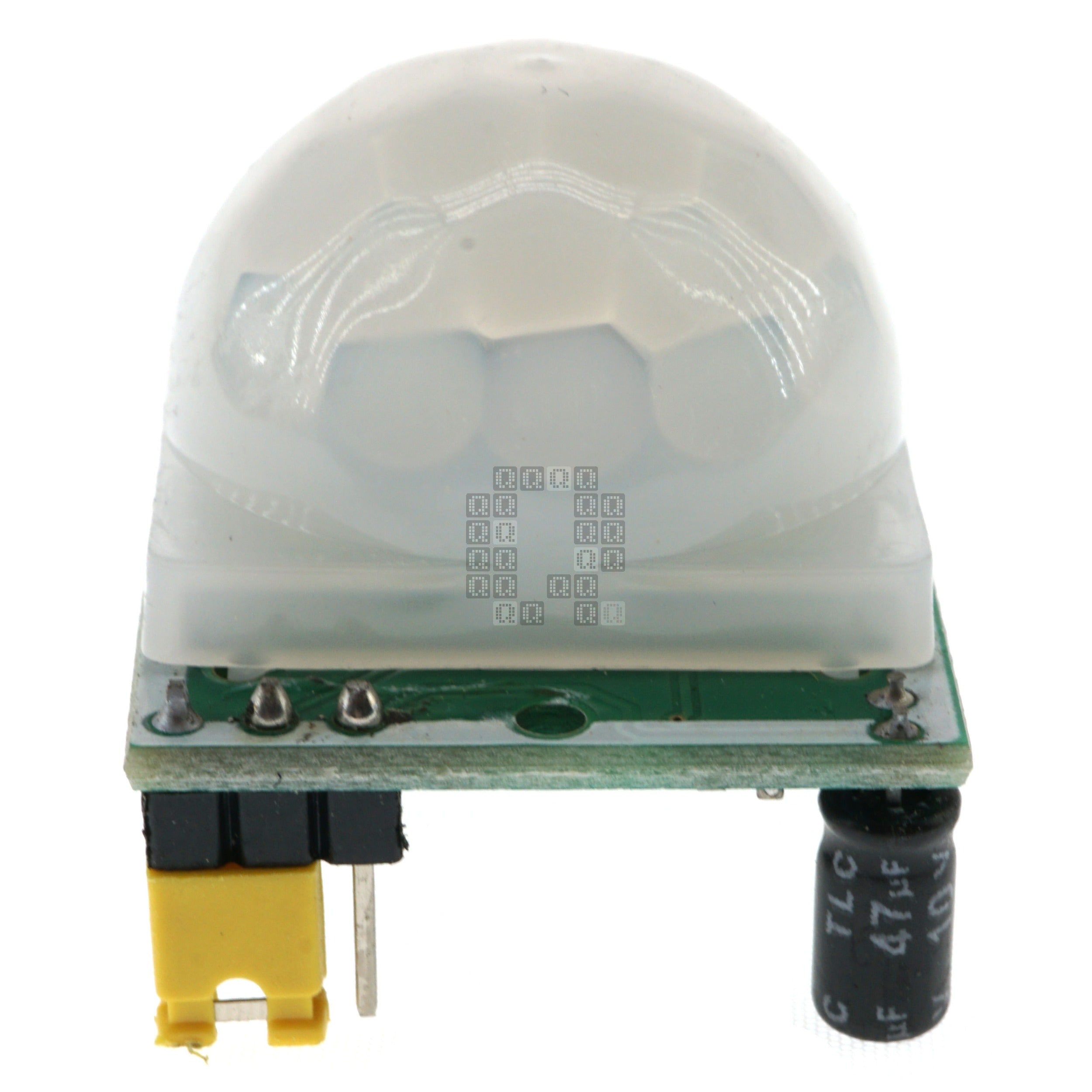

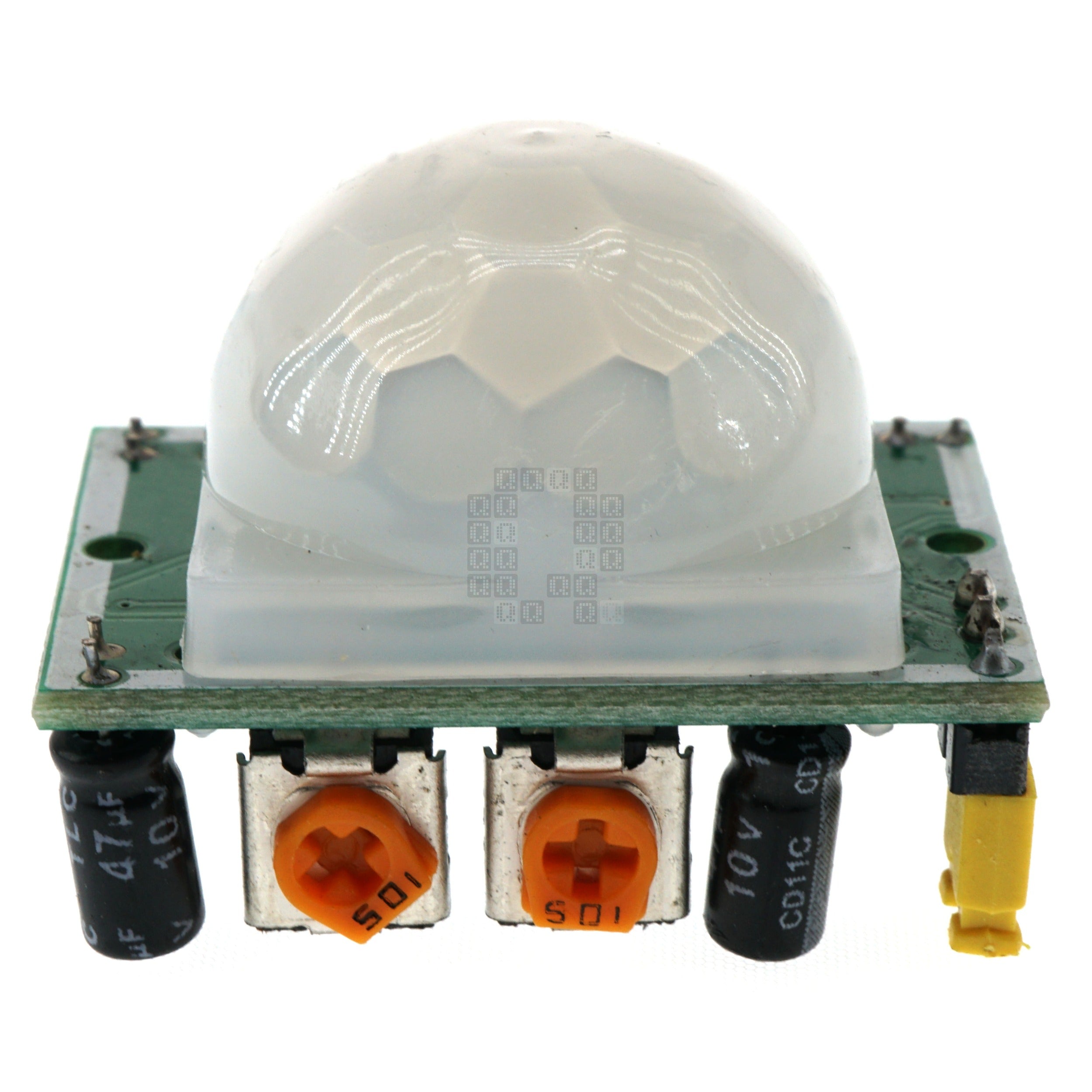

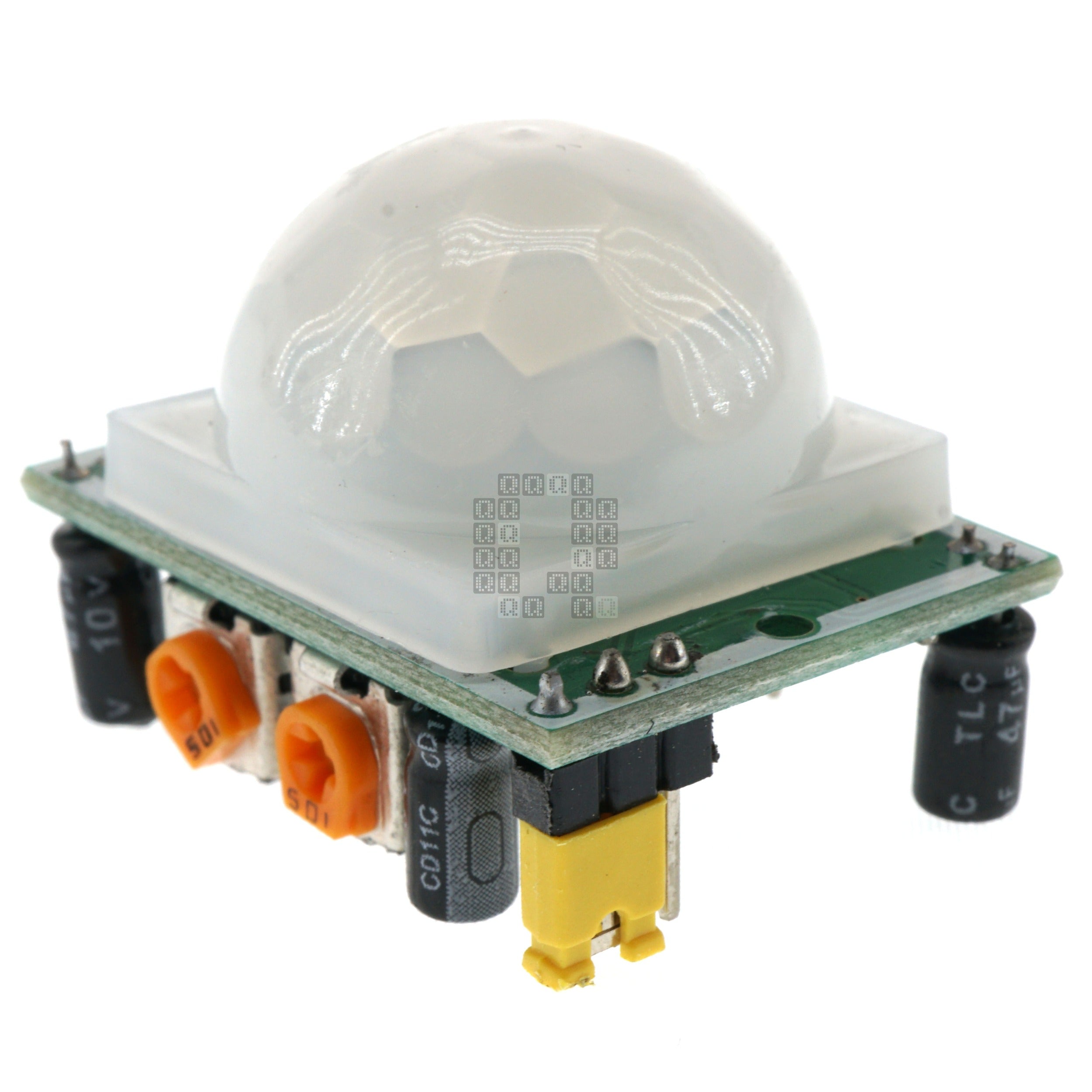

Adjustments 0.5 to 200 seconds Delay Time
Sensitivity
Retriggering On/Off
Upgrades Optional Temperature Compensation Resistor (not included)
Optional CDS Photosensitive Resistor (not included)

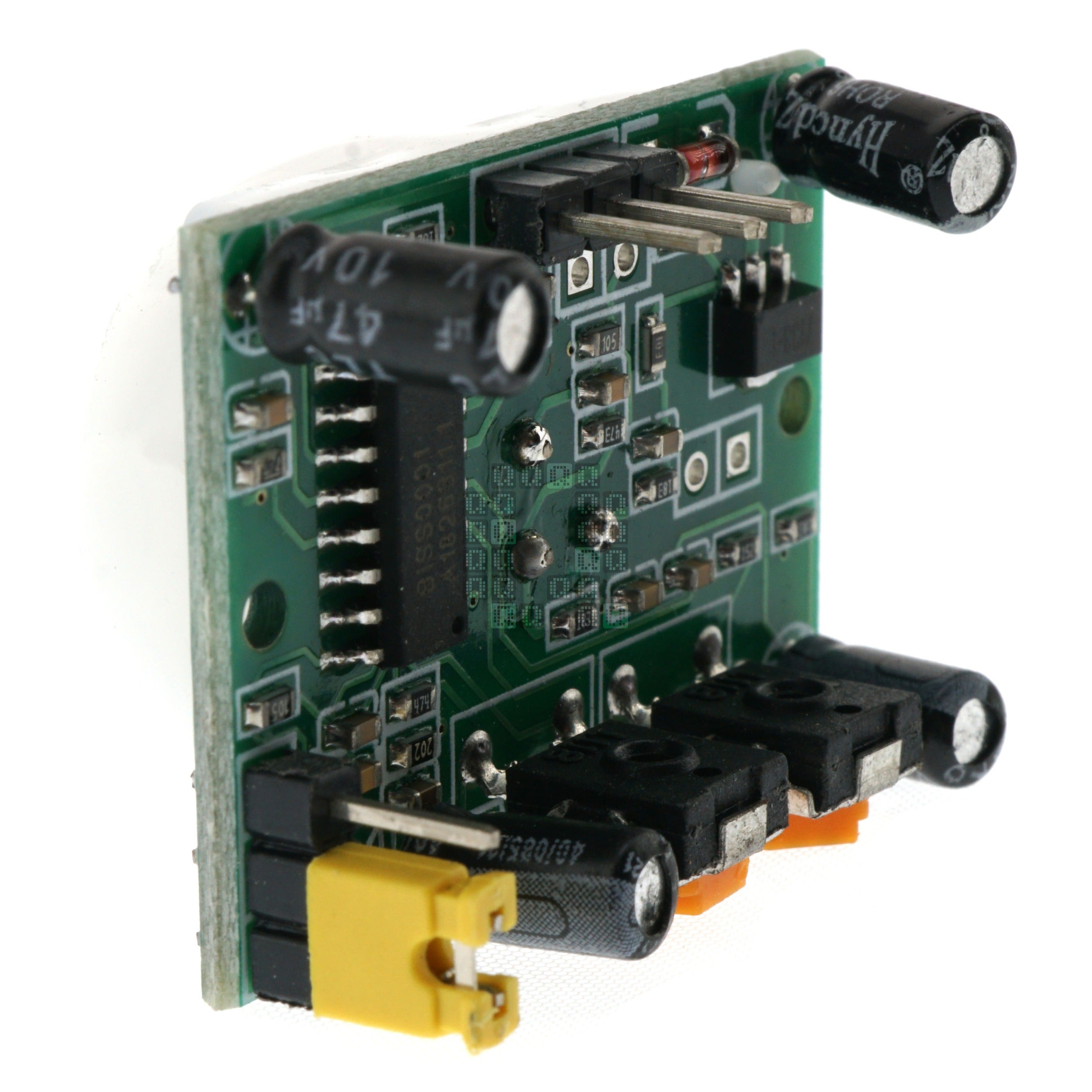

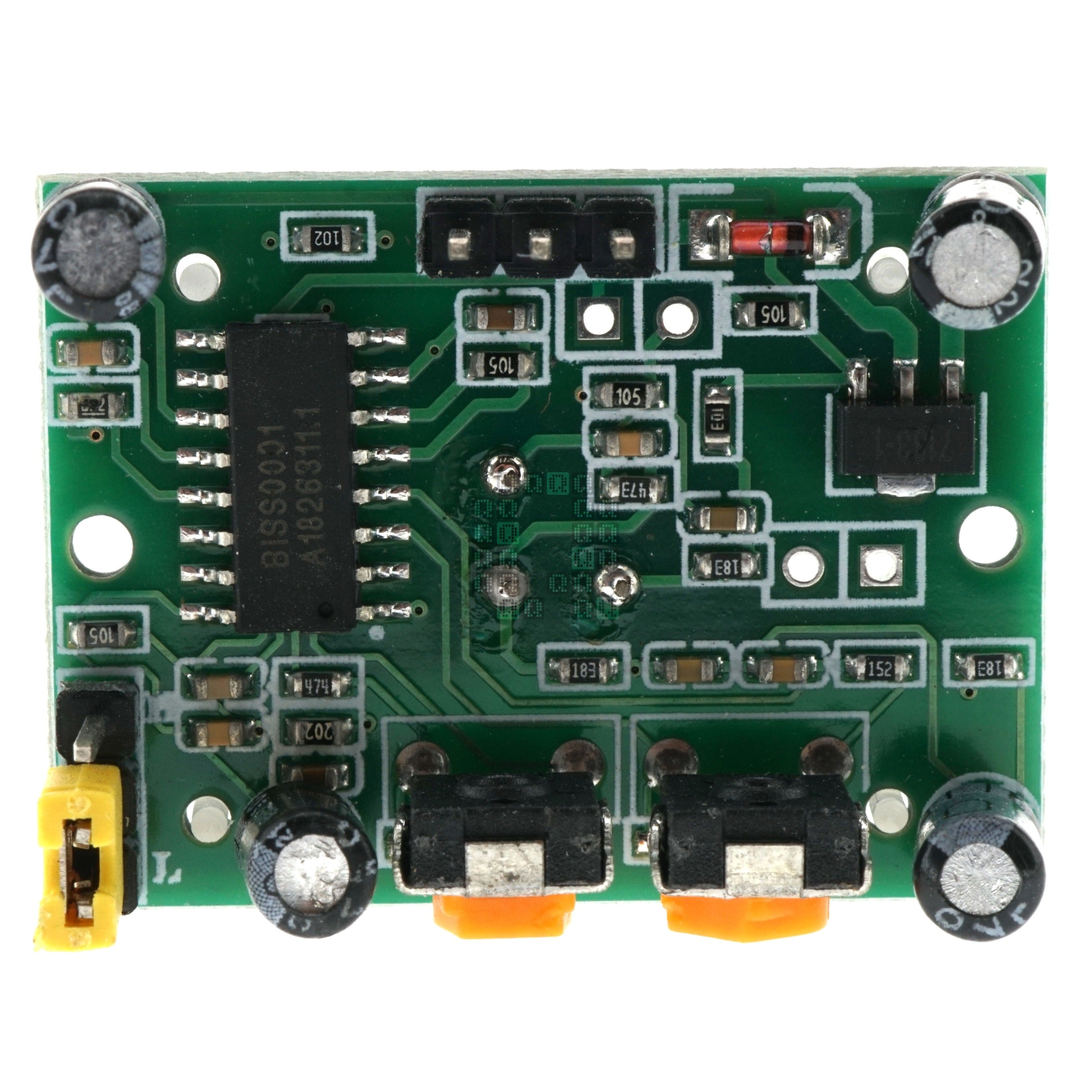

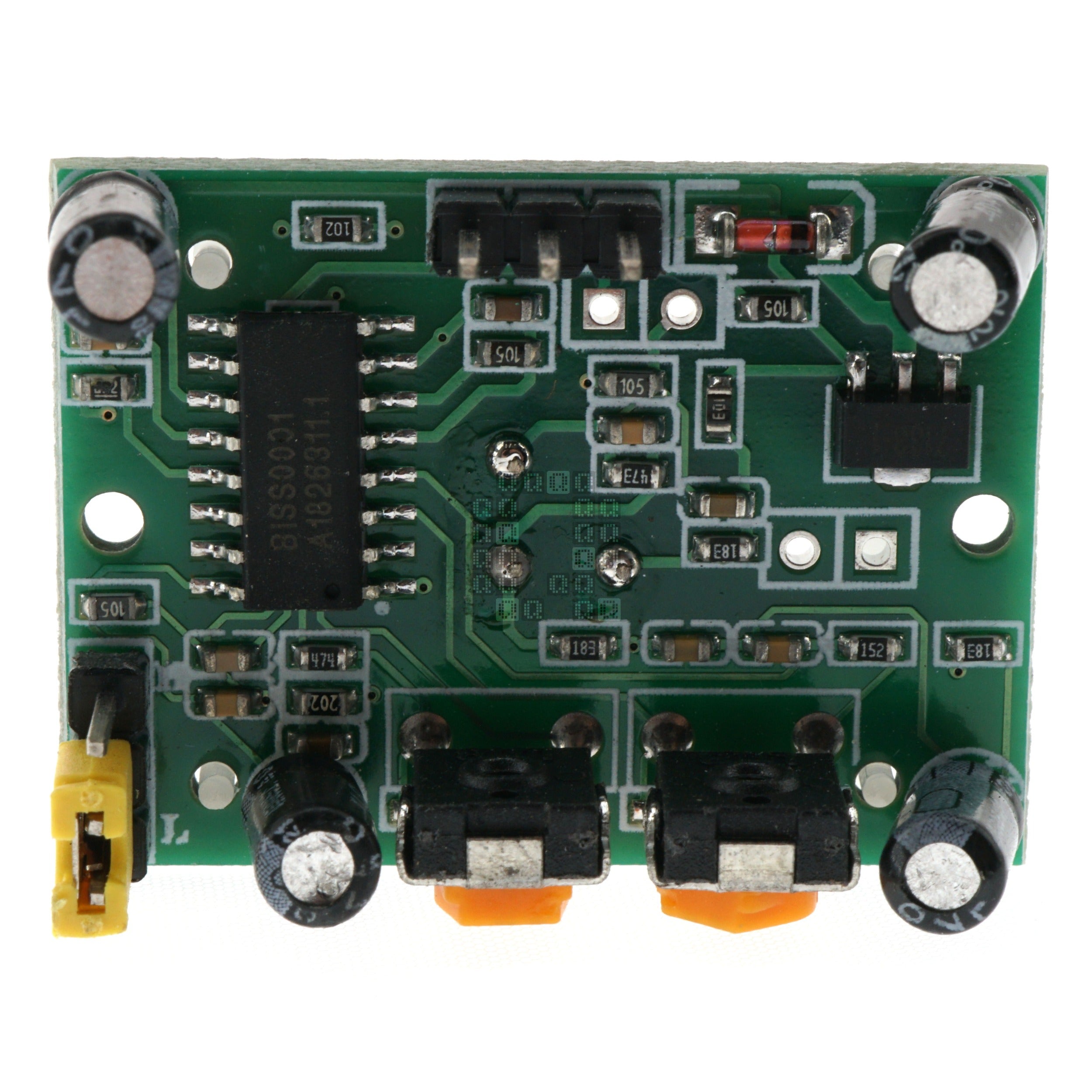

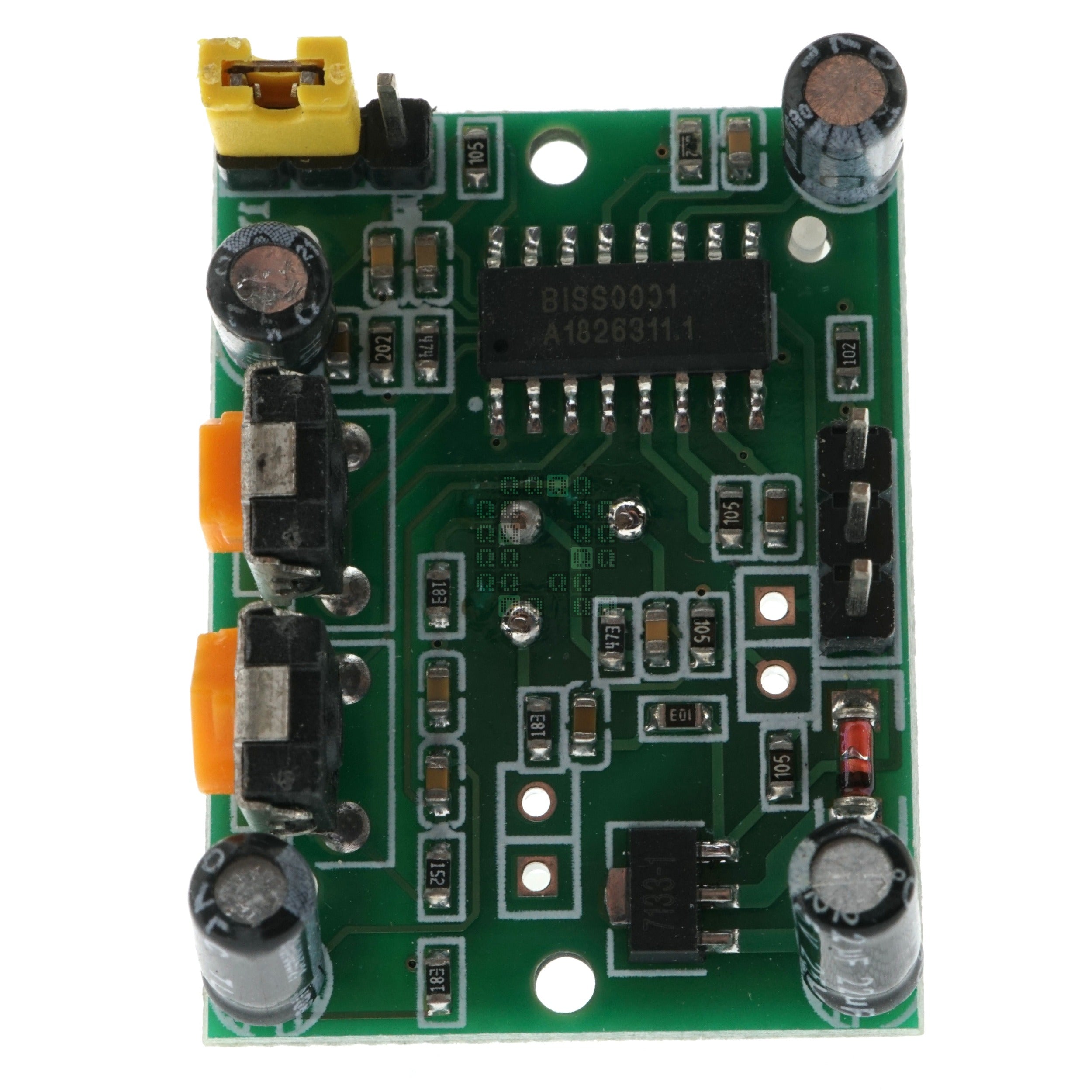

Main IC BISS0001
A1826311.1
UPC
Country of Origin China
Notes New.
Location 57-09
