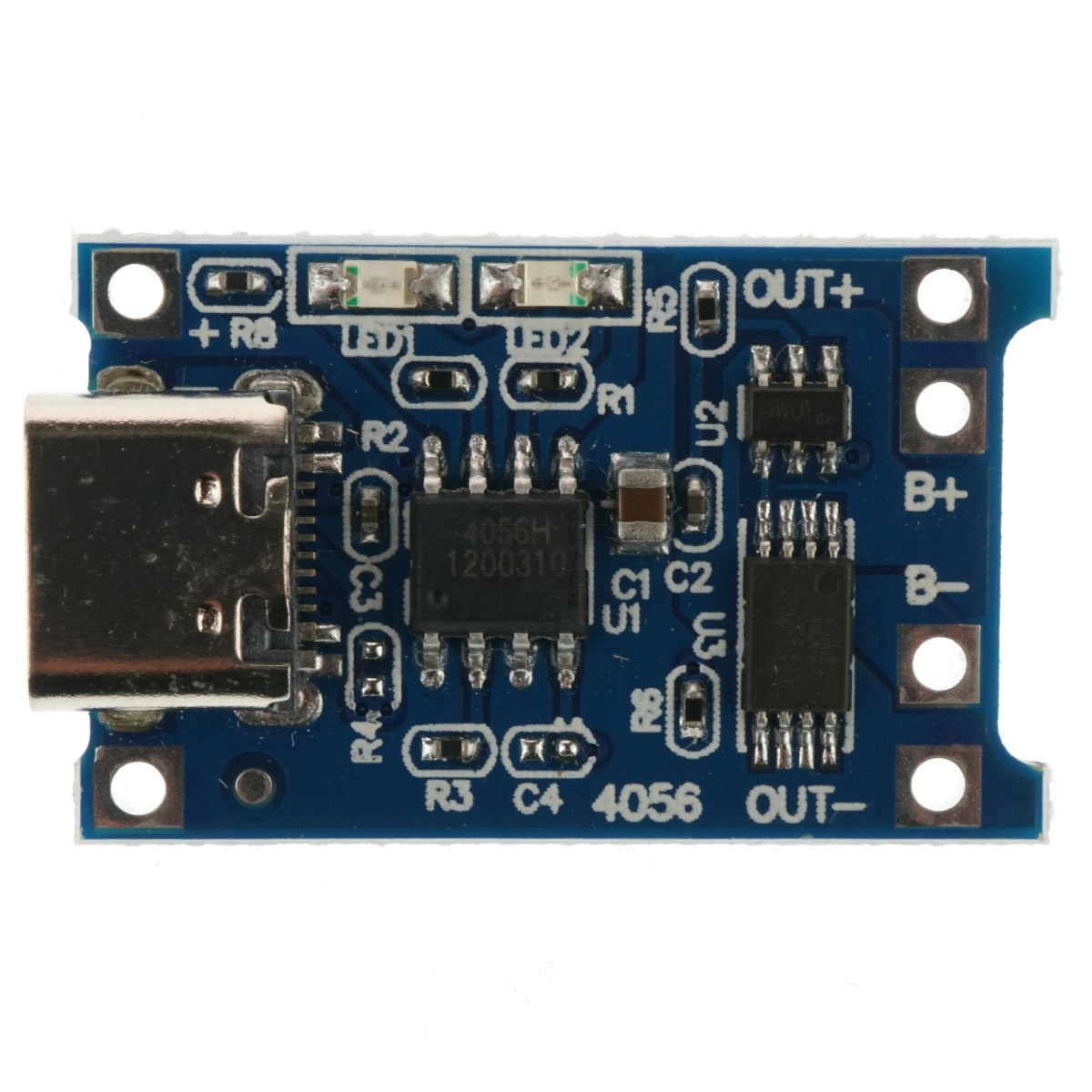

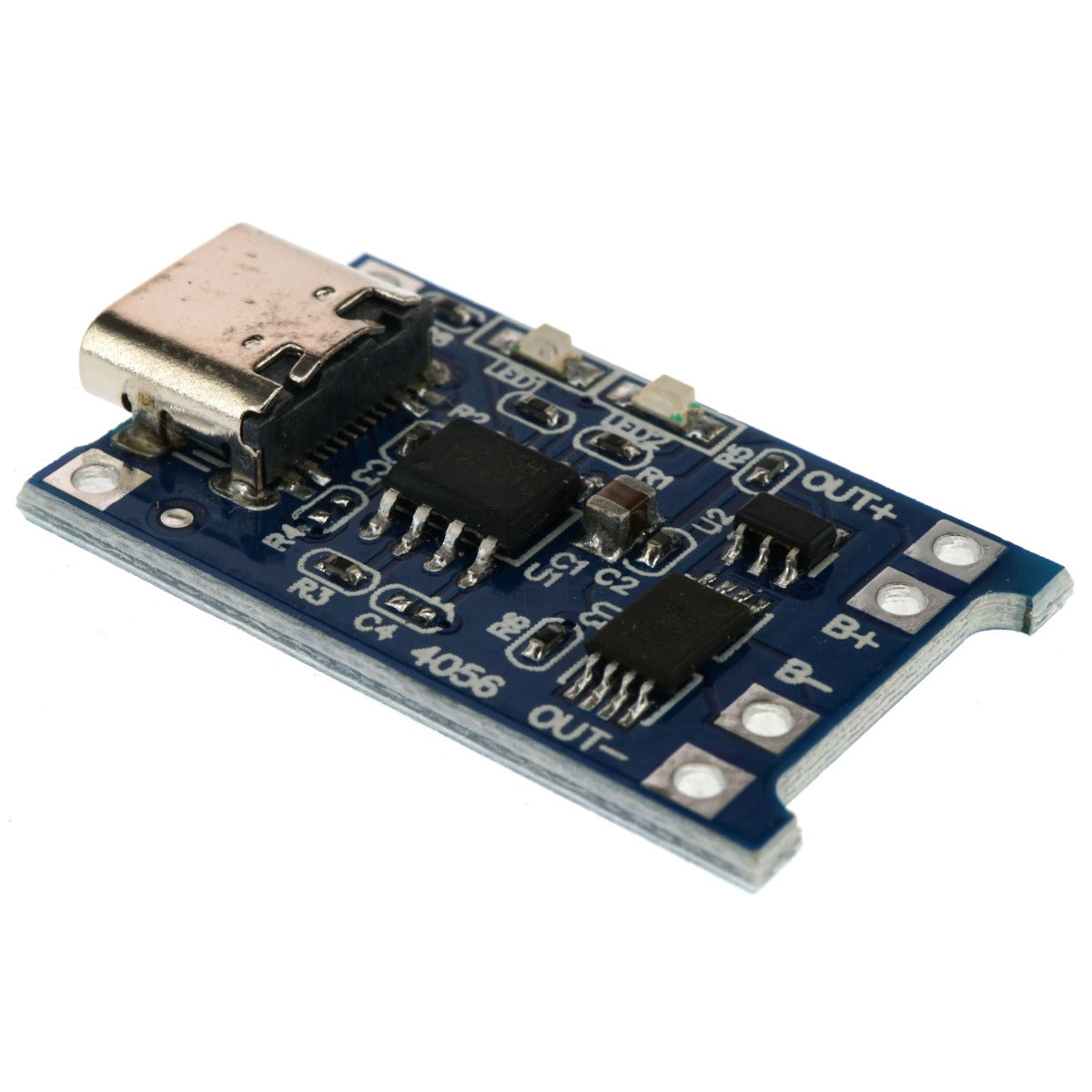

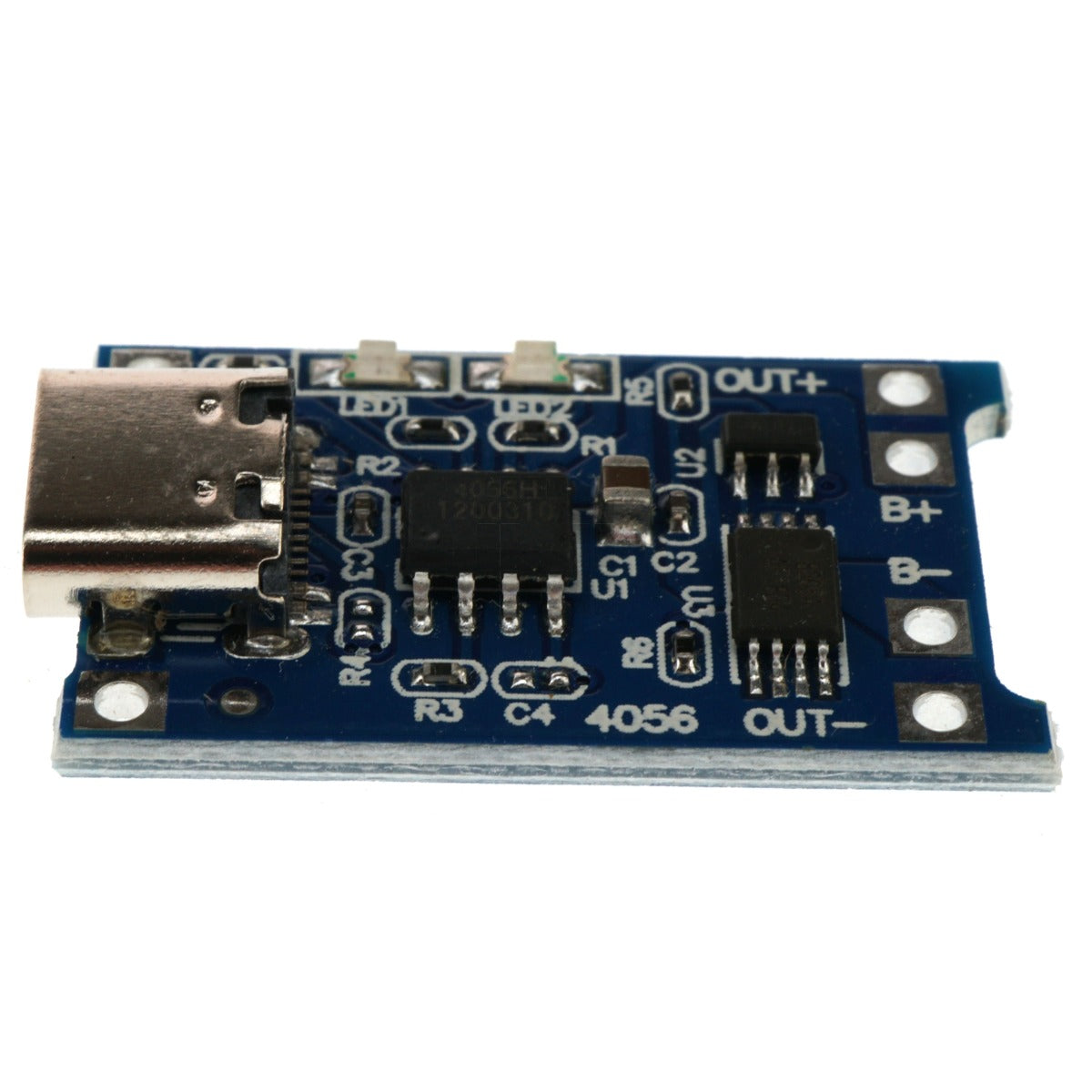

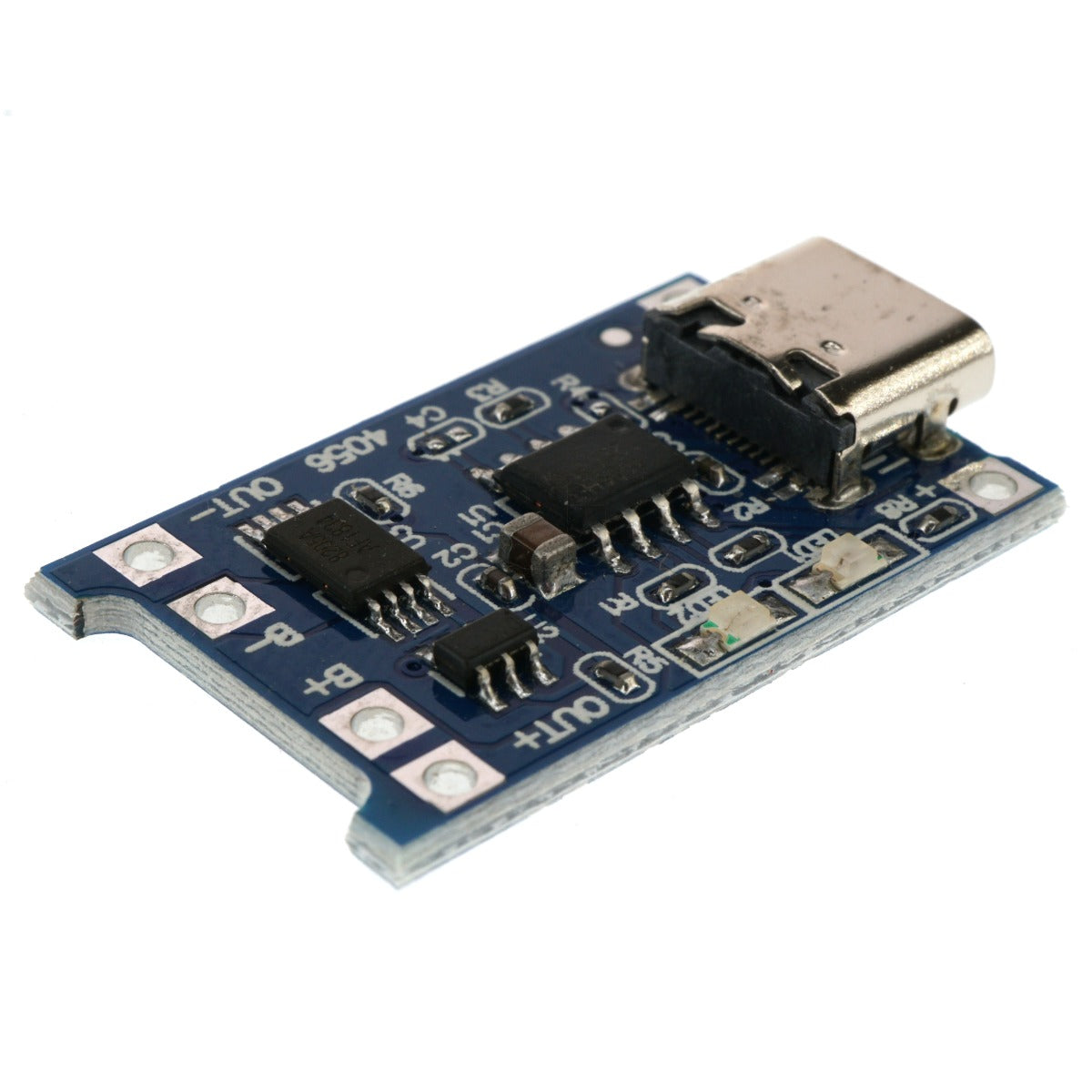

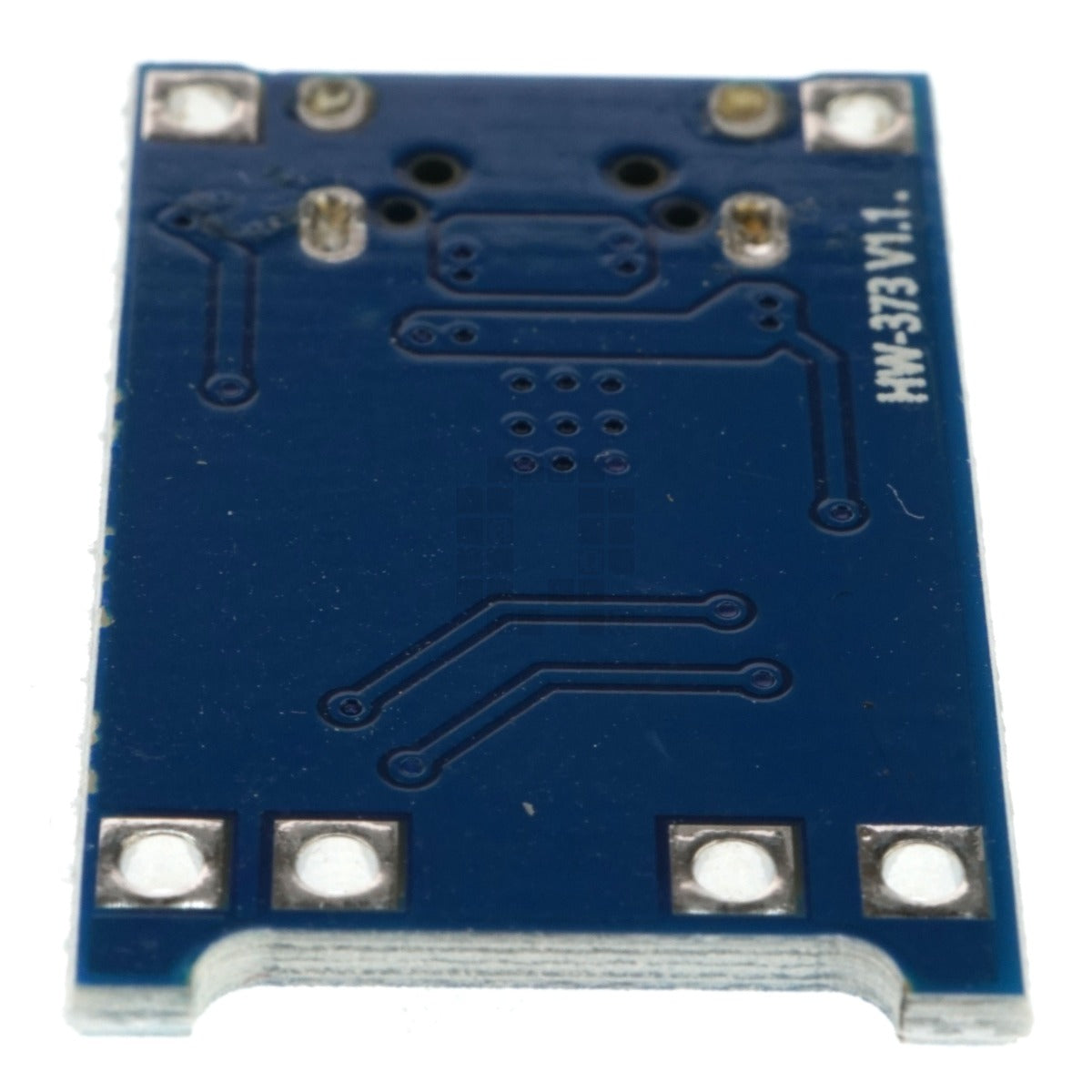

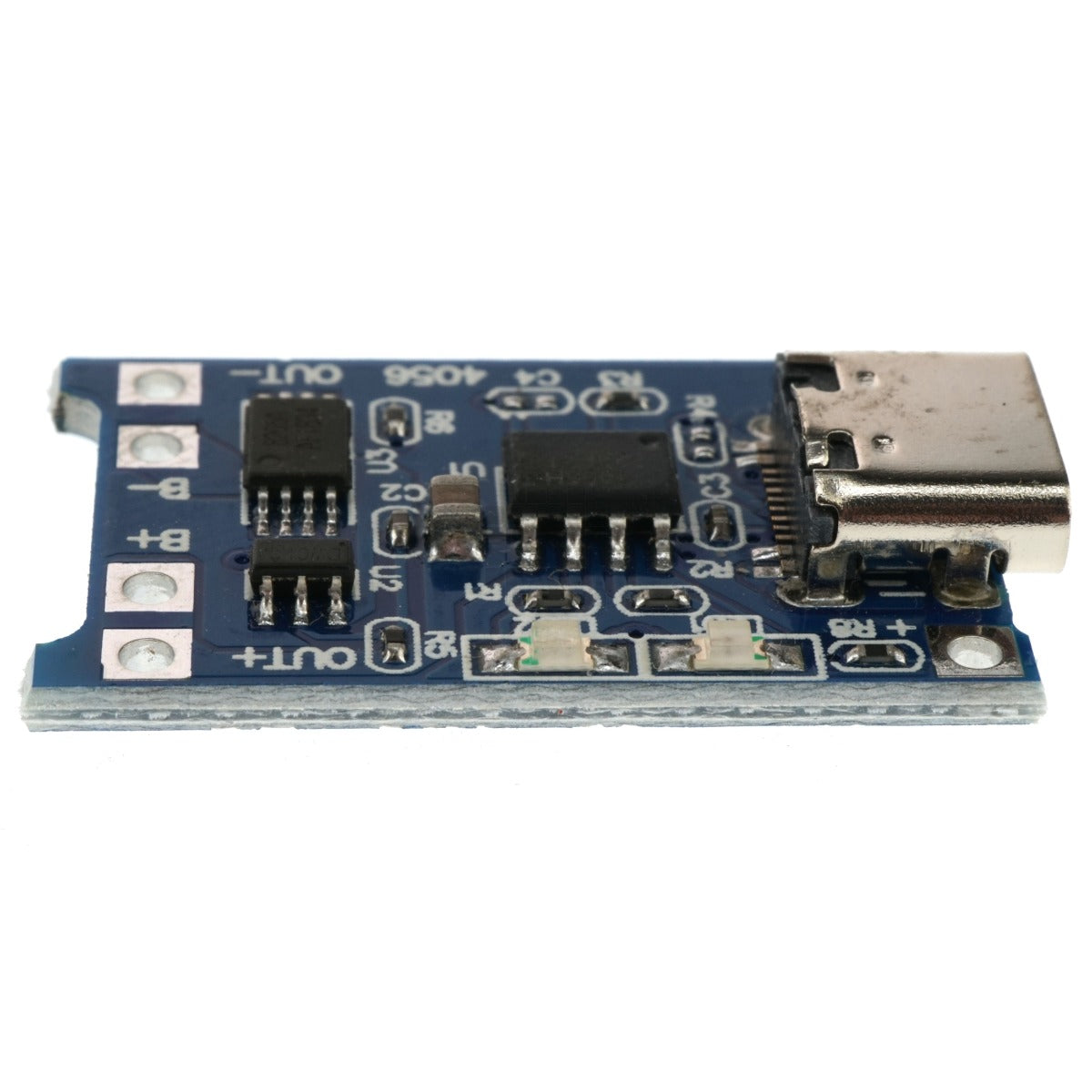

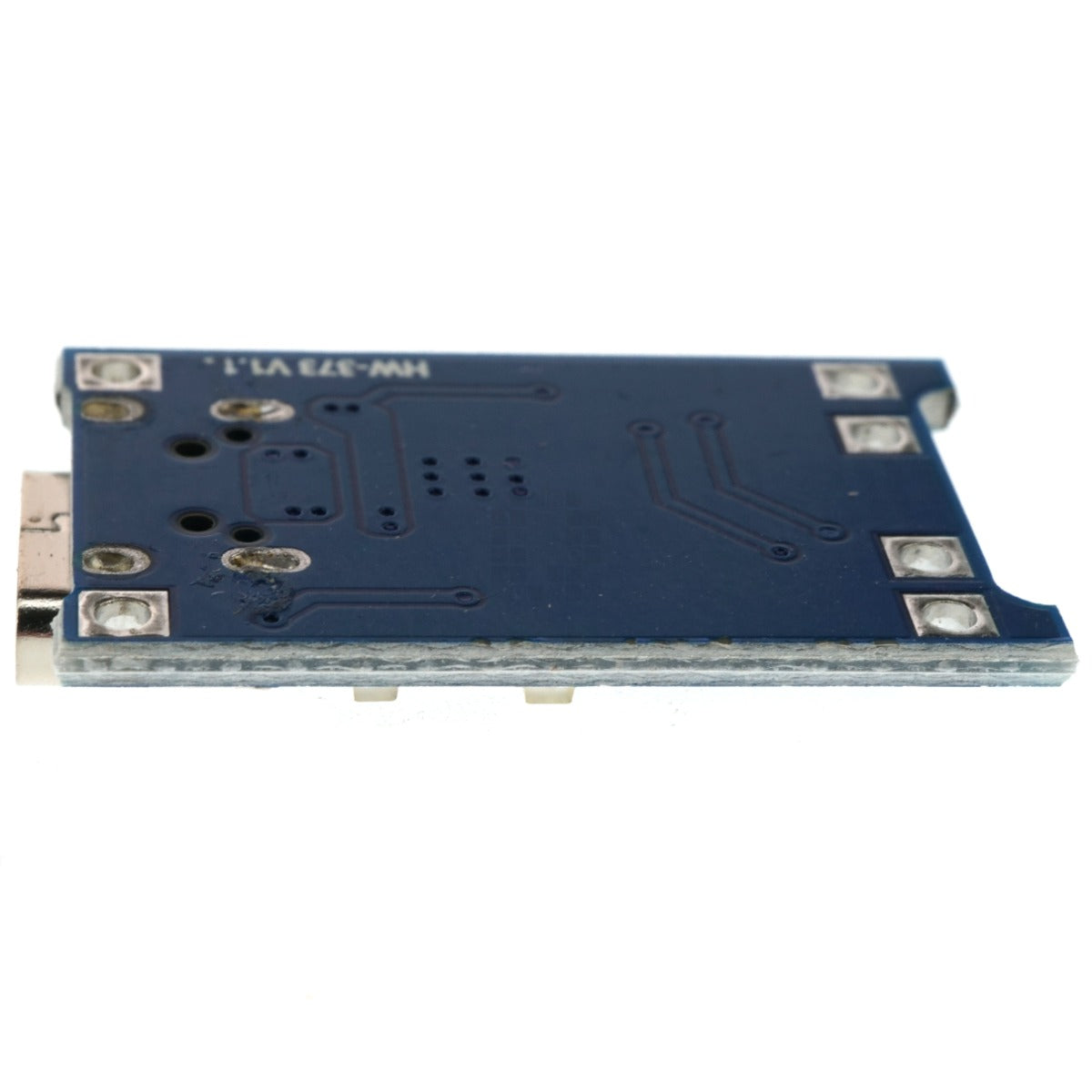

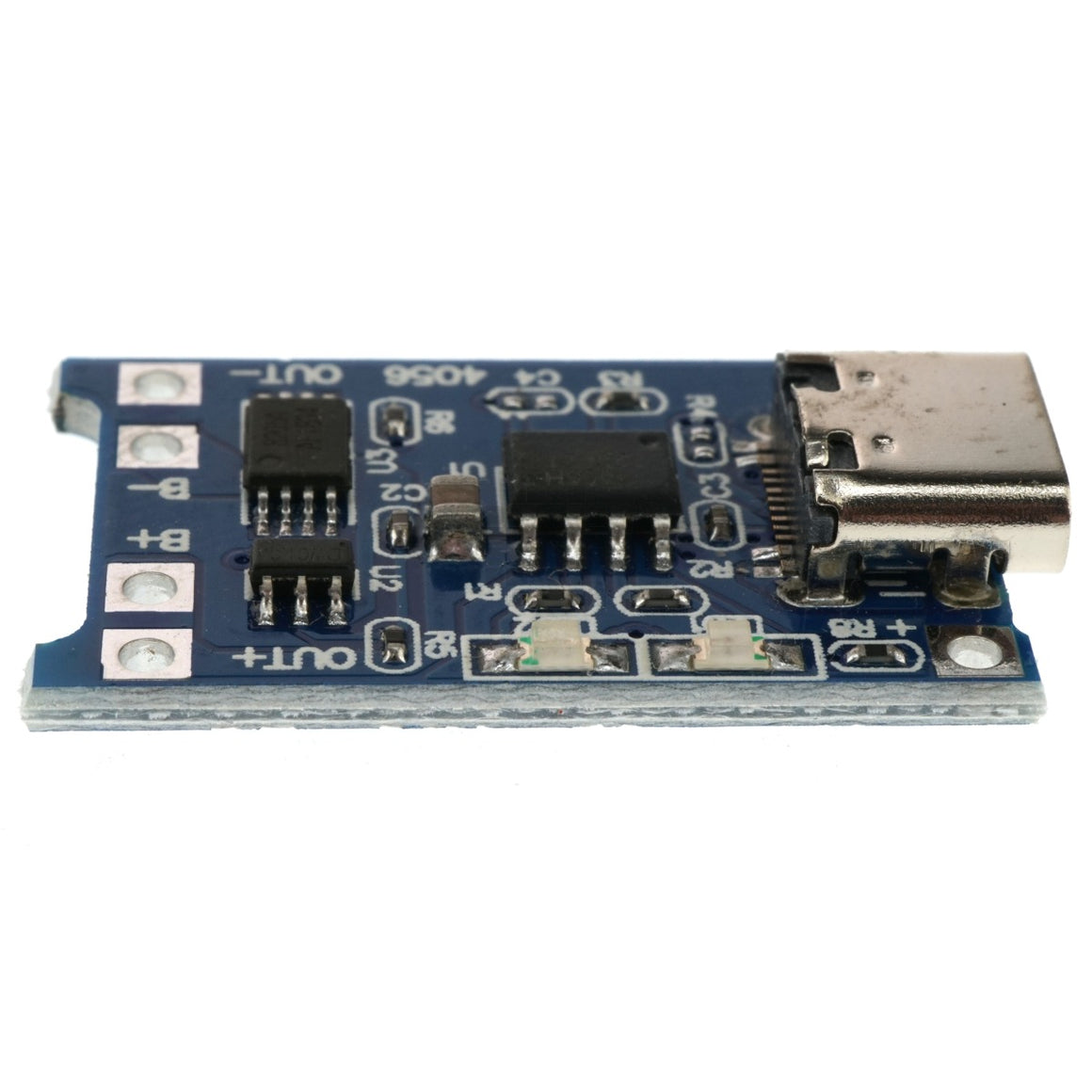

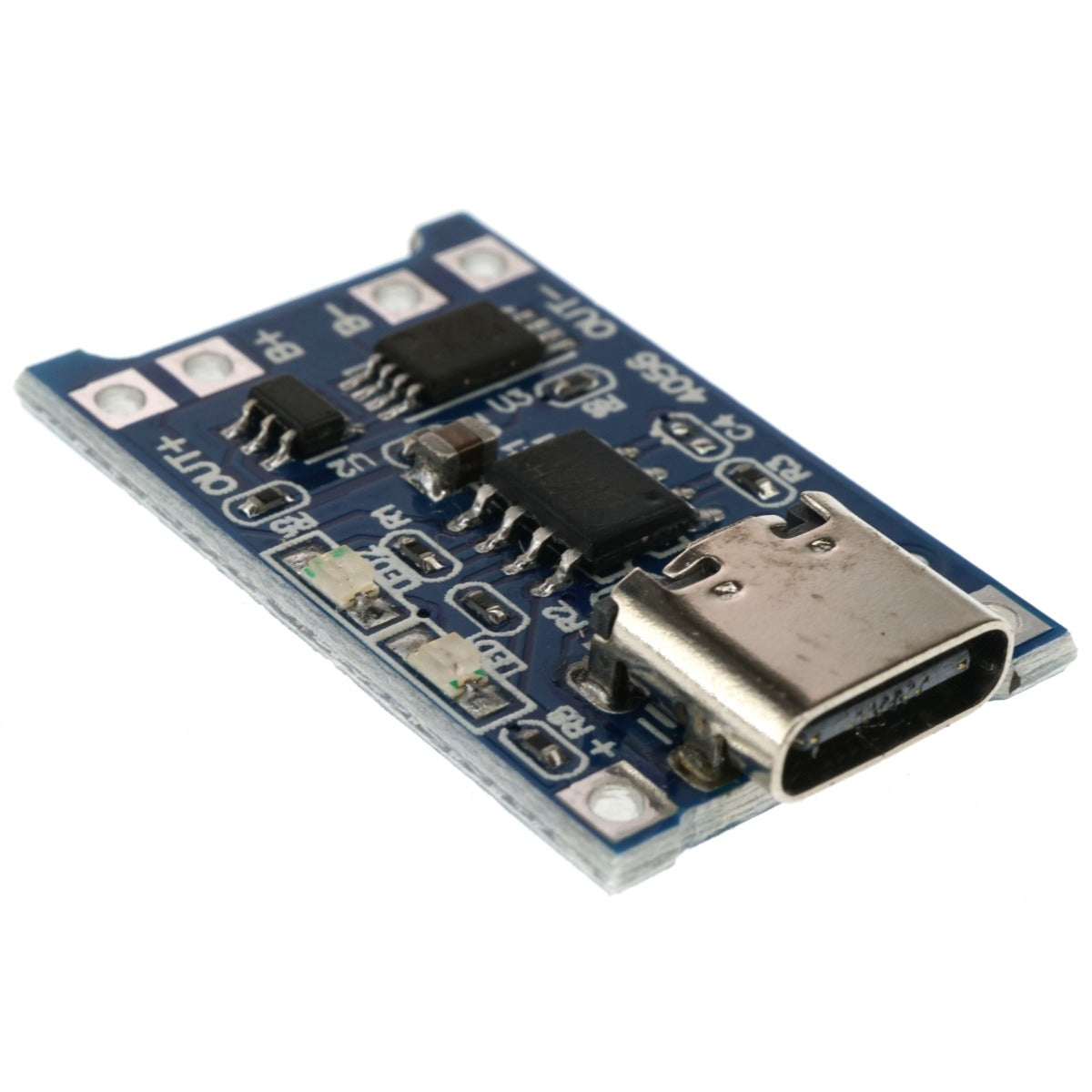

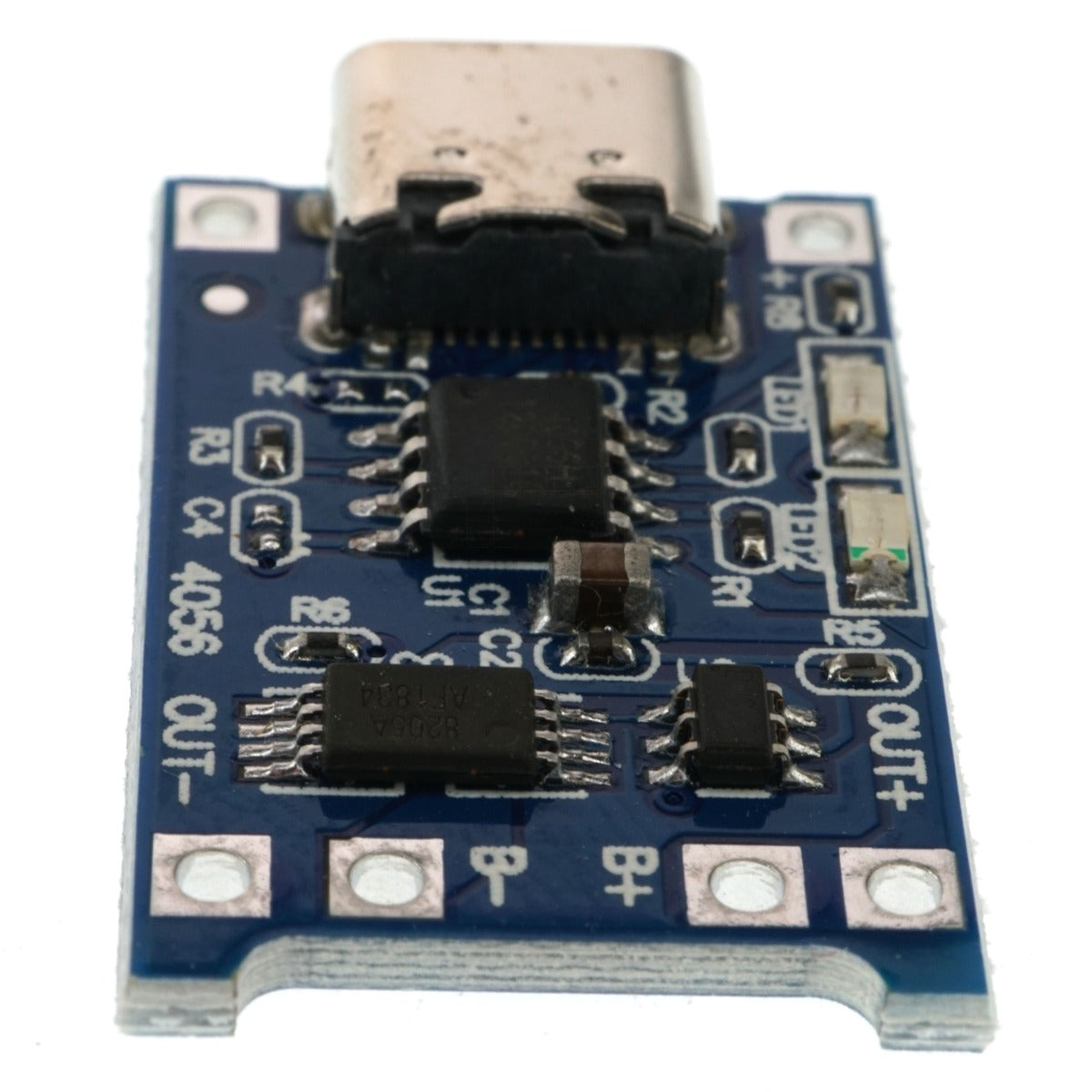

Brand Unbranded
Manufacturer Part Number N/A

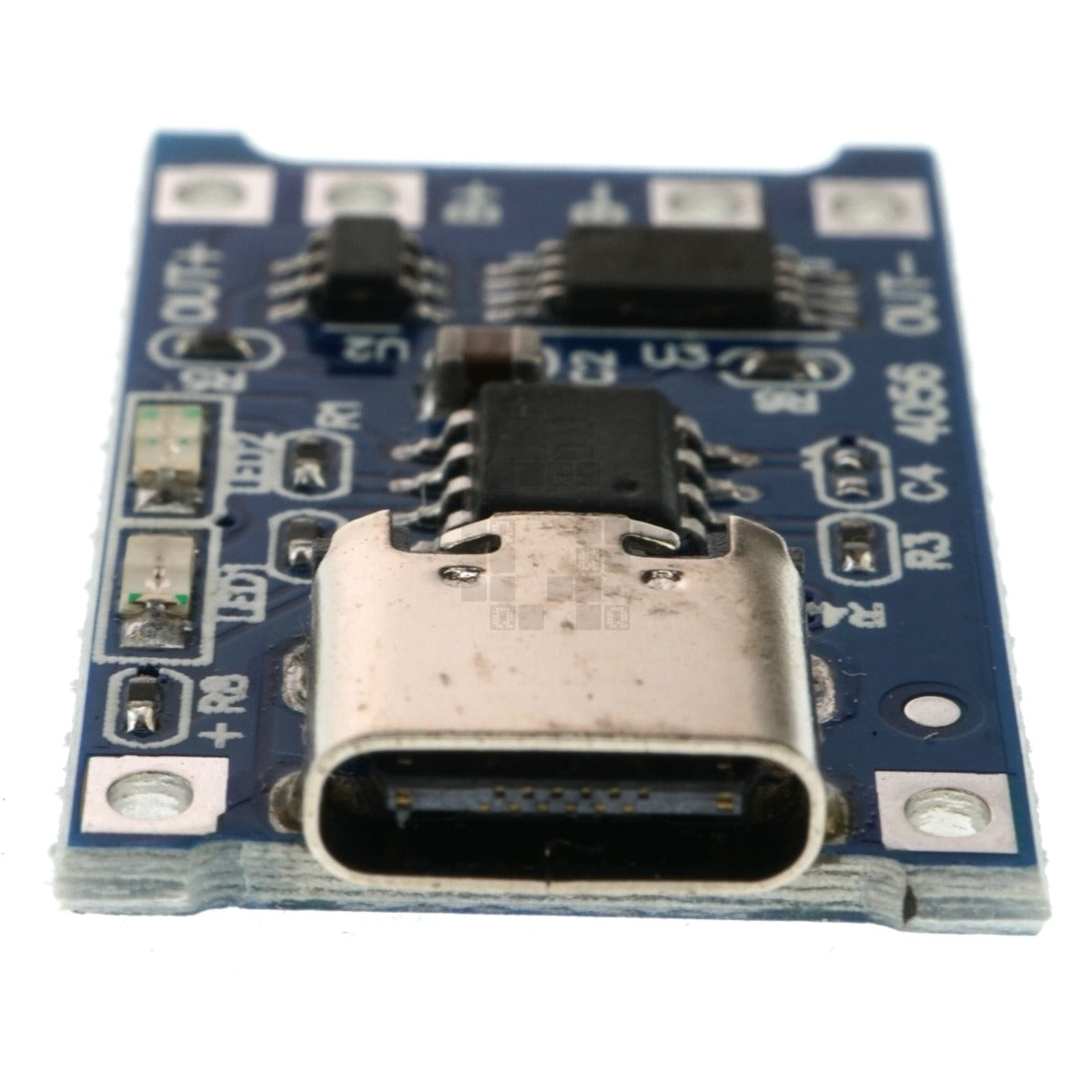

Input Connection USB Type C Female Plug
+/-

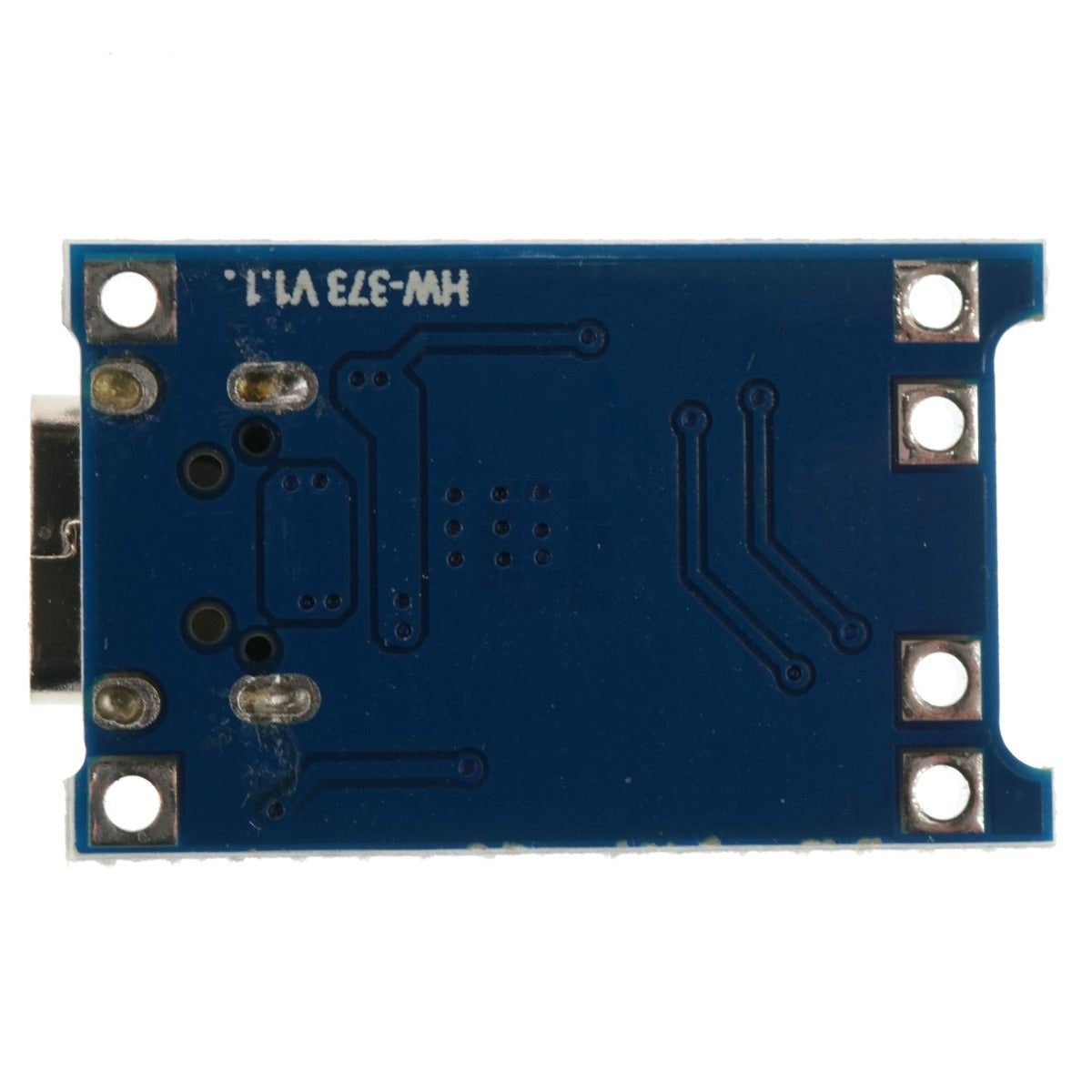

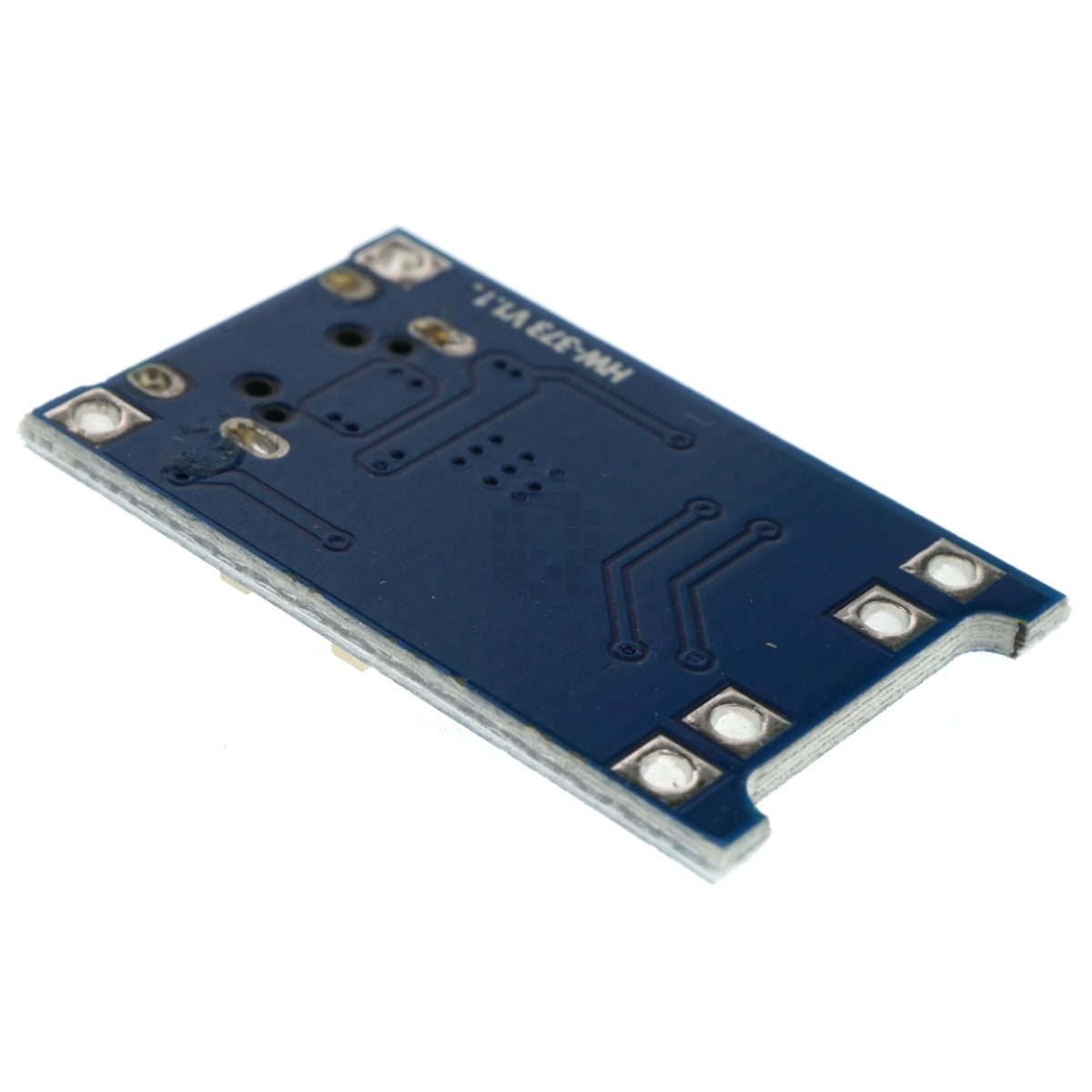

Through Hole Solder Connections
Board Dimensions 0.690" x 1.10"
No Mounting Screw Holes
Indicator Lights Two LED
Blue (Power/Charge Complete)
Red (Charging)
Charging Rate 1 Amp Max
(RPROG/R3 = 1K)
Controller TP4056H
SOP-8 Package
2.9V Trickle Charge
4.20V Charge

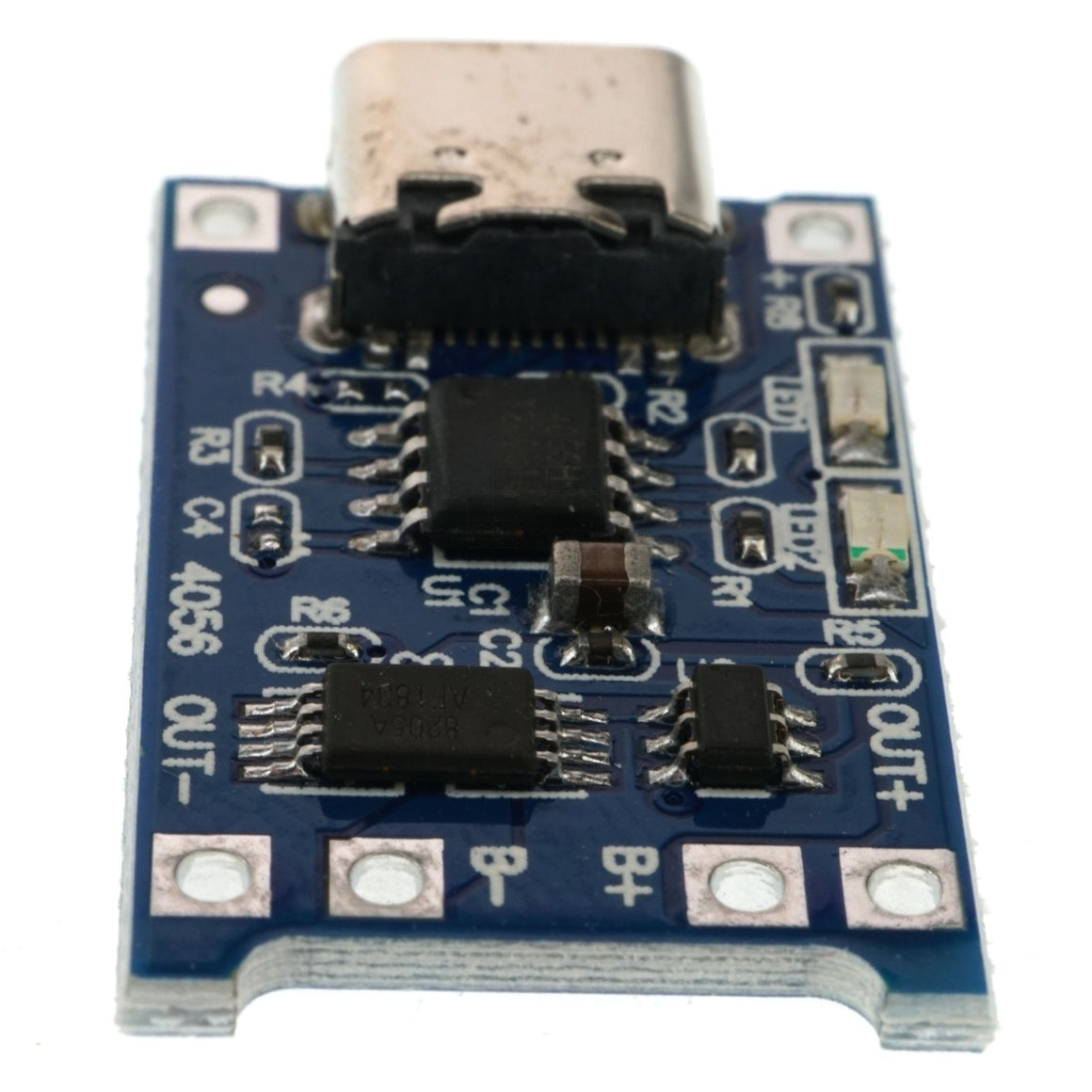

MOSFET 8205A Dual N-Channel
Battery Protection DW01A
SOT-23-6 Package
4.300 Overcharge Detection Voltage
2.500 Overdischarge Protection Voltage
3 Amp Overcurrent Protection
Battery Connections B+/B-
Through Hole Solder
Output Connections OUT+/OUT-
Through Hole Solder
UPC N/A
Country of Origin China
Notes New.
Insulated heatsink recommended when using!
