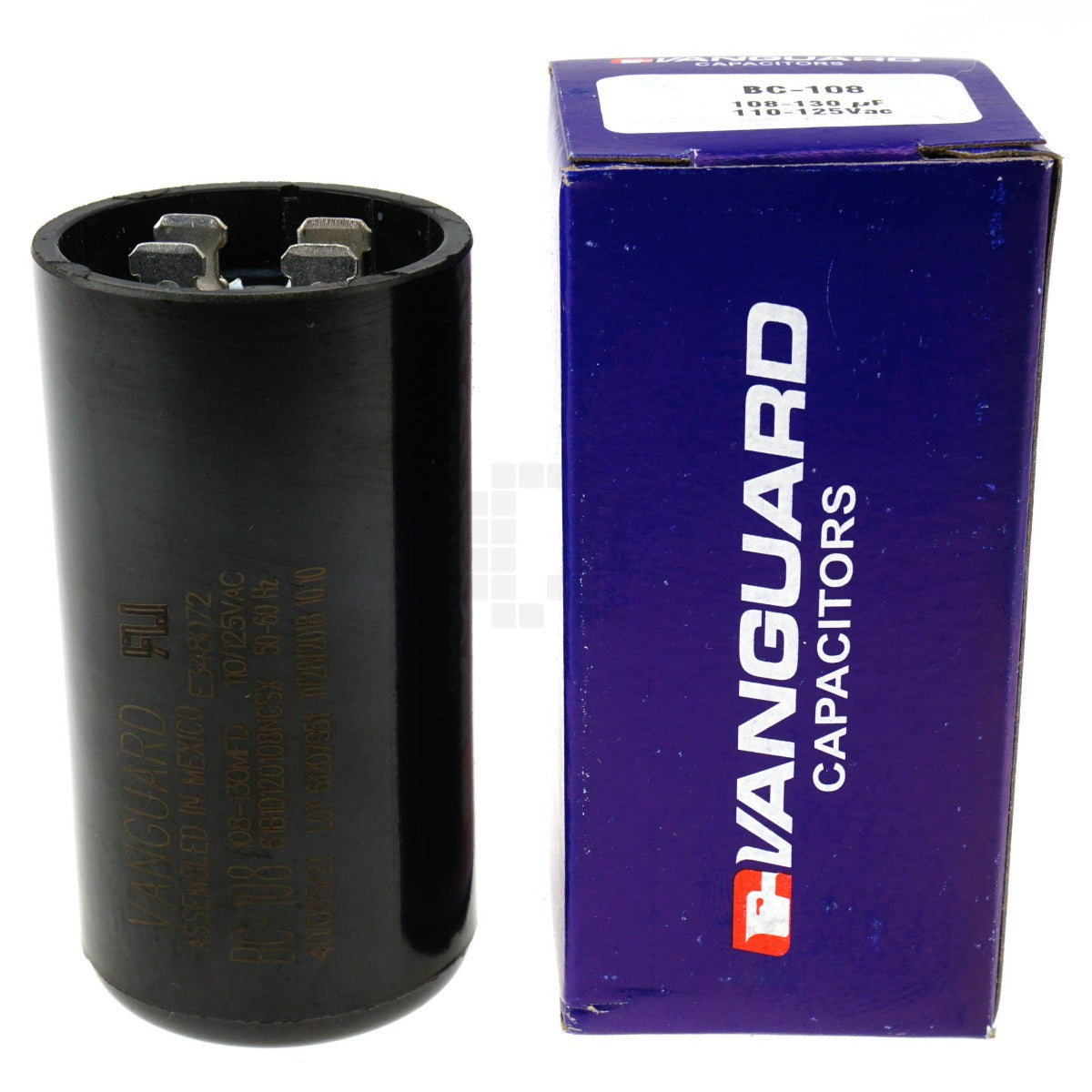

Brand Vanguard
Manufacturer Part Number BC-108
61B1D120108NCSX
Cross Reference (Fit/Form/Function)
Capacitance 108-130 uF
Working Voltage 110-125 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

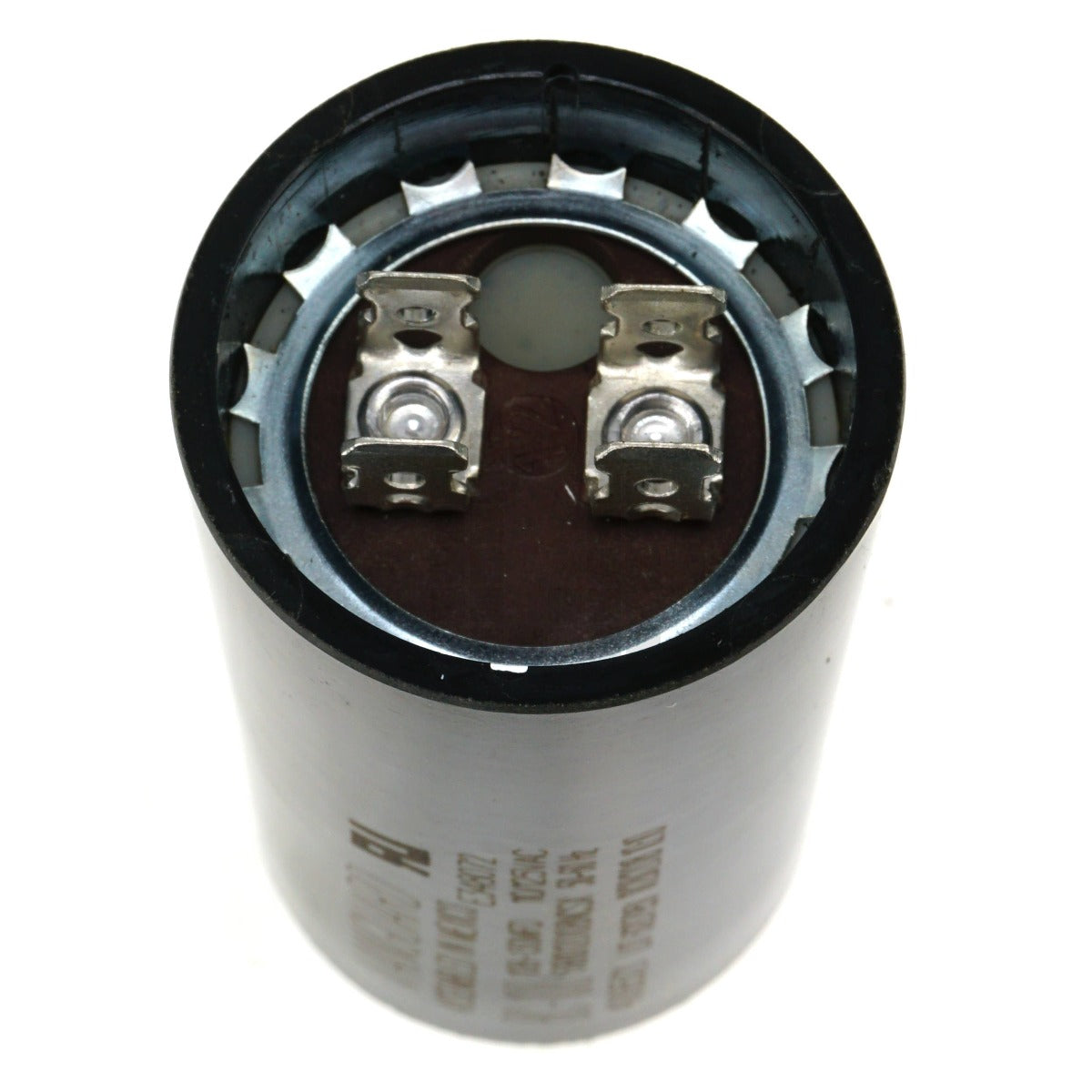

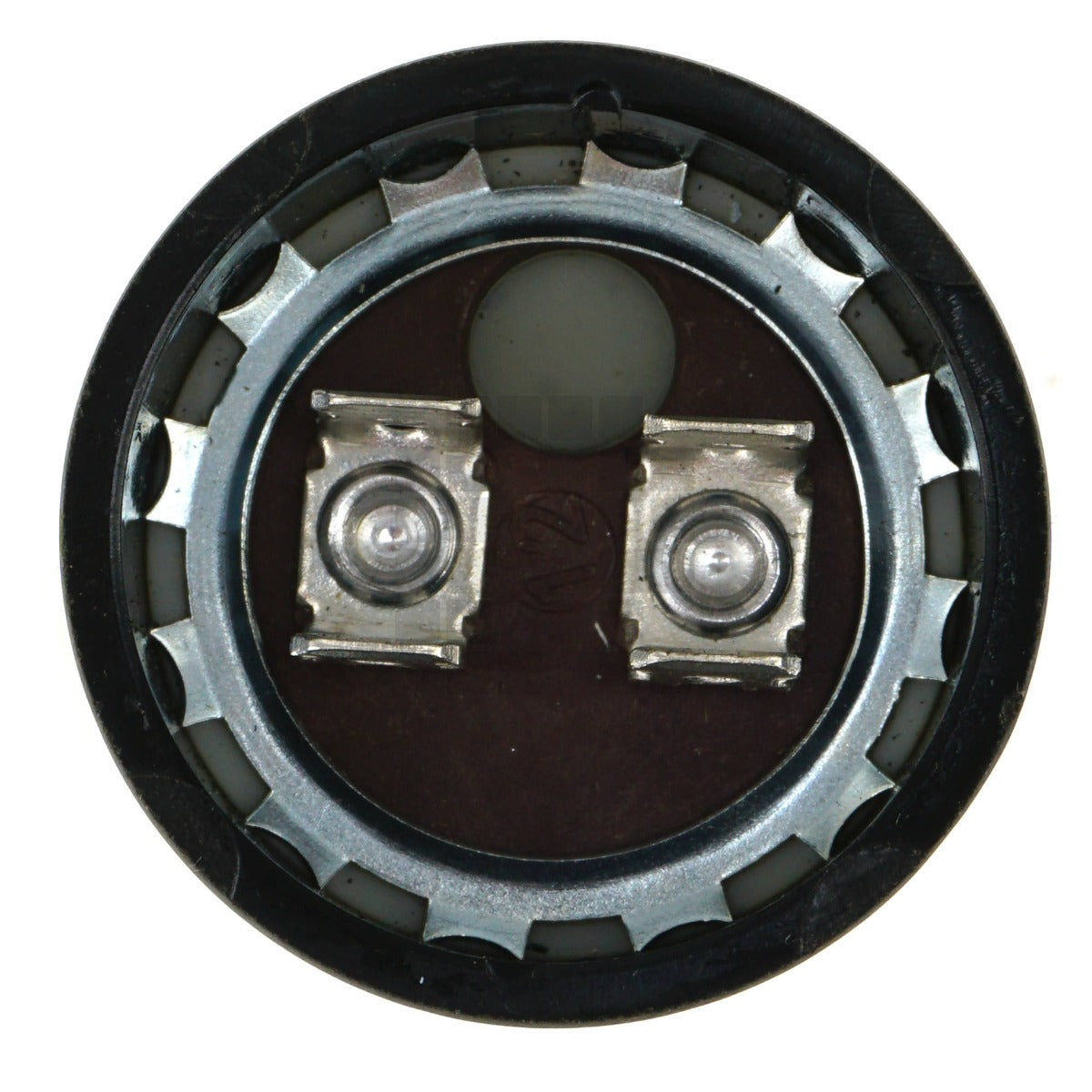

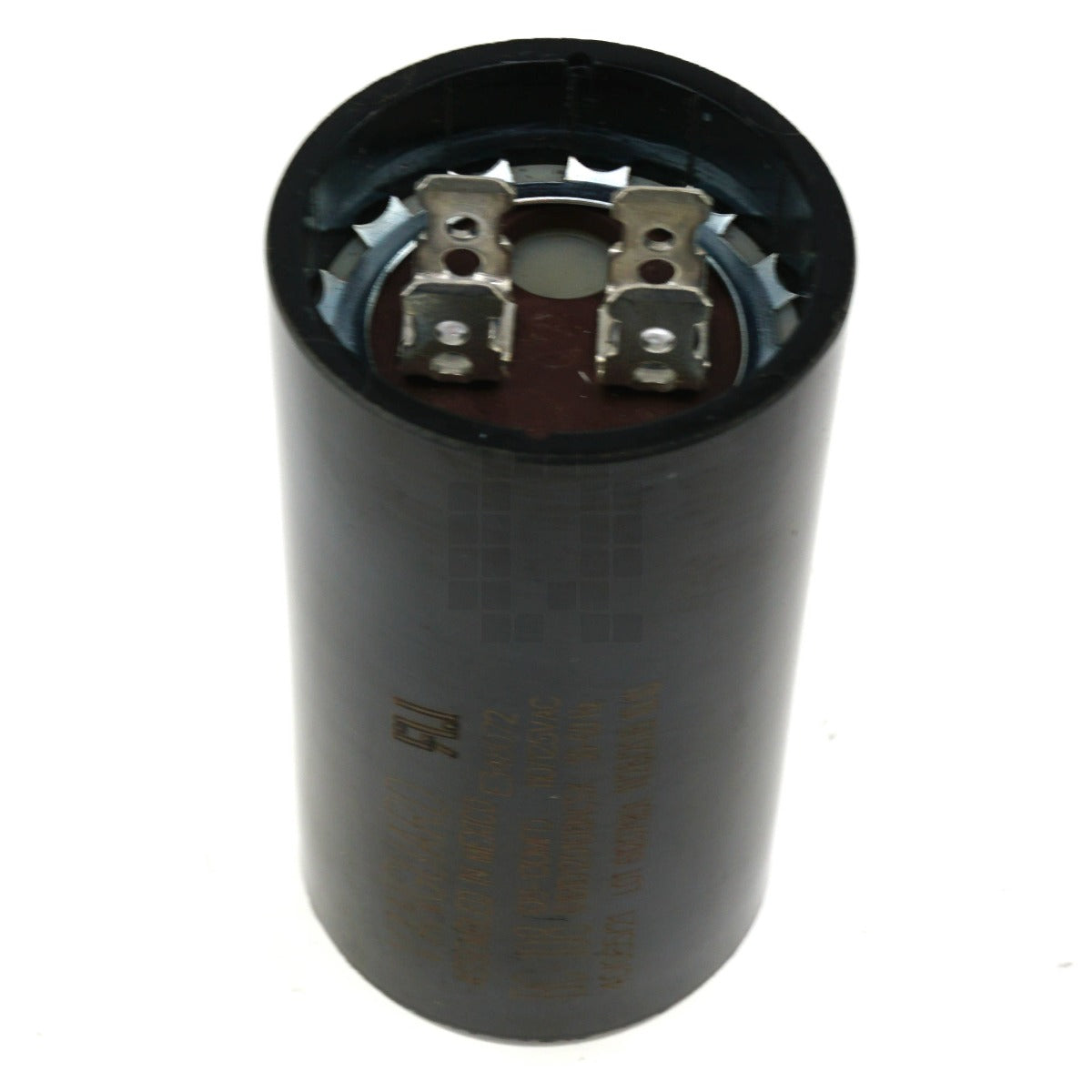

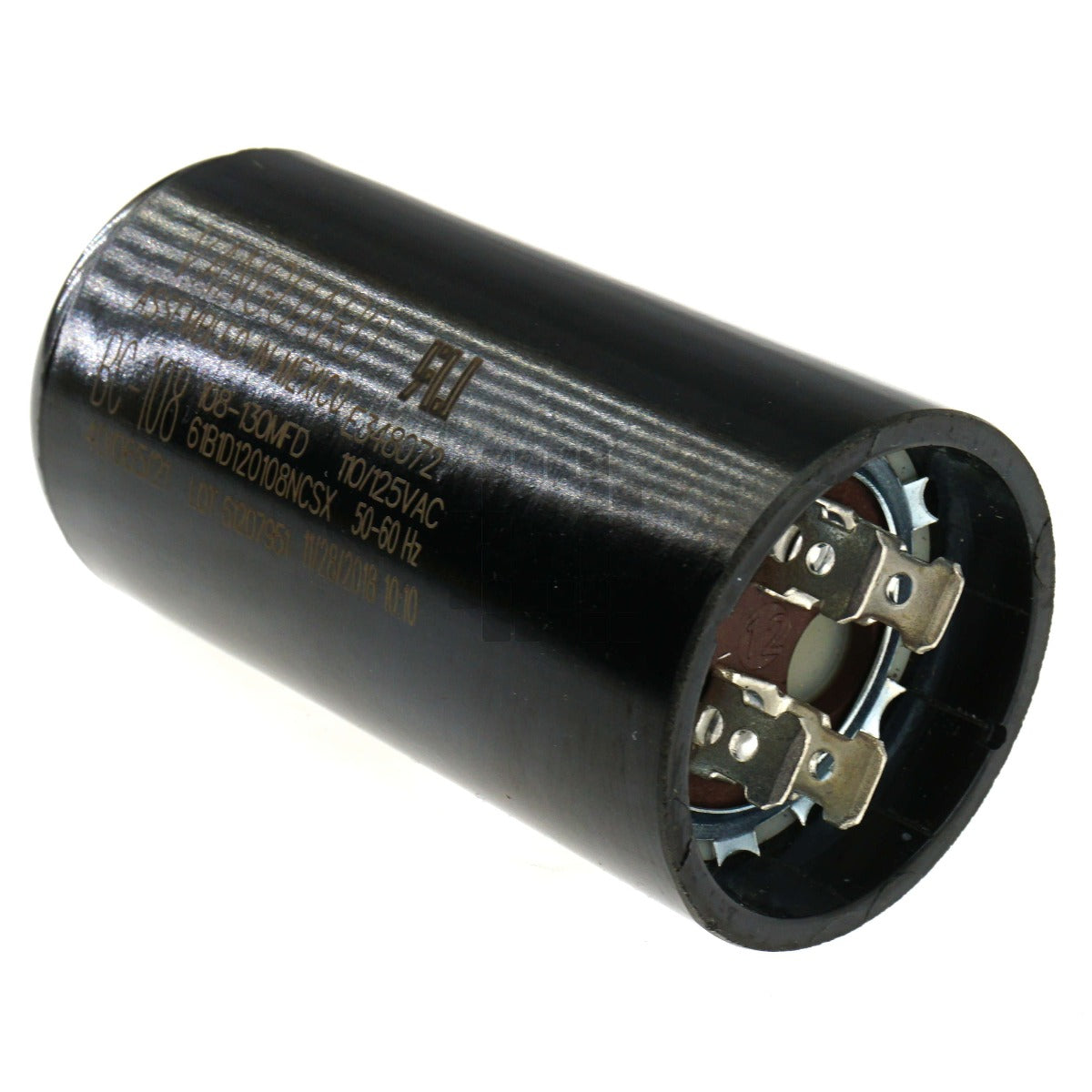

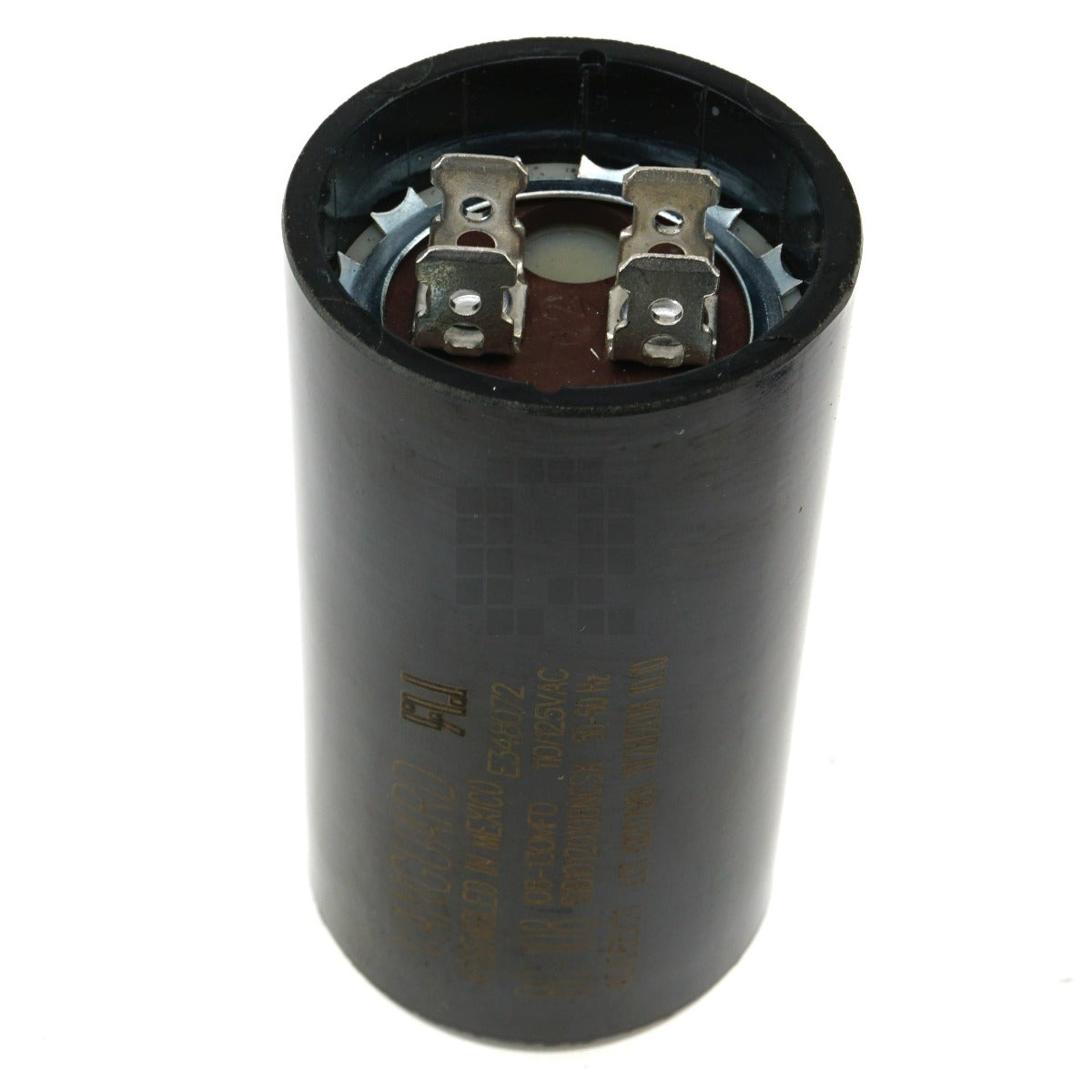

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.50"
UPC None
Product Origin (COO) Mexico

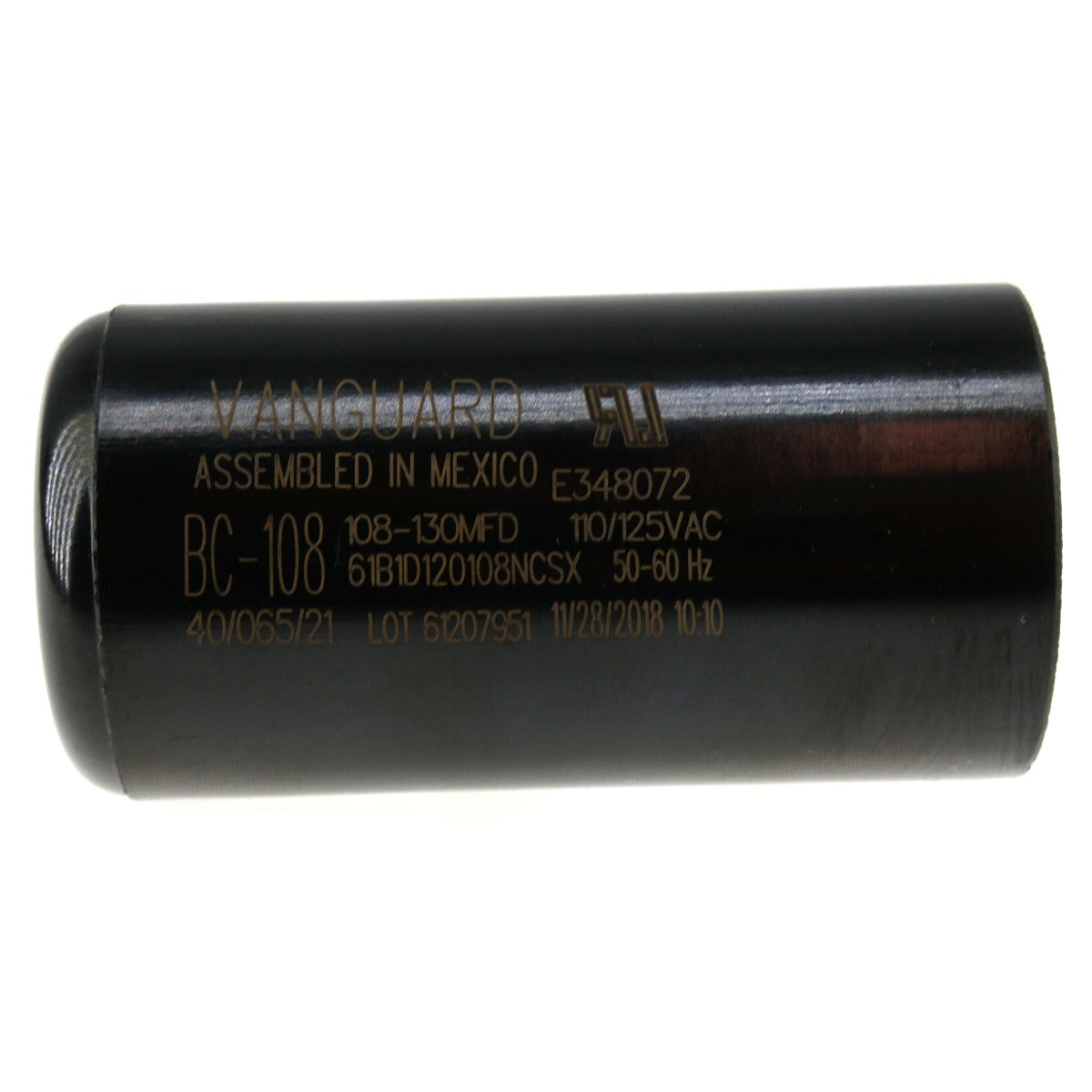

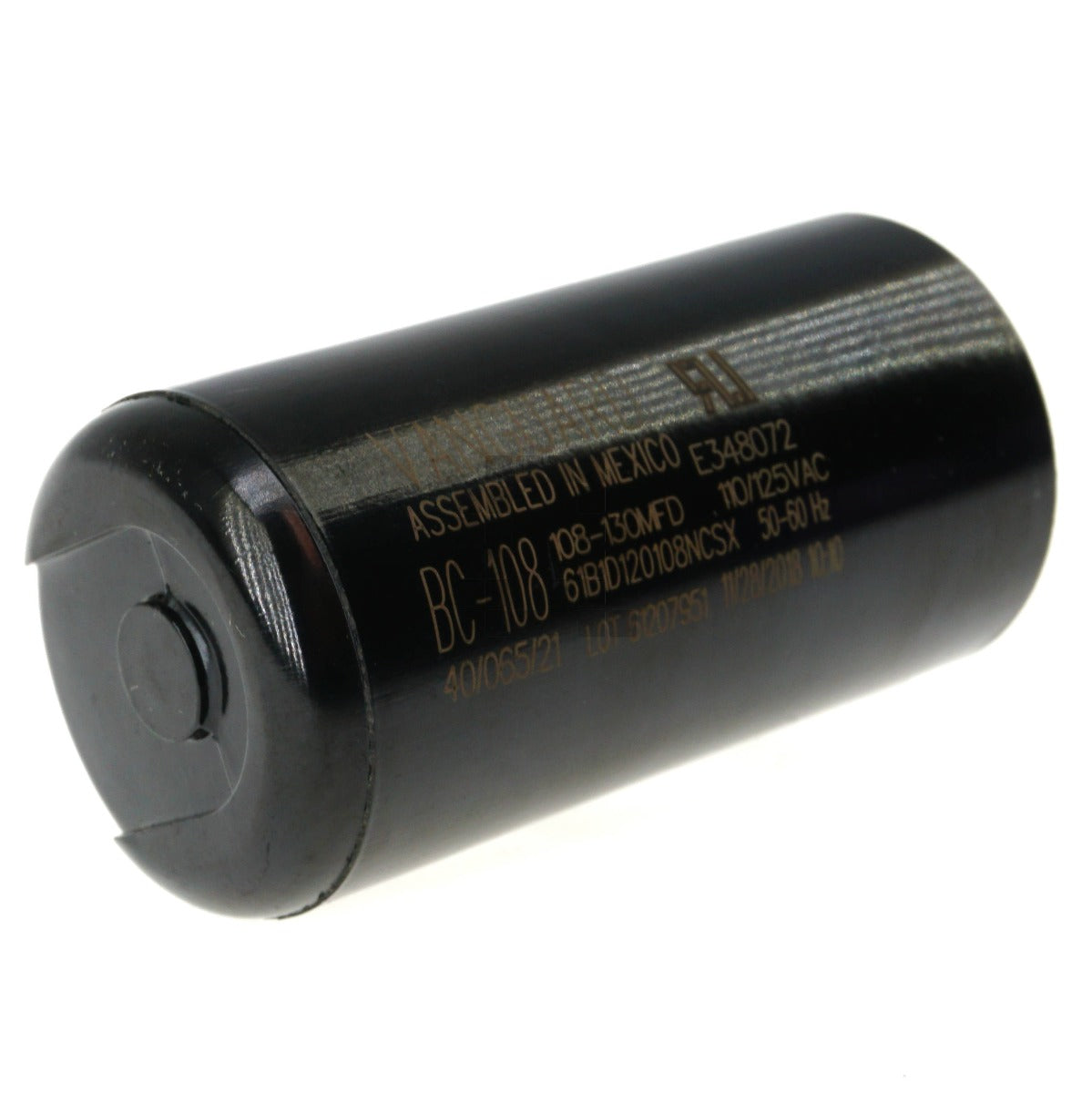

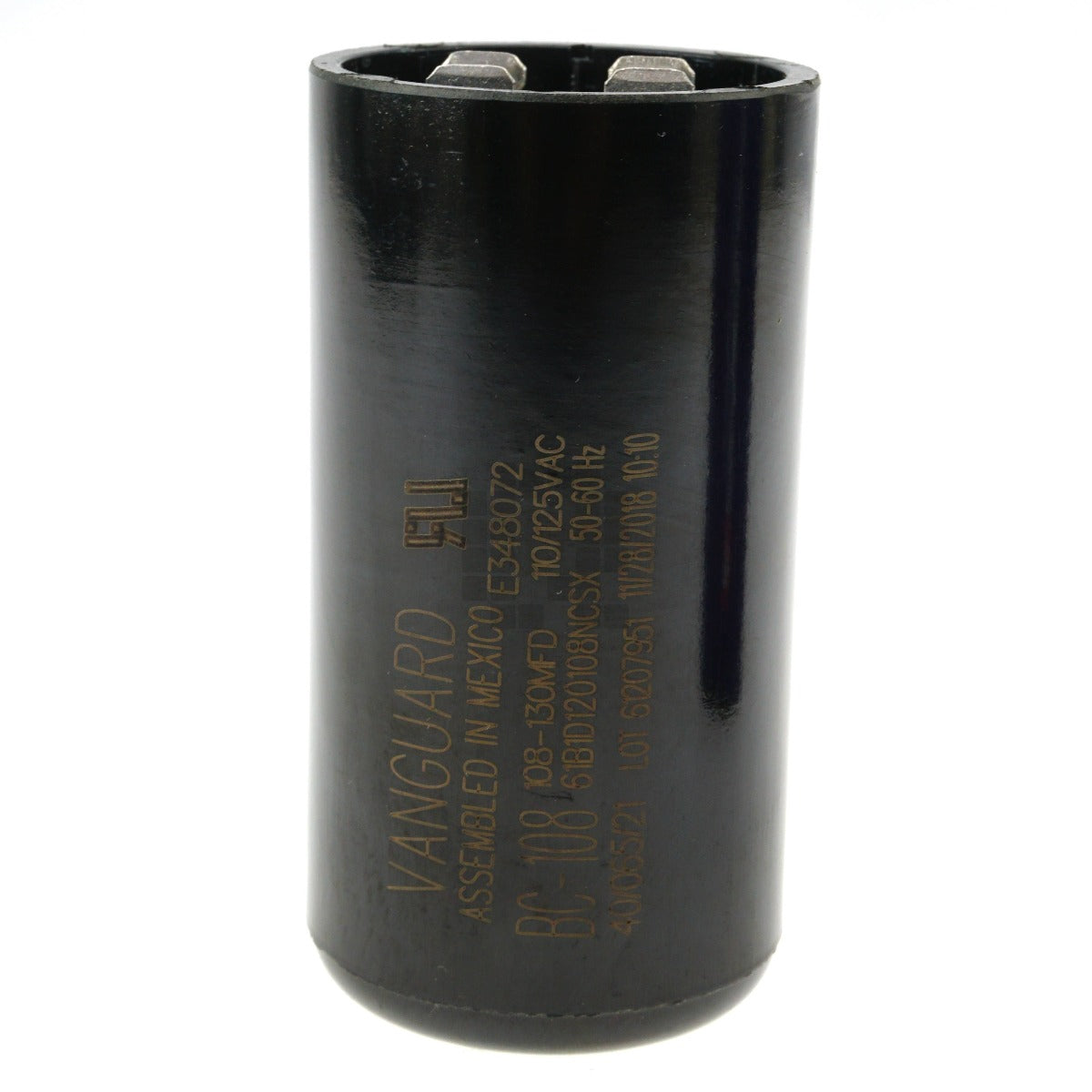

Product Label Vanguard
Assembled in Mexico
BC-108 108-130MFD 110/125VAC
61B1D120108NCSX 50-60Hz

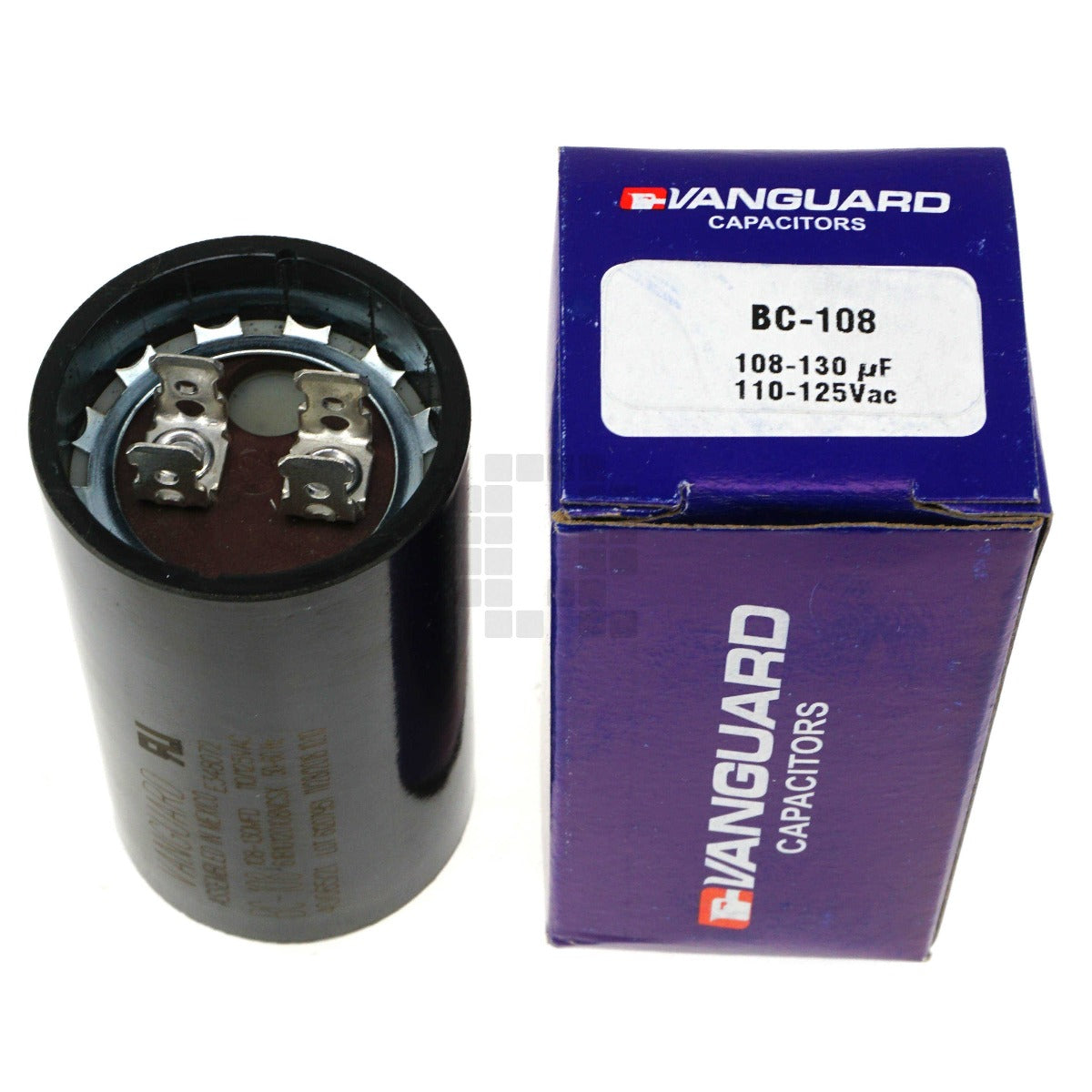

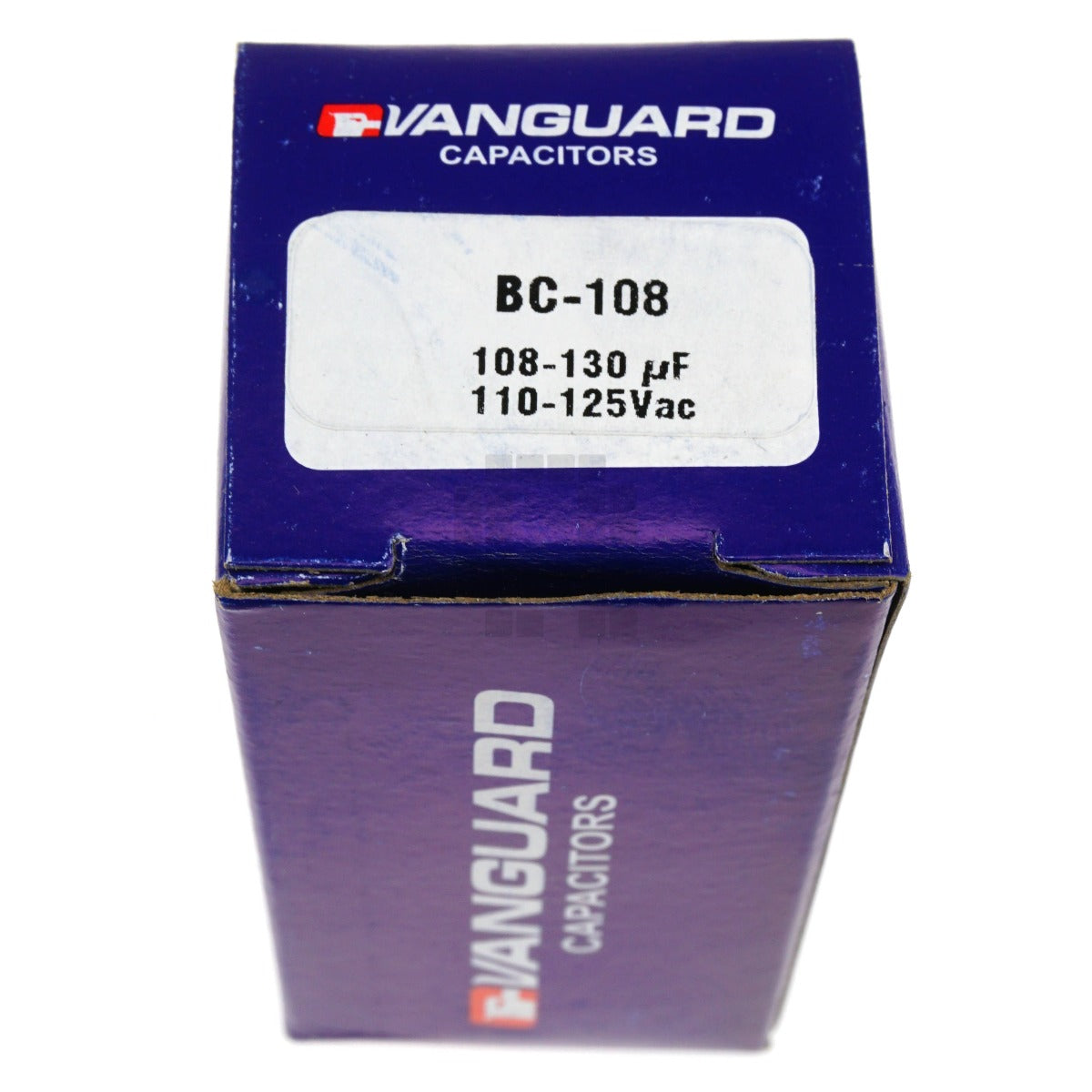

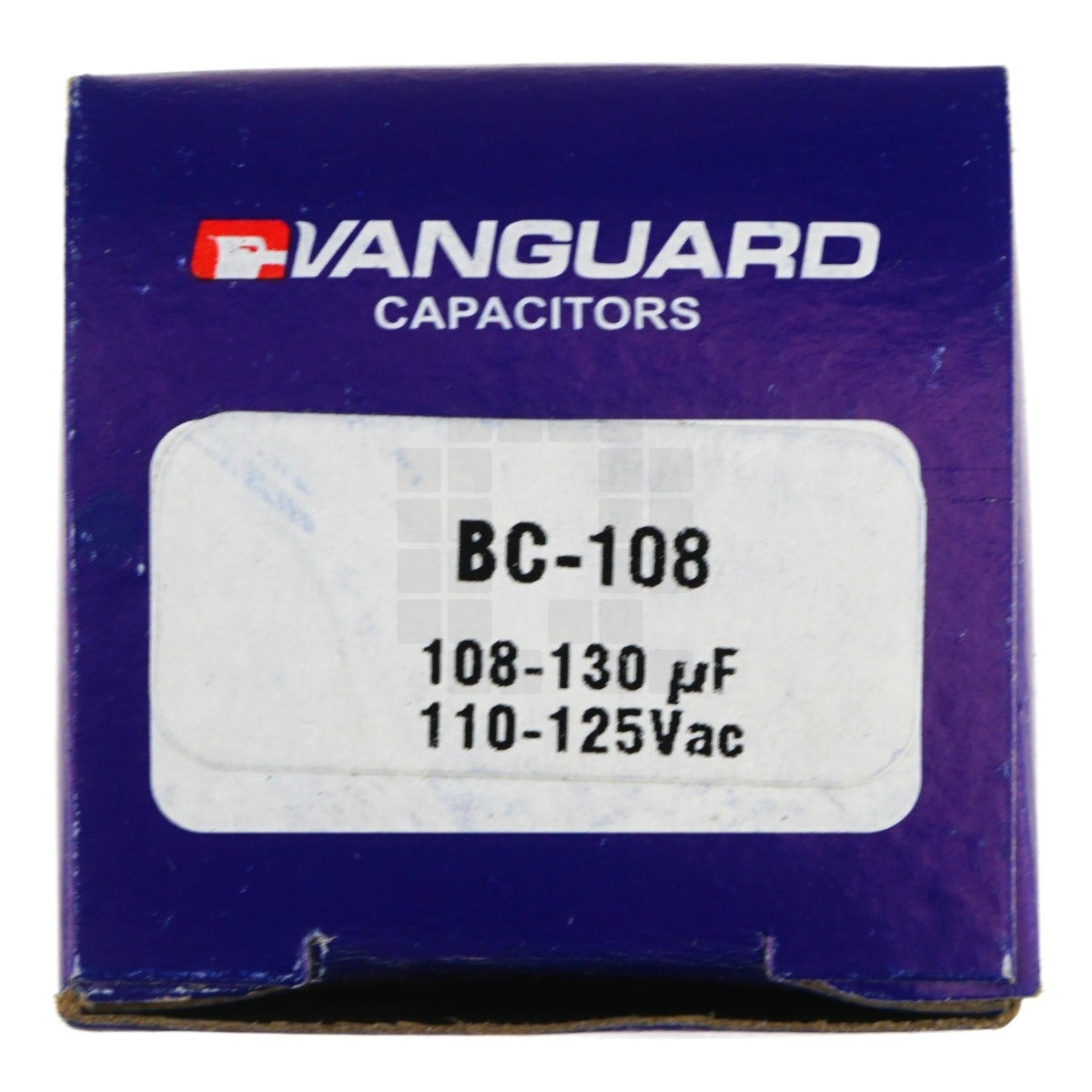

Package Label BC-108
108-130 uF
110-125VAC
Notes

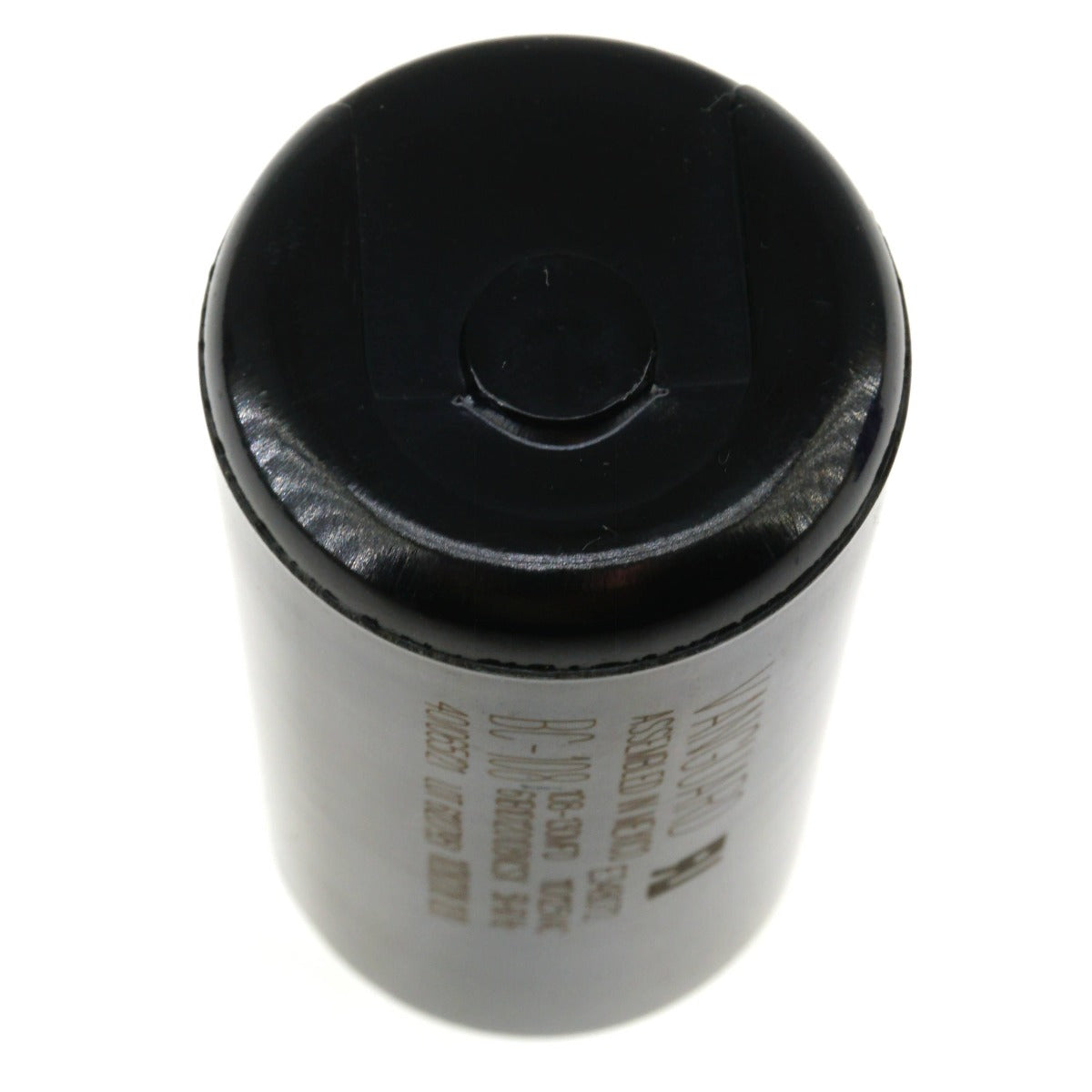

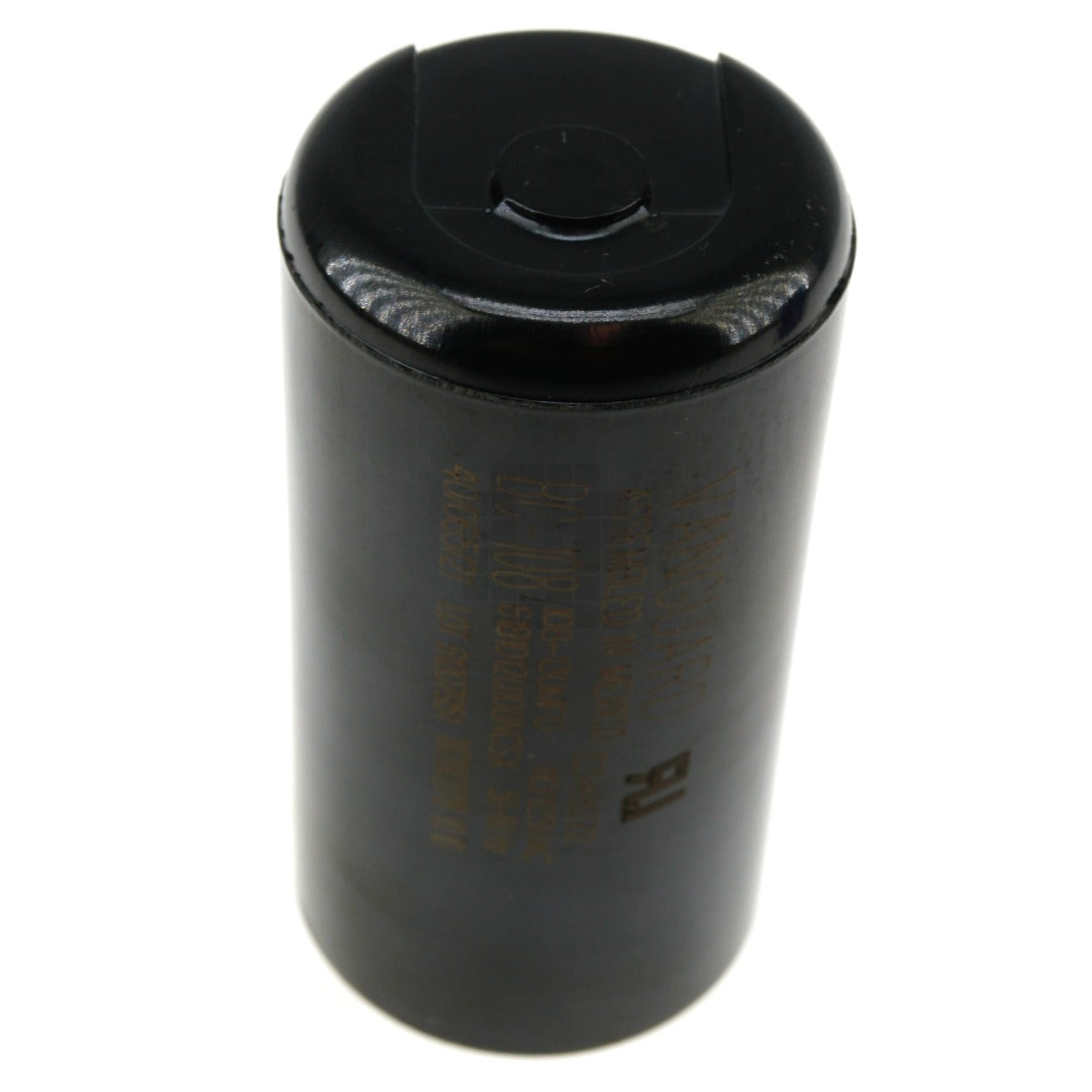

Product Color Black

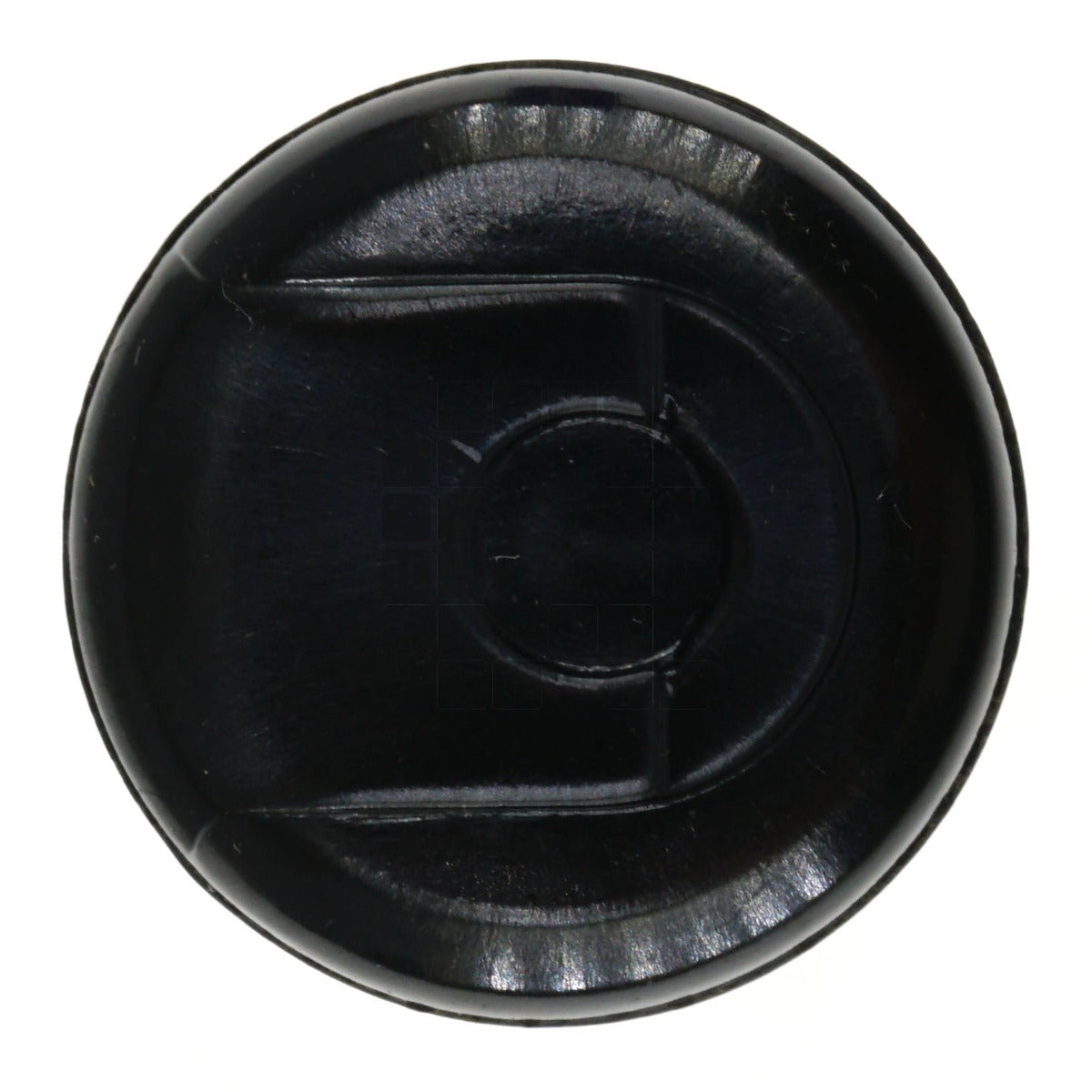

Product Shape Cylinder
Product Dimensions 1.437" Diameter
2.75" High
Product Weight 3 oz
Package Dimensions (LxWxH) 1.5" x 1.5" x 3.06" Inches
Package Weight 4 oz
