Brand Vanguard
Manufacturer Part Number BC-124
61B1D120124NCSX
Cross Reference (Fit/Form/Function)
Capacitance 124-149 uF
Working Voltage 110-125 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

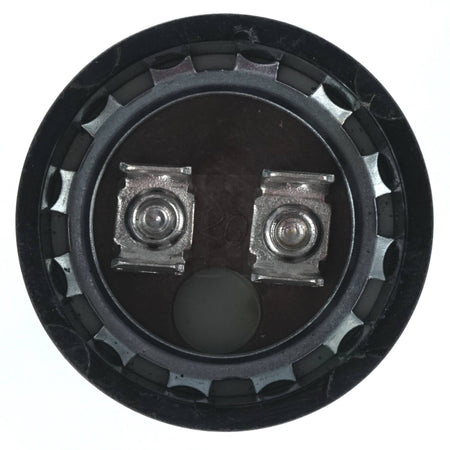

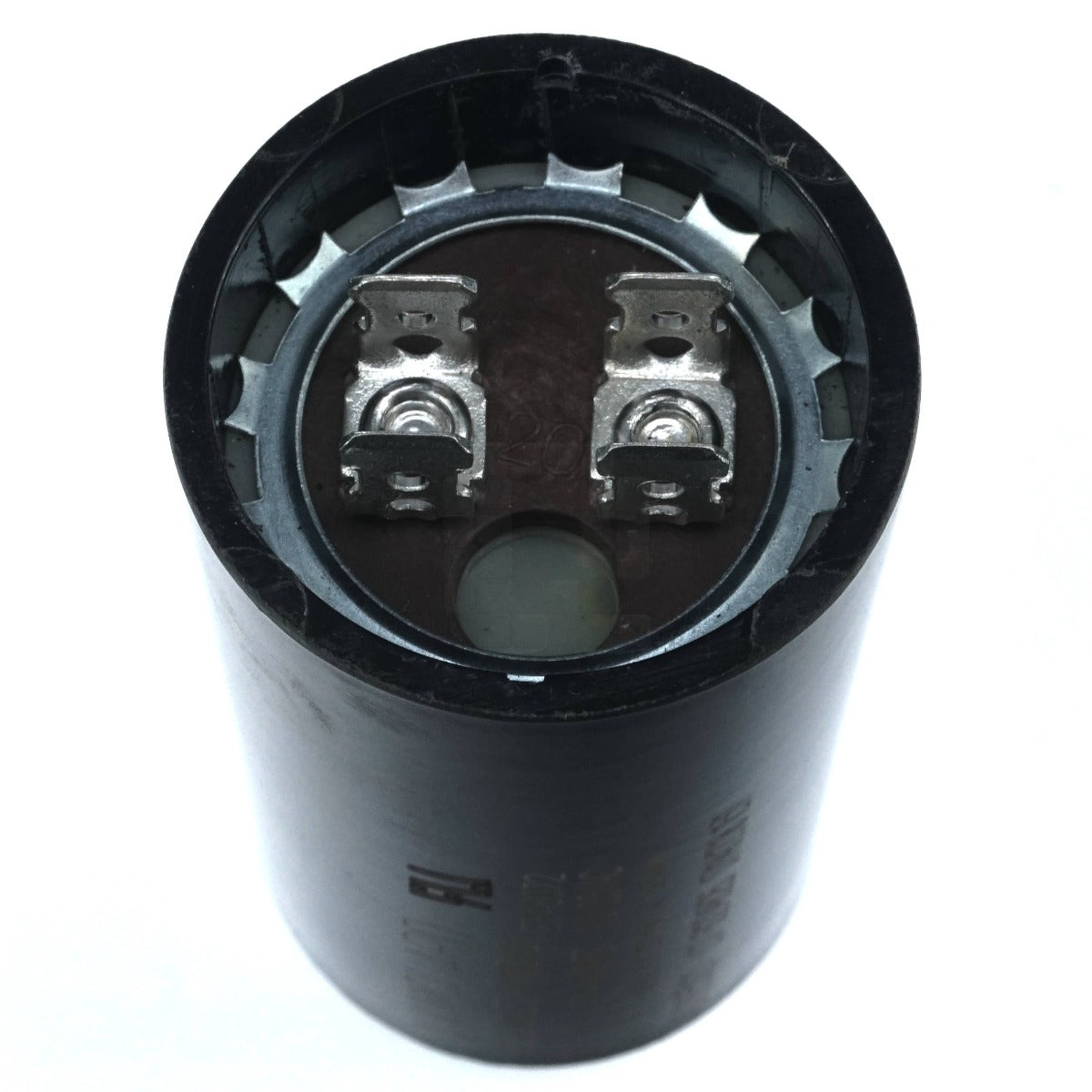

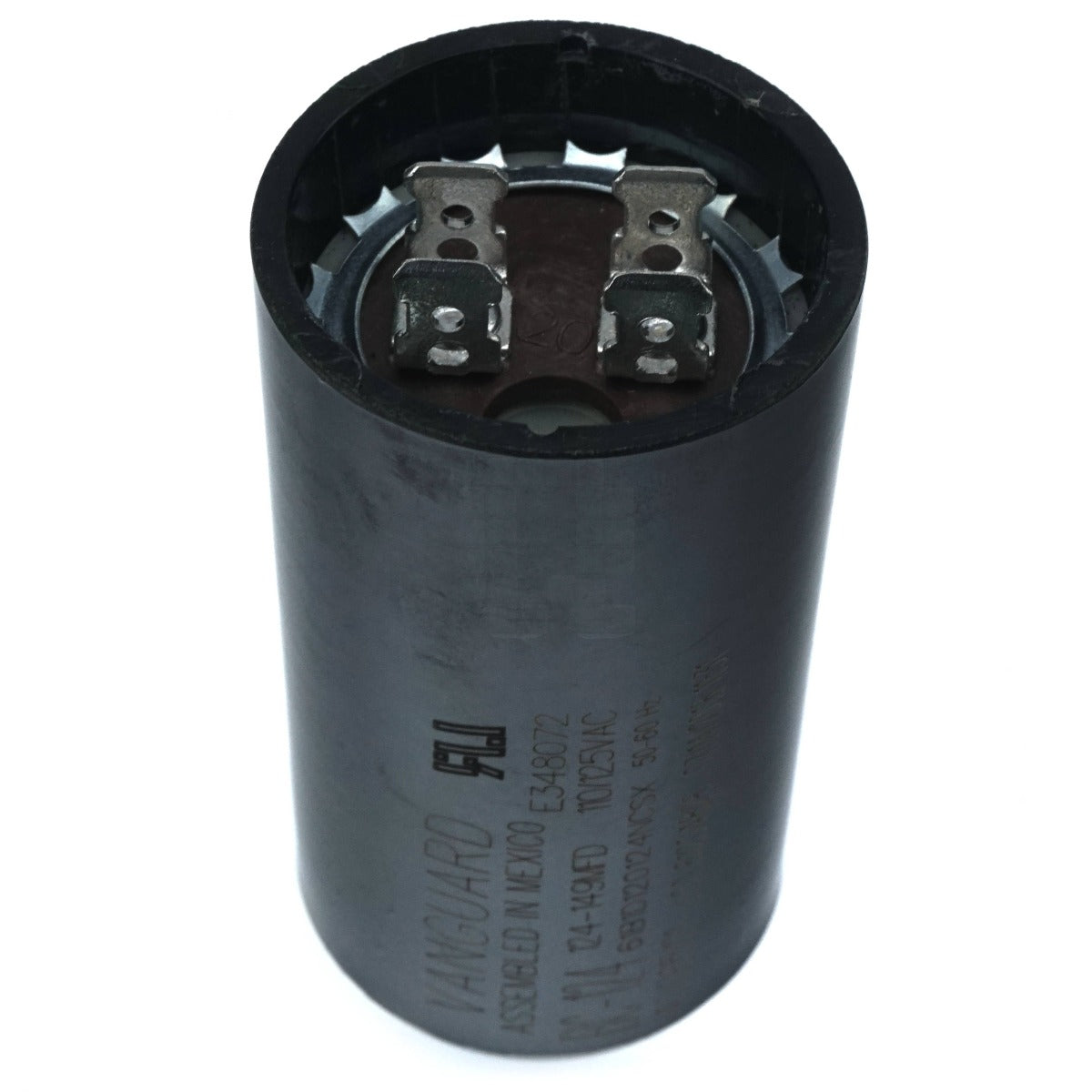

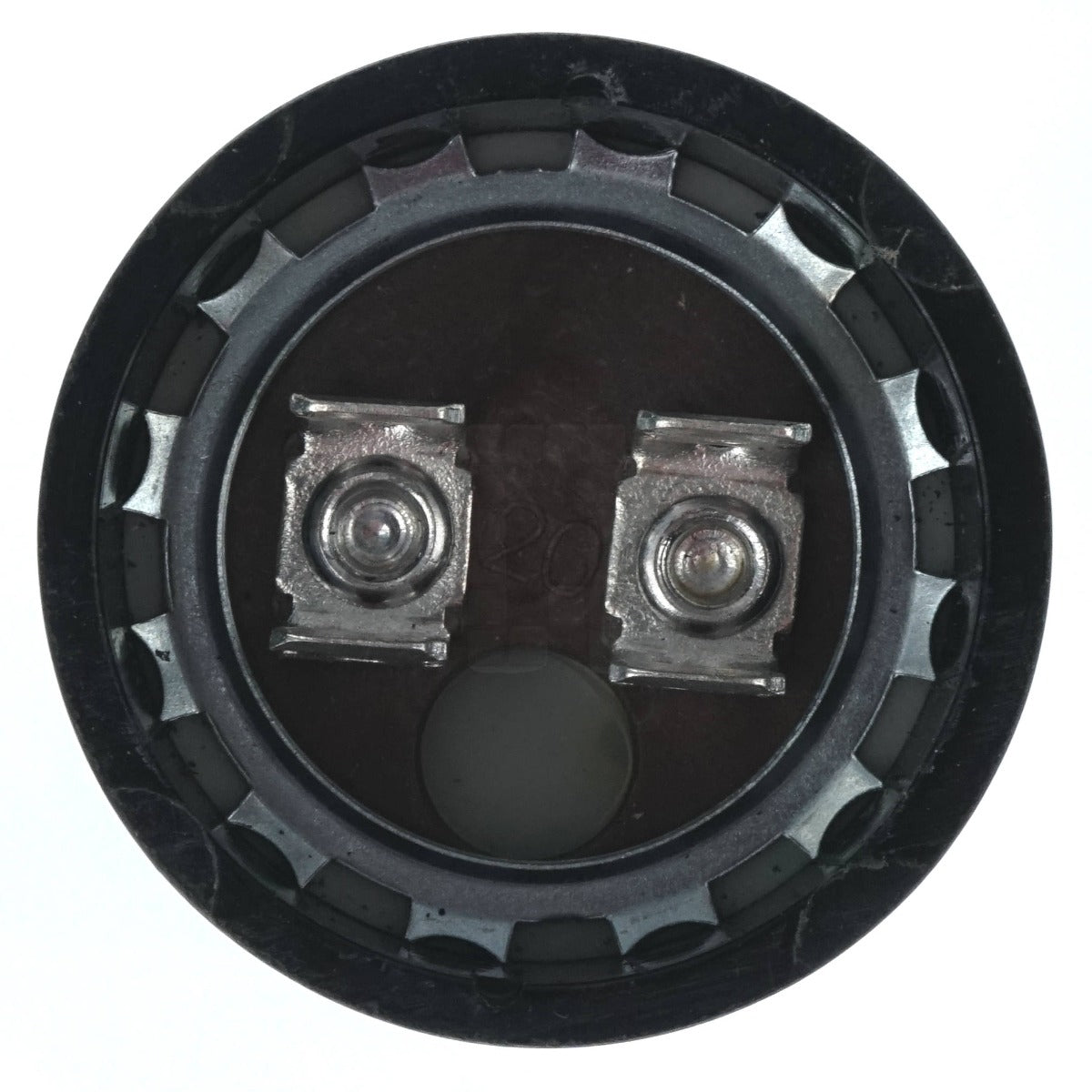

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
UPC None
Product Origin (COO) Mexico

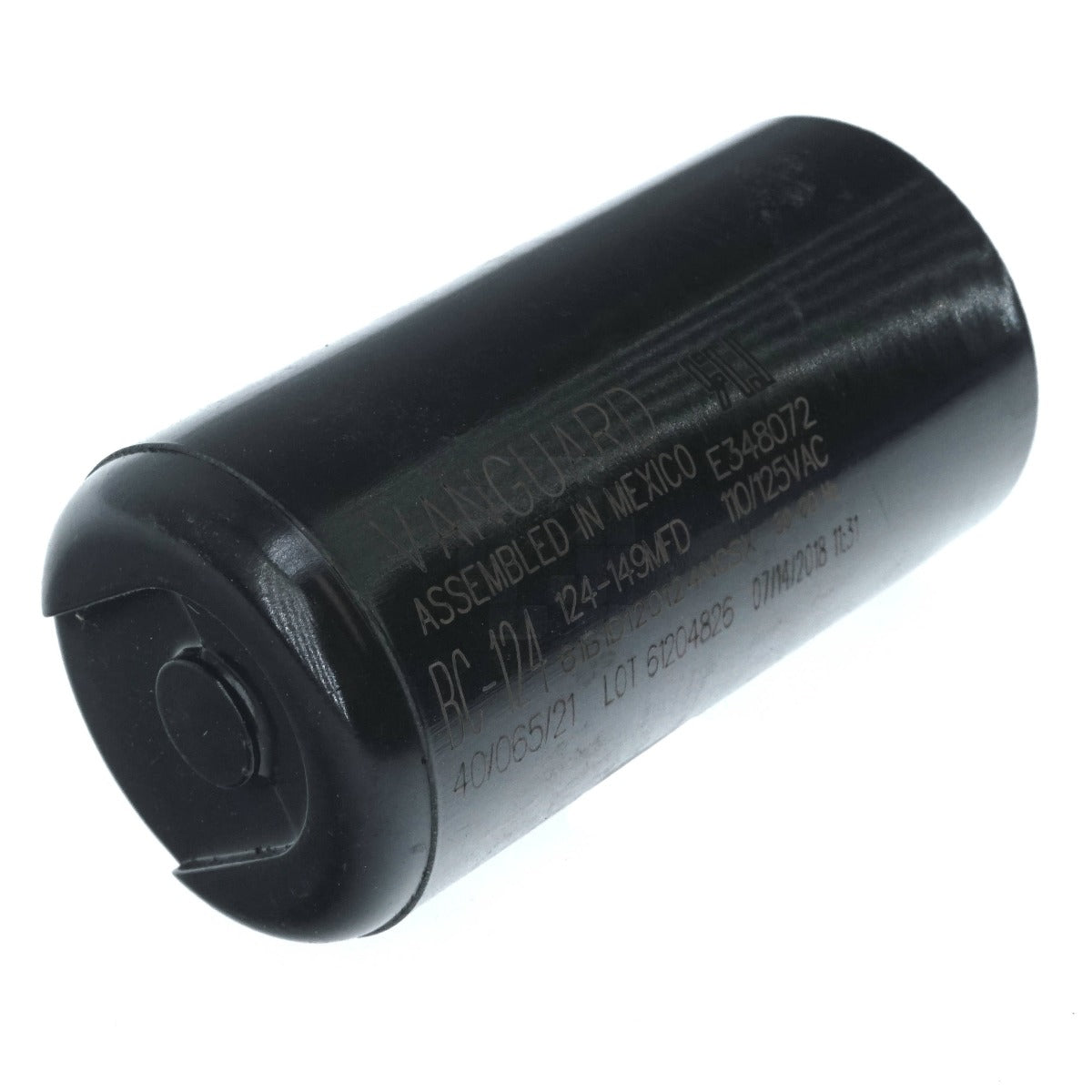

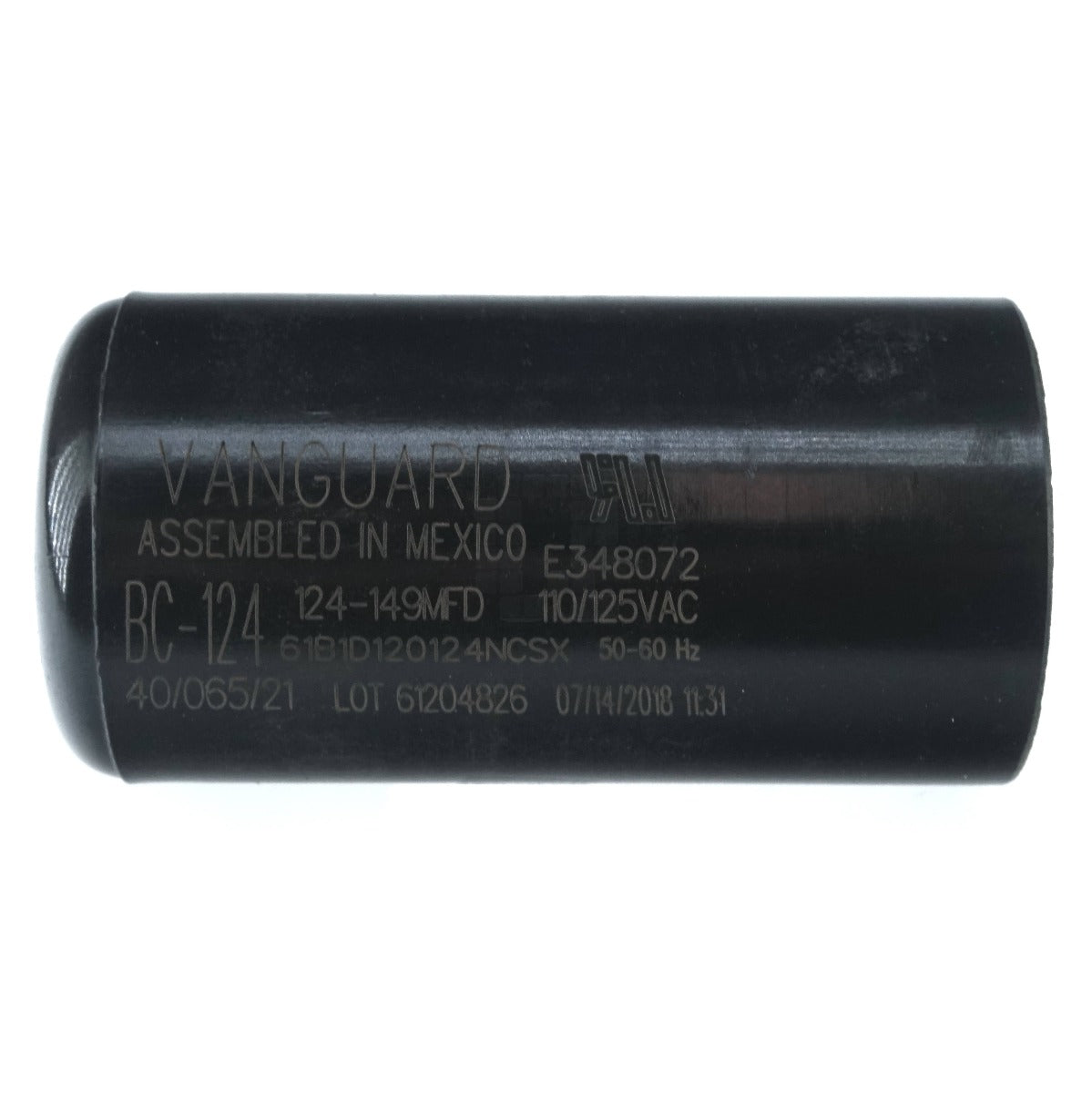

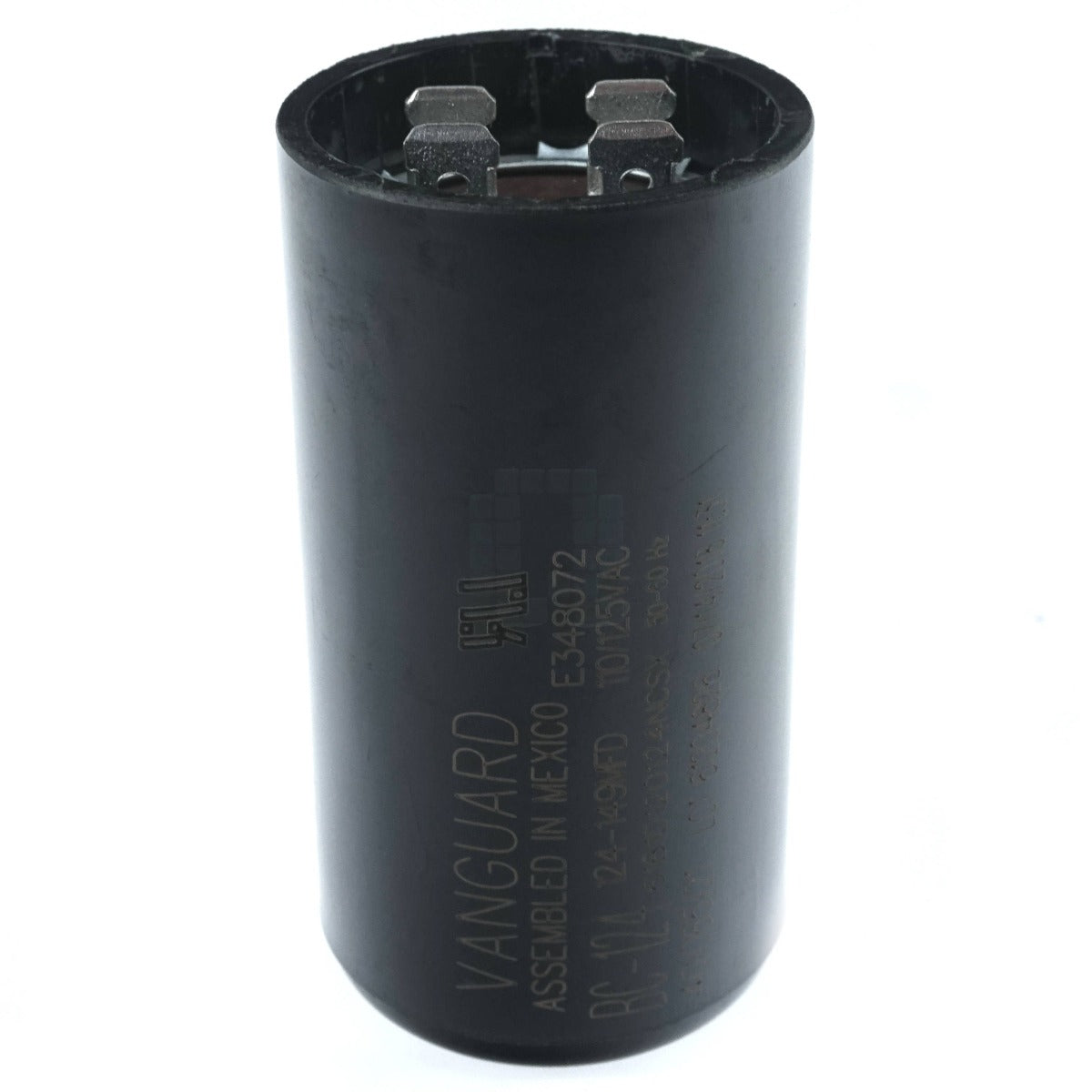

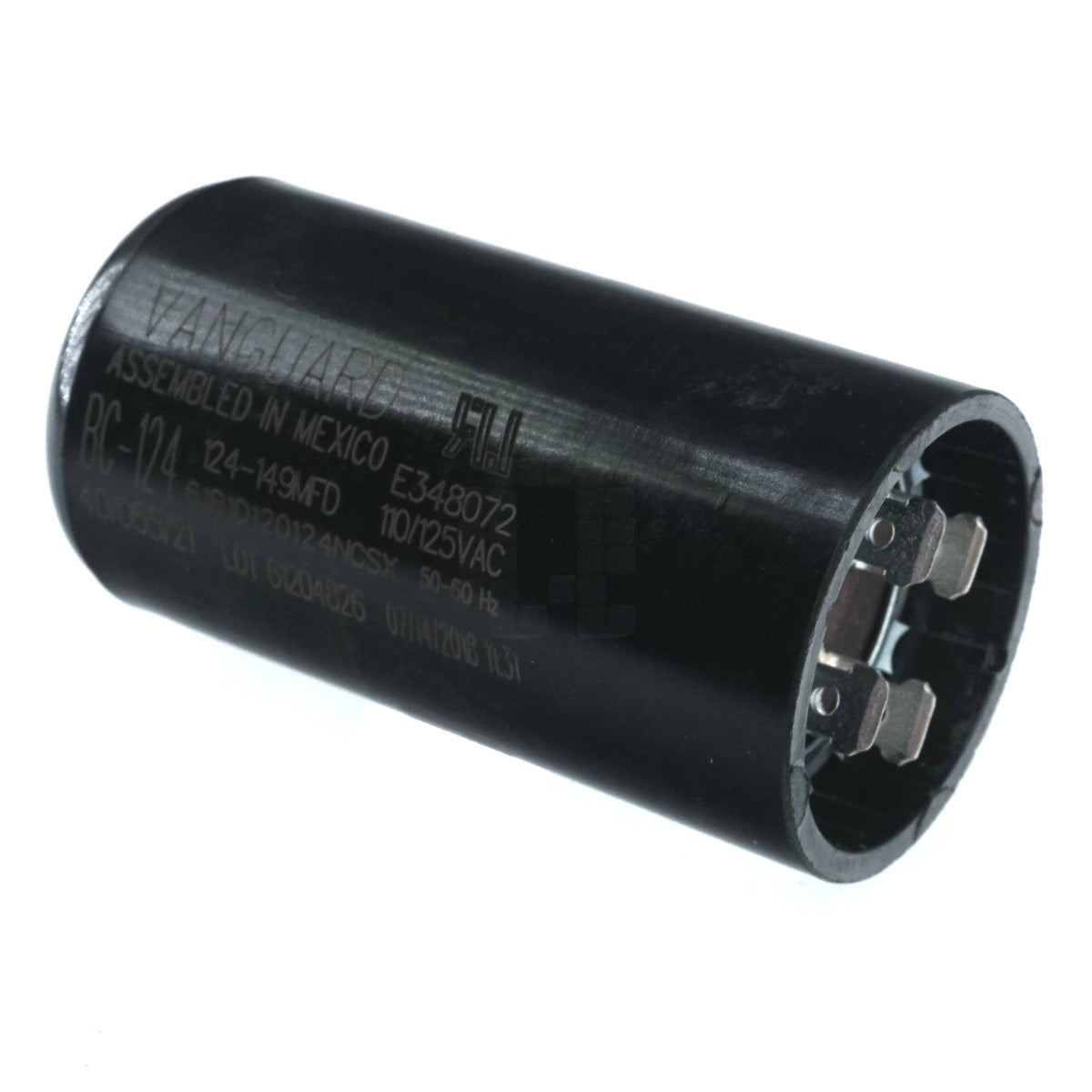

Product Label Vanguard
Assembled in Mexico
BC-124 124-149MFD 110/125VAC
61B1D120124NCSX 50-60Hz

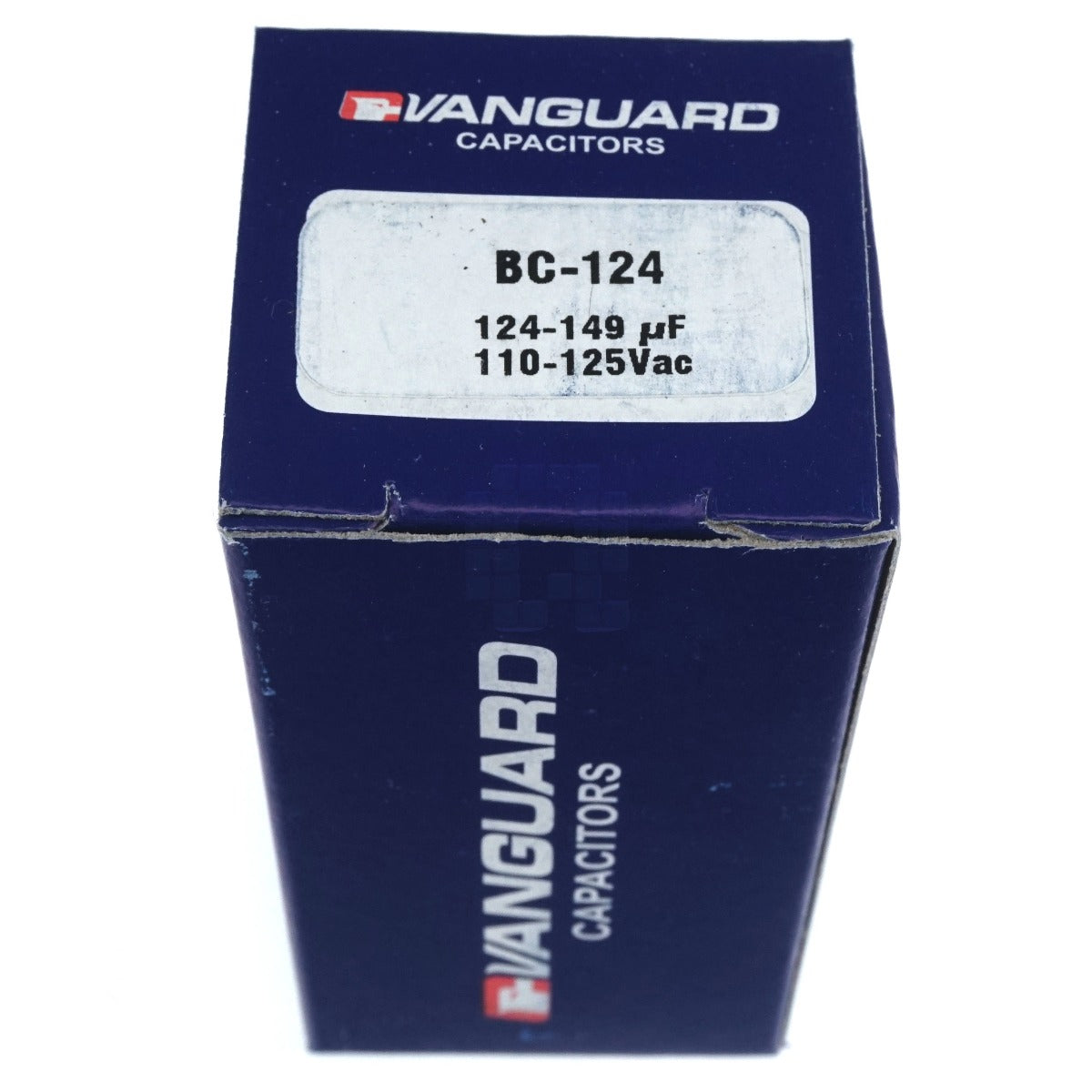

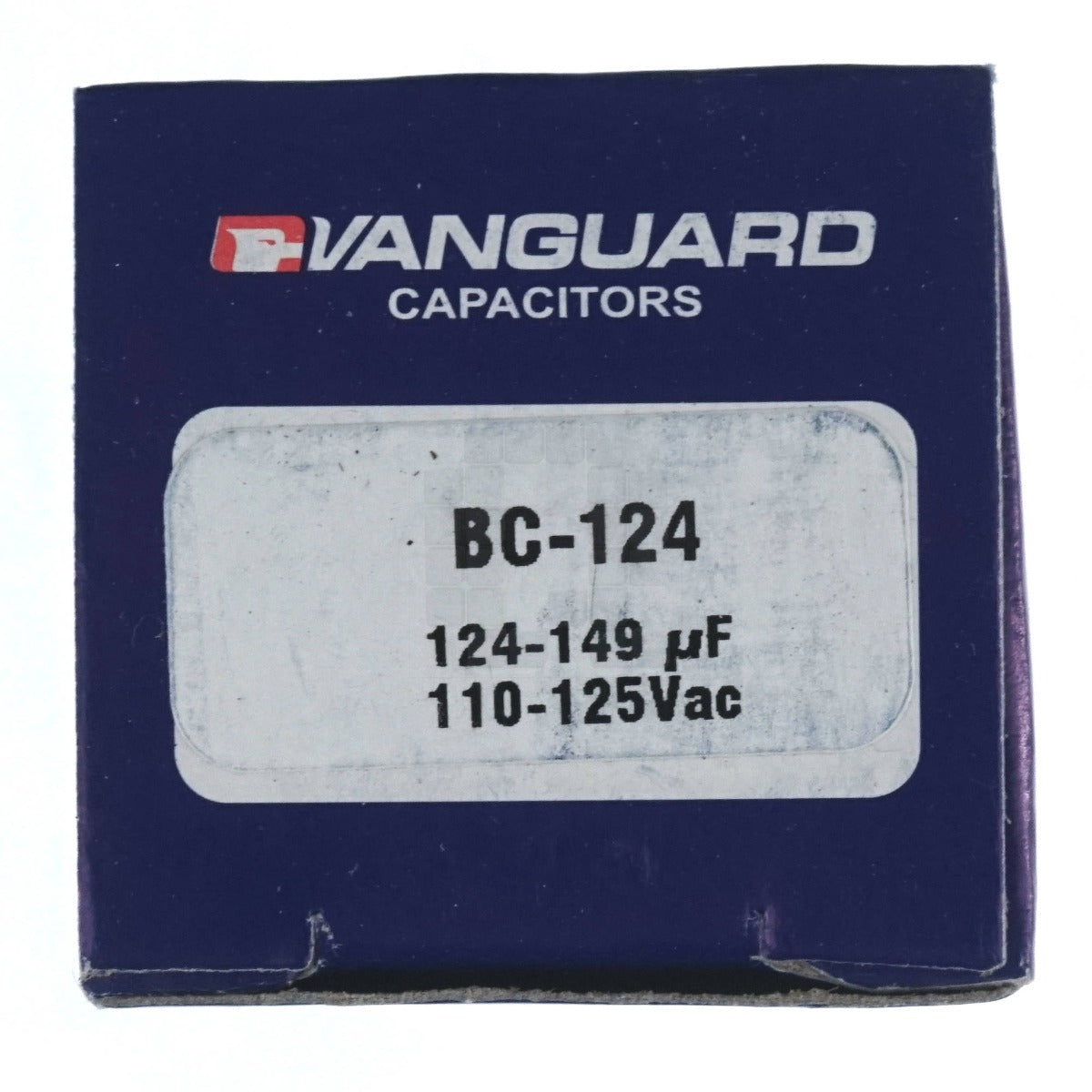

Package Label BC-124
124-149 uF
110-125 VAC
Notes
Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
2.75" High
Product Weight 2.5 oz
0.07 kg
Package Dimensions (LxWxH) 1.5" x 1.5" x 3.06" Inches
Package Weight 3 oz
0.09 kg
