Brand Vanguard
Manufacturer Part Number BC-216
61B1D120216NCSX
Cross Reference (Fit/Form/Function)
Capacitance 216 - 259 uF
Working Voltage 110 - 125 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F
Type Start Capacitor

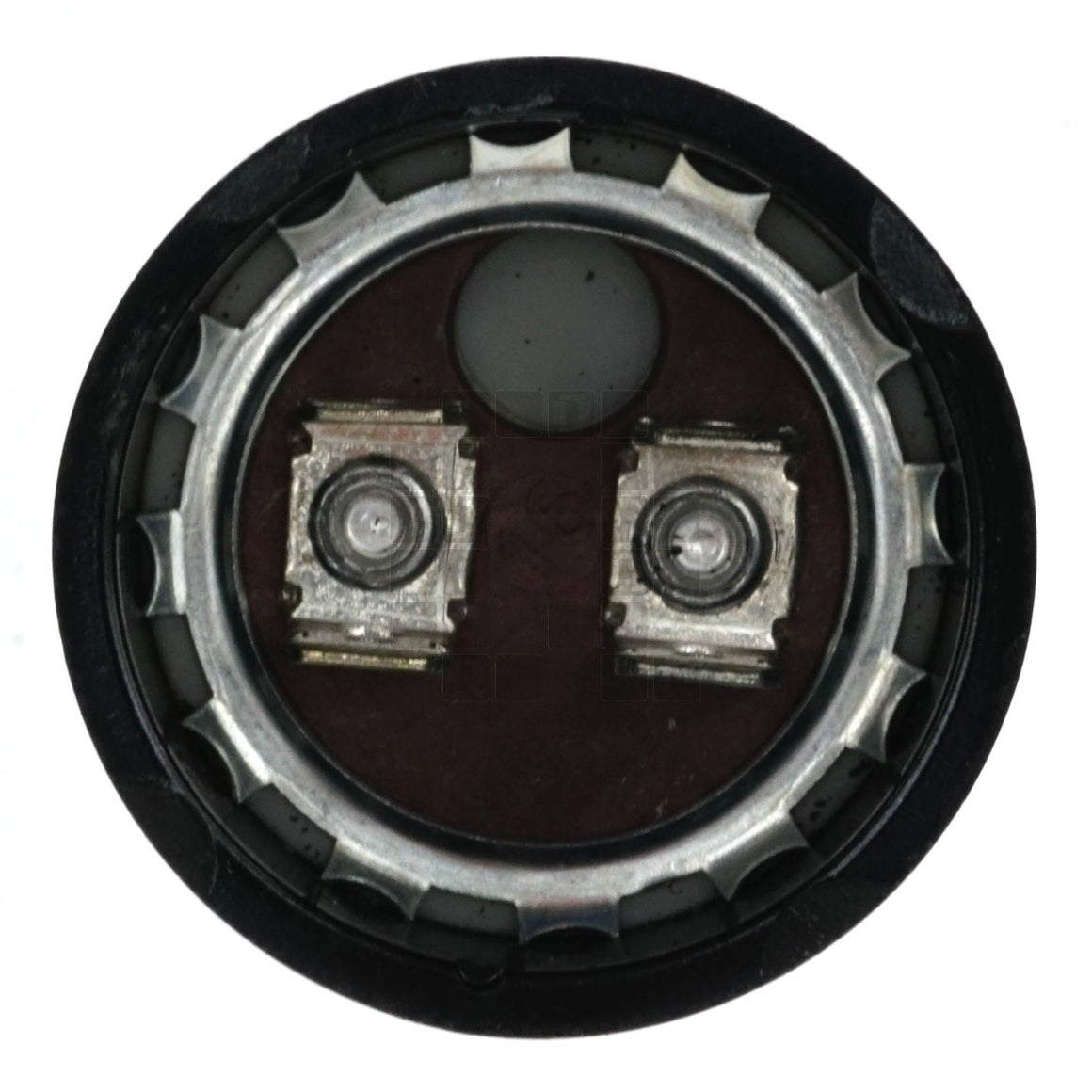

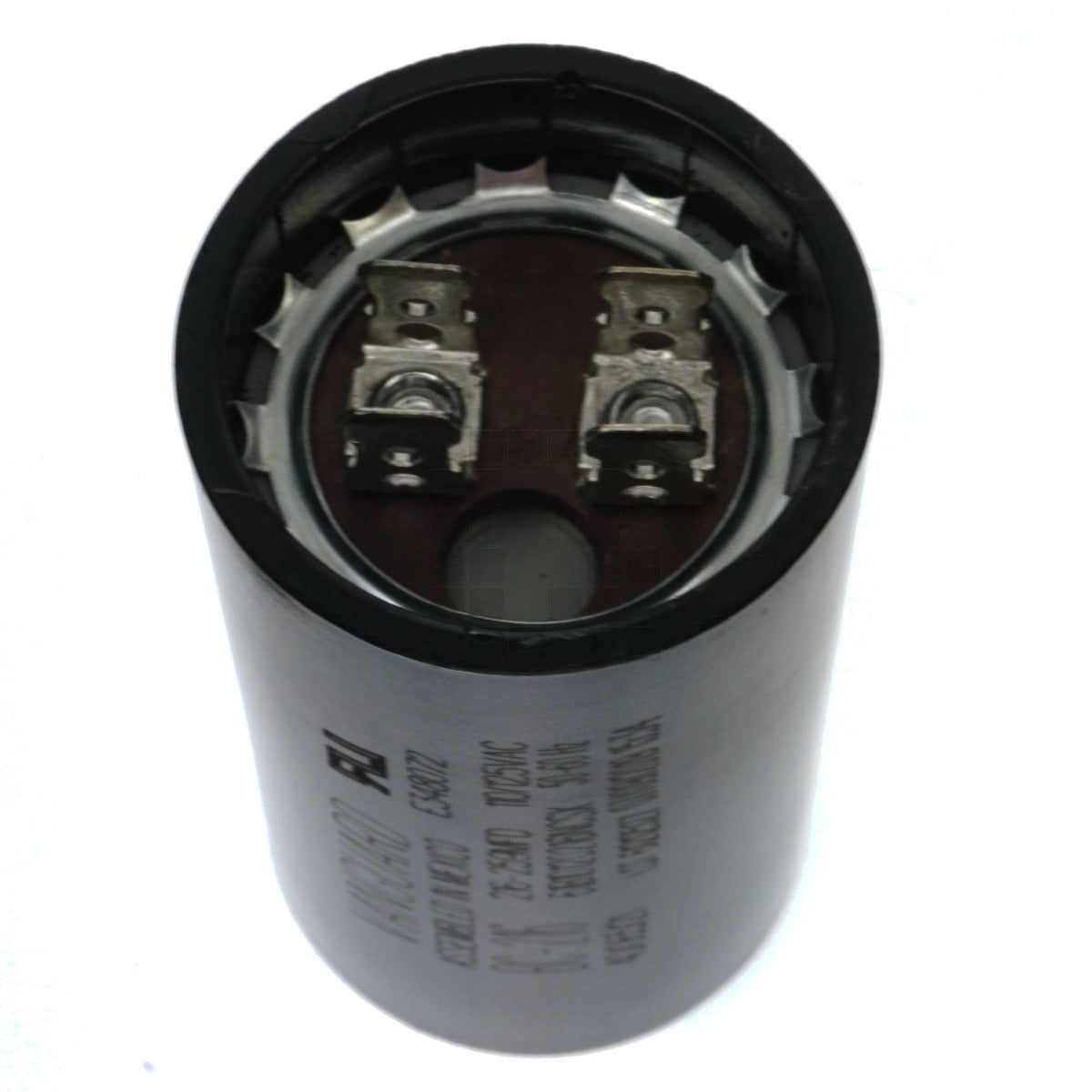

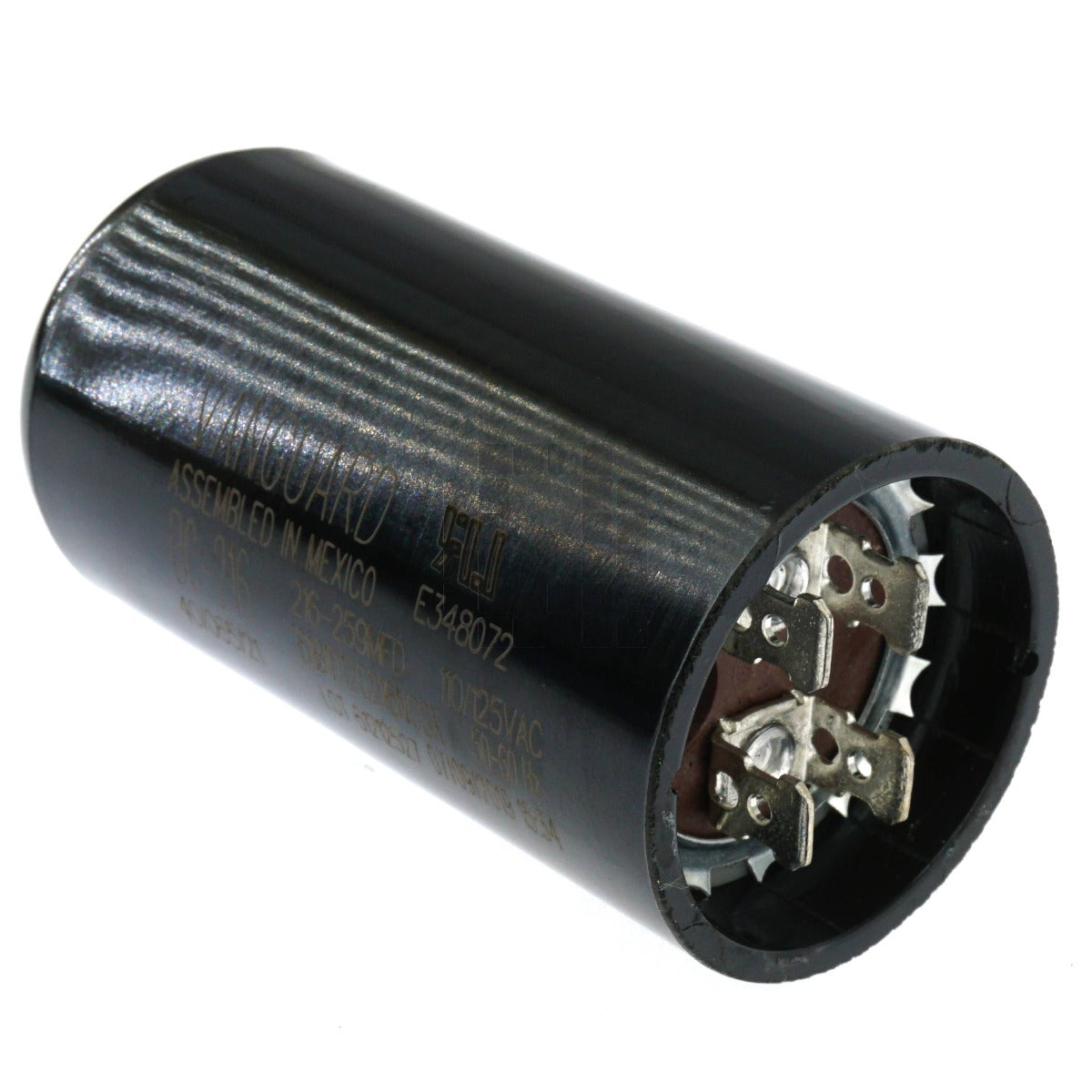

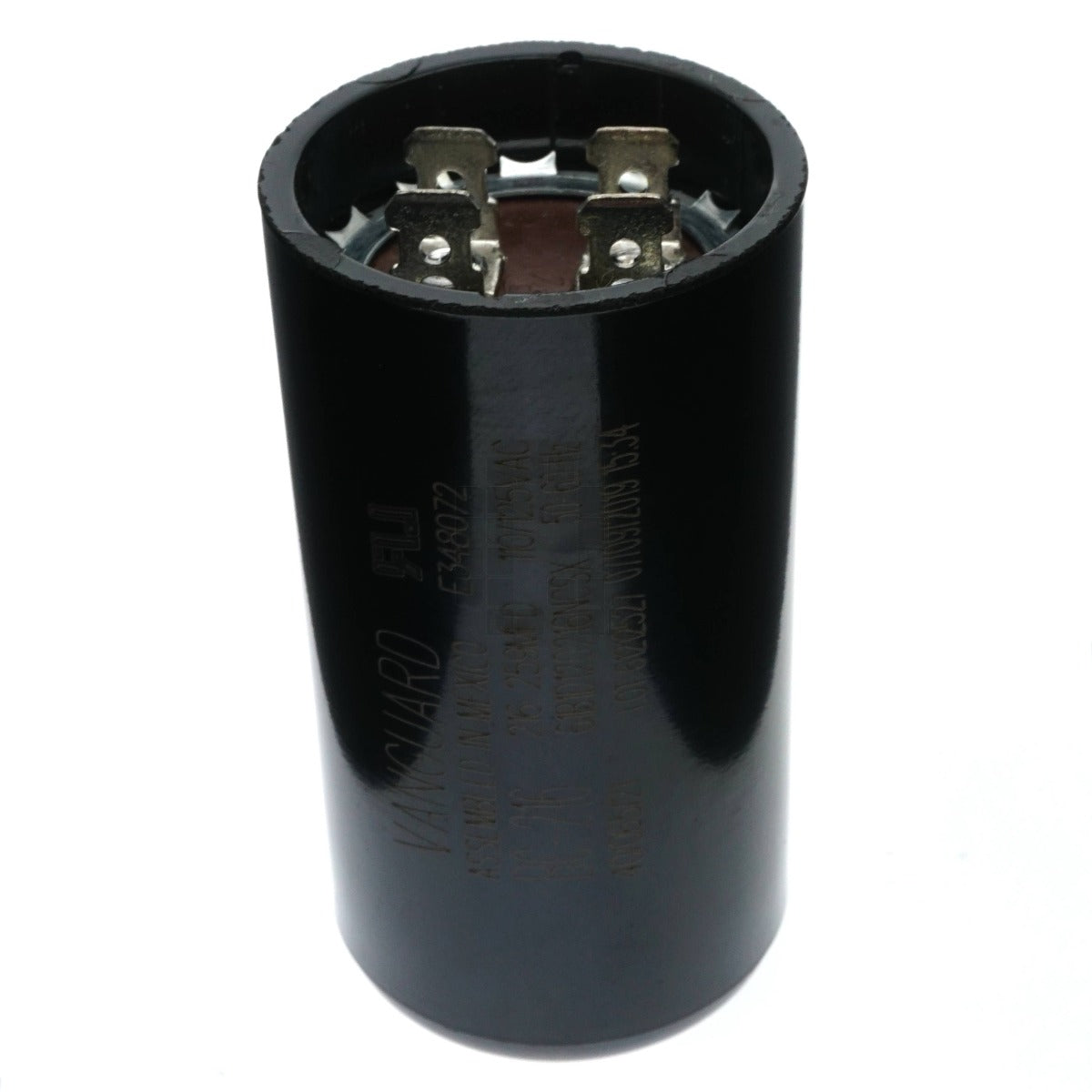

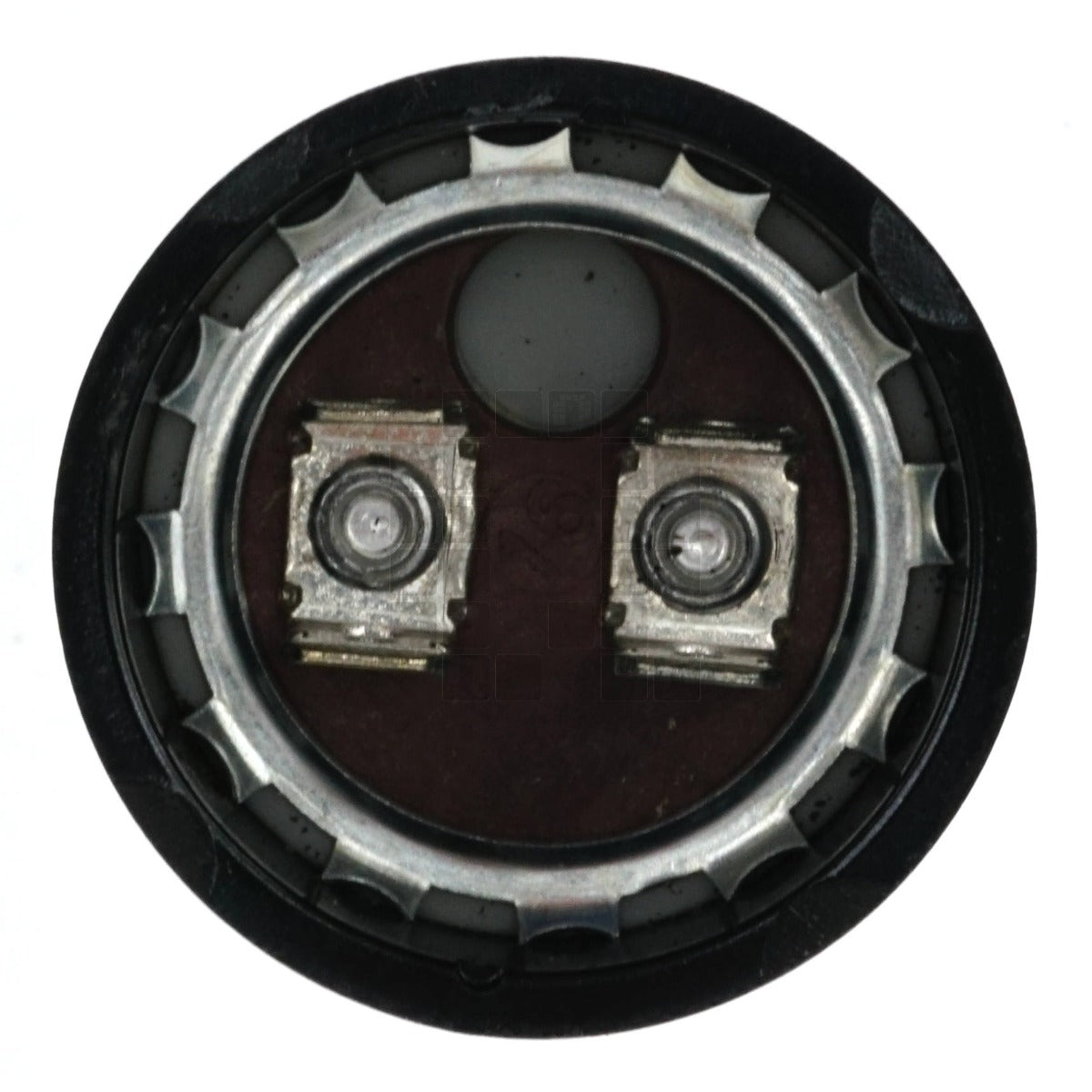

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None
Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals 0.500"
UPC None
Product Origin (COO) Mexico

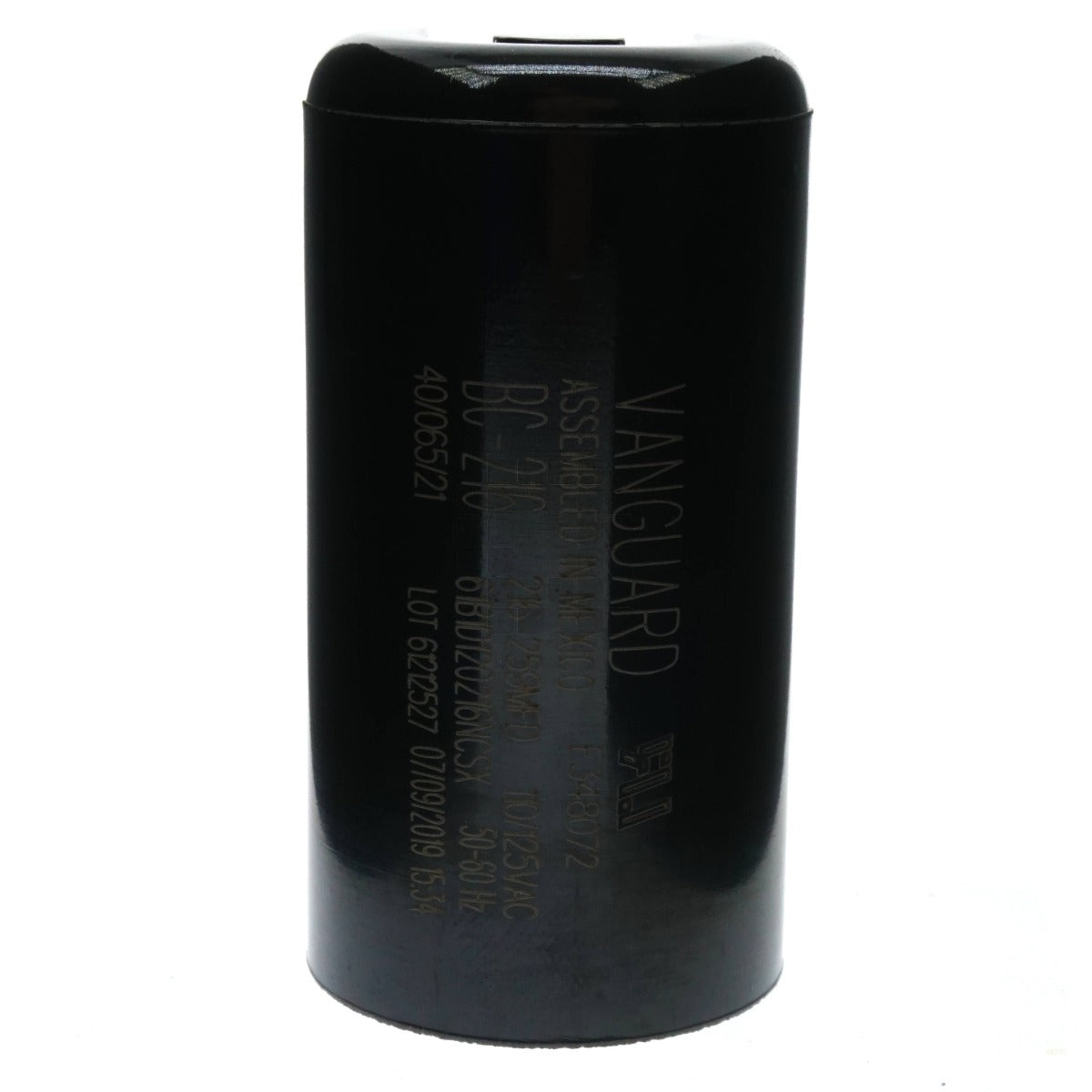

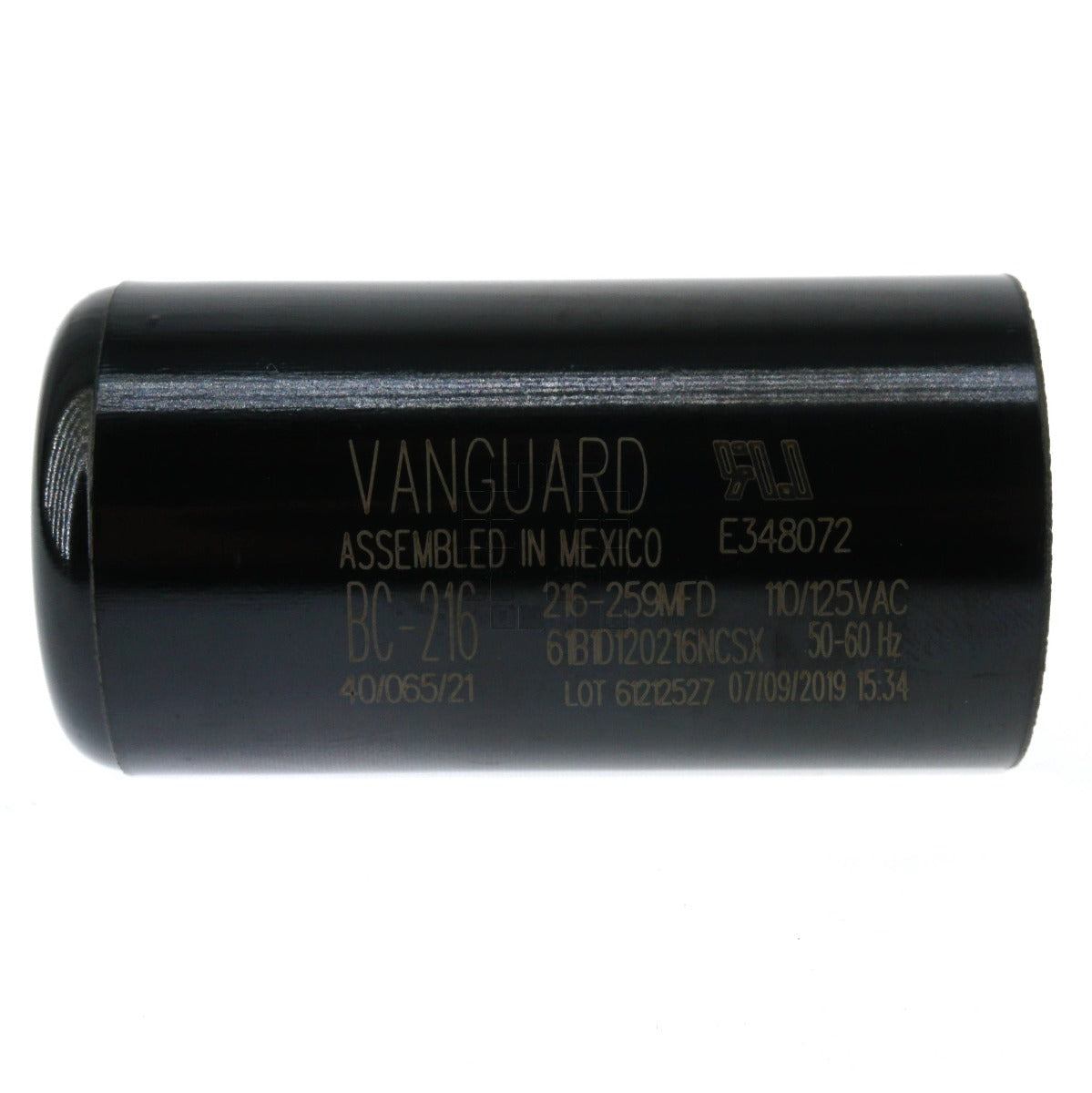

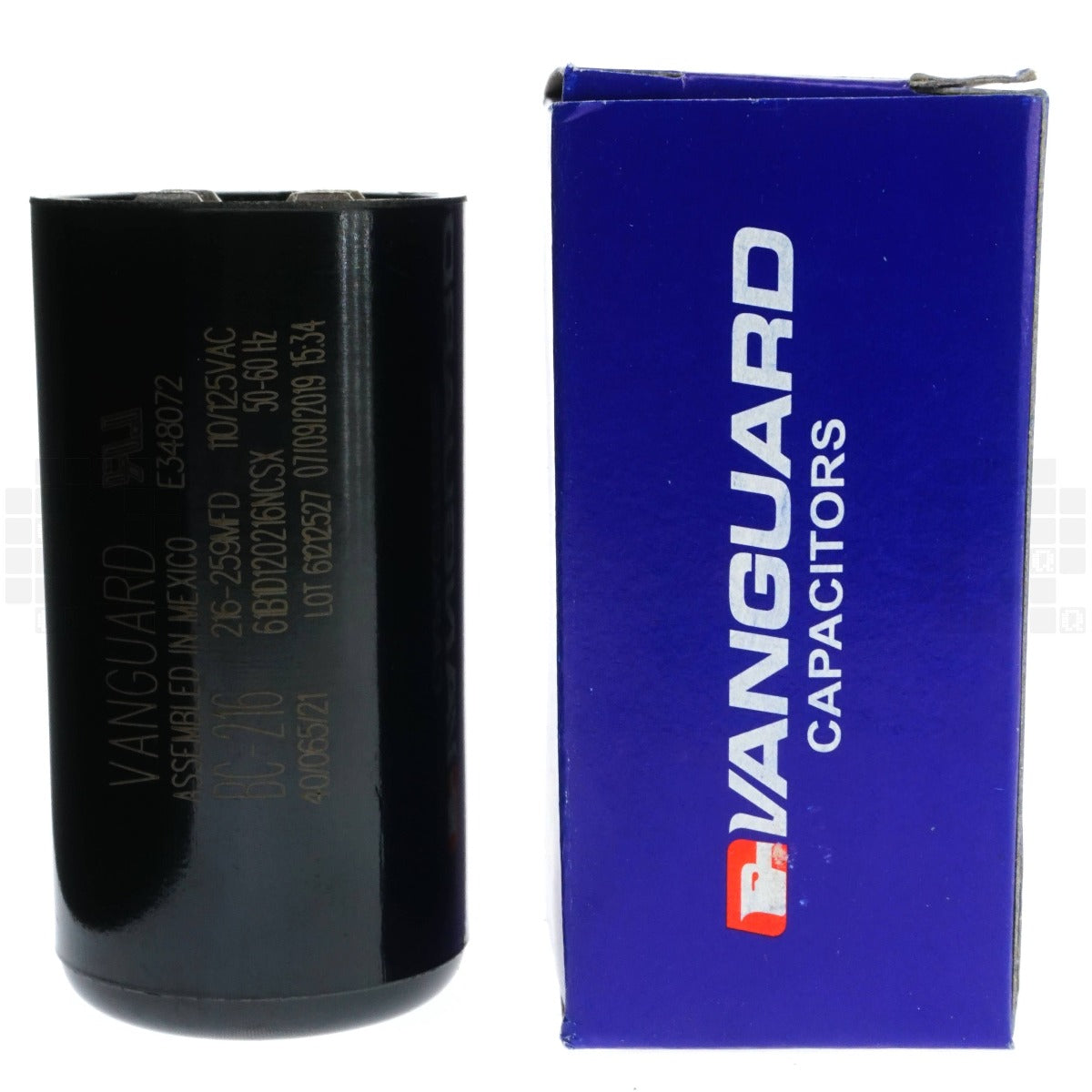

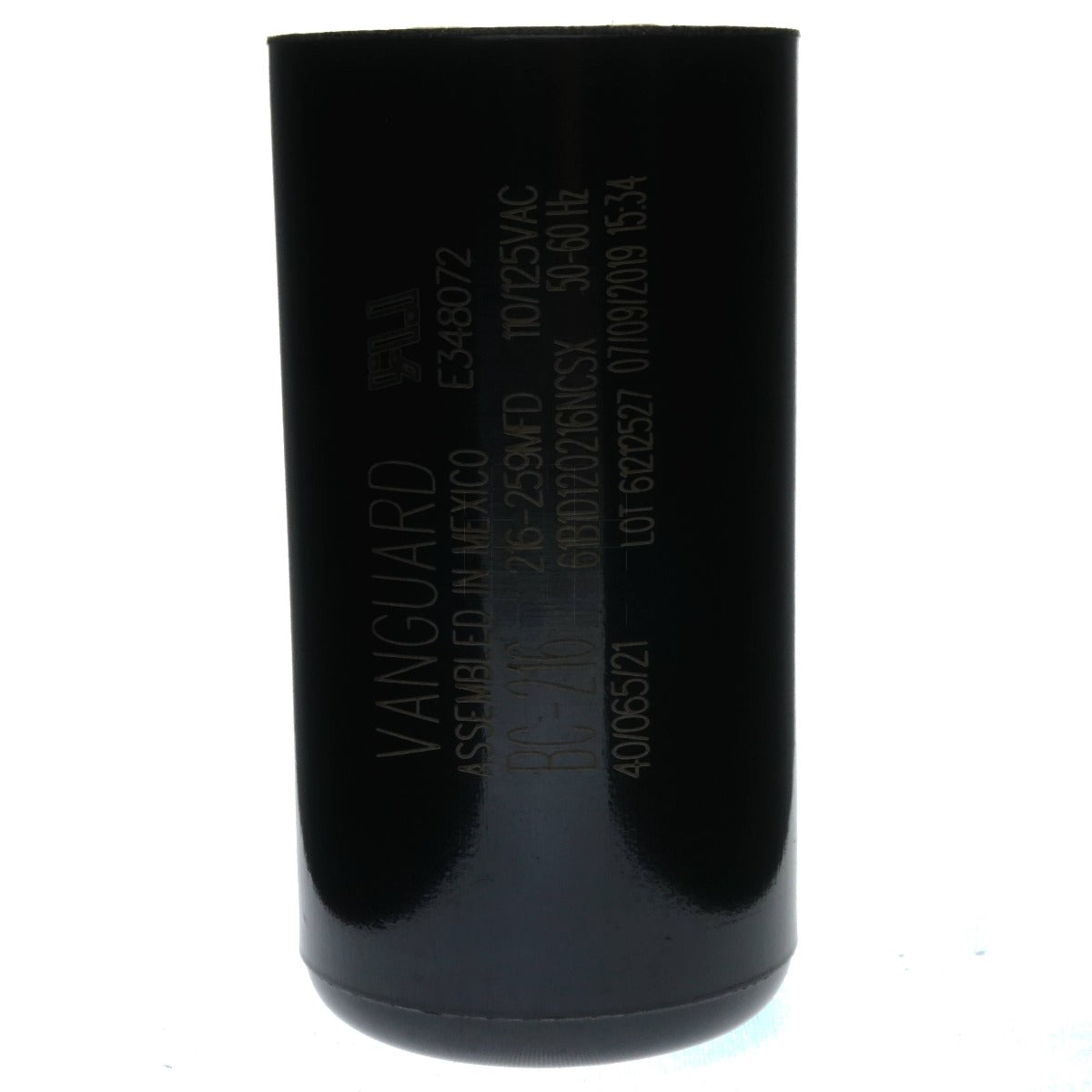

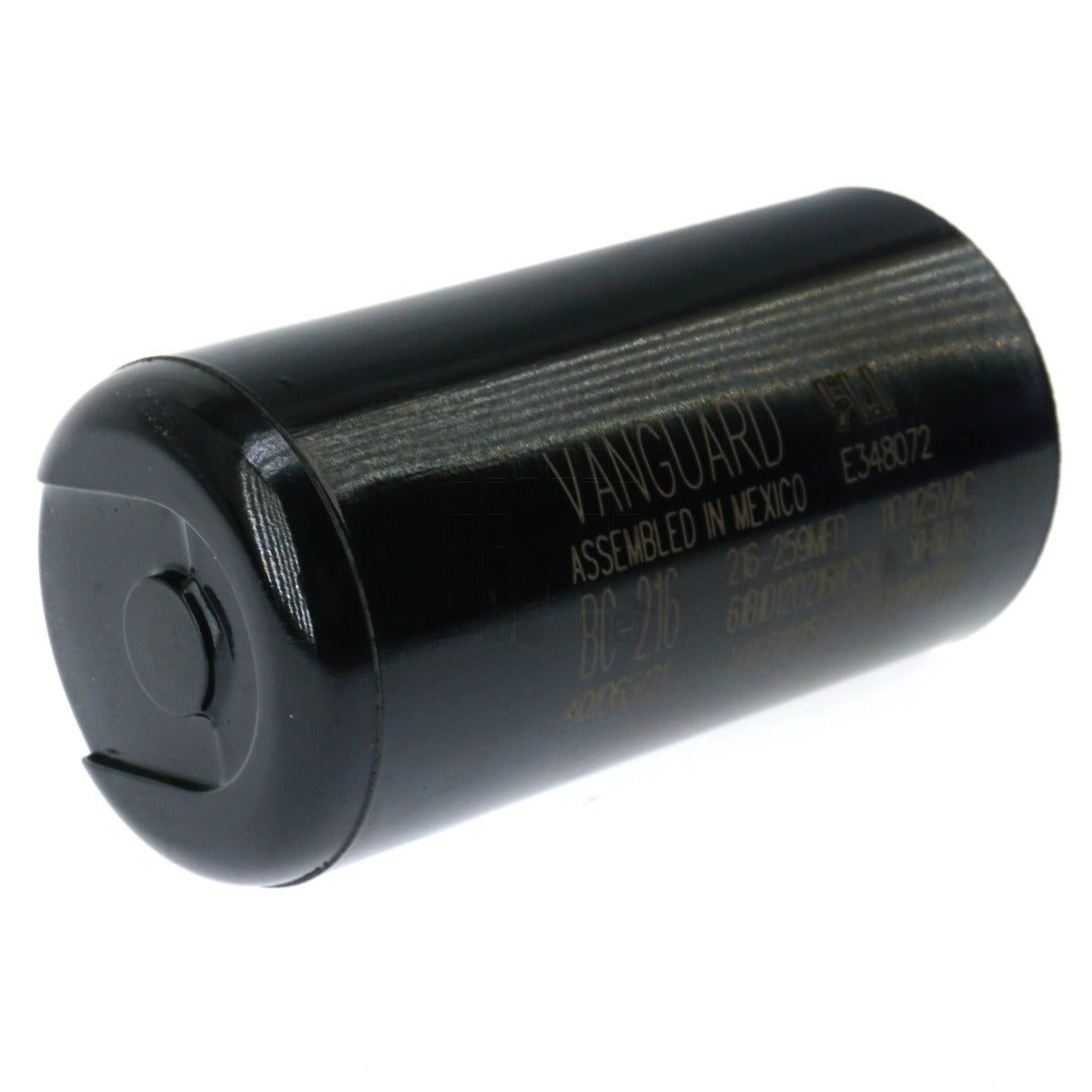

Product Label Vanguard
Assembled in Mexico
BC-216 216-259MFD 110/125VAC
61B1D120216NCSX 50-60Hz

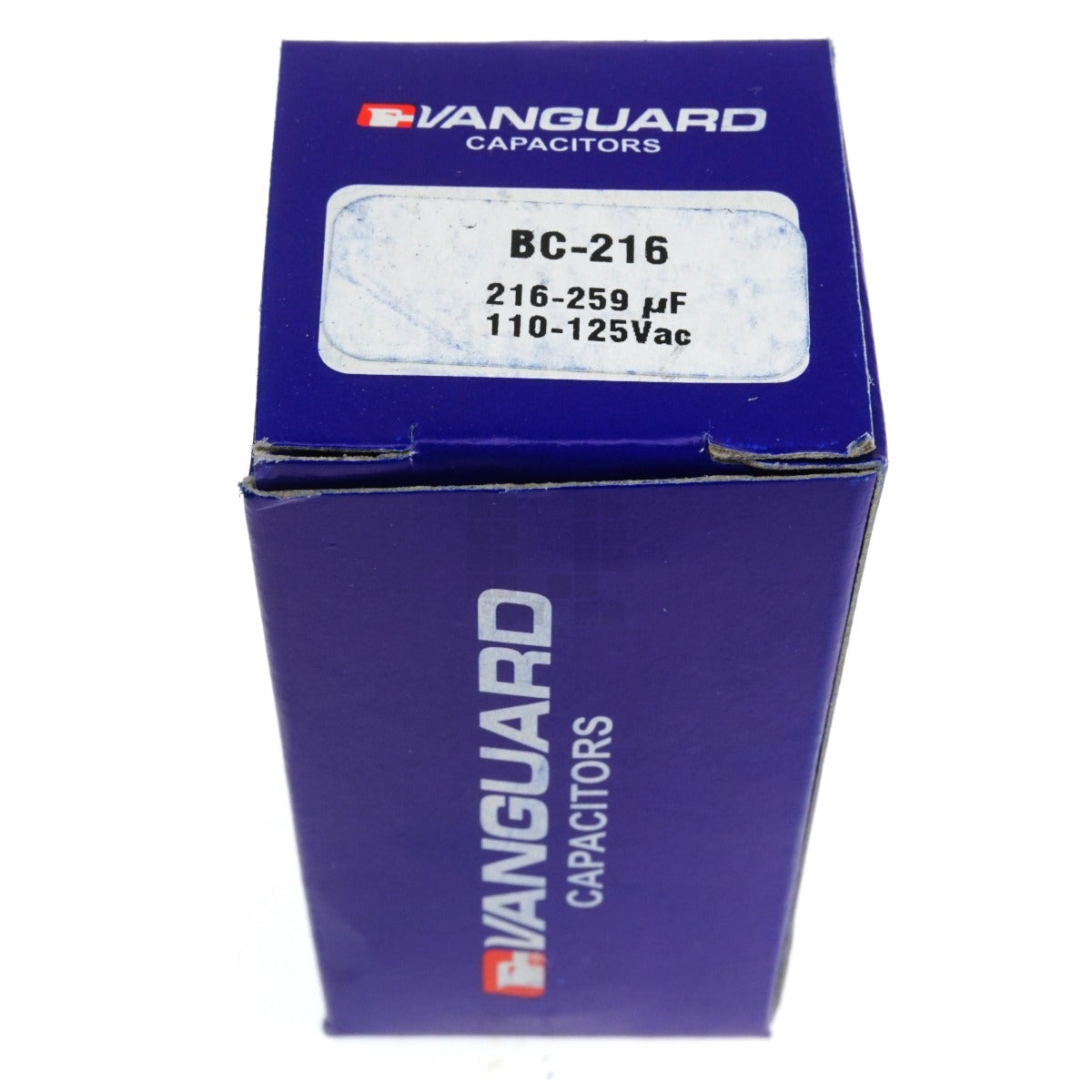

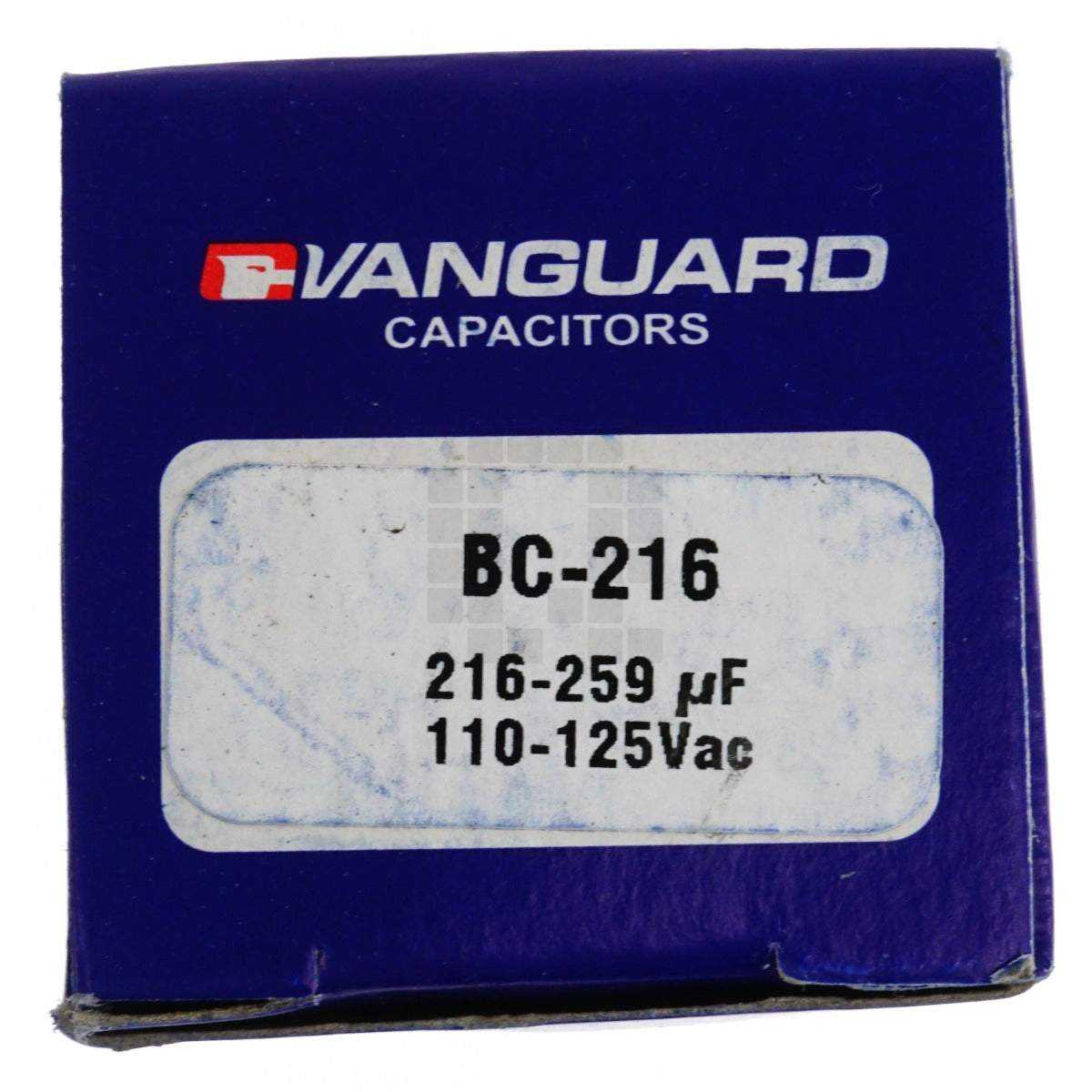

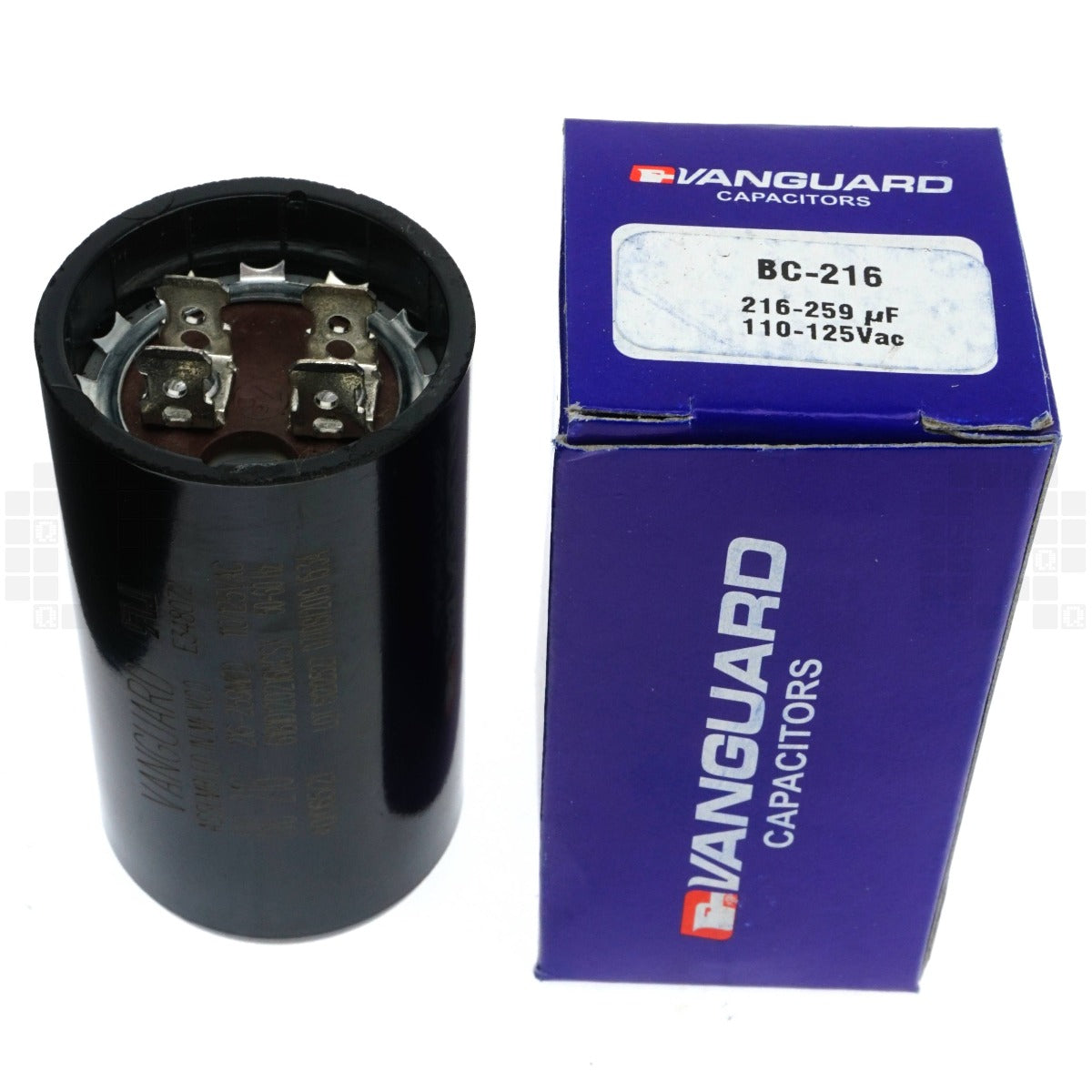

Package Label BC-216
216-259 uF
110-125VAC
Notes
Product Color Black
Product Shape Cylinder
Product Dimensions 1.437" Diameter
2.750" High
Product Weight 3 oz
Package Dimensions (LxWxH) 1.50" x 1.50" x 3.10"
Package Weight 4 oz
