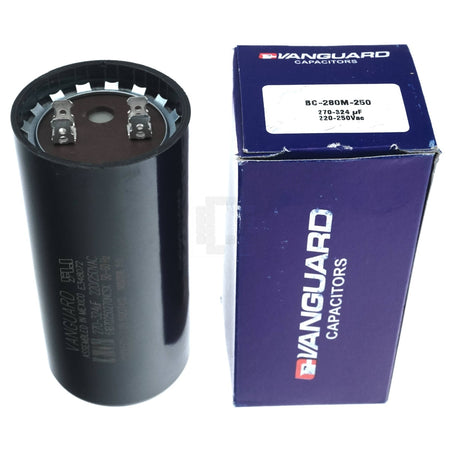

Brand Vanguard
Manufacturer Part Number BC-280M-250
61B7D250270NCSX
Cross Reference (Fit/Form/Function)
Capacitance 270-324 uF
Working Voltage 220/250 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +65°C
-40°F to +149°F

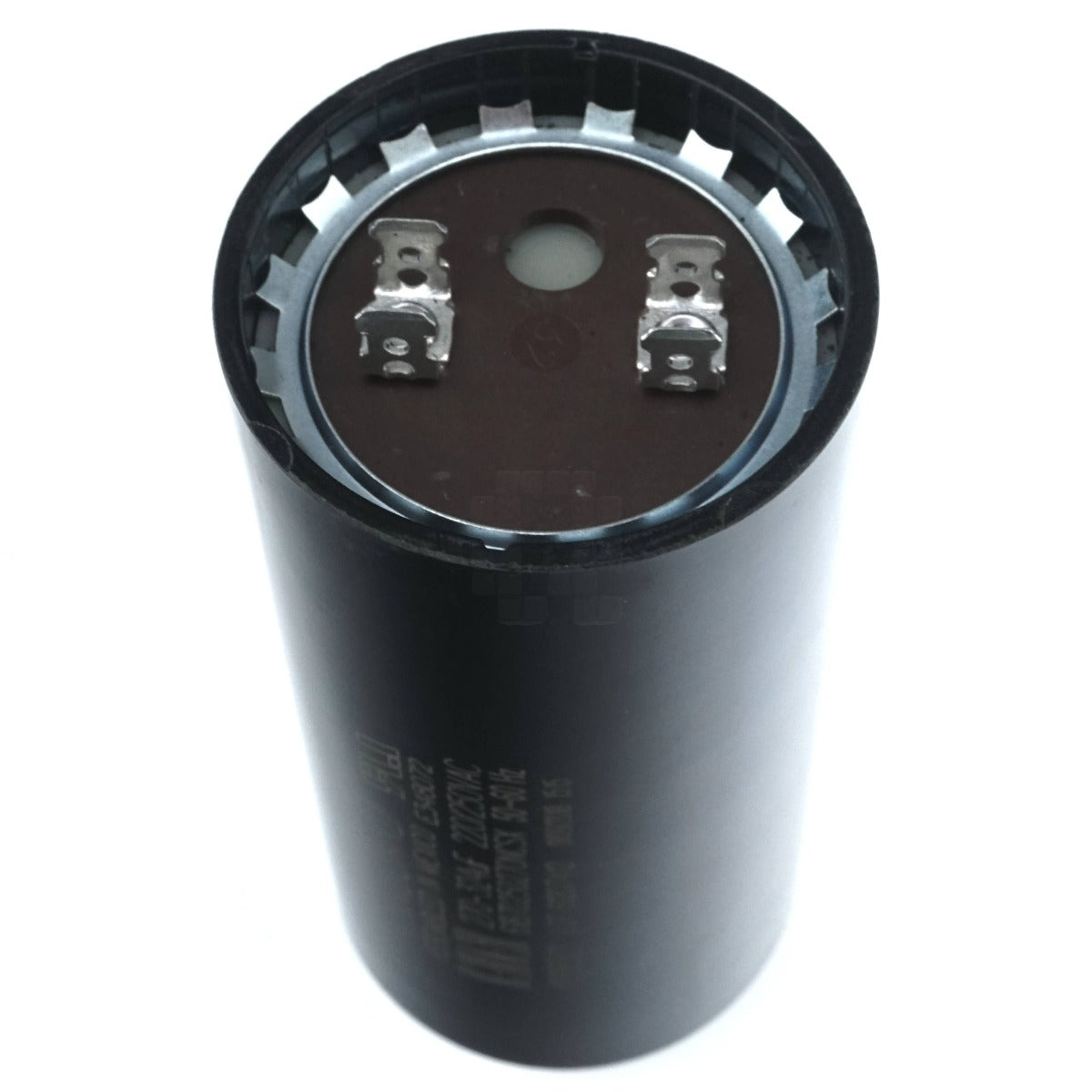

Type Start Capacitor

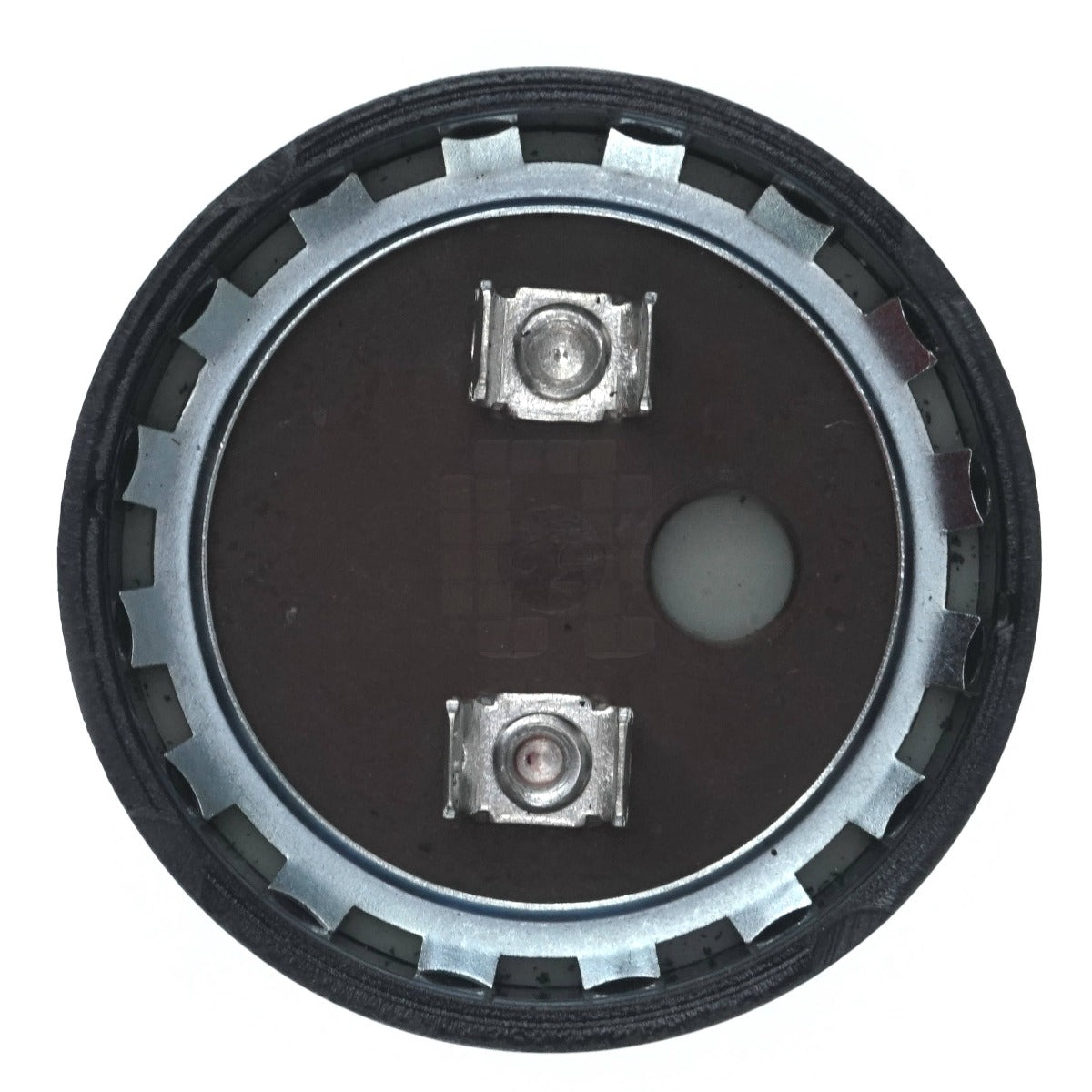

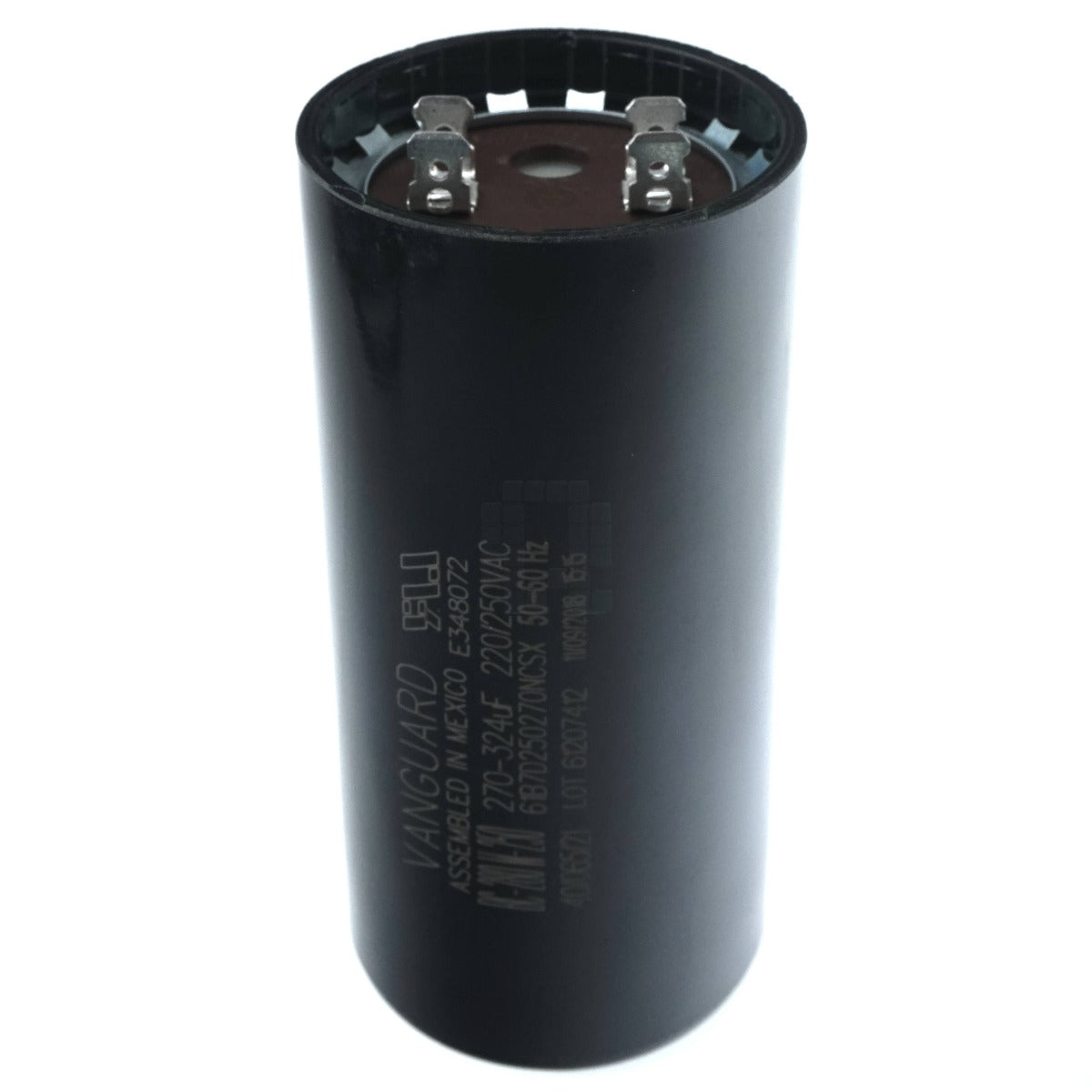

Connection 2 Posts
Two 1/4” male spade terminals on each post
Resistor None

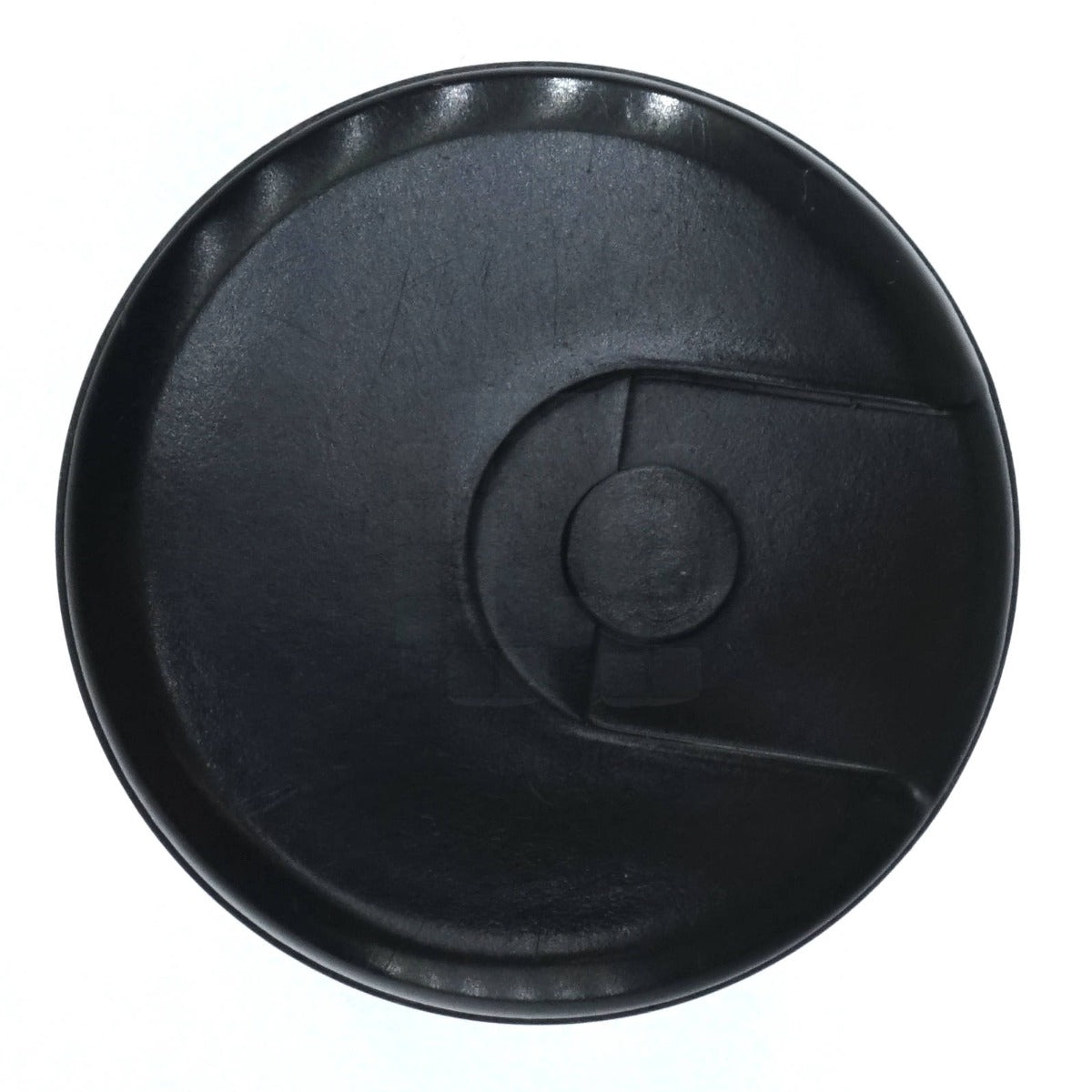

Construction Phenolic Plastic Case
Certifications/Approvals UL Approved
UPC None
Product Origin (COO) Mexico

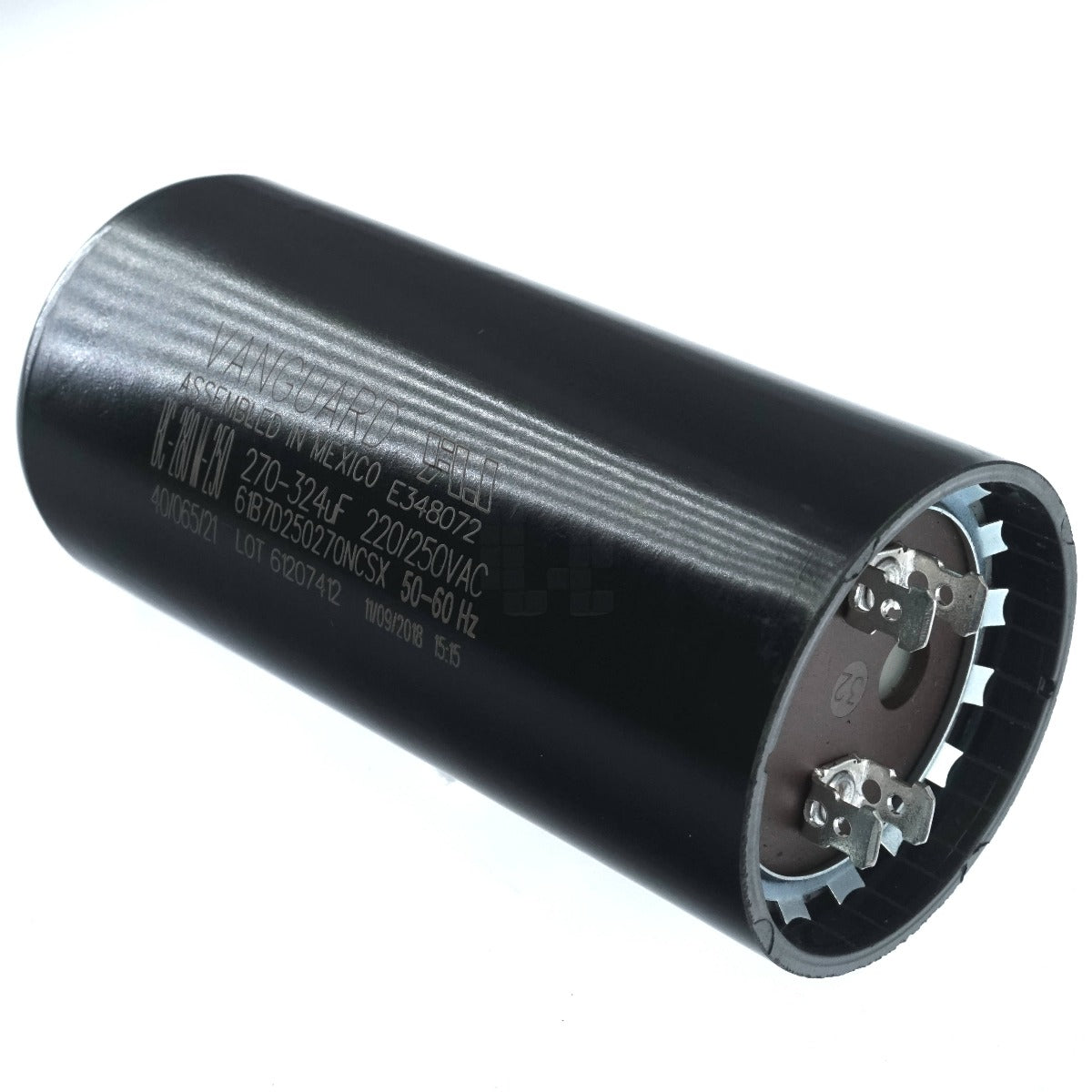

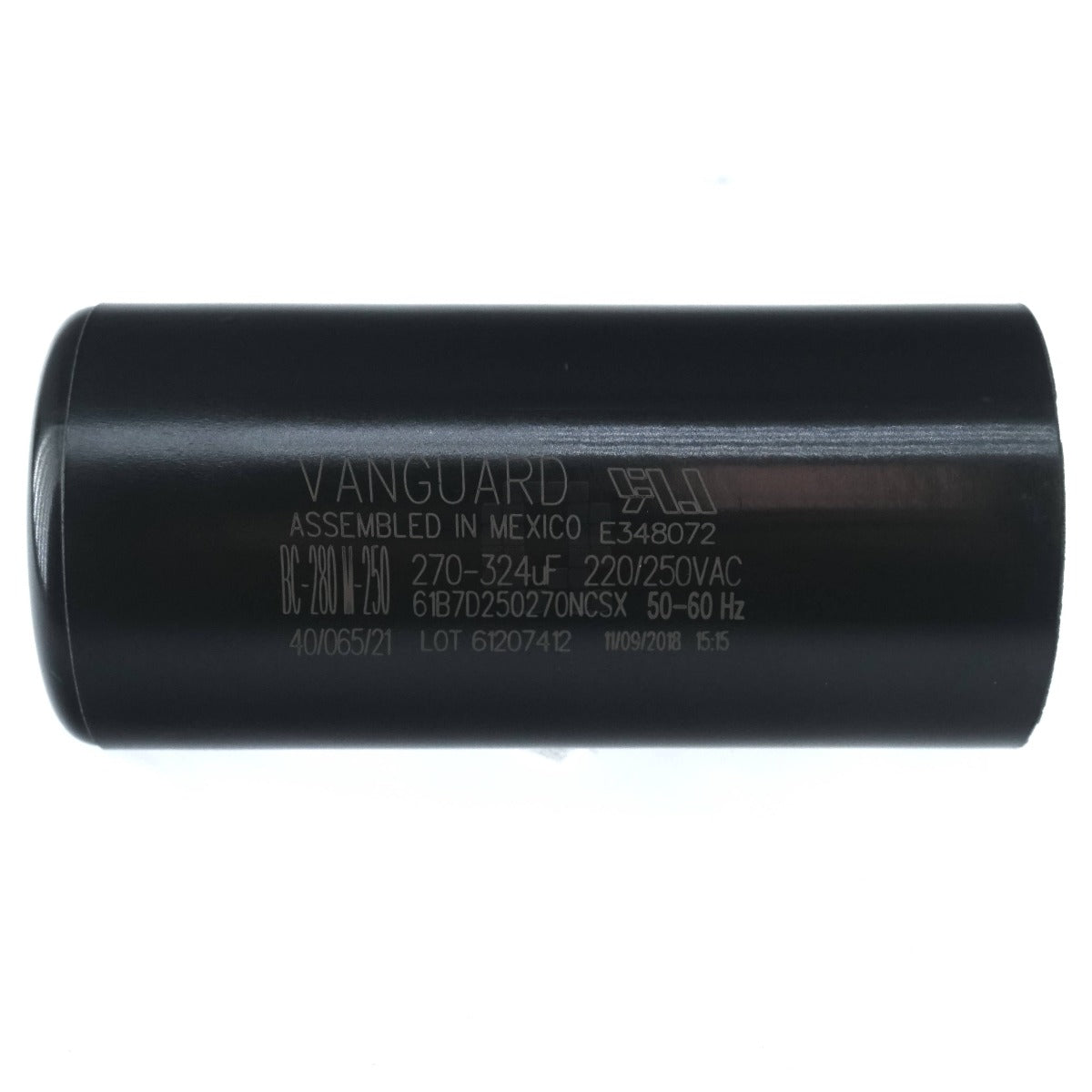

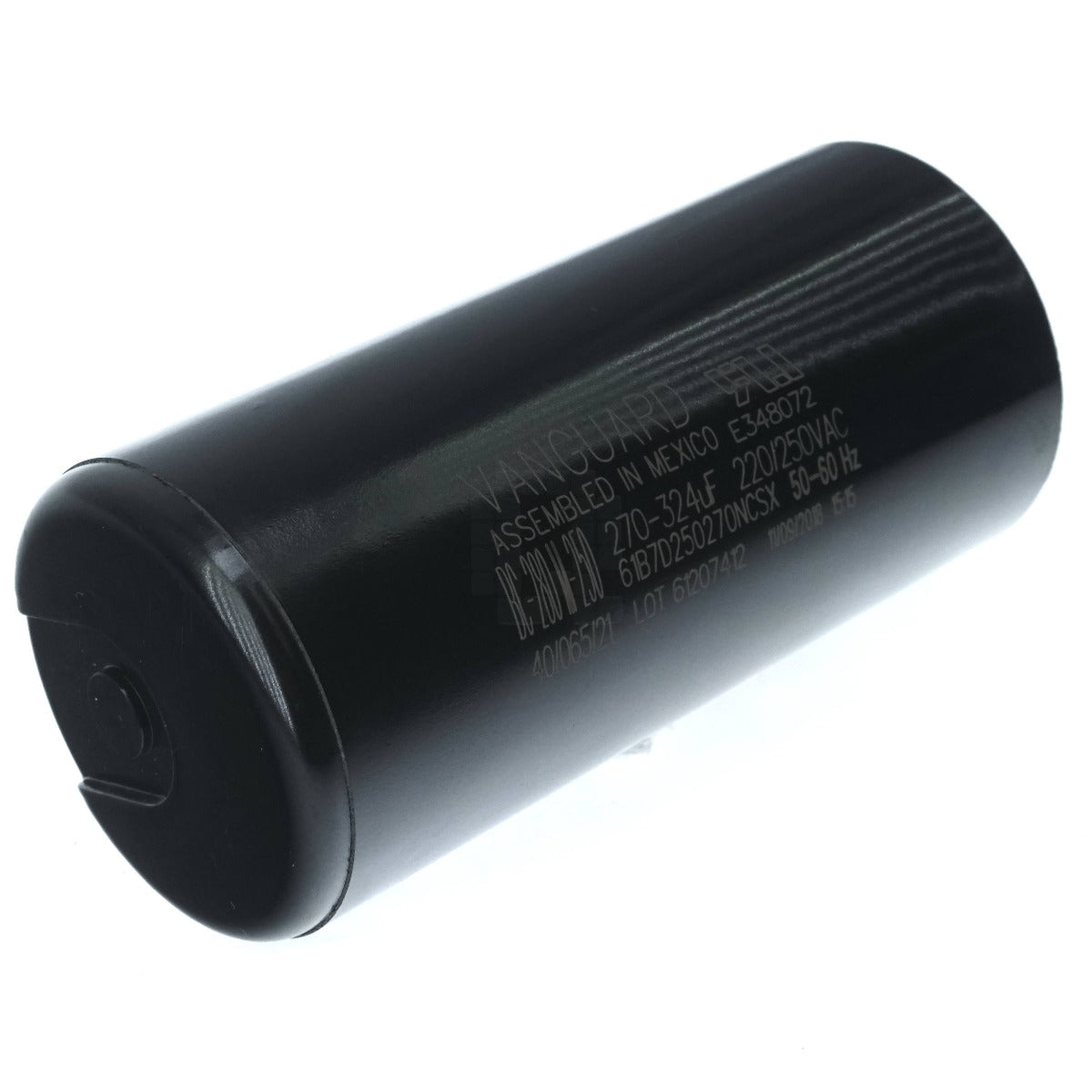

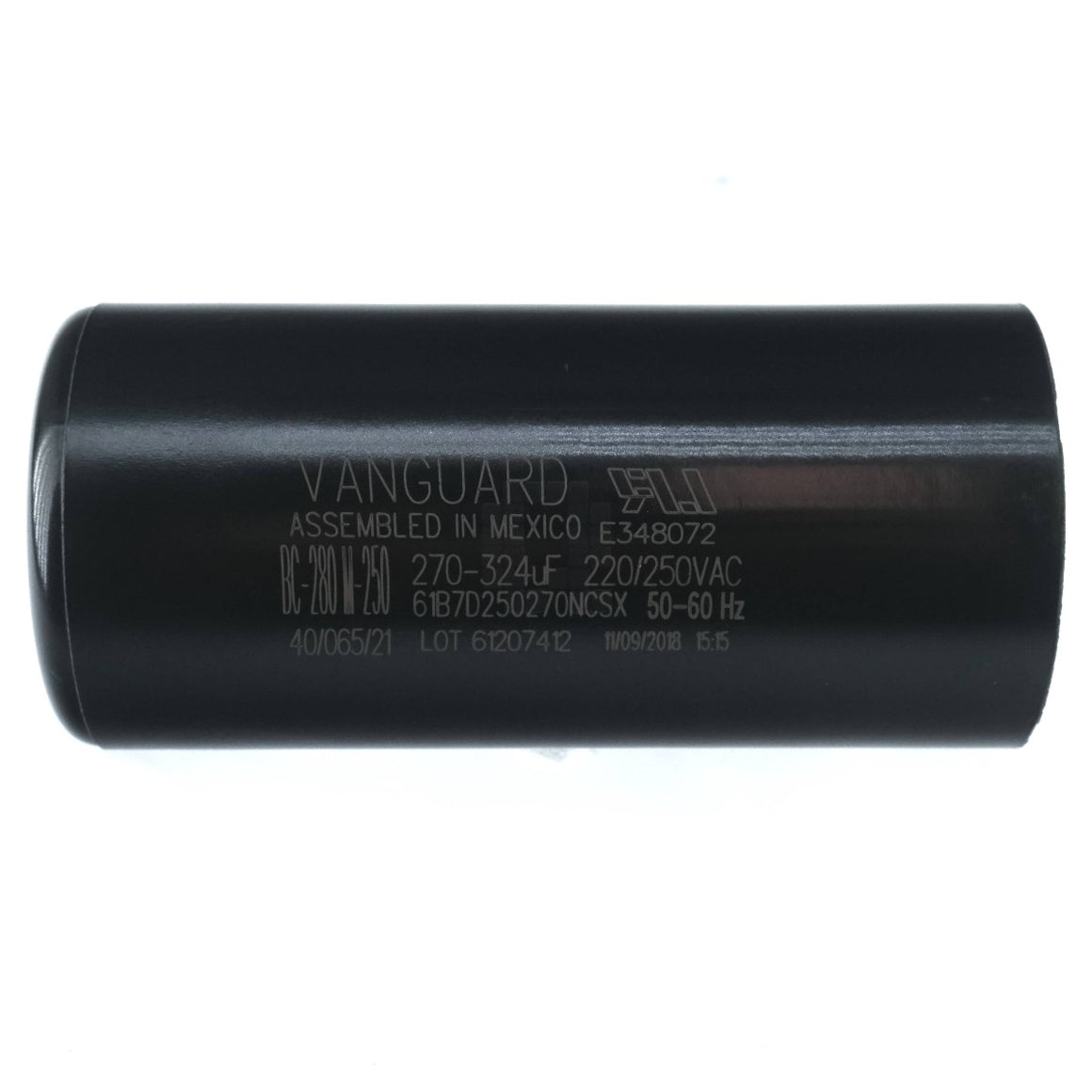

Product Label Vanguard
Assembled in Mexico

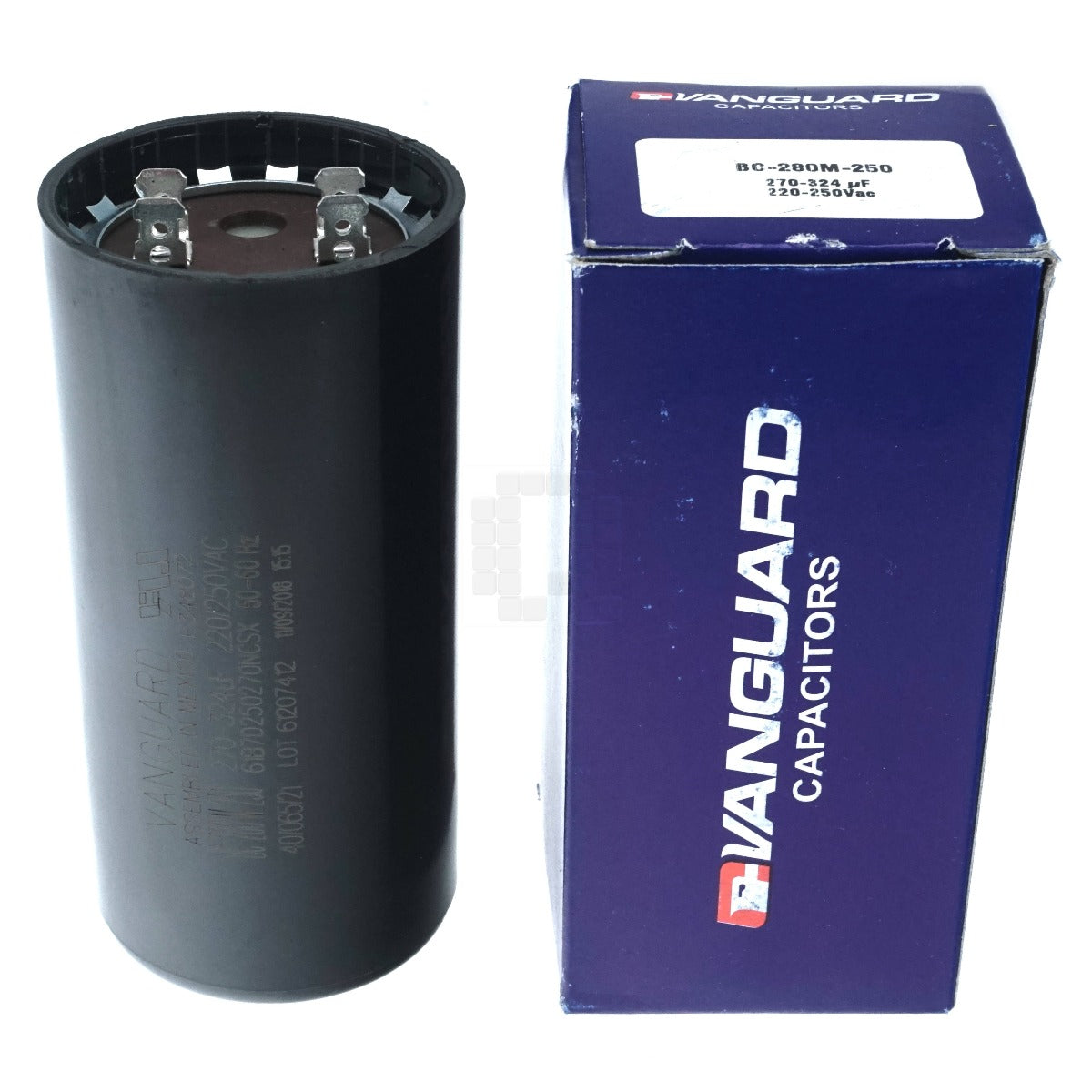

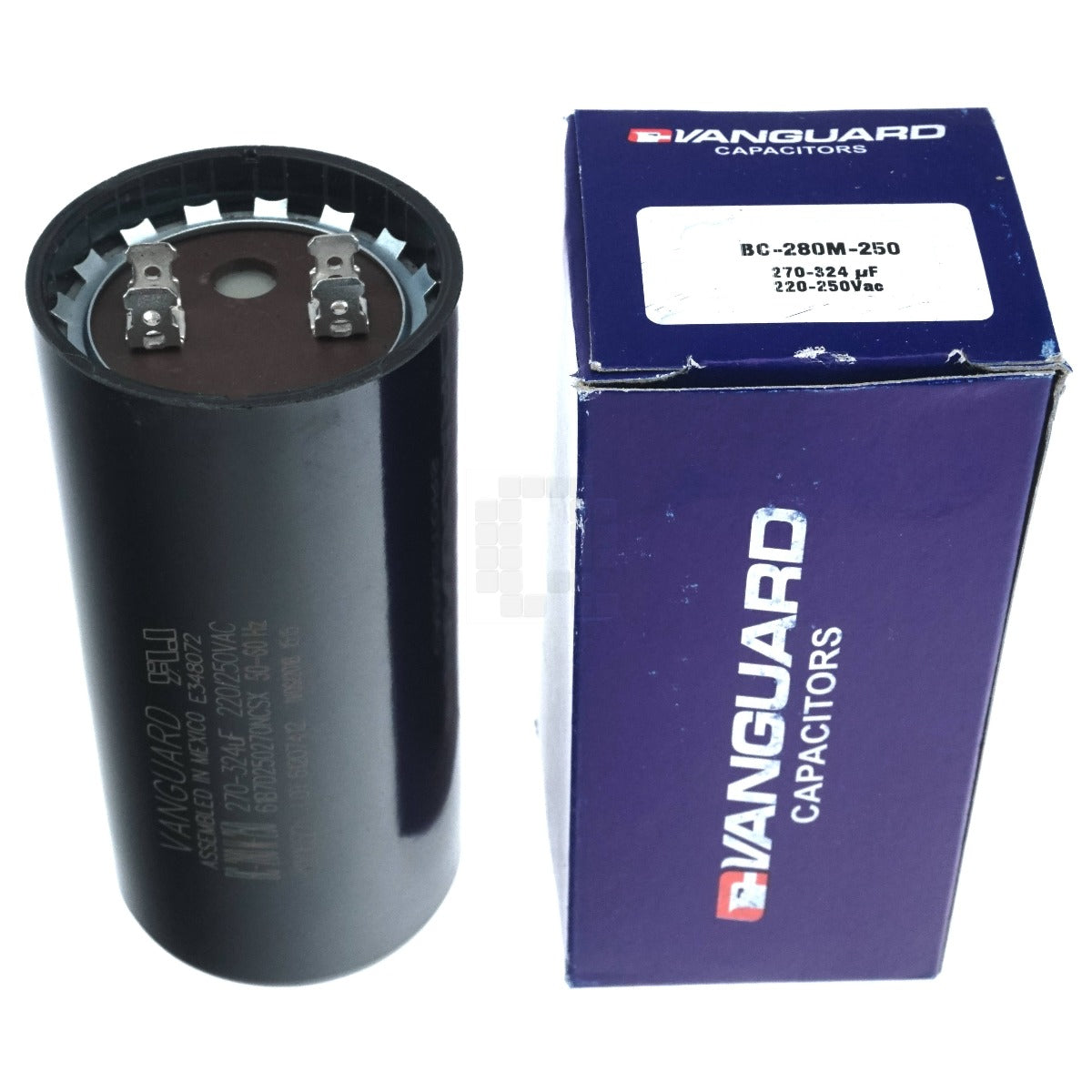

BC-280M-250 270-324uF 220/250VAC
61B7D250270NCSX 50-60Hz

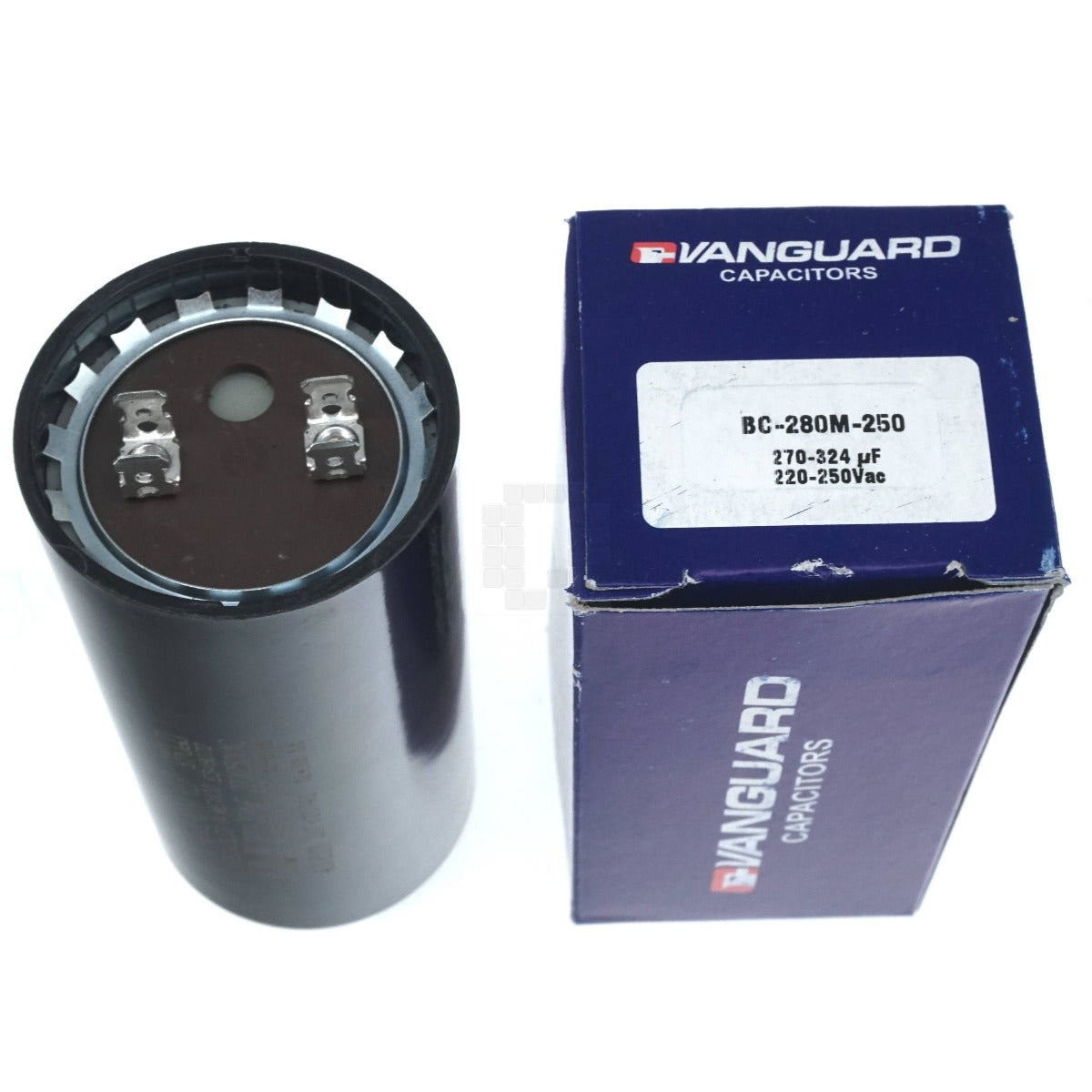

Package Label BC-280M-250
270-324 uF
220-250VAC
Notes

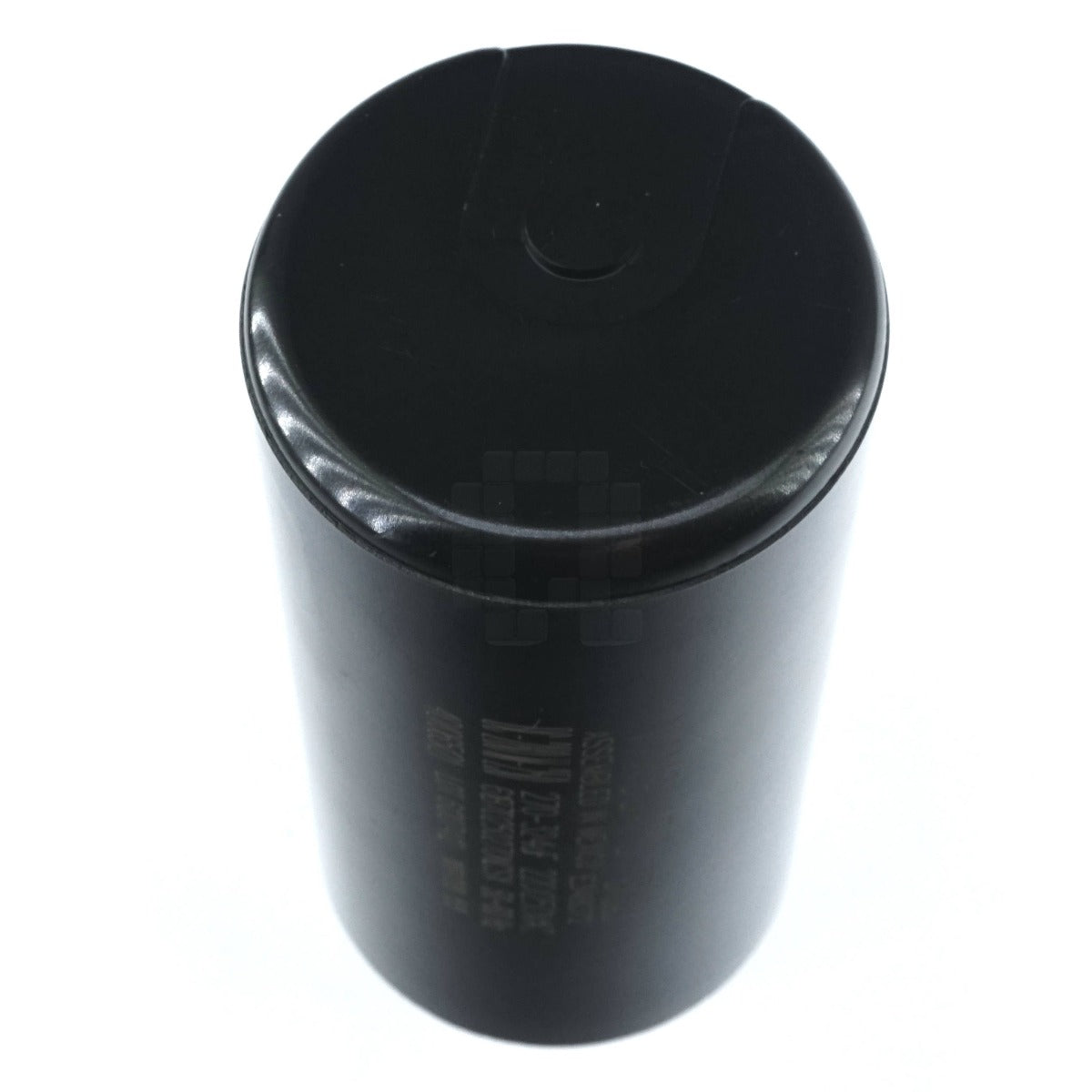

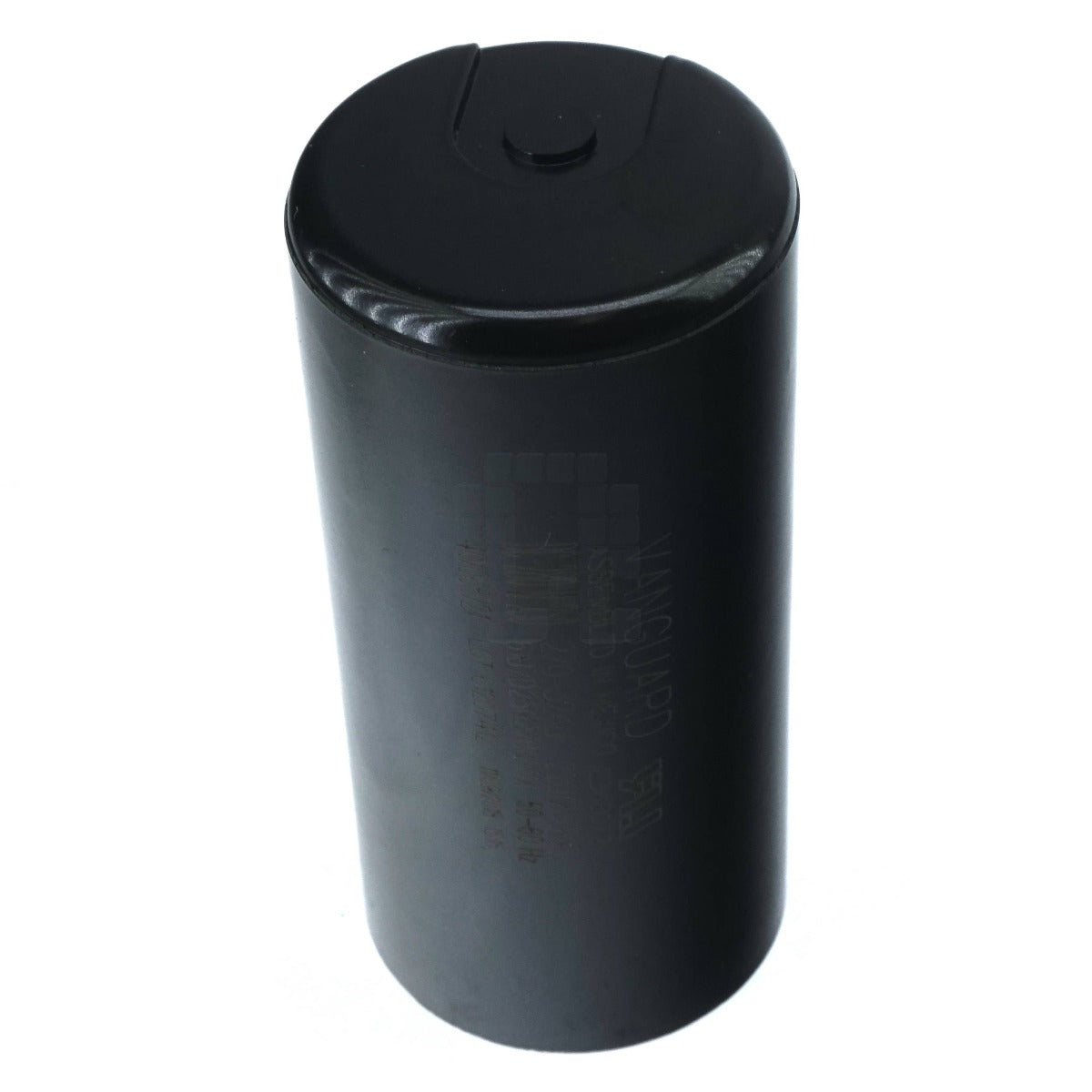

Product Color Black
Product Shape Cylinder
Product Dimensions 2.062" Diameter
4.375" High
Product Weight 9 oz
0.26 kg
Package Dimensions (LxWxH) 2.15" x 2.15" x 4.50" Inches
Package Weight 10 oz
0.28 kg
