Vanguard BC-590 Electric Motor Start Capacitor, 590-708 uF, 110-125 VAC

Name: Vanguard BC-590 Electric Motor Start Capacitor, 590-708 uF, 110-125 VAC
Brand: Vanguard
SKU: BC-590
Price: 12.24 USD
Availability: InStock

(0)

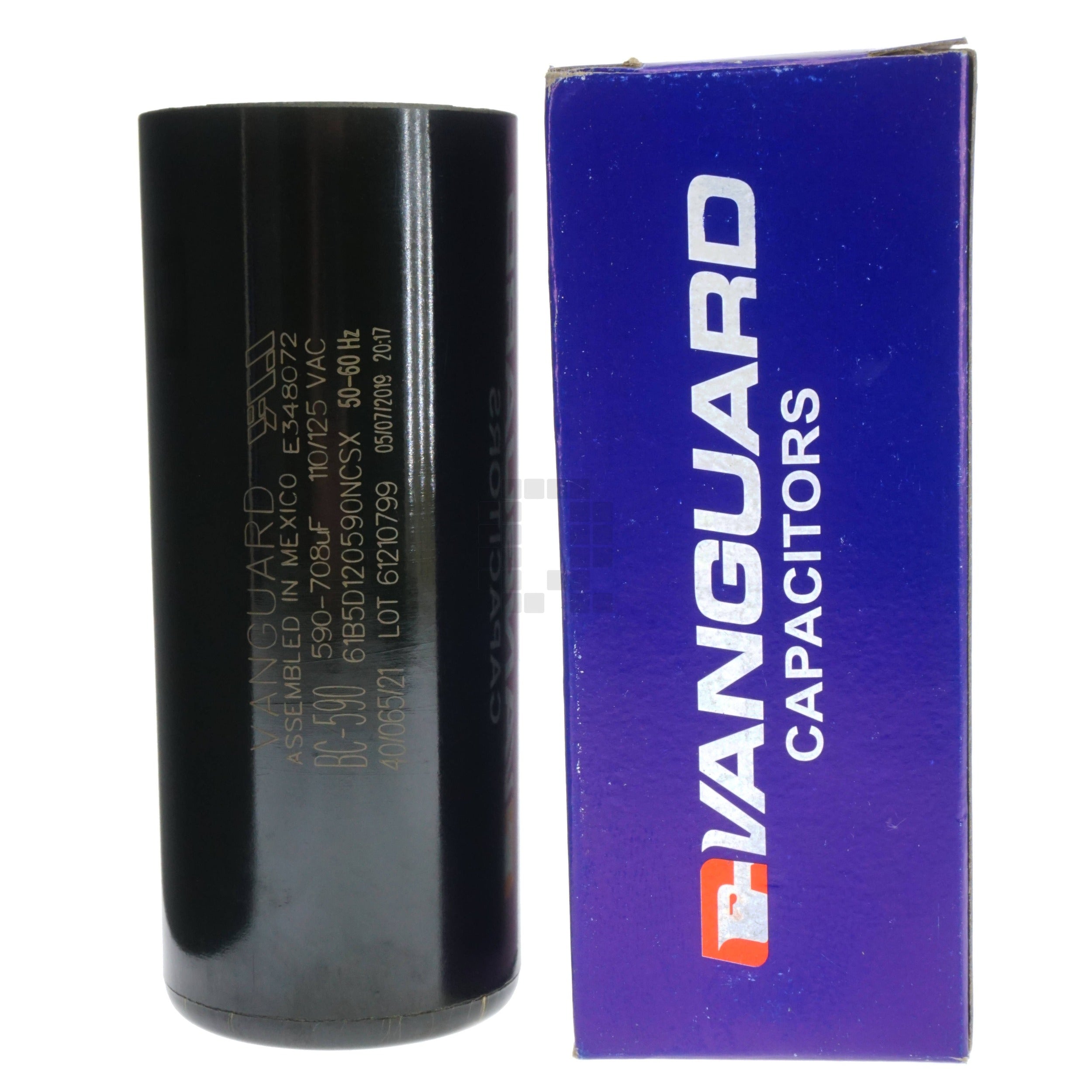

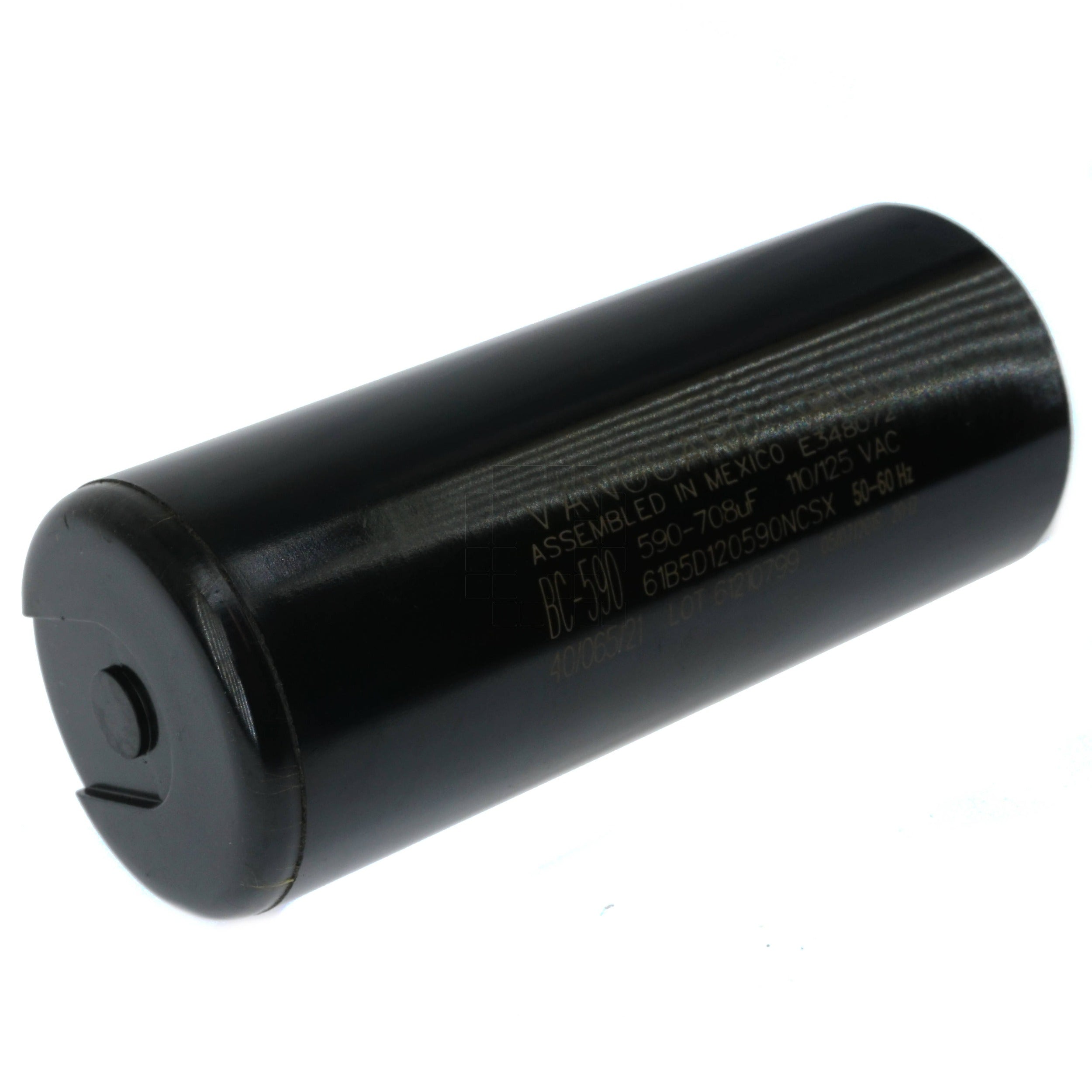

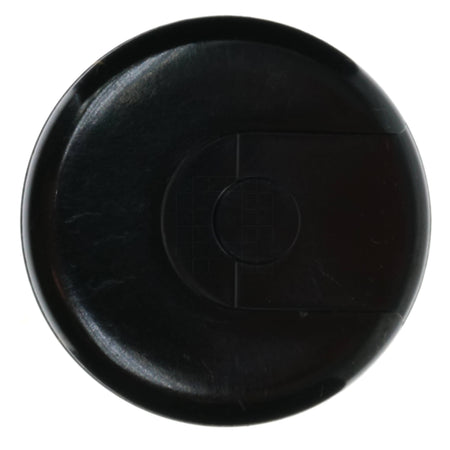

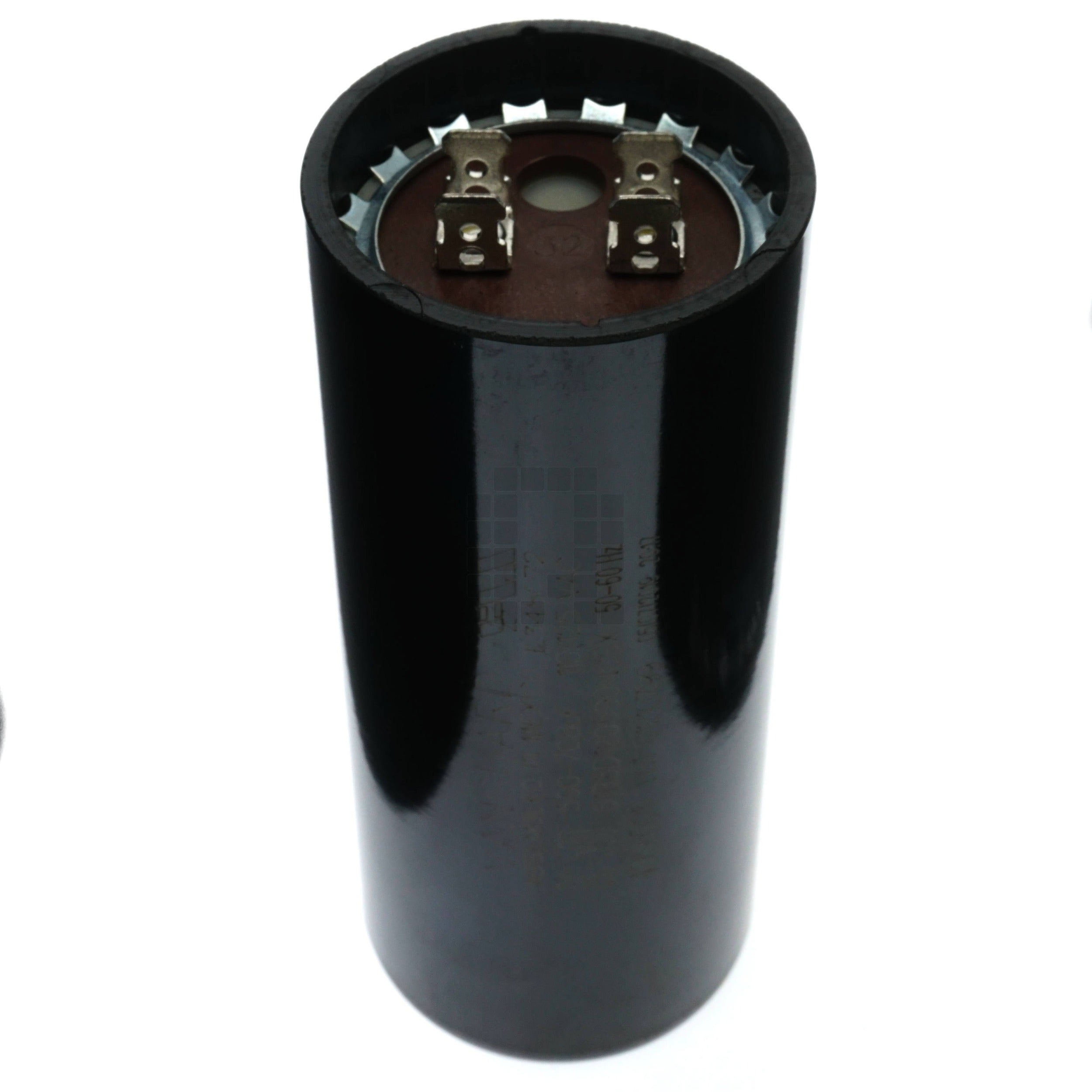

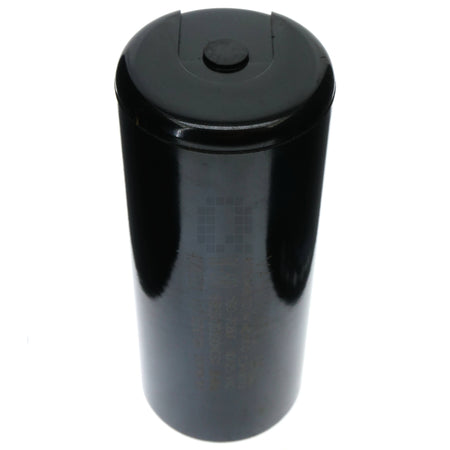

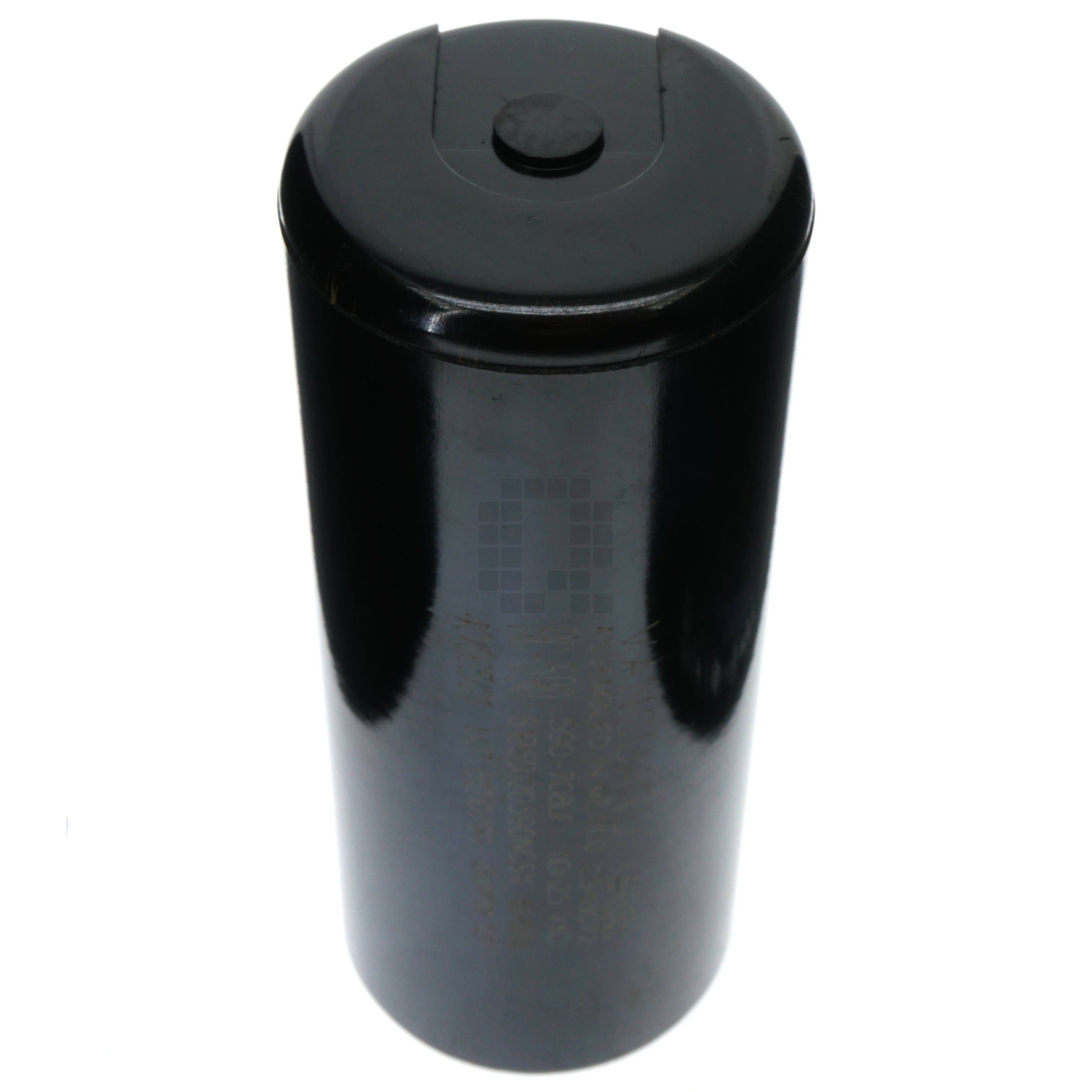

Vanguard BC-590 Black Cylindrical Electric Motor Start Capacitor

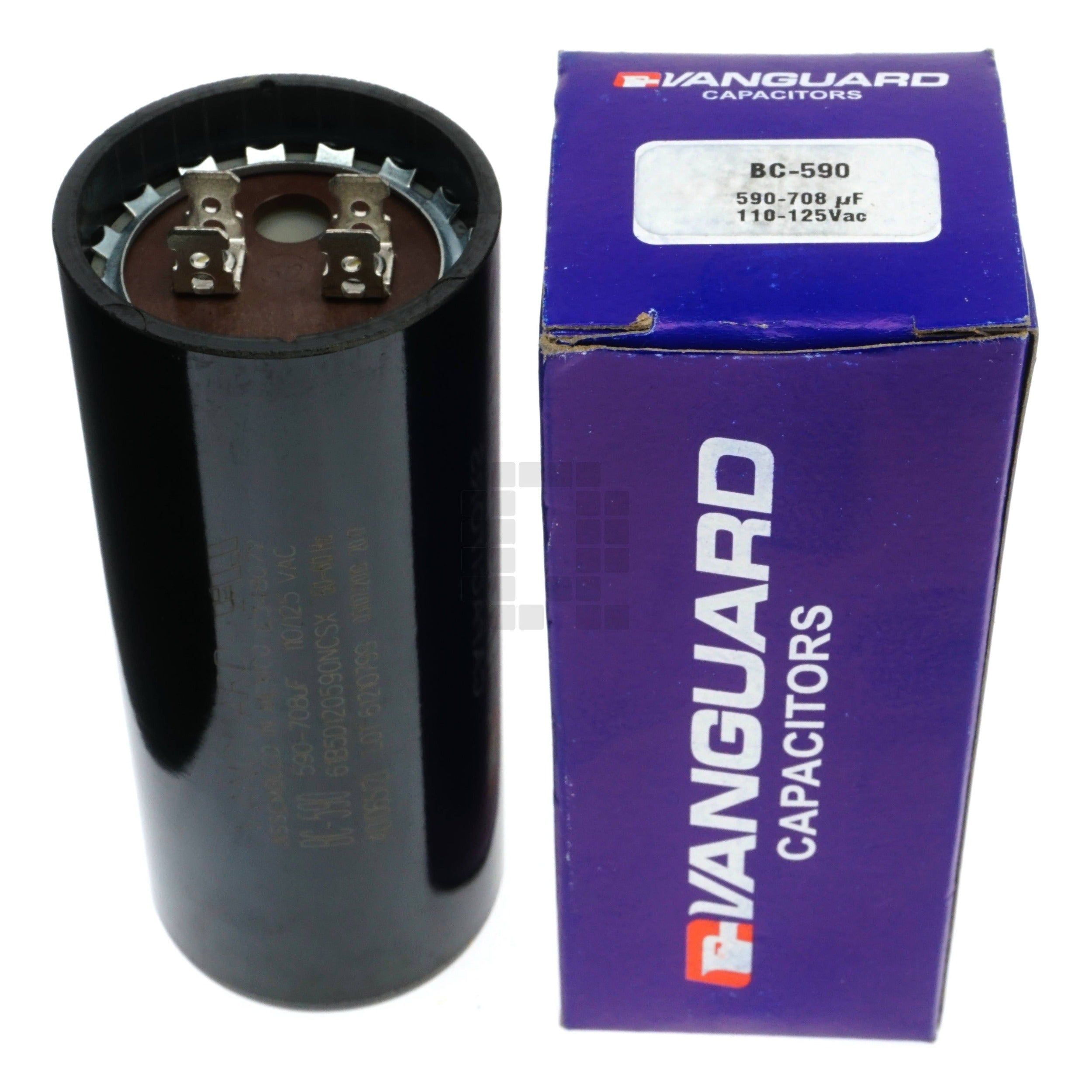

Vanguard BC-590 Black Cylindrical Electric Motor Start Capacitor next to blue packaging box

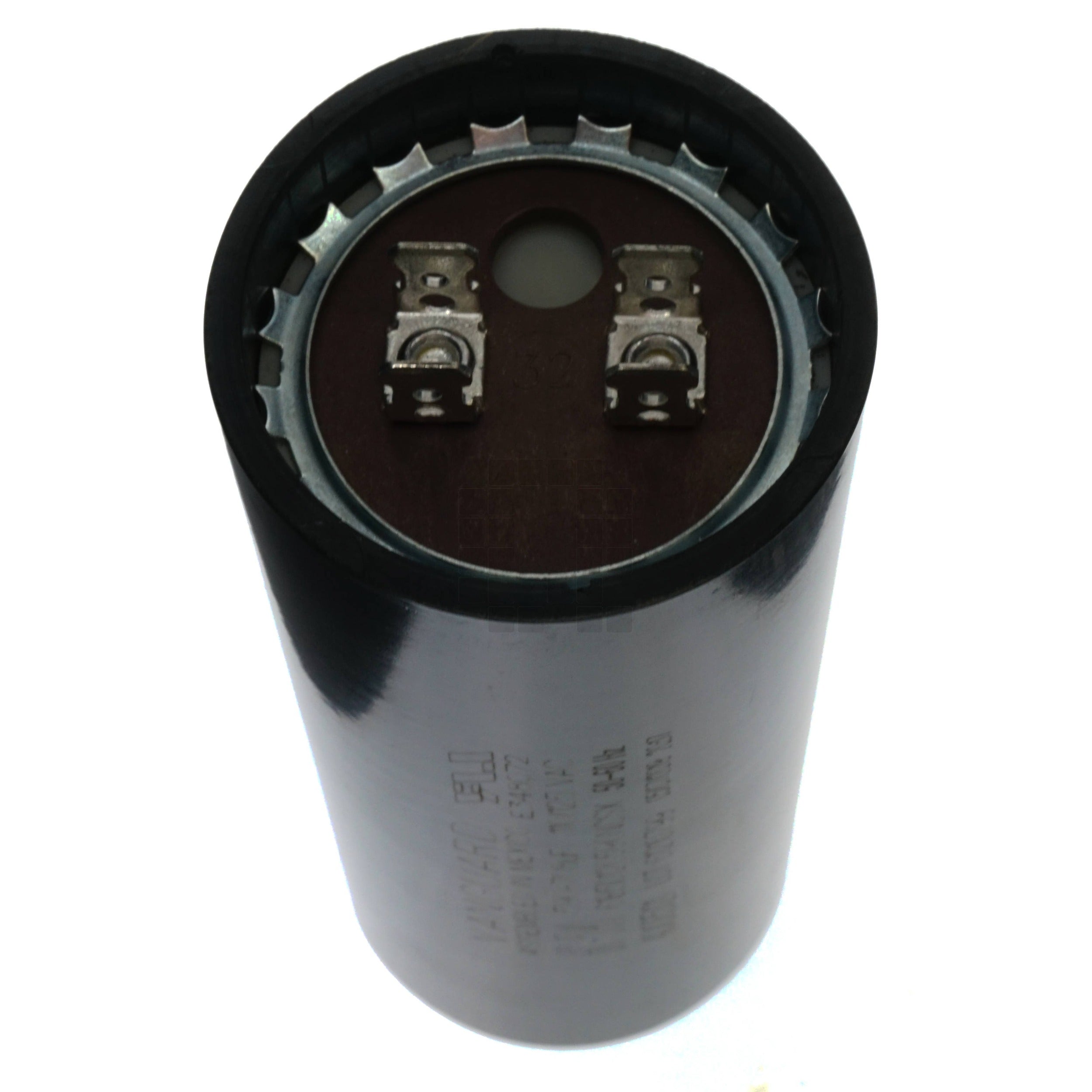

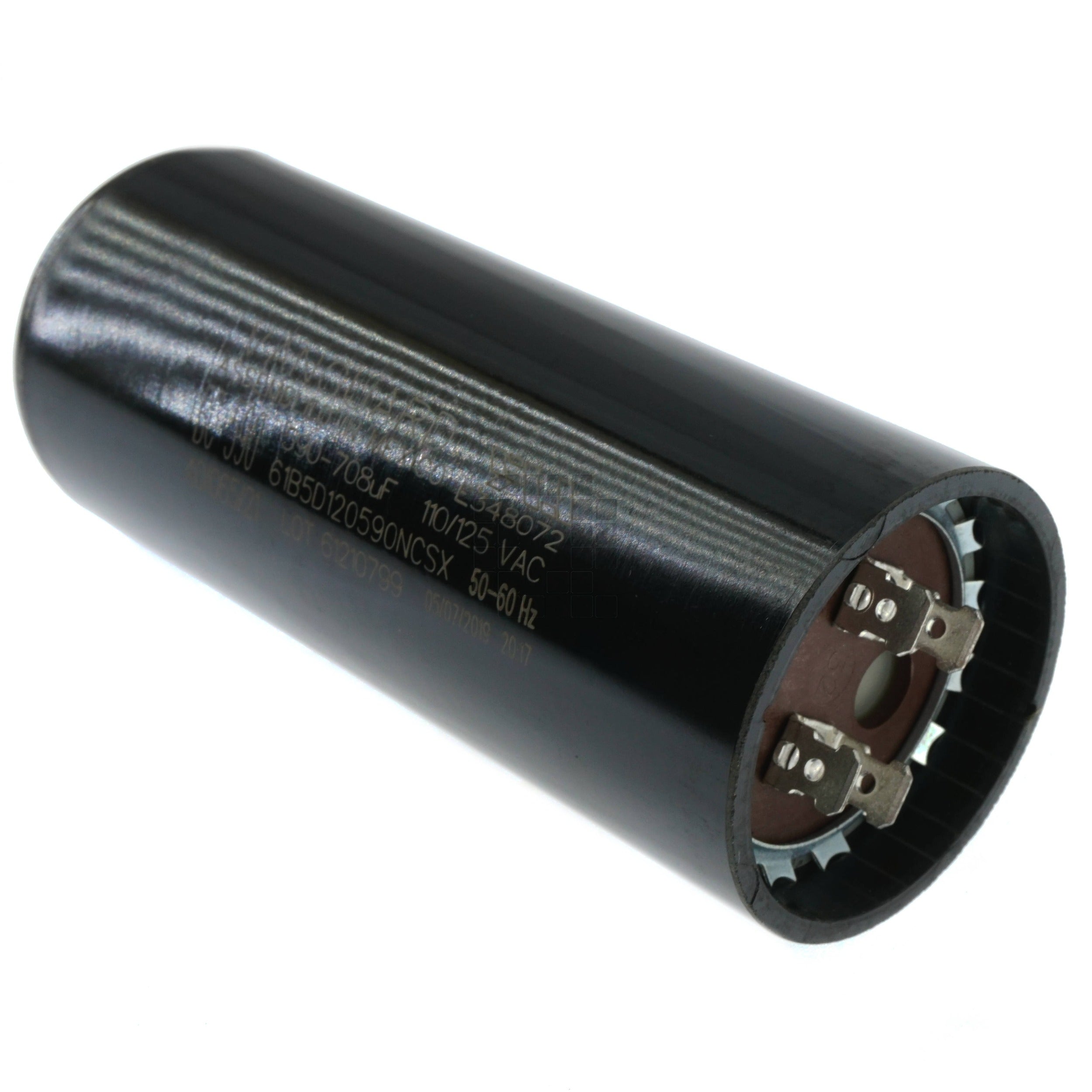

Vanguard BC-590 Black Cylindrical Electric Motor Start Capacitor with male terminals

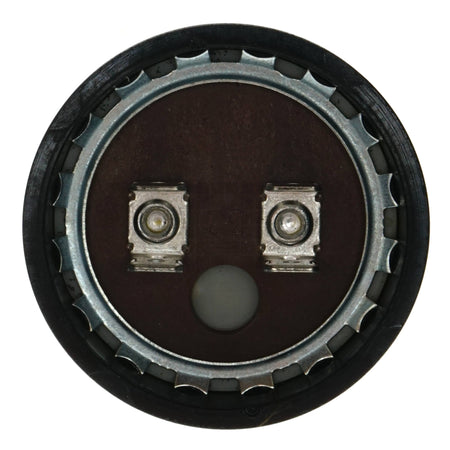

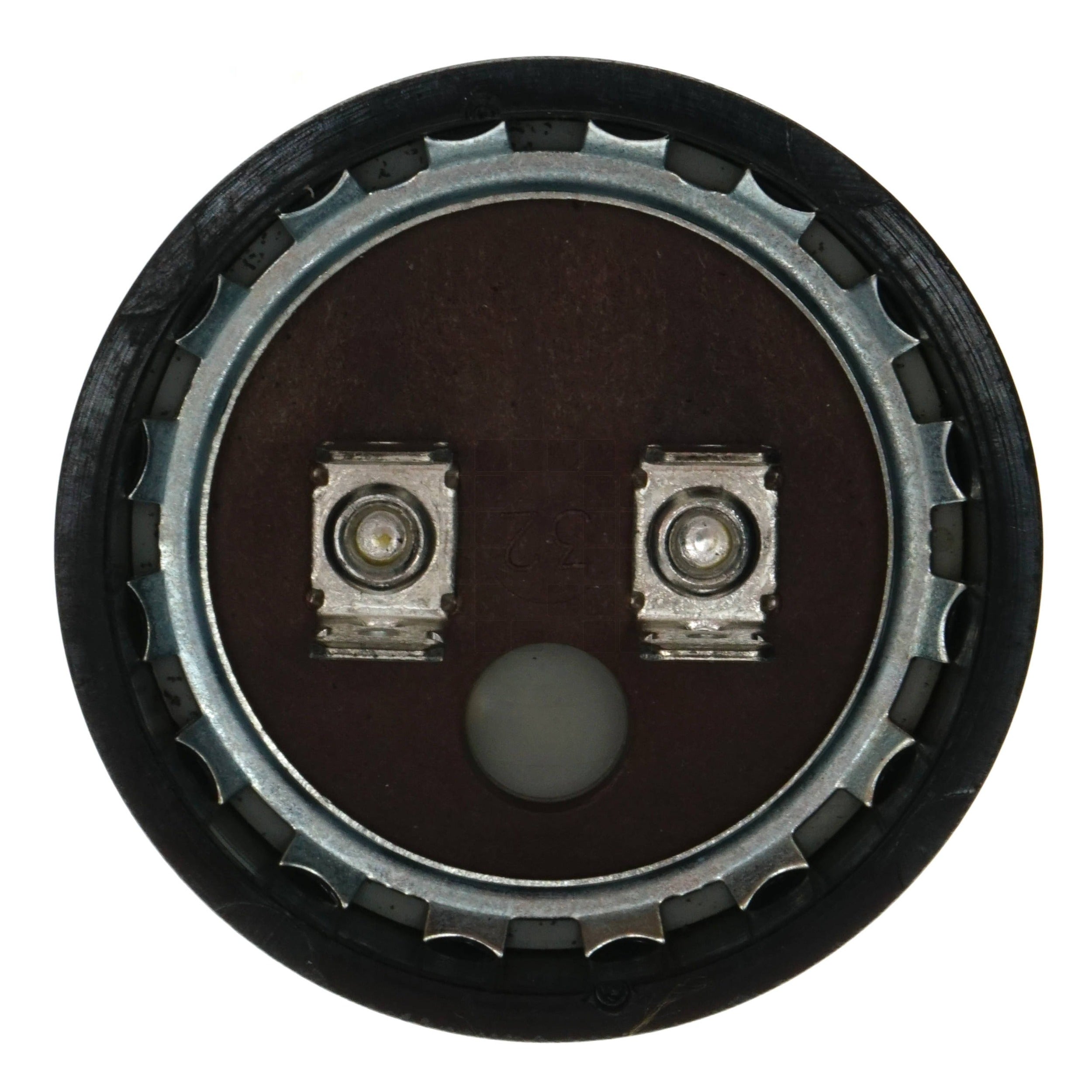

Vanguard BC-590 Black Cylindrical Electric Motor Start Capacitor close-up of terminals

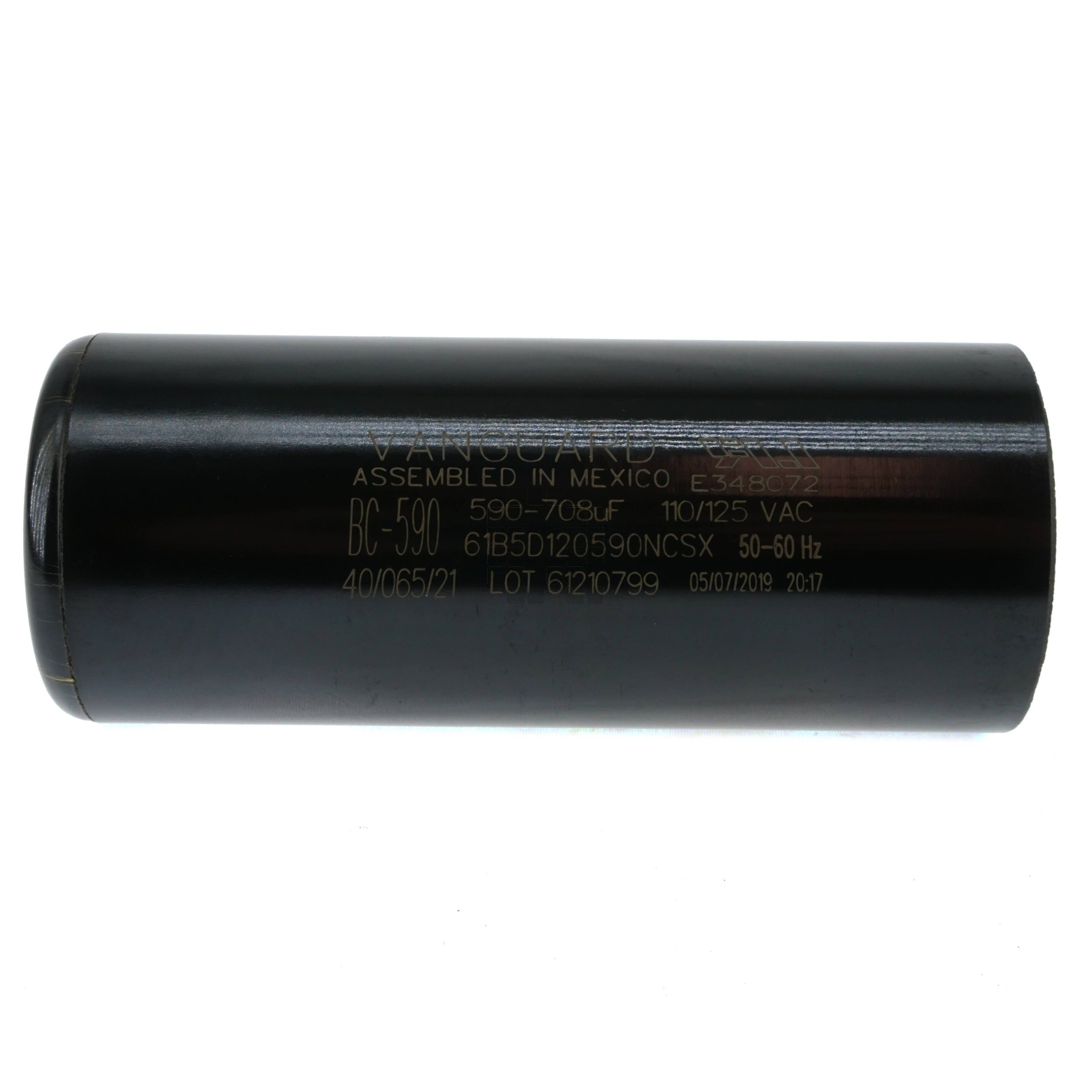

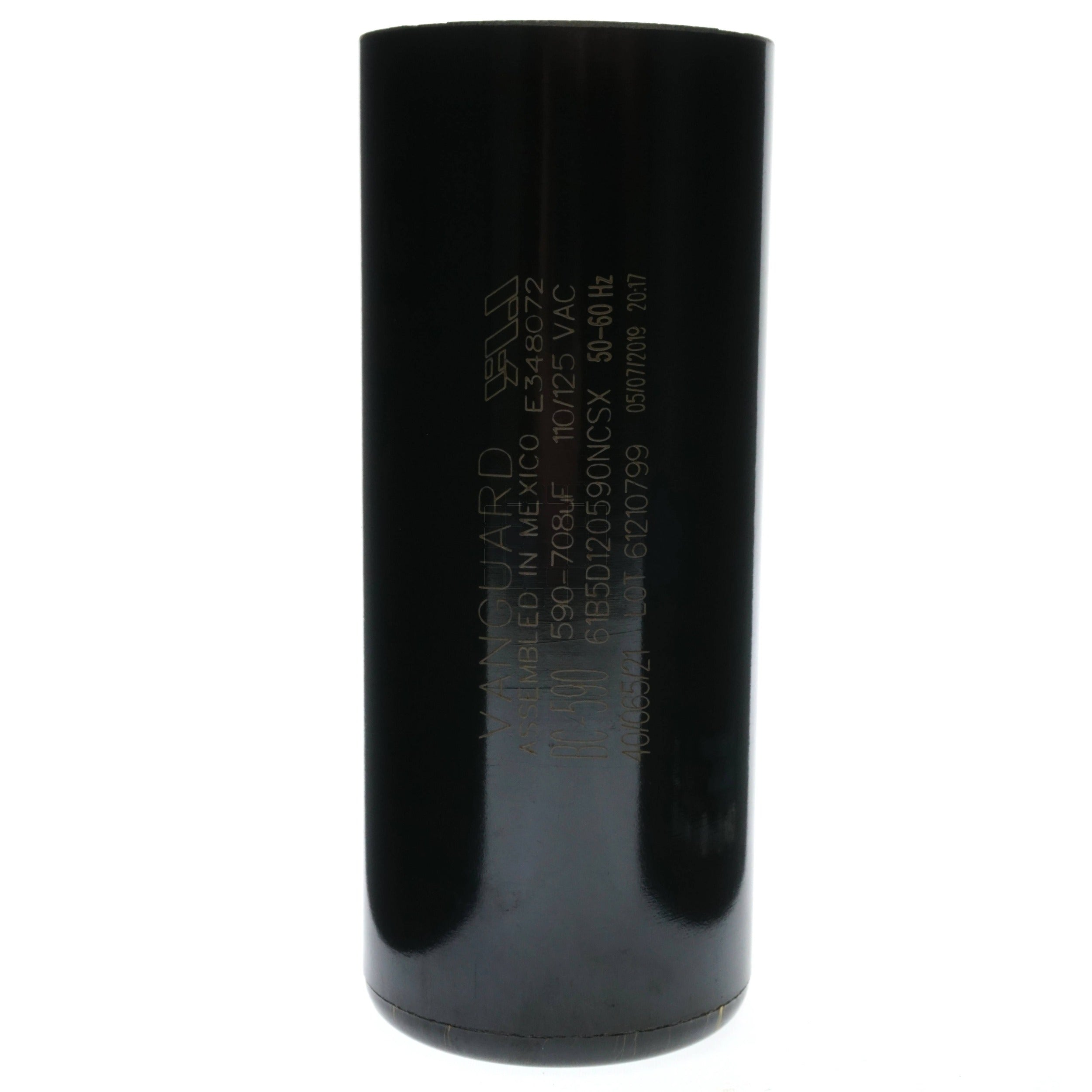

Vanguard BC-590 Black Cylindrical Electric Motor Start Capacitor markings

Vanguard BC-590 Black Cylindrical Electric Motor Start Capacitor Box label

Vanguard BC-590 Black Cylindrical Electric Motor Start Capacitor Box

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Vanguard SKU: BC-590

$12.24 USD

In stock - 6 items available

Usually ships within 48 hours

Temperature range -40°C to 65°C
Suitable for 50 or 60 Hz
Plastic case requires no insulation
Two 1/4" spade terminals per post
UL Recognized

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Product Specifications :

Brand	Vanguard
Manufacturer Part Number	BC-590 61B5D120590NCSX
Cross Reference (Fit/Form/Function)
Capacitance	590 - 708 uF
Working Voltage	110 - 125 VAC
Frequency	50/60 Hz
Working Temperature Range	-40°C to +65°C -40°F to +149°F
Type	Start Capacitor
Connection	2 Posts Two 1/4” male spade terminals on each post
Resistor	None
Construction	Phenolic Plastic Case
Certifications/Approvals	UL Approved
Performance Specifications
Case Code
Distance Between Terminals	0.625"
UPC	None
Product Origin (COO)	Mexico
Product Label	Vanguard Assembled in Mexico BC-590 590-708uF 110/125VAC 61B5D120590NCSX 50-60Hx
Package Label	BC-590 590-708 uF 110-125VAC
Notes

Dimensions & Weights :

Product Color	Black
Product Shape	Cylinder
Product Dimensions	1-13/16" Diameter 4-3/8" High
Product Weight	0.60 lbs
Package Dimensions (LxWxH)	1.86" x 1.86" x 4.53"
Package Weight	0.60 lbs
