Vanguard OV-6-370 Electric Motor Oval Run Capacitor, 6uF, 370 VAC 50-60Hz

Name: Vanguard OV-6-370 Electric Motor Oval Run Capacitor, 6uF, 370 VAC 50-60Hz
Brand: Vanguard
SKU: OV-6-370
Price: 6.44 USD
Availability: InStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Vanguard SKU: OV-6-370

$6.44 USD

Only 3 left

Stock Low

Temperature range -40°C to 70°C
Suitable for 50 or 60 Hz
Metal Case
1/4" spade terminals
UL Recognized Pressure Sensitive Interrupter

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Brand	Vanguard
Manufacturer Part Number	OV-6-370 325P605H37A14A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance	6.0 uF +/-6%
Working Voltage	370 VAC
Frequency	50/60 Hz
Working Temperature Range	+70°C
Type	Run Capacitor

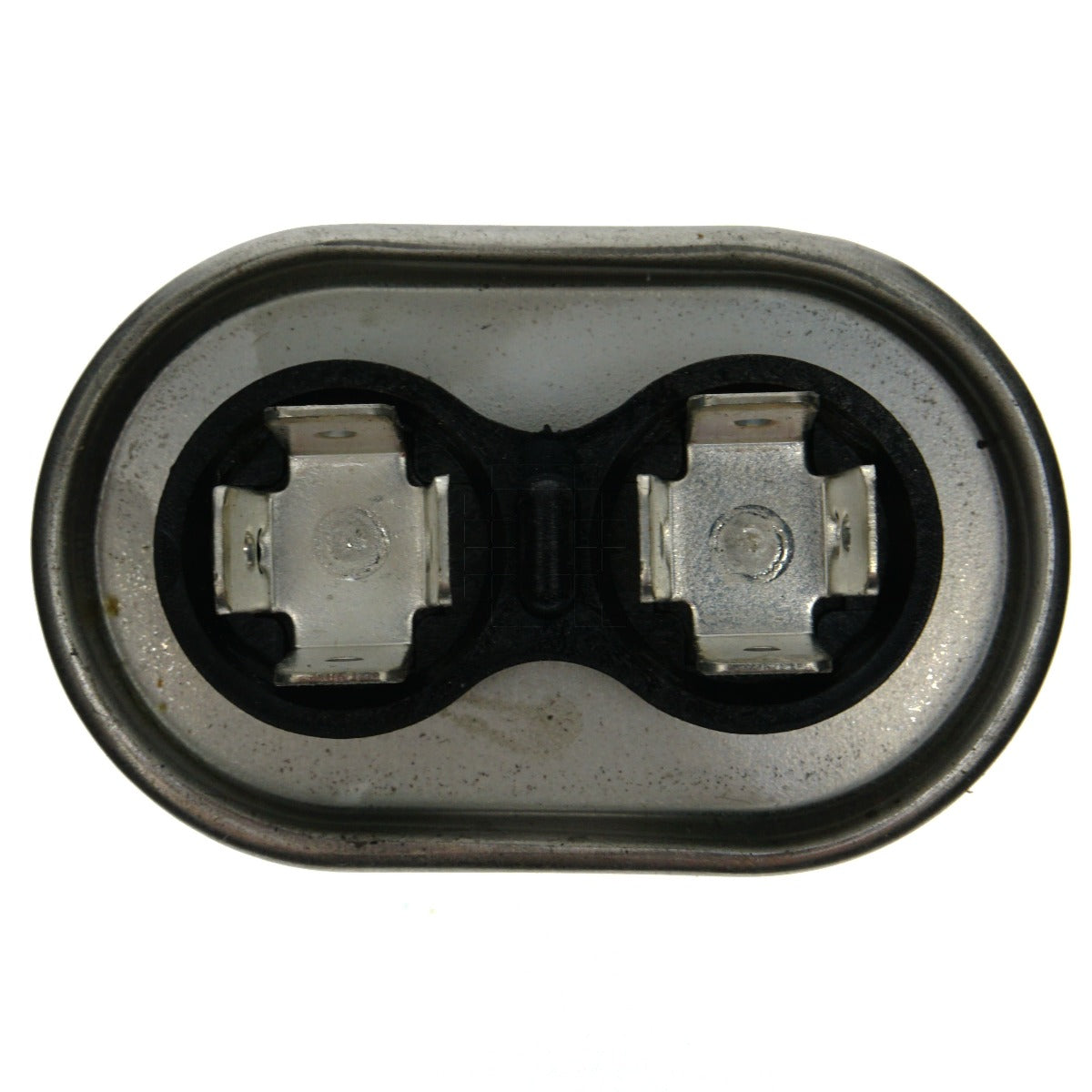

Connection	2 Posts Four 1/4” male spade terminals on each post
Resistor	None
Construction	Aluminum Case
Certifications/Approvals	UL Approved
Performance Specifications
Case Code
Distance Between Terminals	0.812"
UPC	None
Product Origin (COO)	Mexico

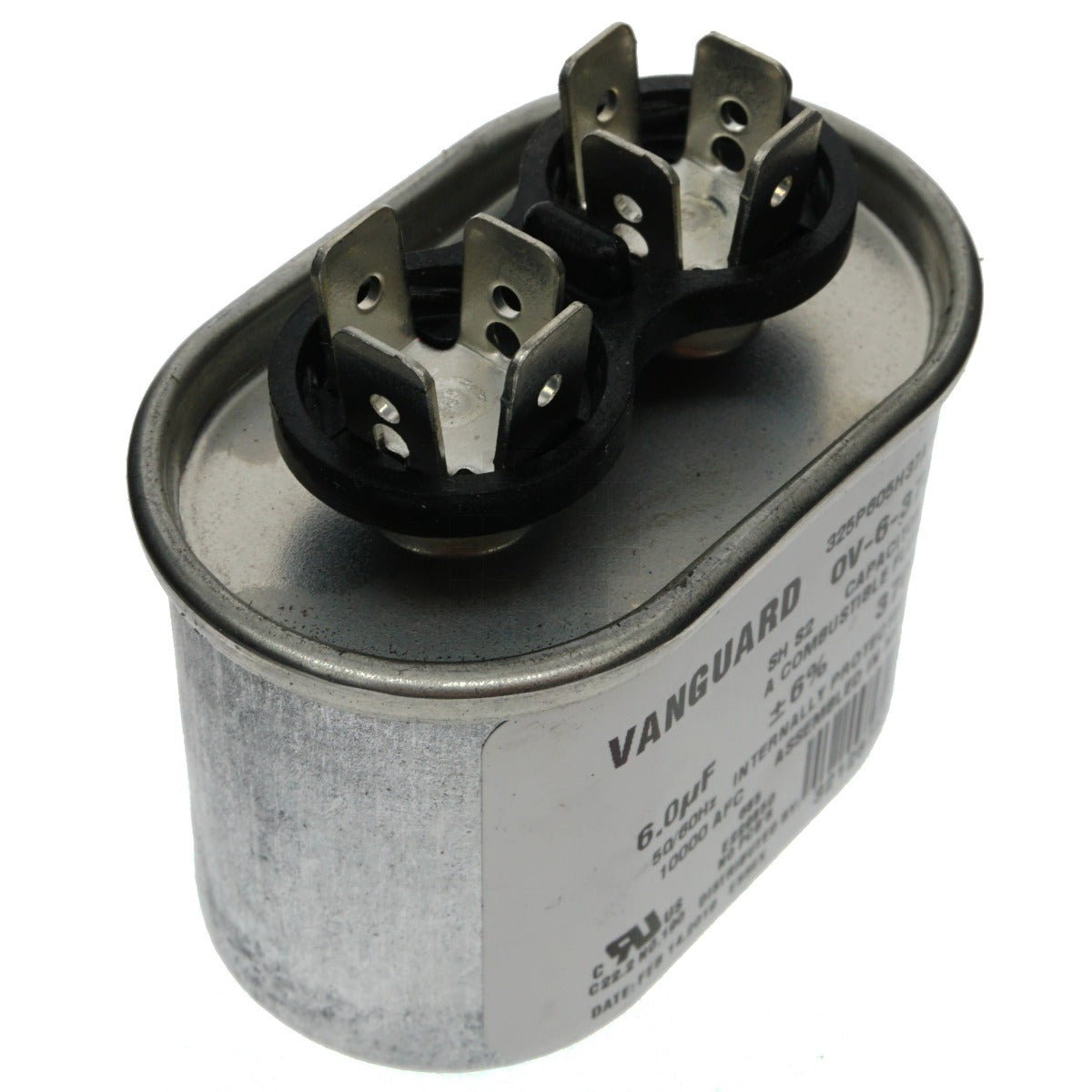

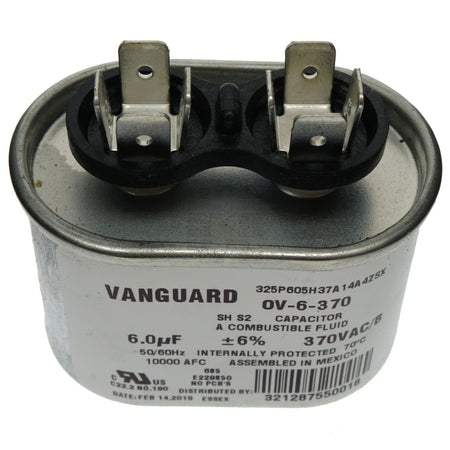

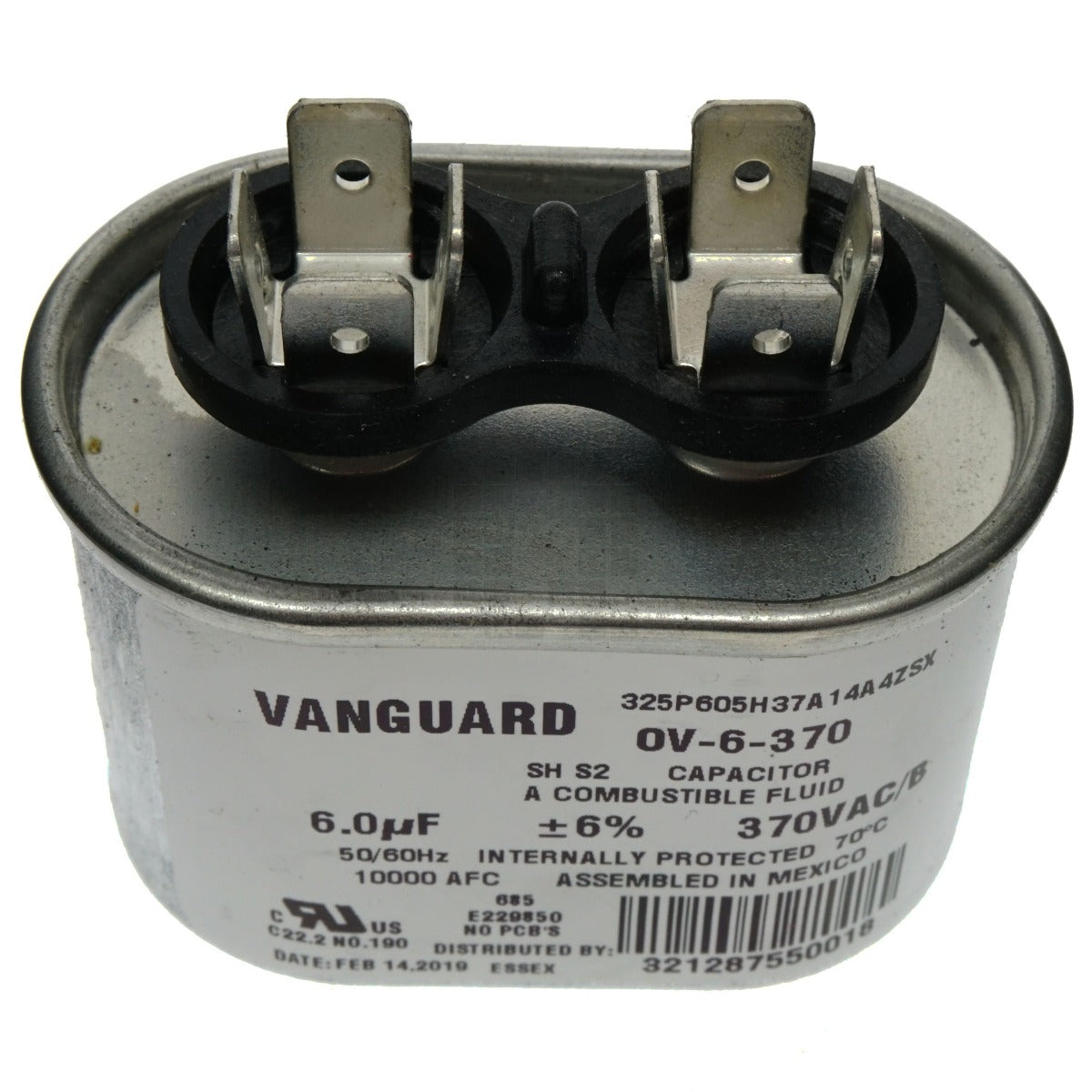

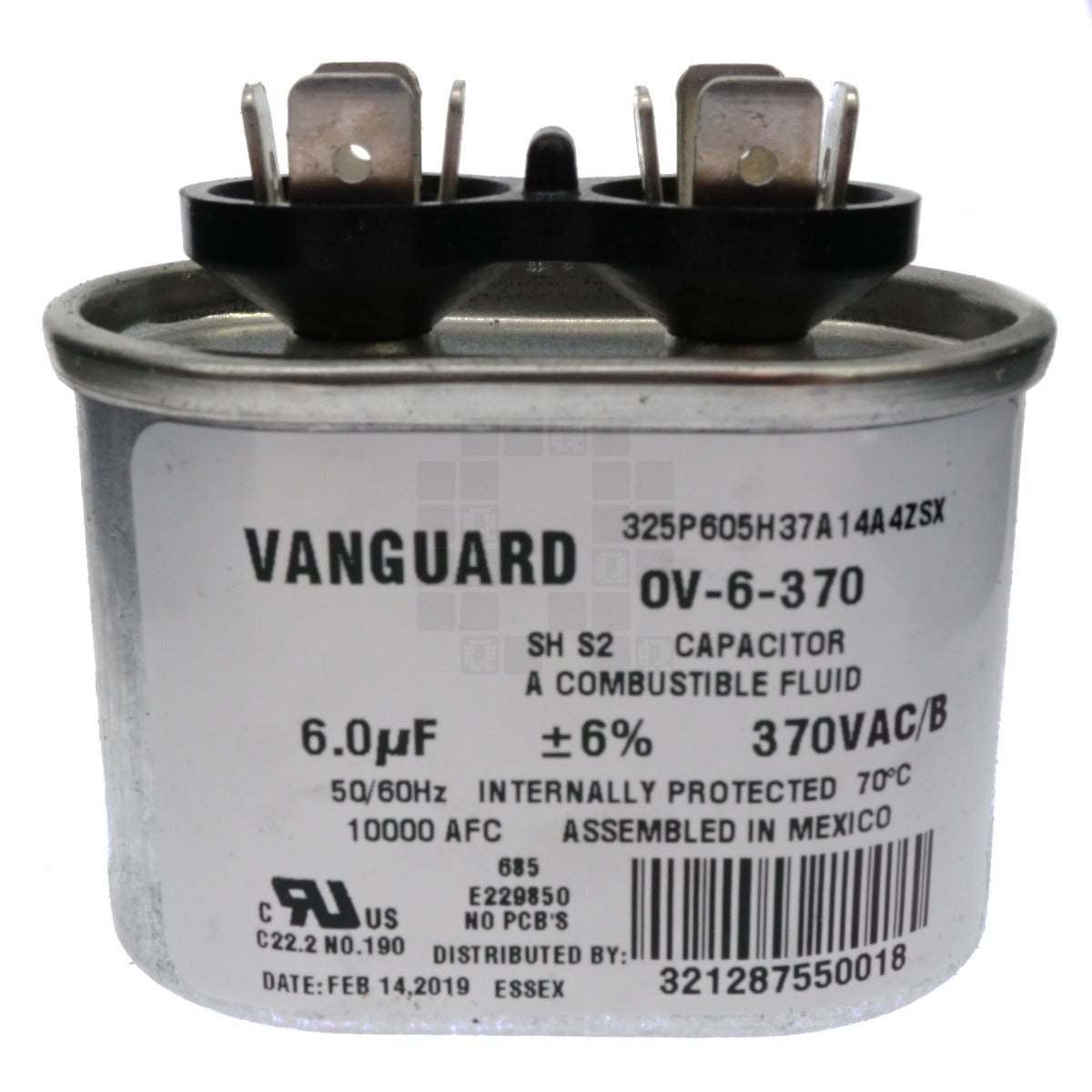

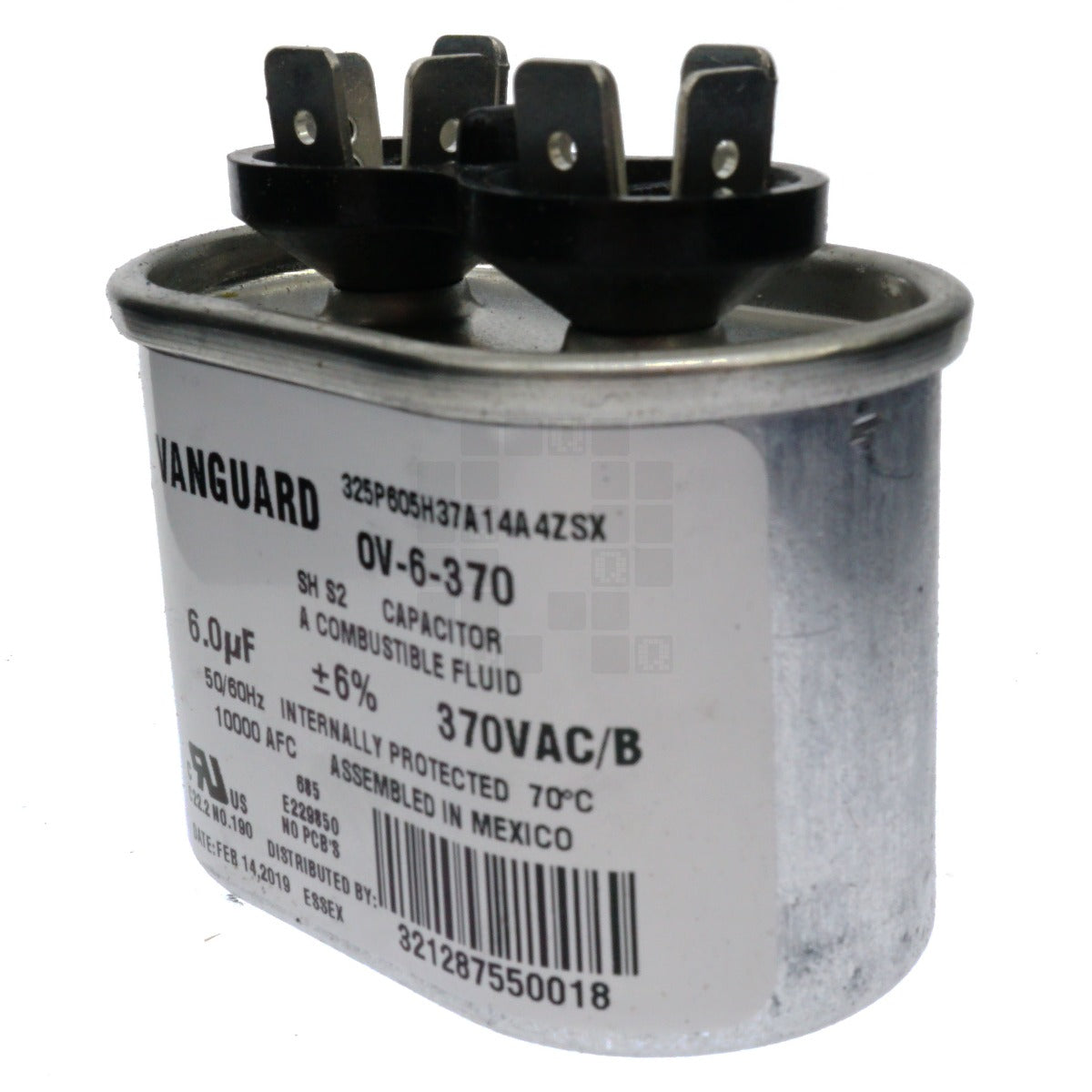

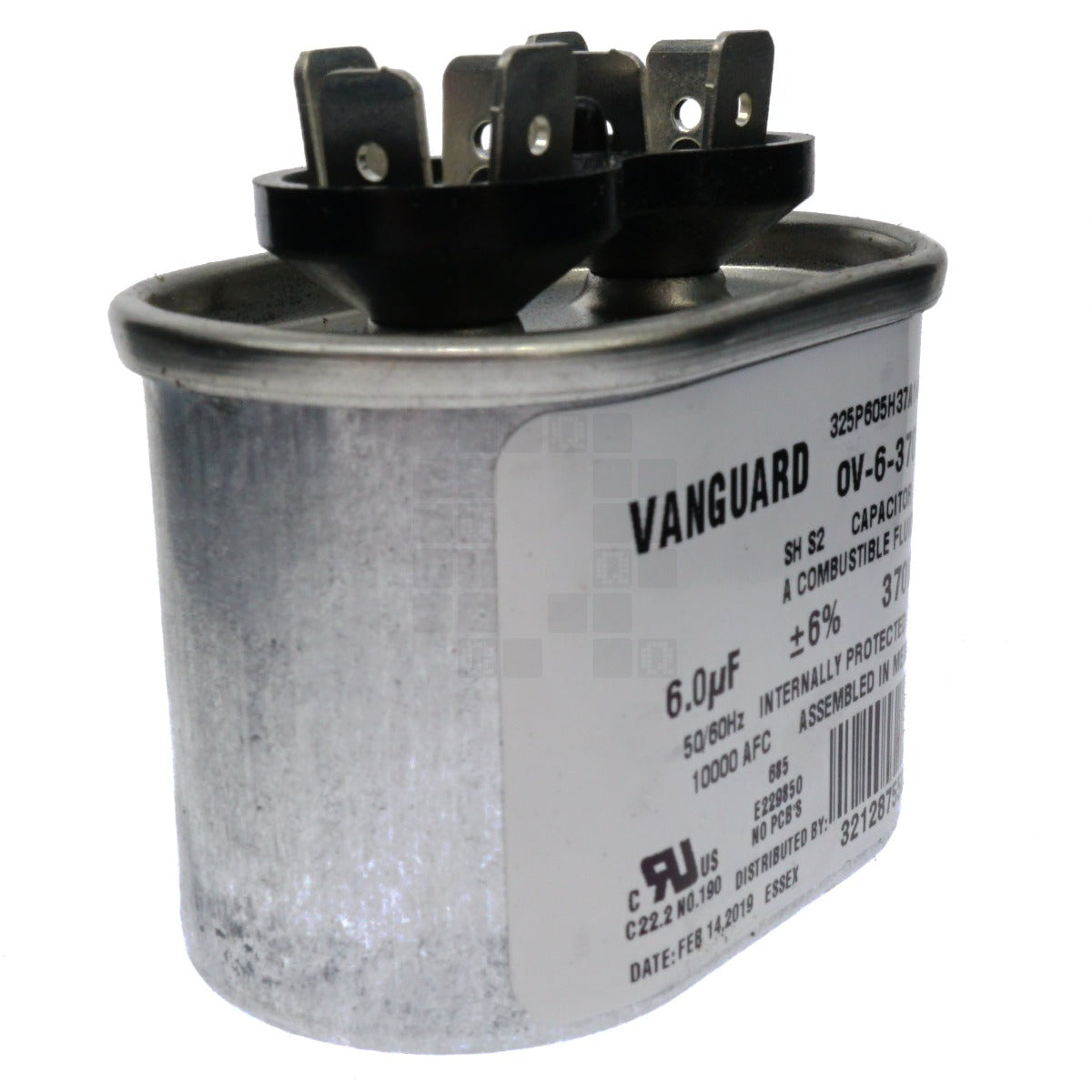

Product Label	Vanguard 325P605H37A14A4ZSX OV-6-370 SH S2 Capacitor A Combustible Fluid 6.0uF +/-6% 370VAC/B 50/60Hz Internally Protected 70°C 10000 AFC Assembled in Mexico No PCB's

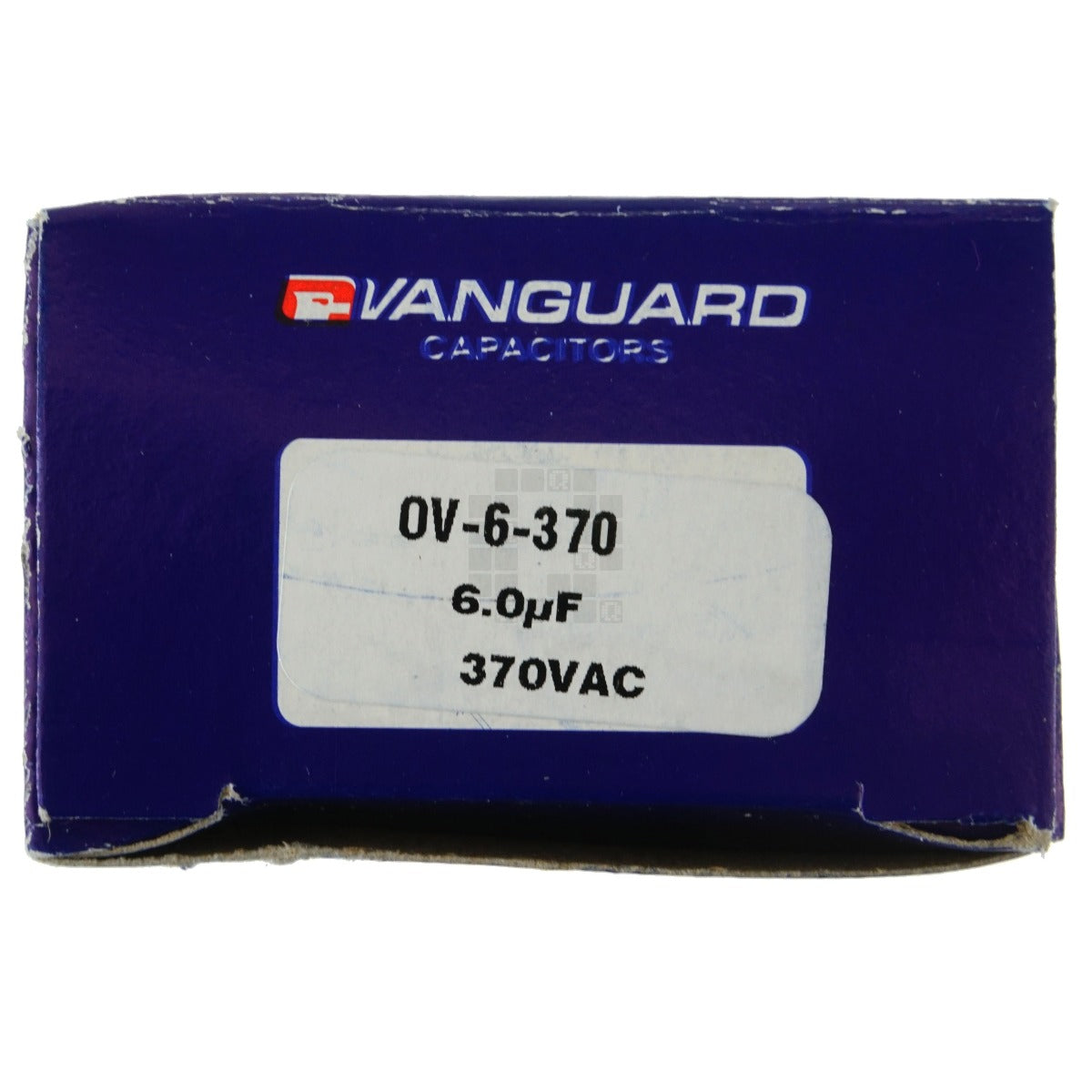

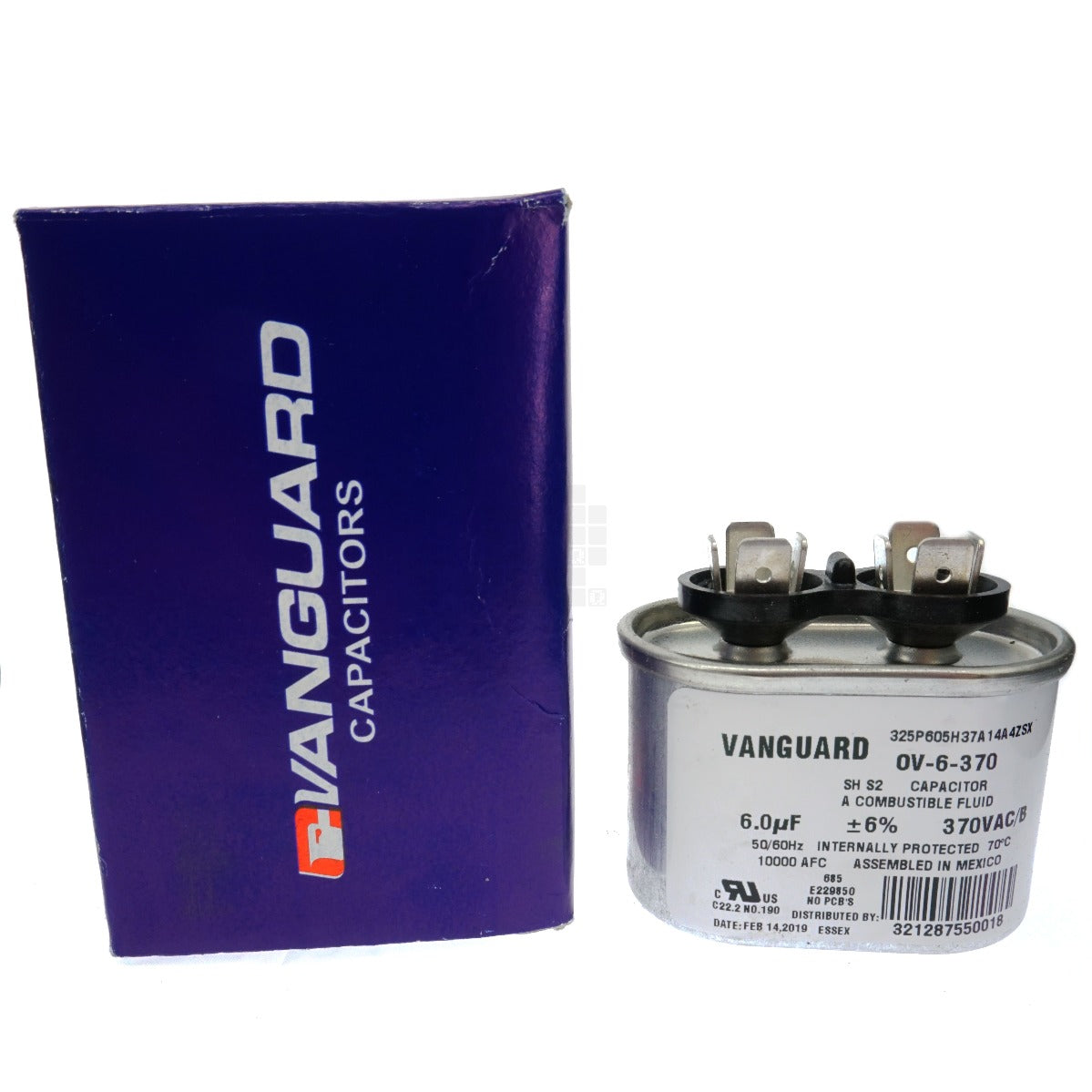

Package Label	OV-6-370 6.0uF 370VAC
Notes	An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.

Product Color	Silver, Aluminum
Product Shape	Oval

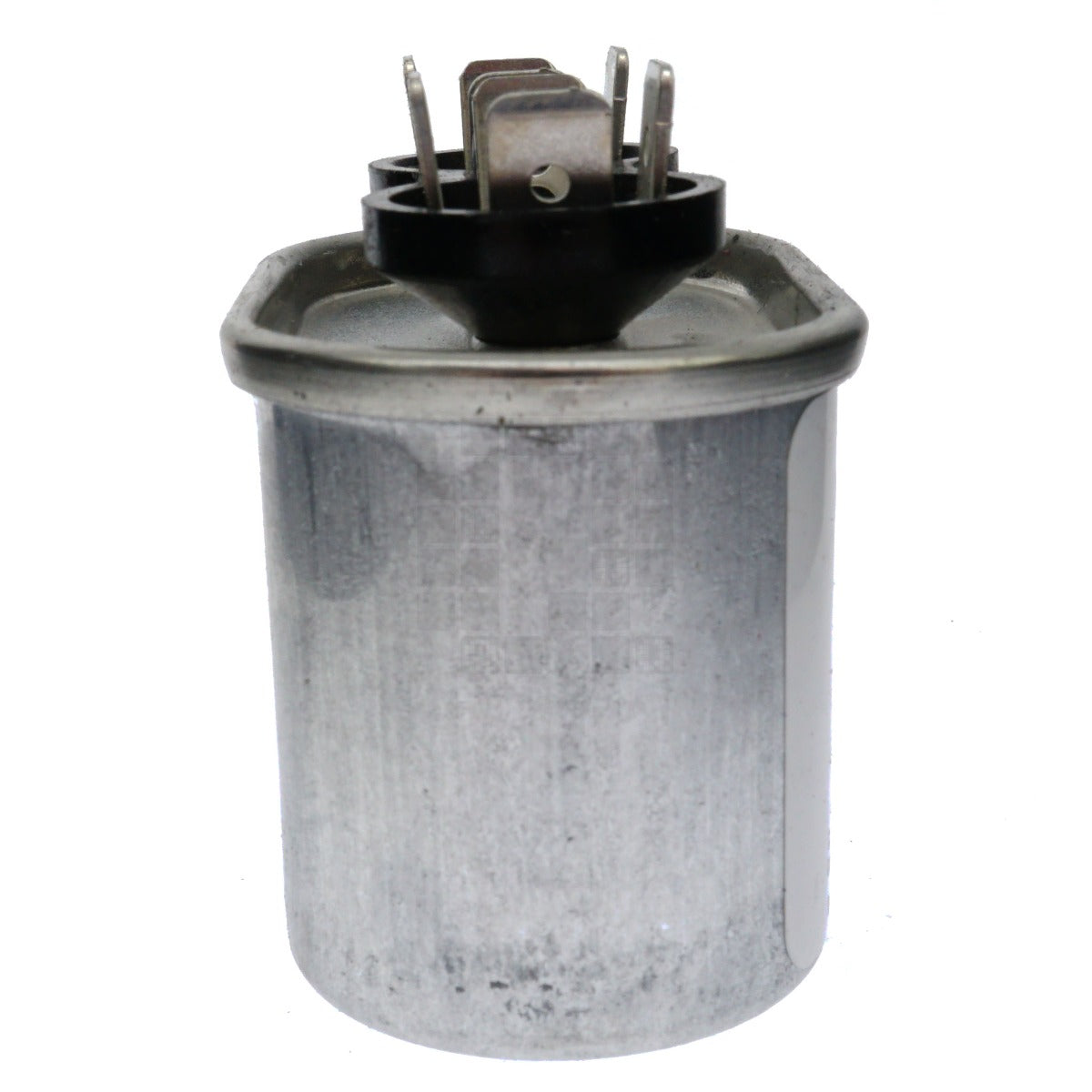

Product Dimensions	2-5/32" Width 2-1/8" Height (Does not include terminals) 1-5/16" Depth
Product Weight	3 oz
Package Dimensions (LxWxH)	2.25" x 3.38" x 1.50"
Package Weight	3 oz
