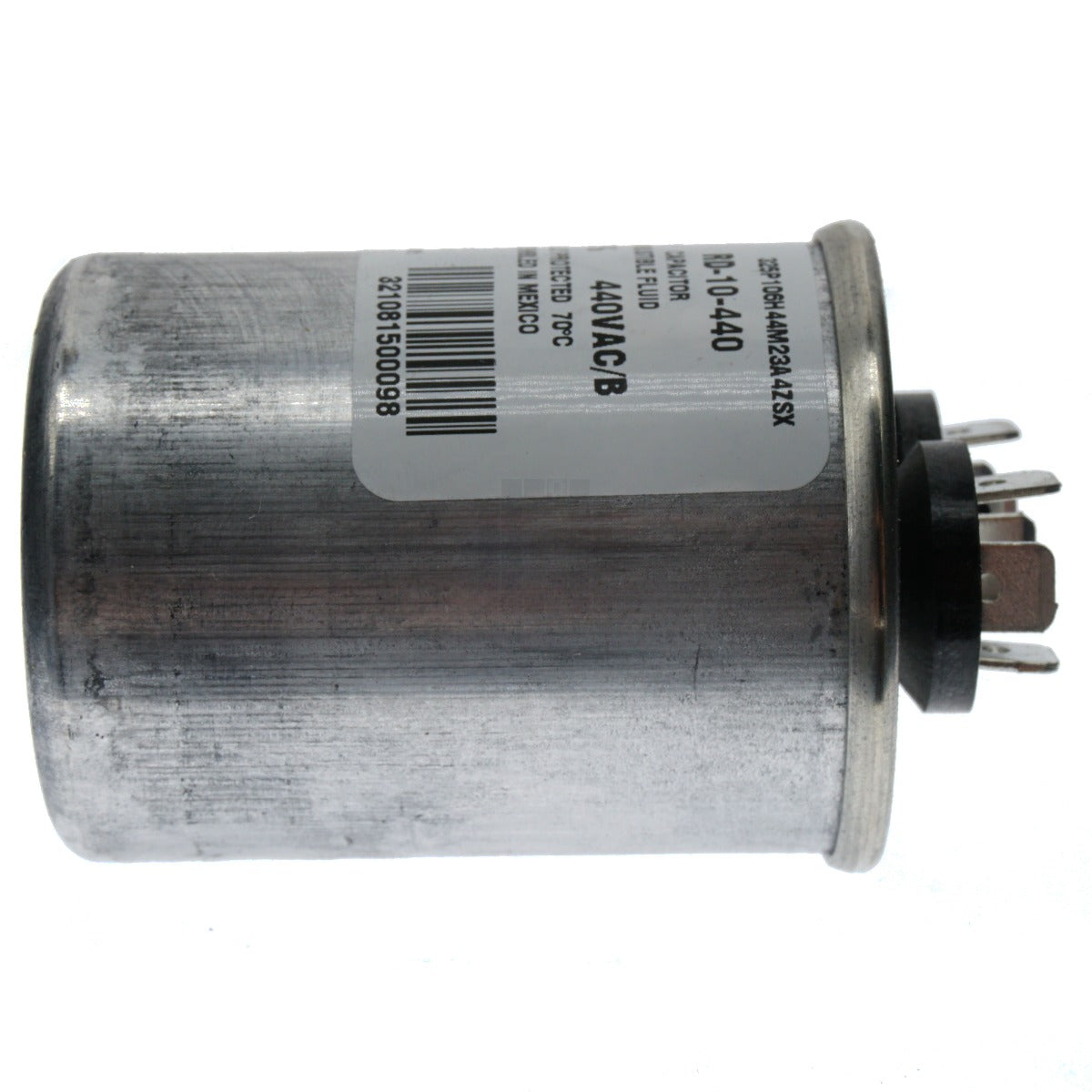

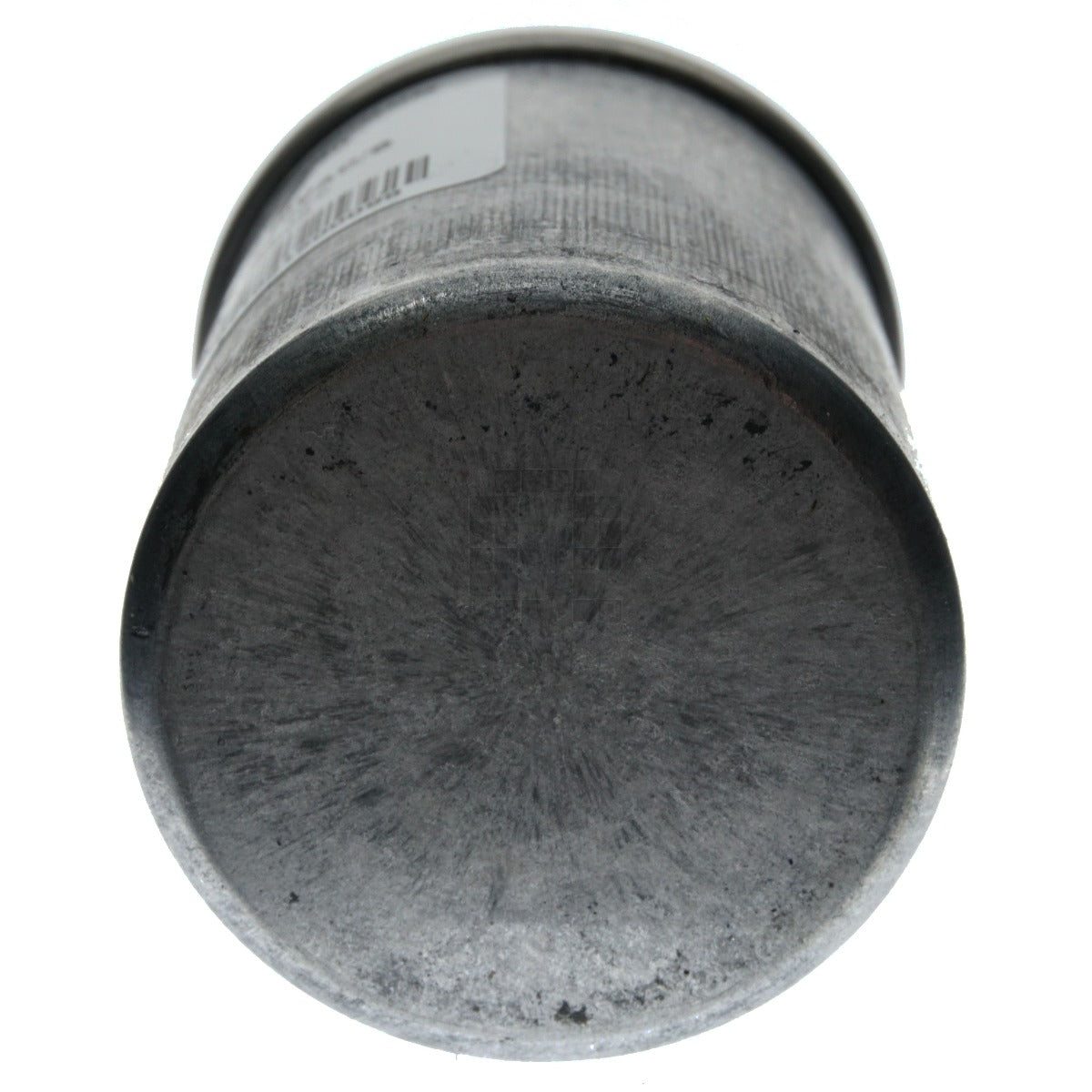

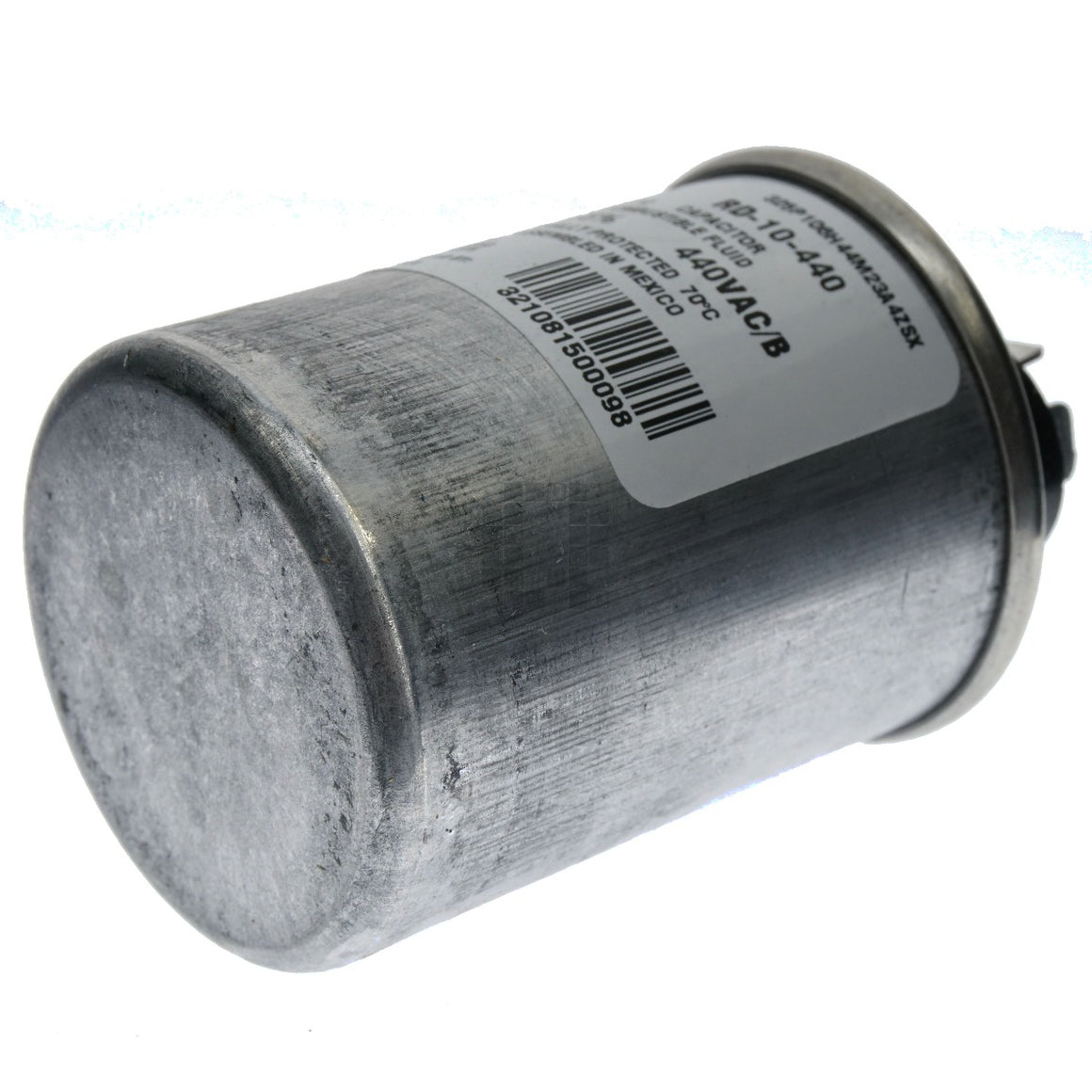

Vanguard RD-10-440 Electric Motor Run Capacitor, 10 uF, 440 VAC 50-60Hz

(0)
Vanguard Capacitors logo essex brownell

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Vanguard SKU: RD-10-440
$7.74 USD
Only 2 left
Stock Low
  • Temperature range -40°C to 70°C
  • Suitable for 50 or 60 Hz
  • Metal Case
  • 1/4" spade terminals
  • UL Recognized Pressure Sensitive Interrupter

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling
Brand Vanguard
manufactured by NGM
Manufacturer Part Number RD-10-440
325P106H44M23A4Z
325P106H44M23A4ZNG
325P106H44M23A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 10 uF +/-6%
Working Voltage 440 VAC
Frequency 50/60 Hz
Working Temperature Range -40°C to +70°C
Type Run Capacitor
Metallized Polypropylene Film

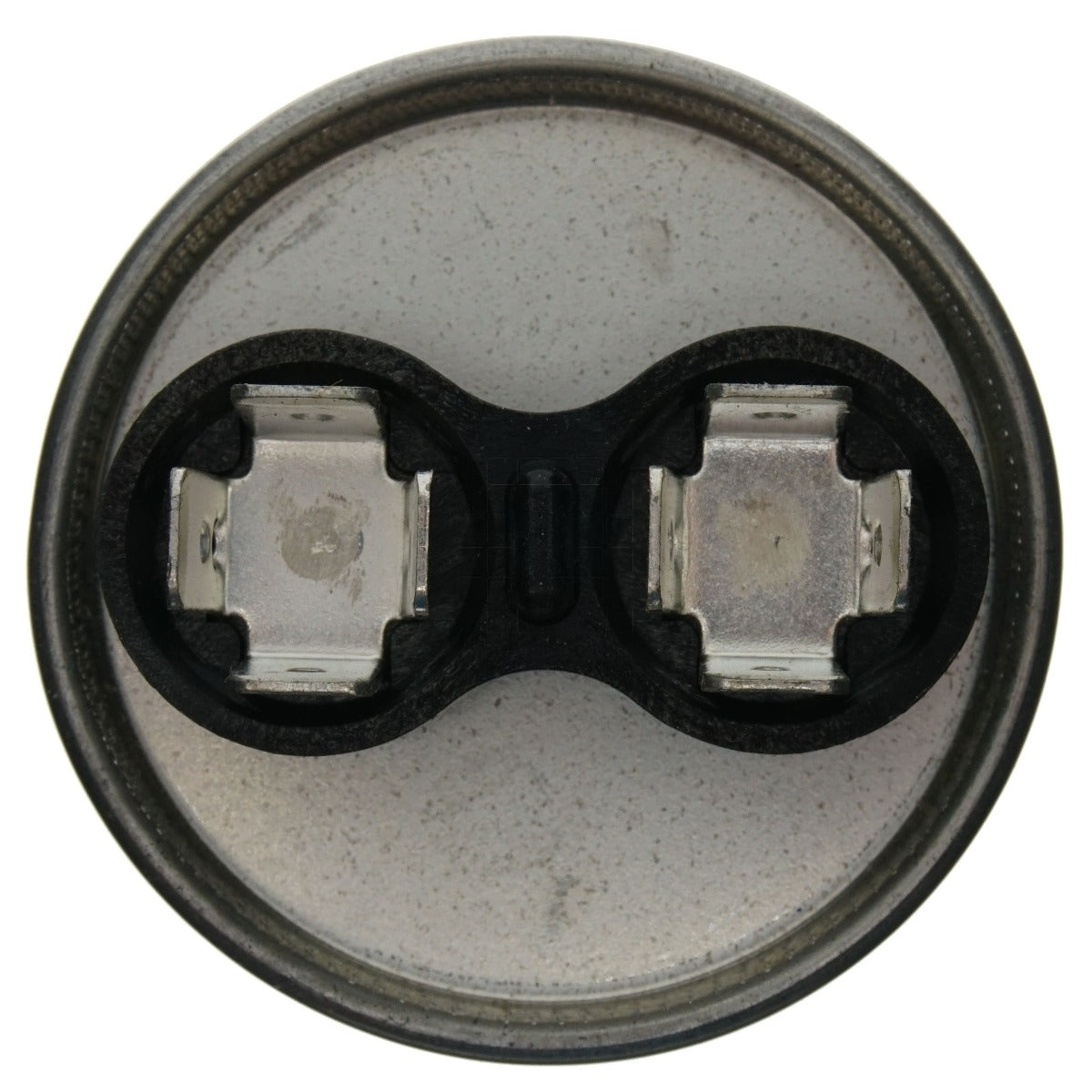

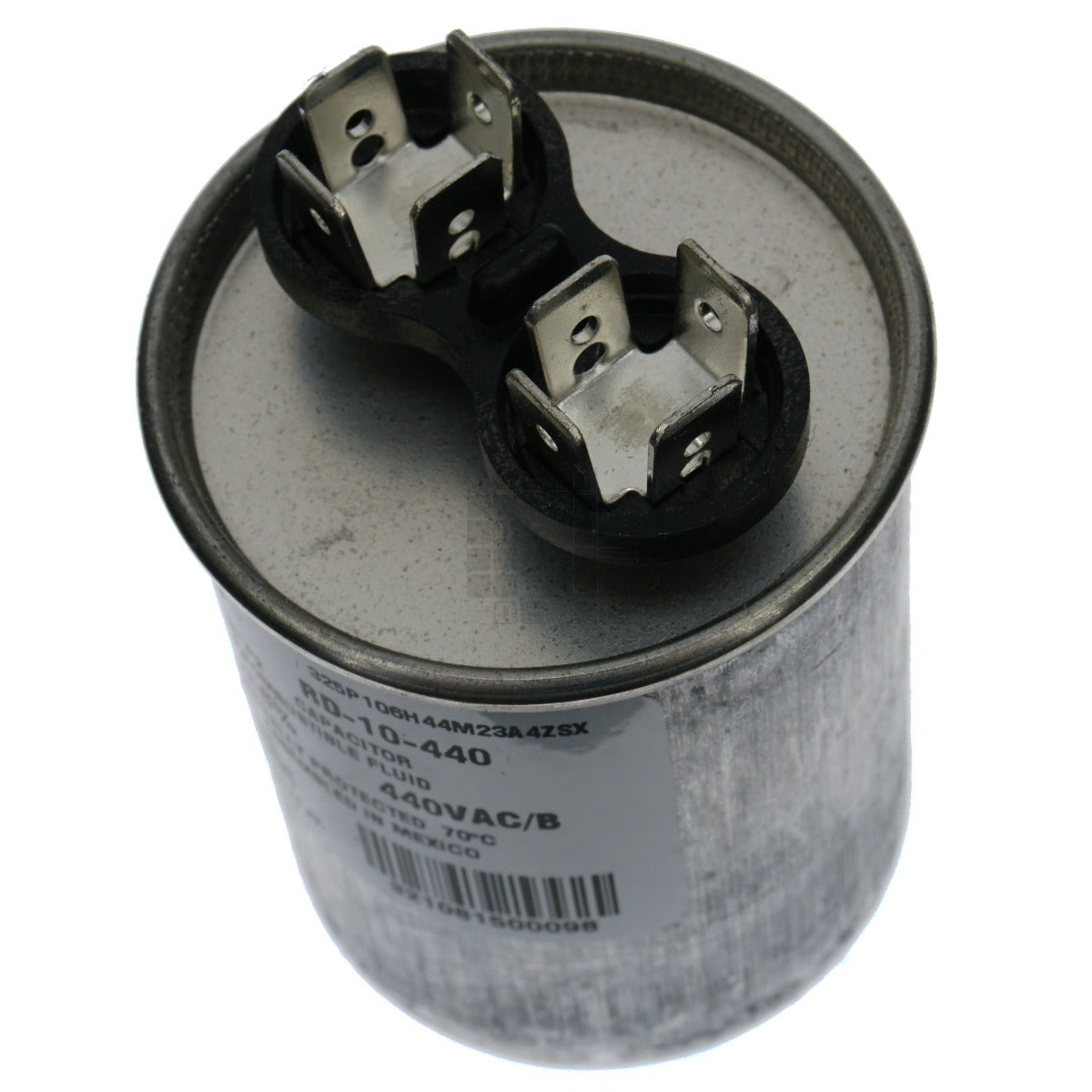

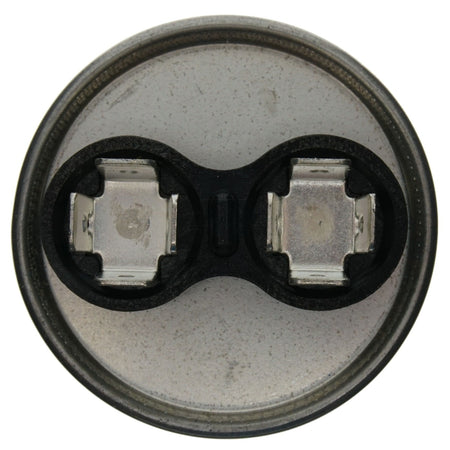

Connection 2 Posts

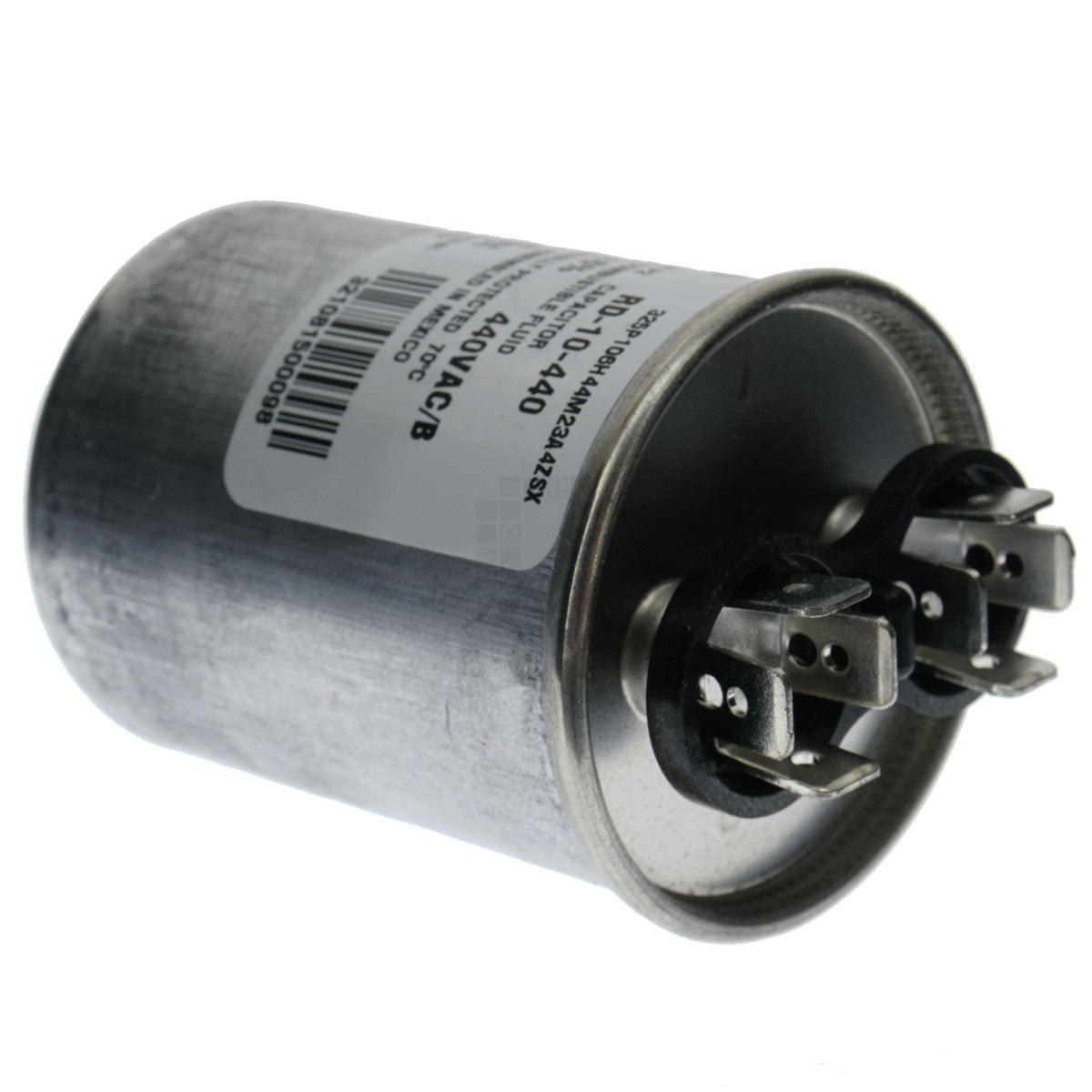

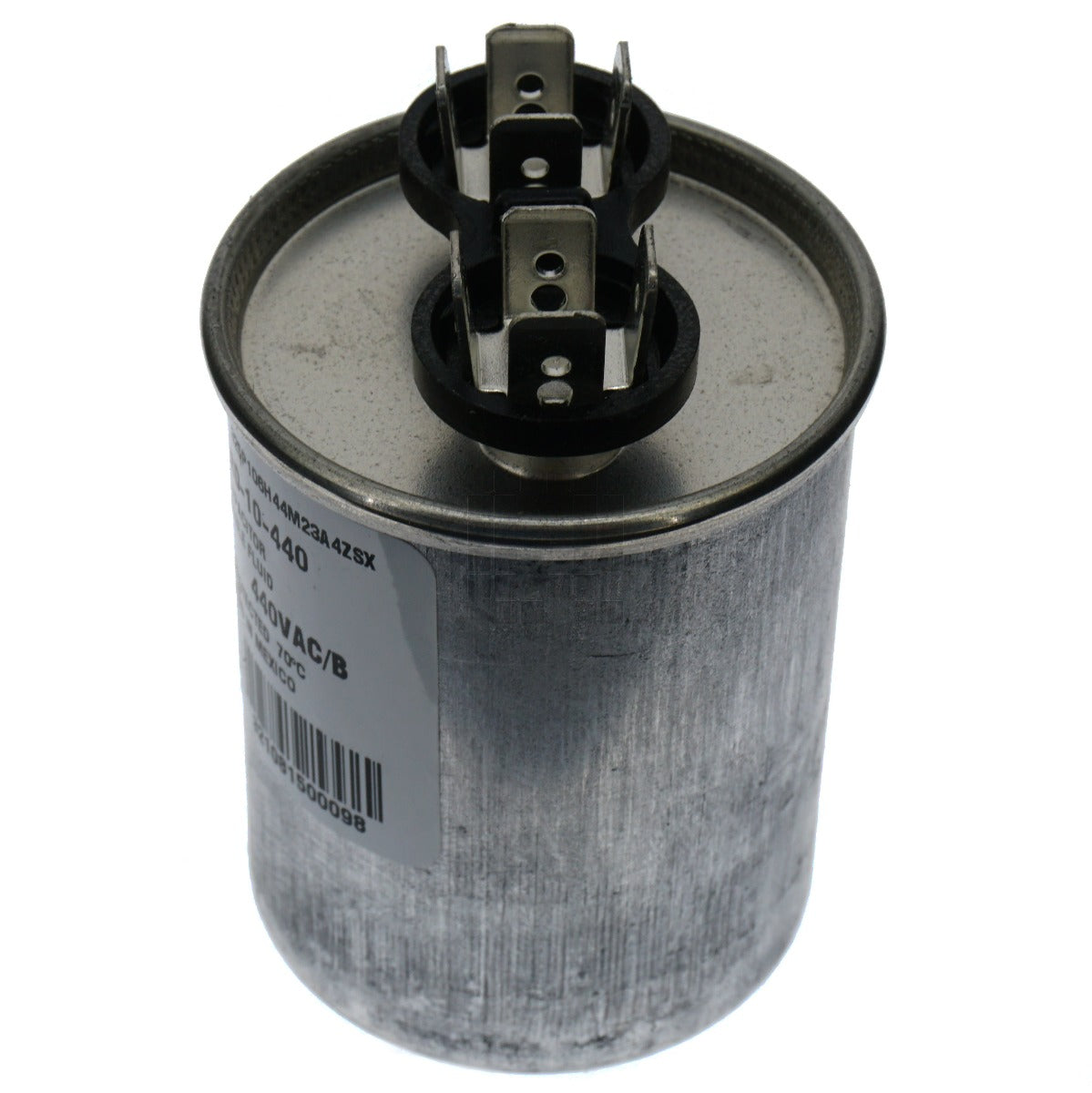

Four 1/4” male spade terminals on each post
Resistor None

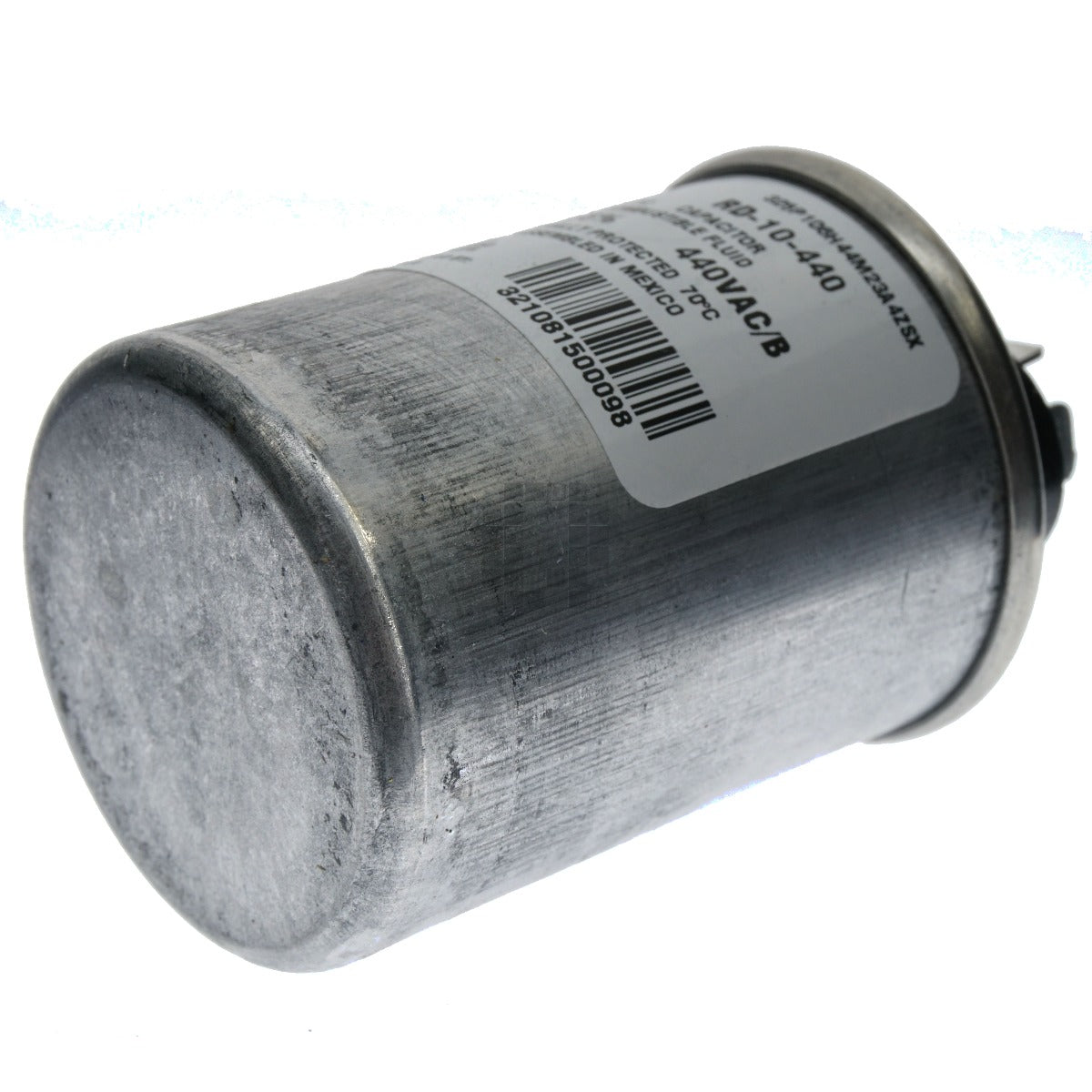

Construction Aluminum Case
Certifications/Approvals UL Approved
Performance Specifications
Case Code
Distance Between Terminals
UPC None
Product Origin (COO) Mexico

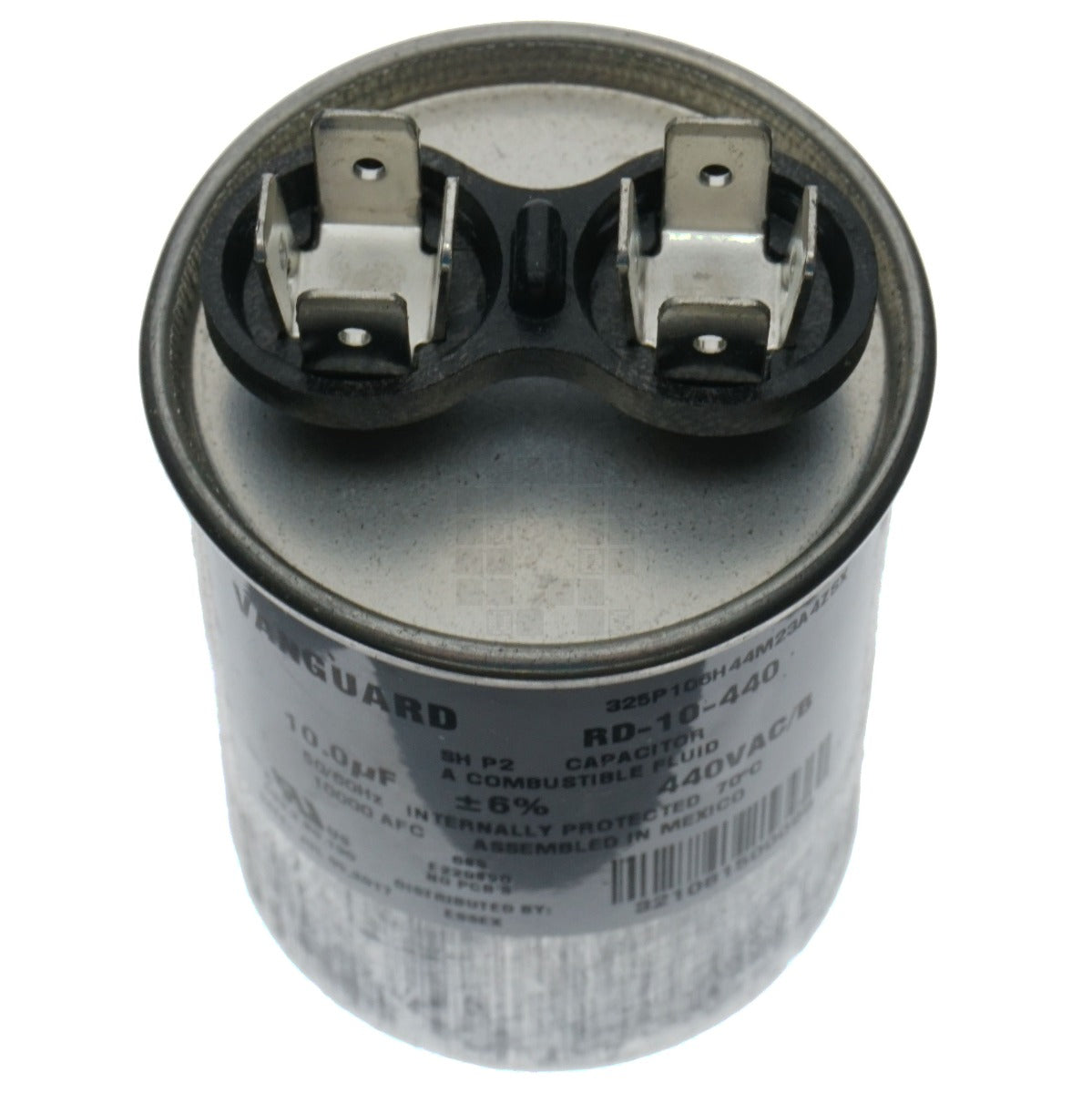

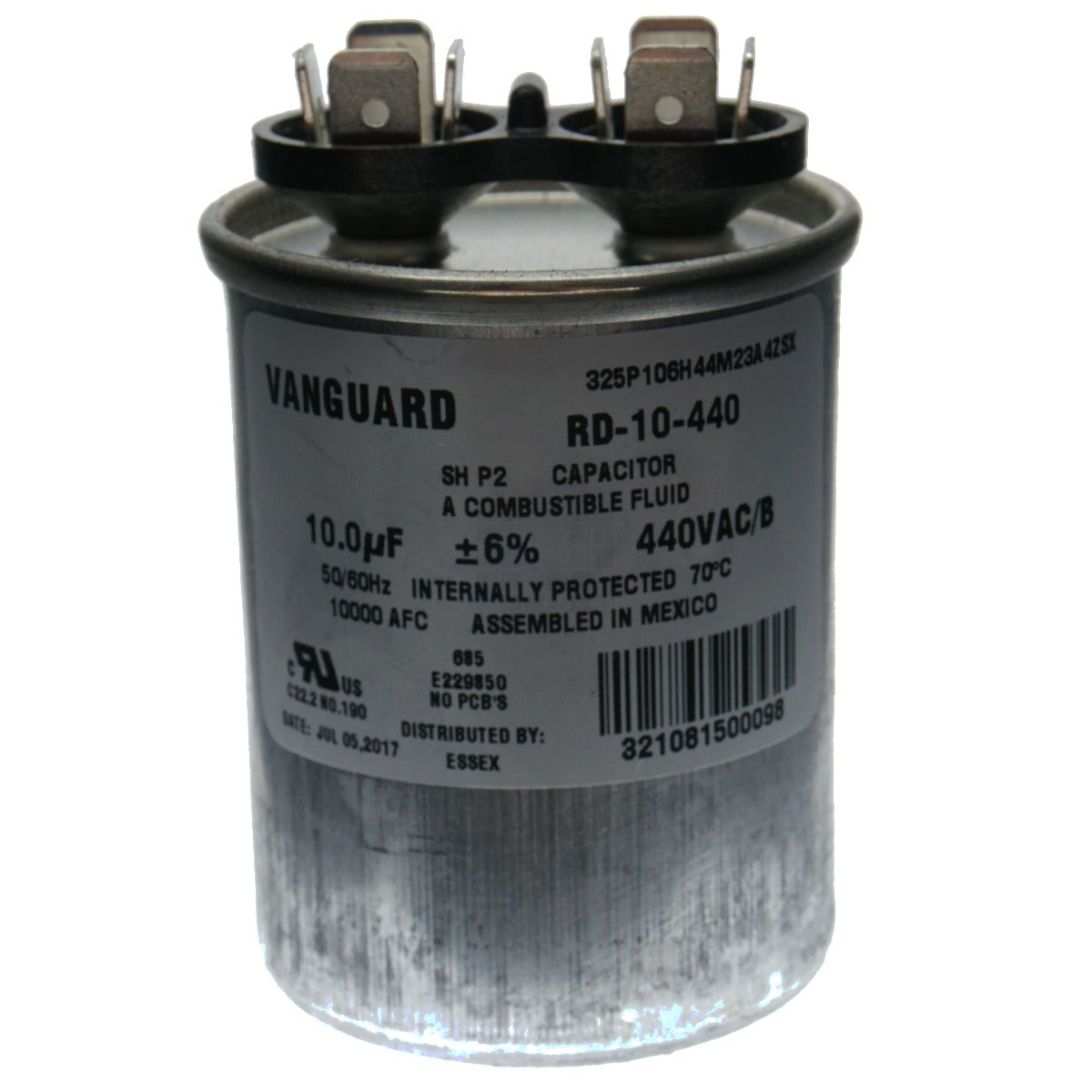

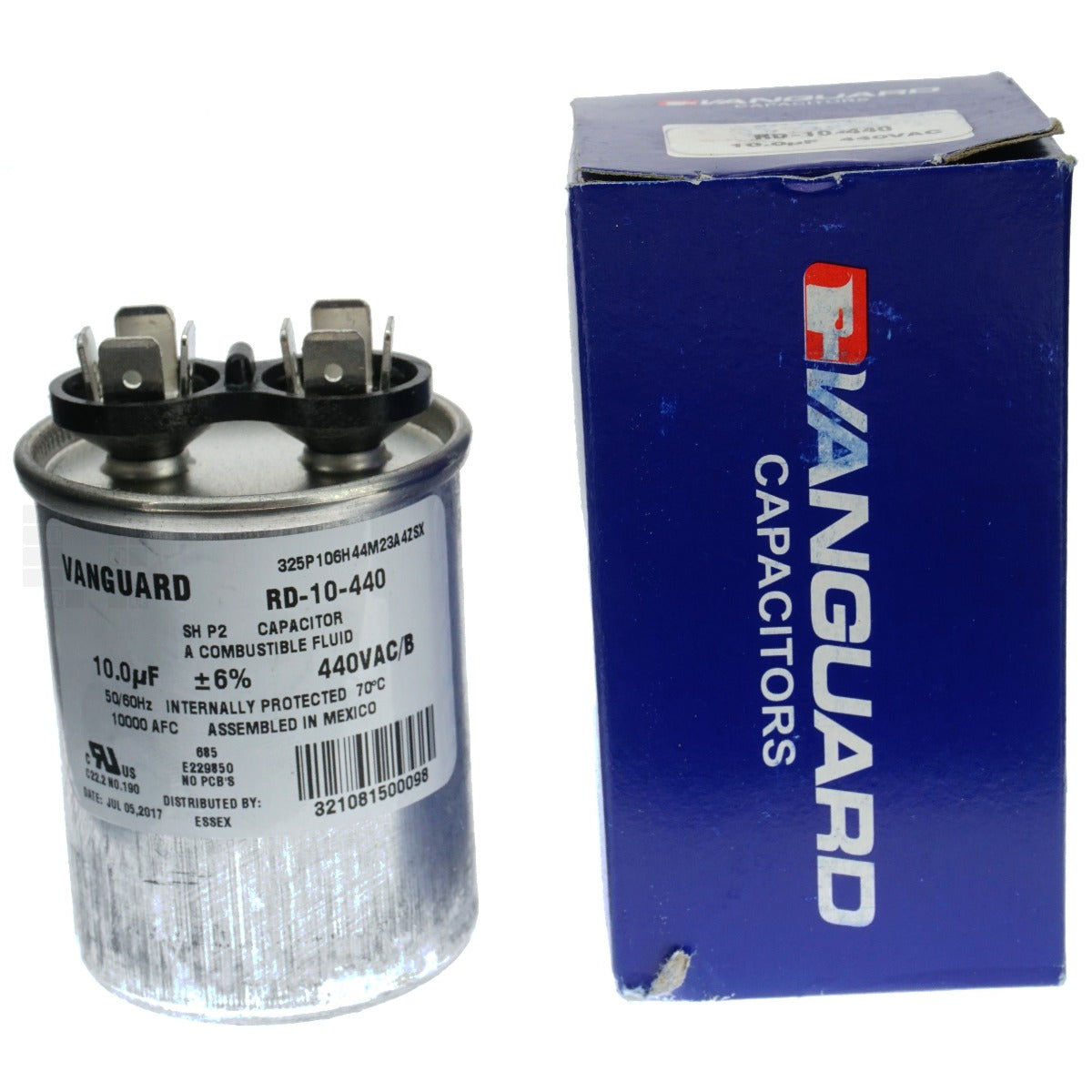

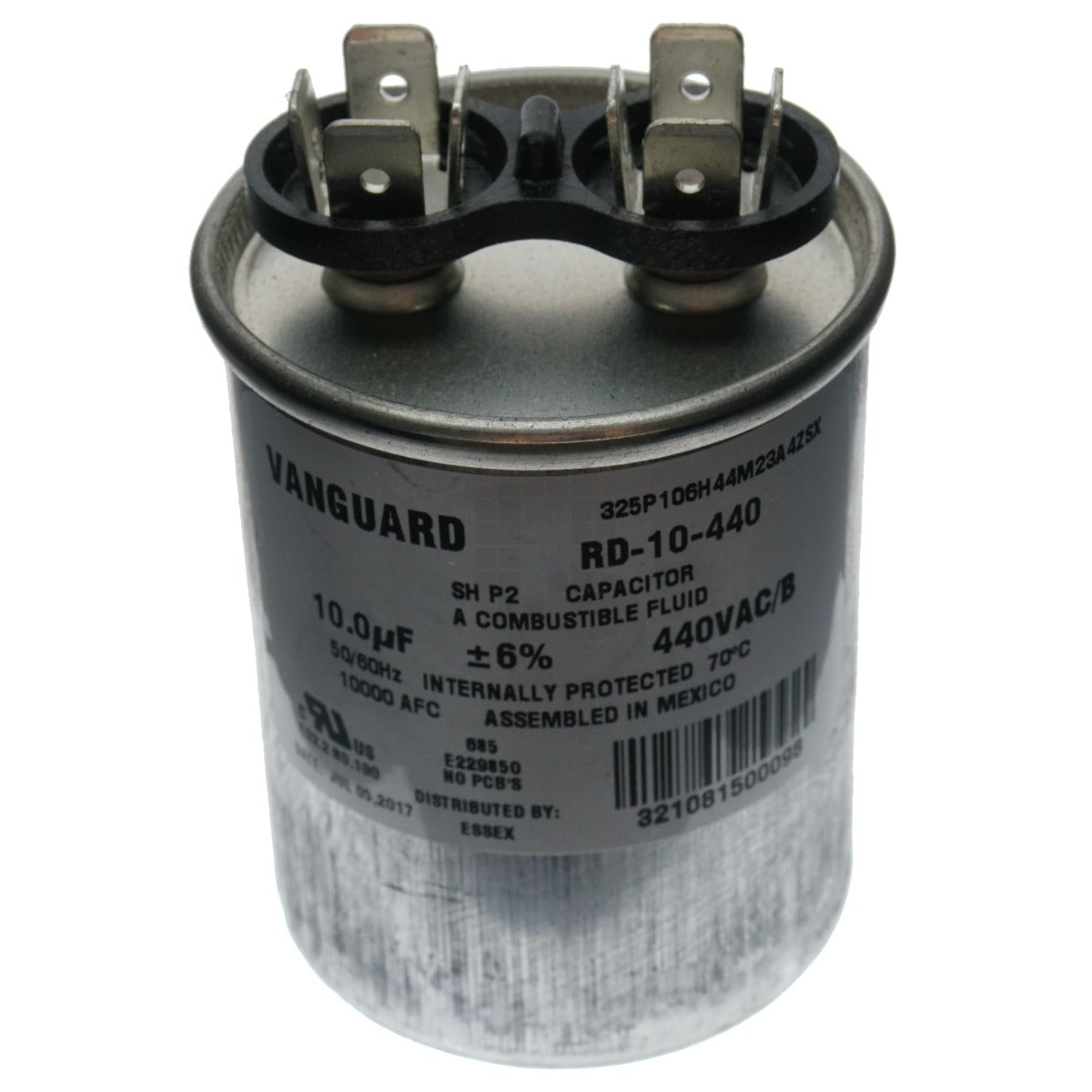

Product Label Vanguard 325P106H44M23A4ZSX
SH P2 Capacitor
A Combustible Fluid
10.0 uF +/-6% 440VAC/B
50/60Hz Internally Protected 70°C
10000 AFC Assembled in Mexico
No PCBs

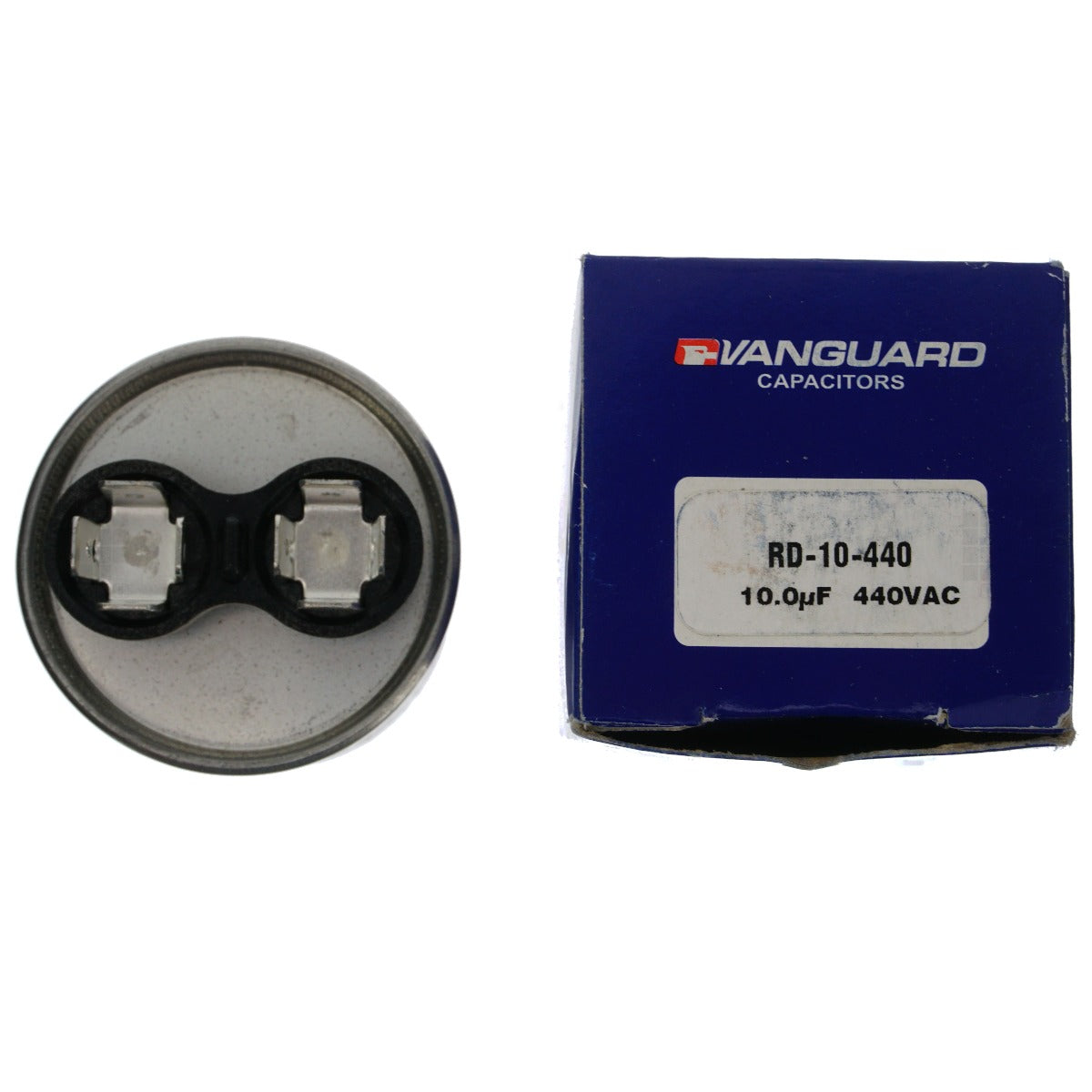

Package Label Vanguard Capacitors
RD-10-440
10.0uF 440VAC
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
Location
Product Color Silver
Product Shape Cylinder
Product Dimensions 1.75" Diameter
2.33" Case Height
2.812" Height (with Terminals)
Product Weight 5 oz
Package Dimensions (LxWxH) 1.90" x 1.90" x 3.50"
Package Weight 5 oz
