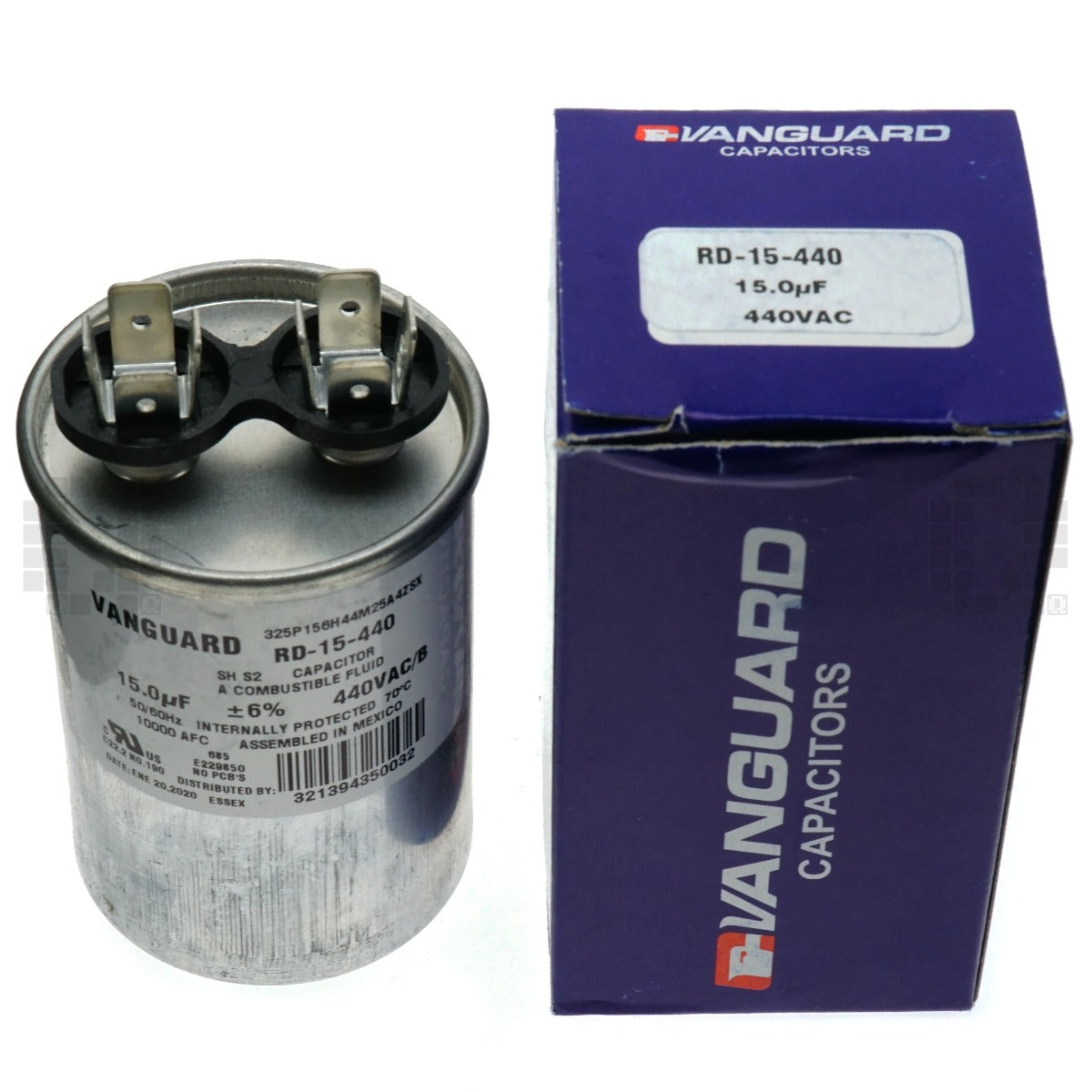

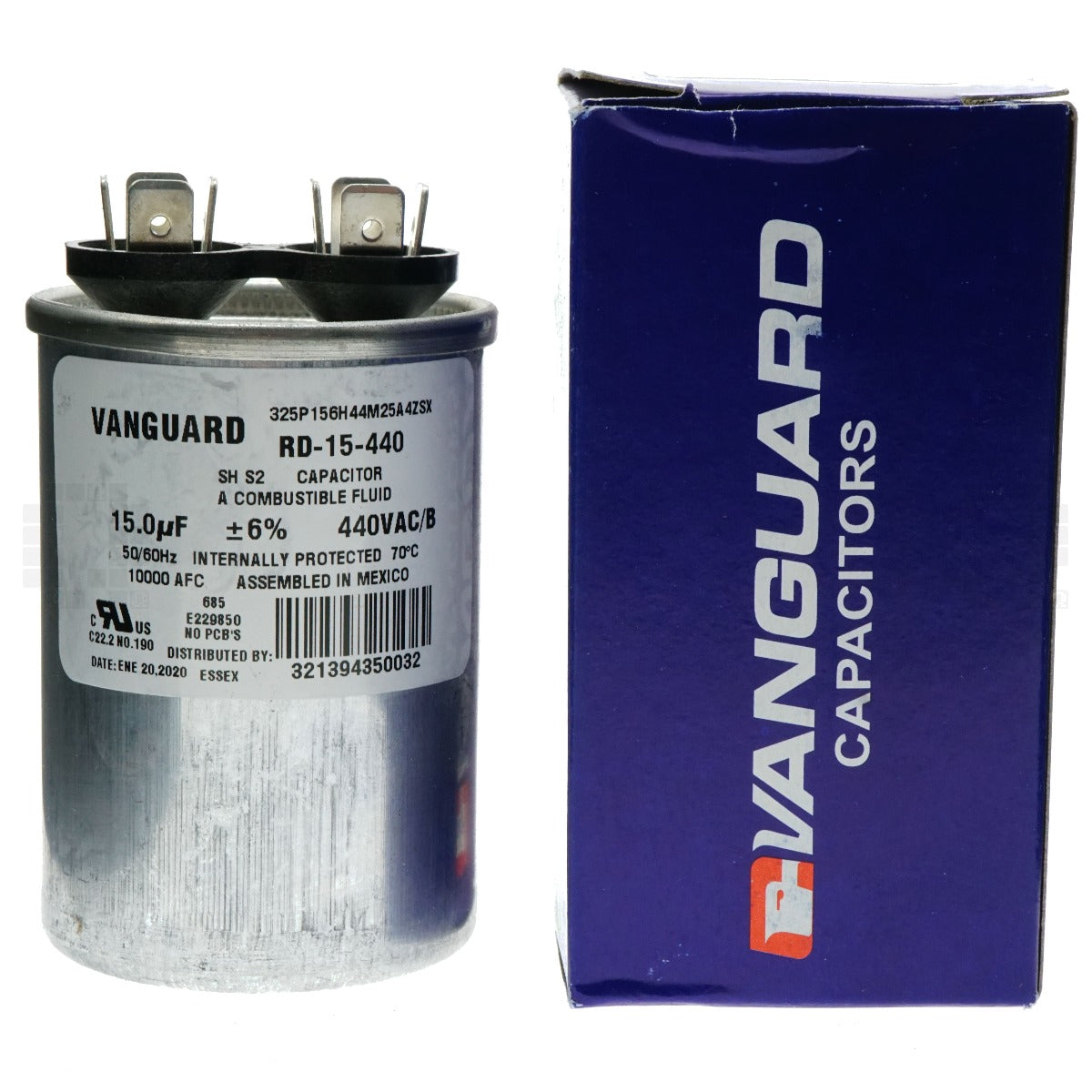

Vanguard RD-15-440 Electric Motor Run Capacitor, 15 uF, 440VAC 50-60Hz

Name: Vanguard RD-15-440 Electric Motor Run Capacitor, 15 uF, 440VAC 50-60Hz
Brand: Vanguard
SKU: RD-15-440
Price: 10.44 USD
Availability: InStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Vanguard SKU: RD-15-440

$10.44 USD

Only 3 left

Stock Low

Temperature range -40°C to 70°C
Suitable for 50 or 60 Hz
Metal Case
1/4" spade terminals
UL Recognized Pressure Sensitive Interrupter

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Location
Brand	Vanguard manufactured by NGM
Manufacturer Part Number	RD-15-440 325P156H44M25A4Z 325P156H44M25A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance	15.0 uF +/-6%
Working Voltage	440 VAC
Frequency	50/60 Hz
Working Temperature Range	-40°C to +70°C -40°F to +158°F
Type	Run Capacitor Metallized Polypropylene Film

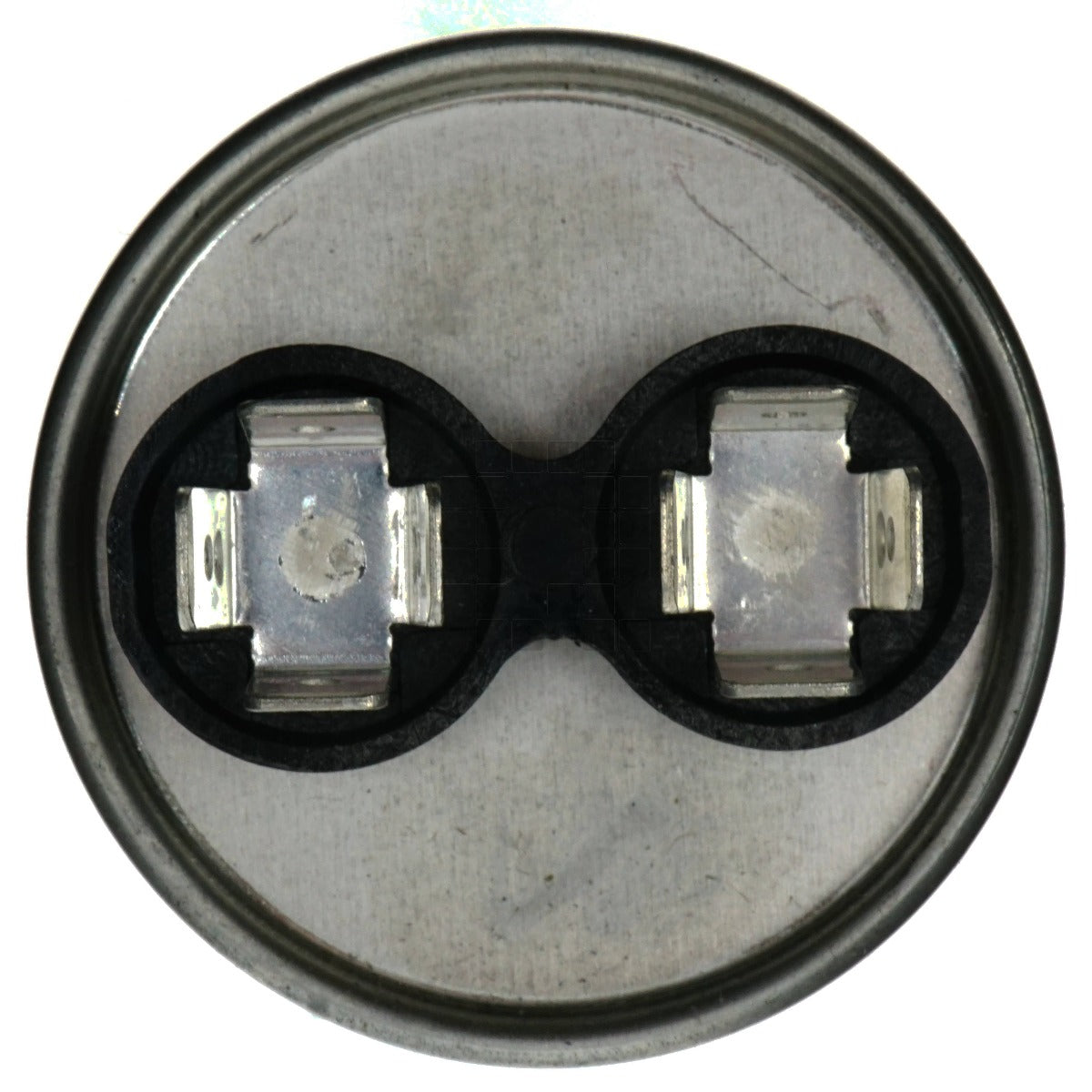

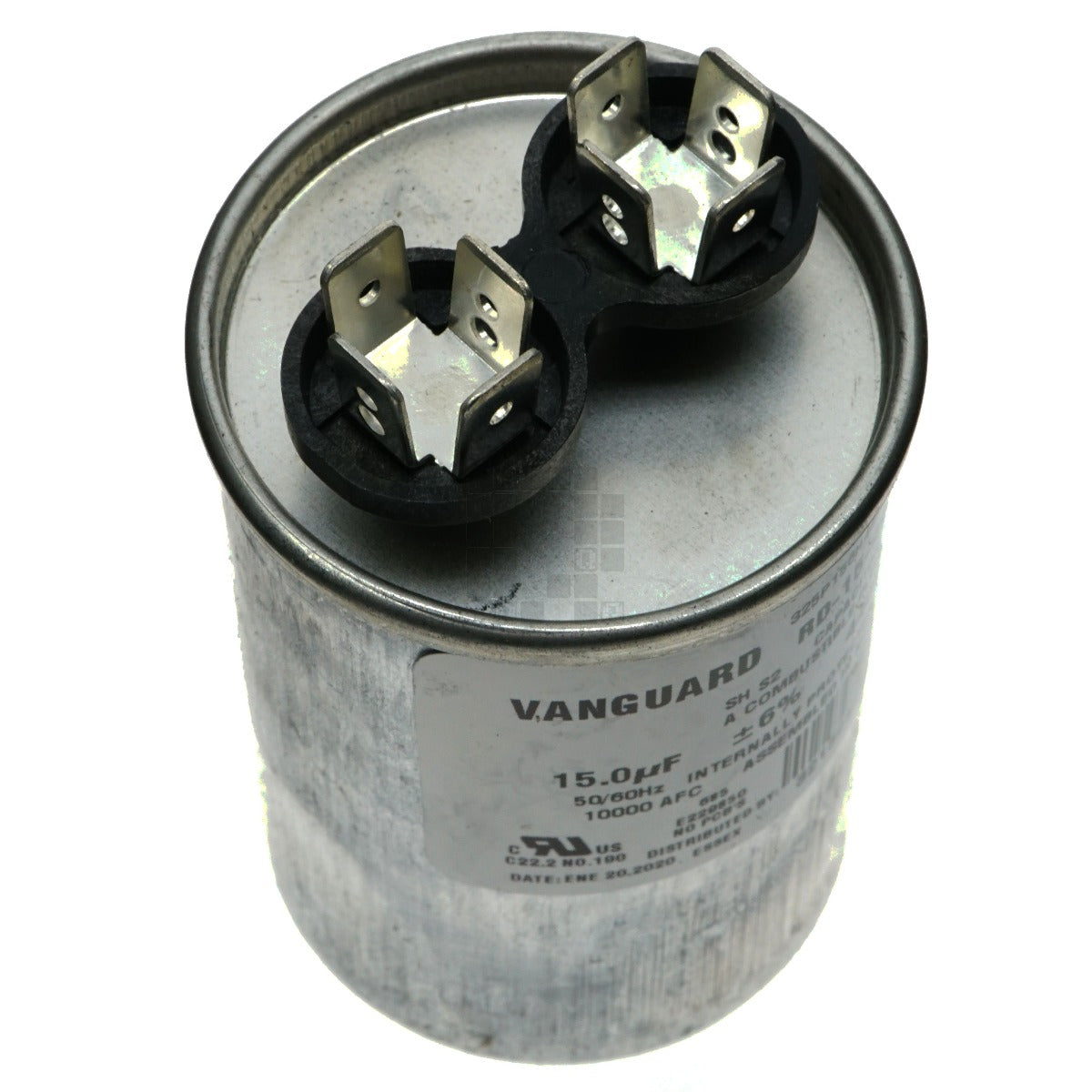

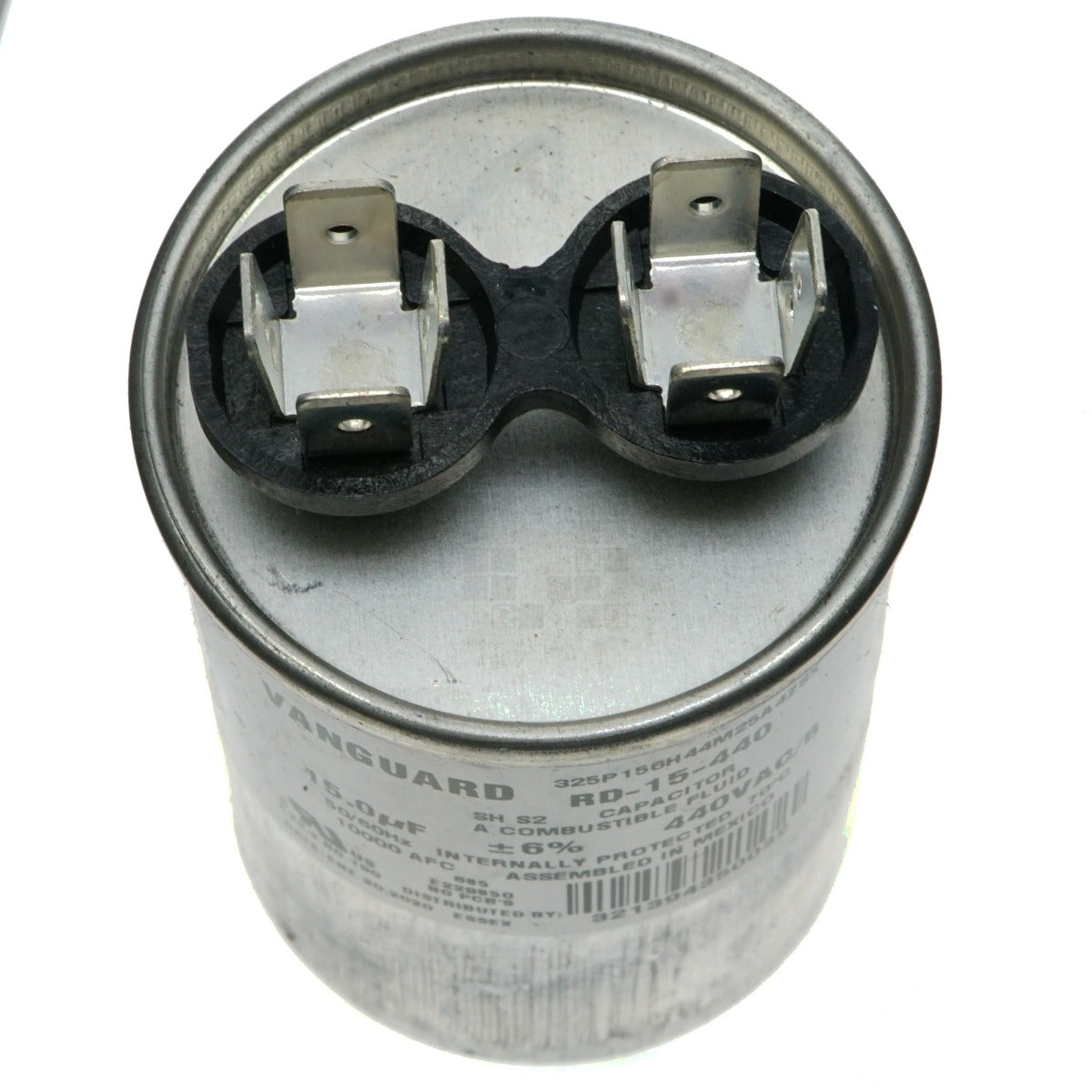

Connection	2 Posts Four 1/4” male spade terminals on each post
Resistor	None
Construction	Aluminum Case
Certifications/Approvals	UL, CUL, VDE & CE Approvals
Performance Specifications
Case Code
Distance Between Terminals	0.81"
UPC	None
Product Origin (COO)	Mexico

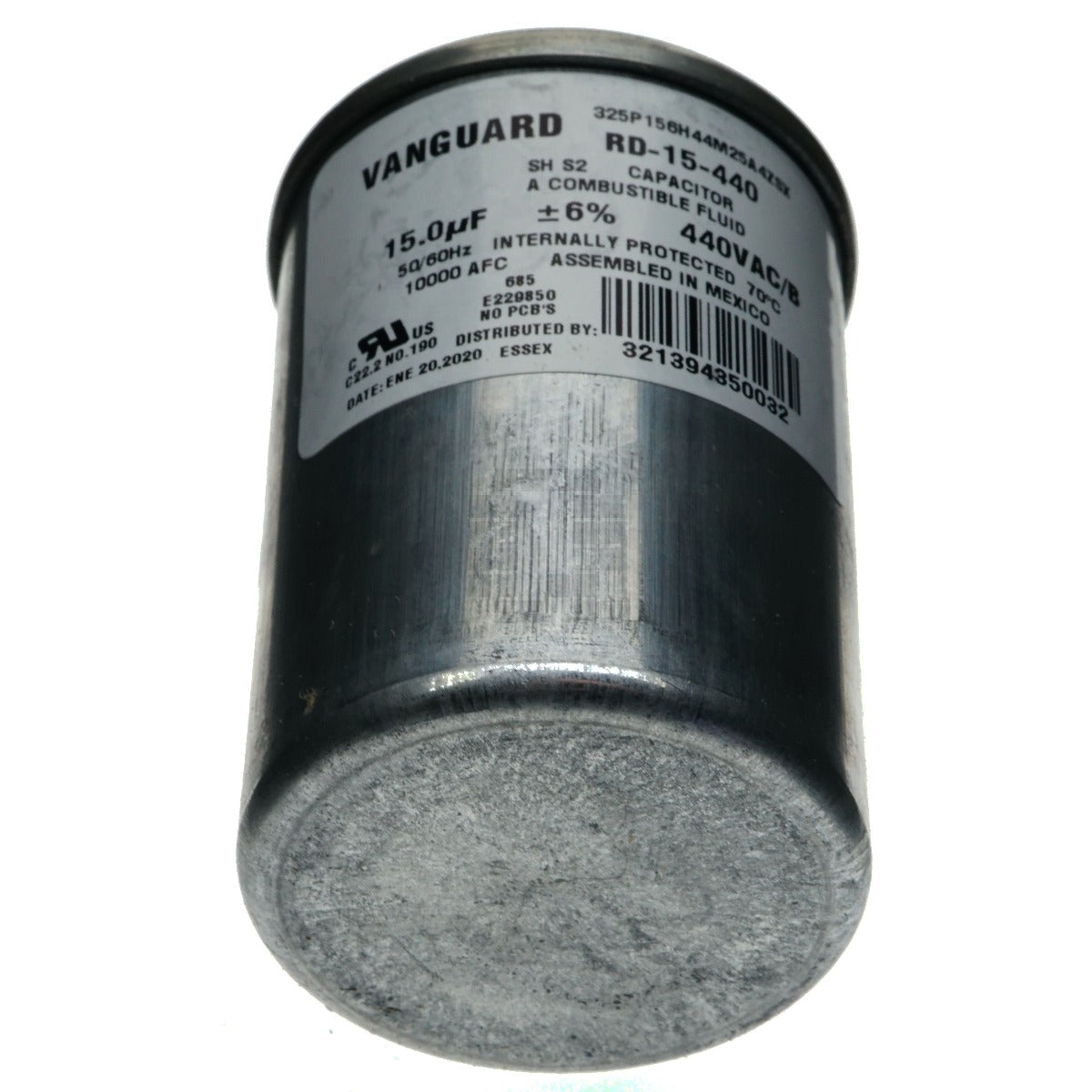

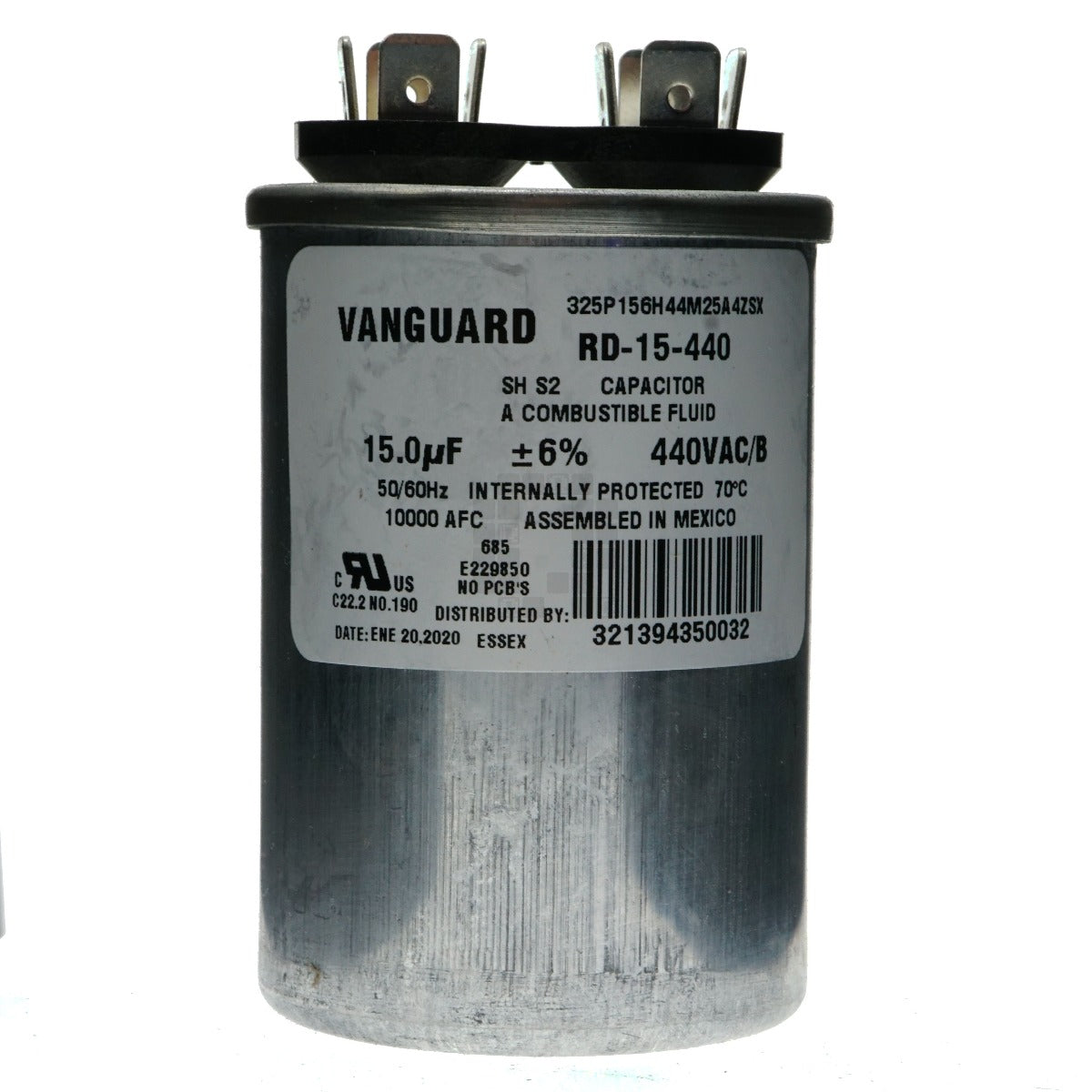

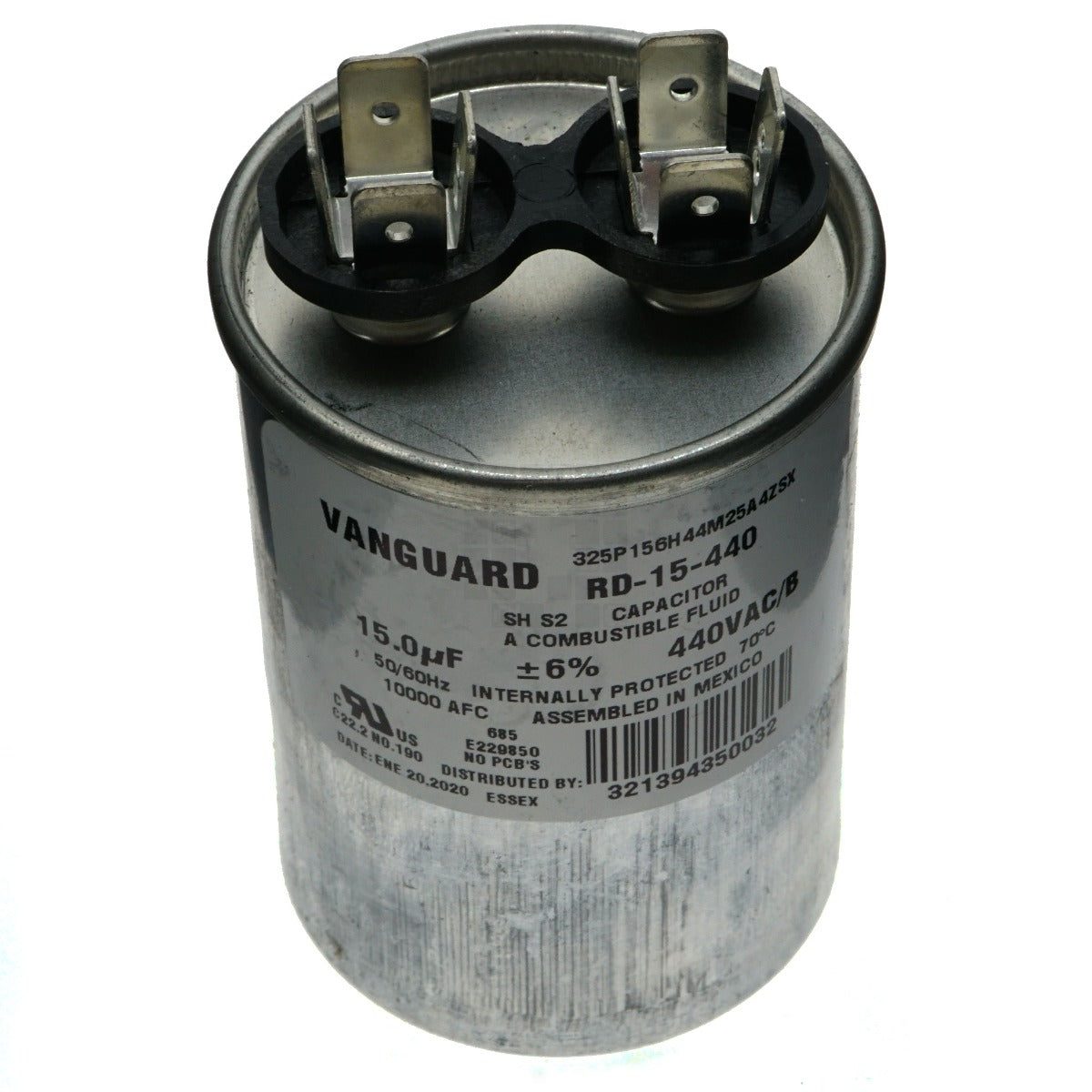

Product Label	Vanguard 325P156H44M25A4ZSX RD-15-440 SH S2 Capacitor 15.0 uF +/-6% 440VAC/B 50/60Hz Internally Protected 70°C 10000 AFC Assembled in Mexic No PCBs

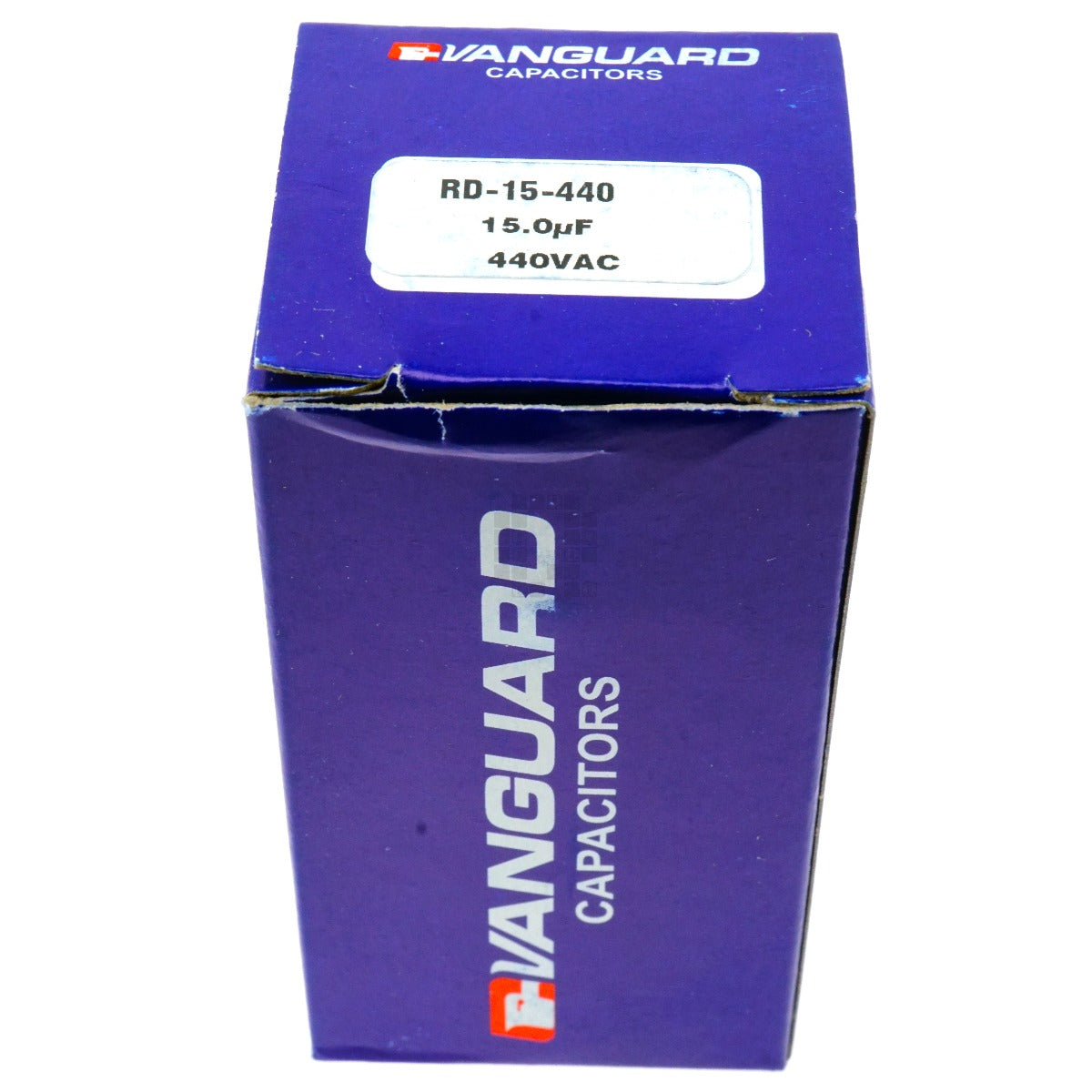

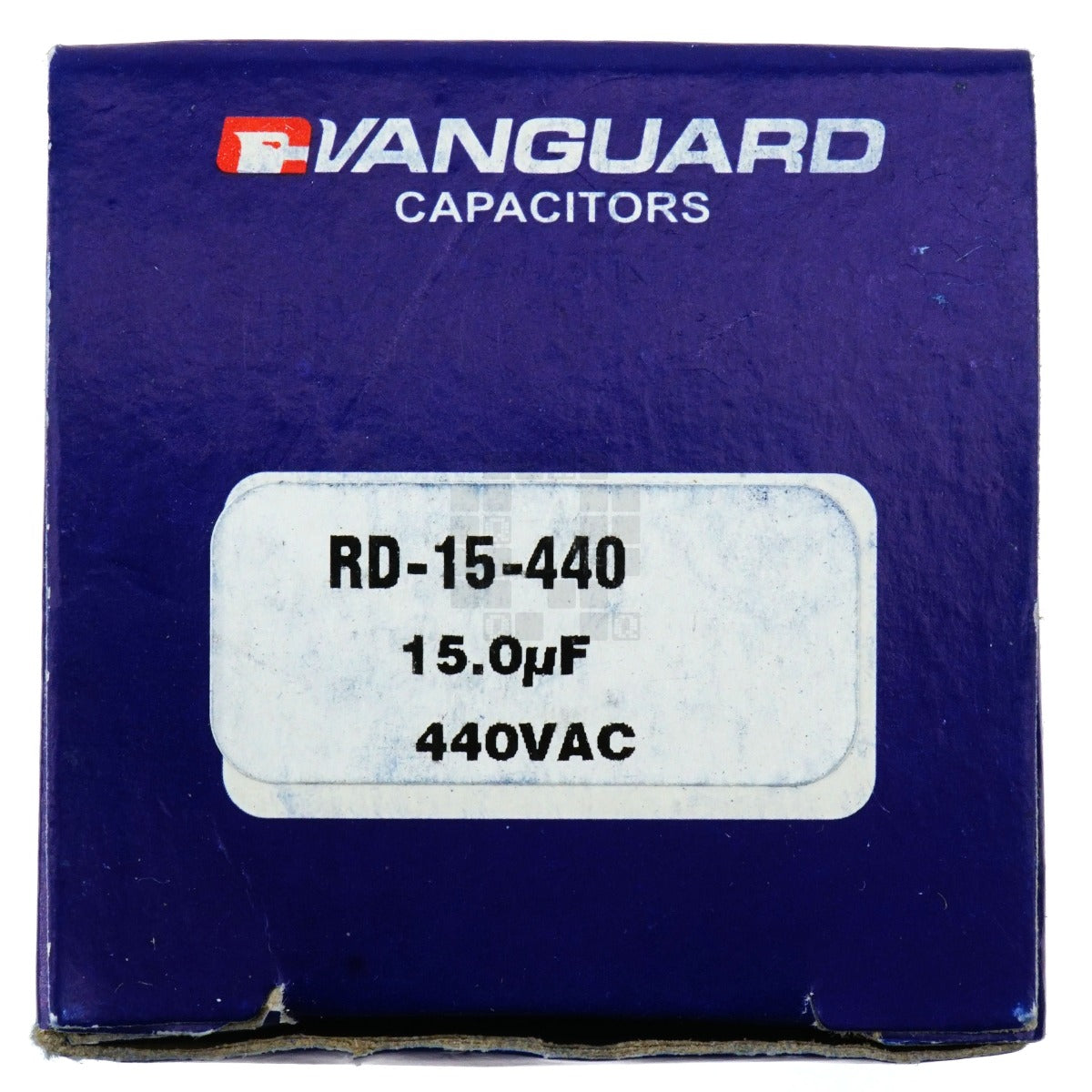

Package Label	Vanguard Capacitors RD-15-440 15.0 uF, 440VAC
Notes	An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.

Electrical
Amperage:

Battery System:

Contact Form:

Frequency:

50Hz
60Hz

Protection Type:

Terminal Type:

1/4" Male Spade

Voltage:

440VAC

Packaging & Dimensions:
Inside Diameter:

Outside Diameter:

1.750 in (1-3/4 in)

Overall Length:

Packaging Type:

Package Length:

Package Width:

Package Height:

Sold As:Each
