Vanguard RD-35/5-440 Electric Motor Dual Run Capacitor, 35 + 5uF, 440VAC 50/60Hz

Name: Vanguard RD-35/5-440 Electric Motor Dual Run Capacitor, 35 + 5uF, 440VAC 50/60Hz
Brand: Vanguard
SKU: RD-35/5-440
Price: 21.74 USD
Availability: InStock

(0)

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Vanguard SKU: RD-35/5-440

$21.74 USD

Only 2 left

Stock Low

Temperature range -40°C to 70°C
Suitable for 50 or 60 Hz
Metal Case
1/4" spade terminals
UL Recognized Pressure Sensitive Interrupter

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling Product Metafields (Unsorted)

Product Specifications :

Brand	Vanguard
Manufacturer Part Number	RD-35/5-440 328P3505H44N37A5 328P3505H44N37A5ZX
Cross Reference (Fit/Form/Function)
Capacitance	35 + 5 uF +/-6%
Working Voltage	440 VAC
Frequency	50/60 Hz
Working Temperature Range	-40°C to +70°C -40°F to +158°F
Type	Run Capacitor Metallized Polypropylene Film

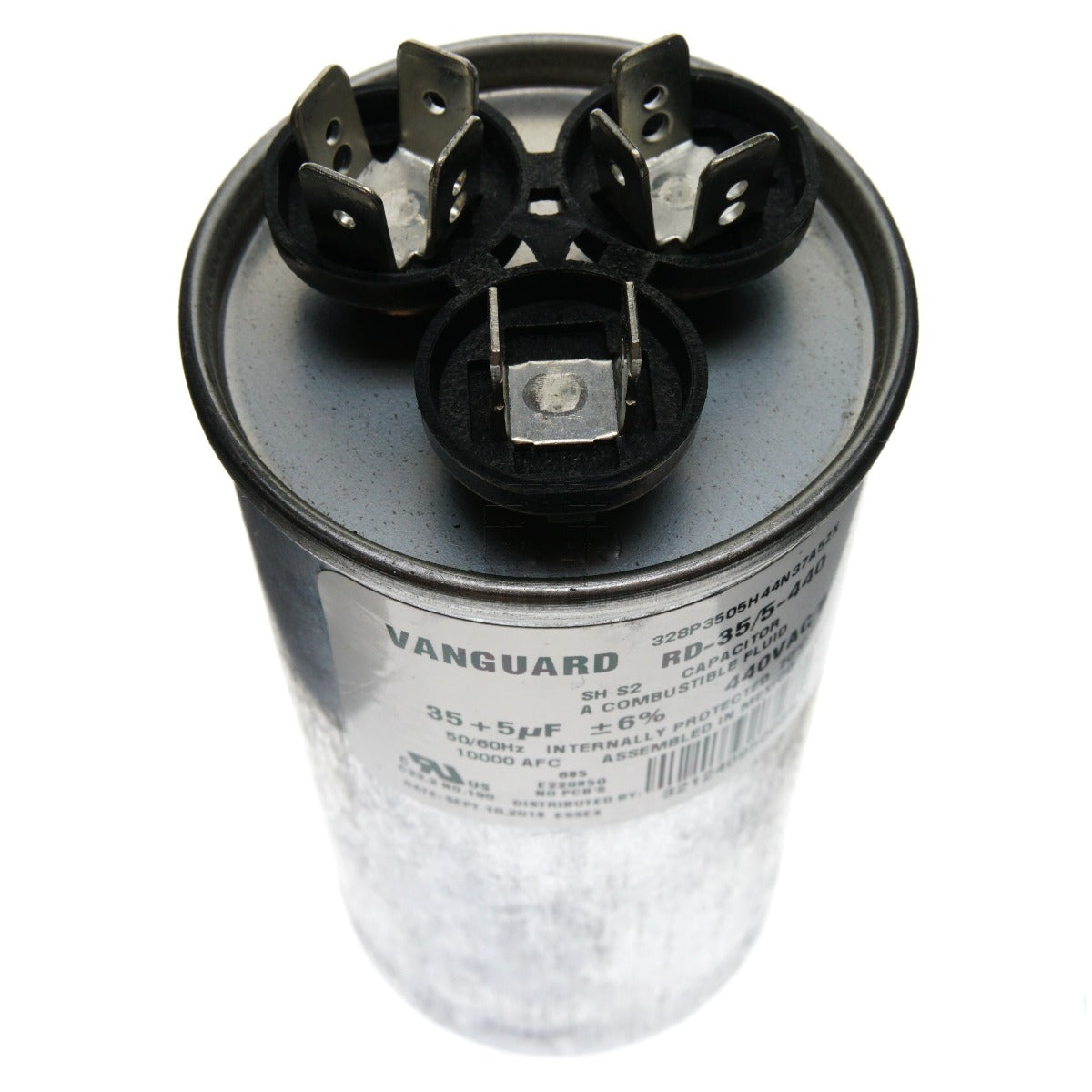

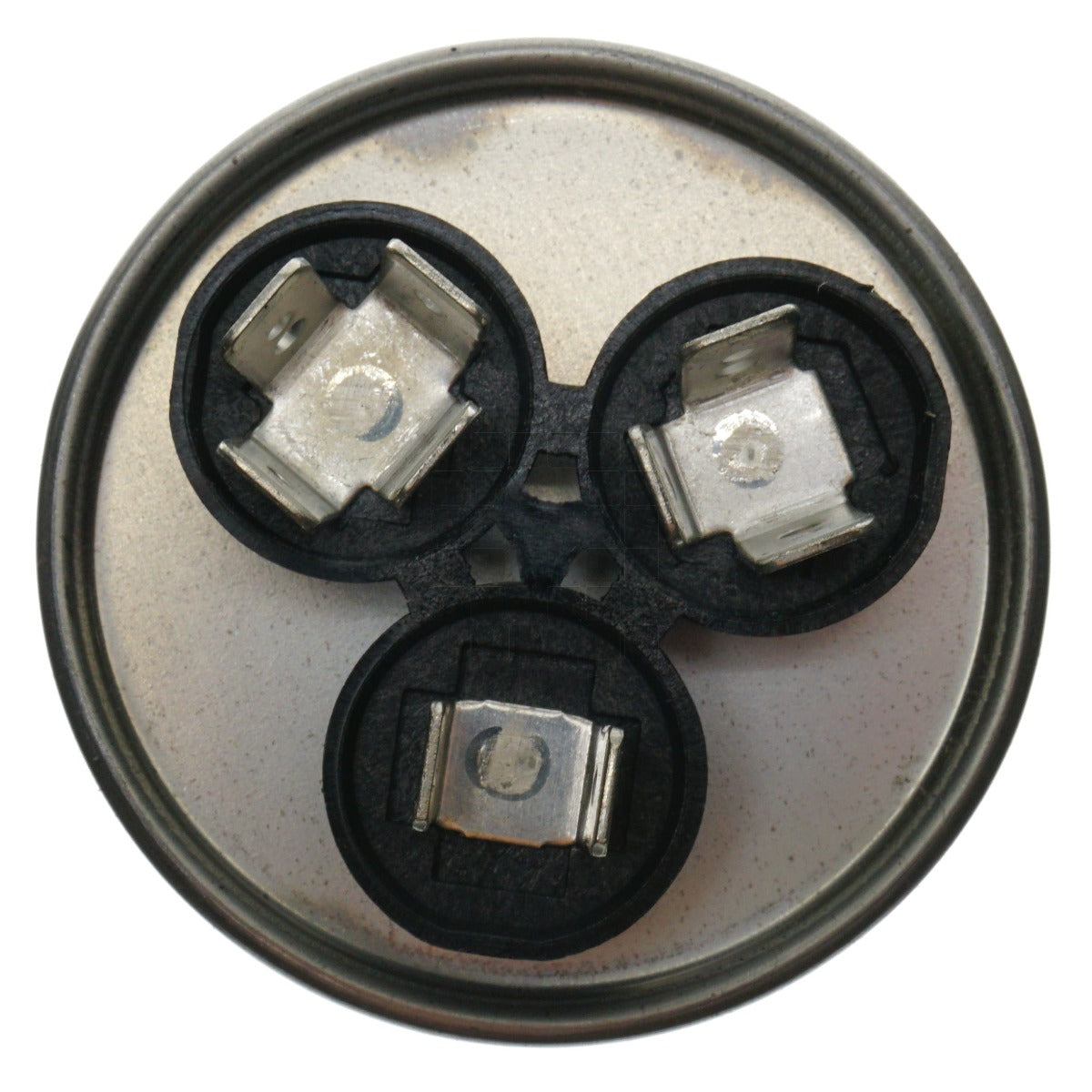

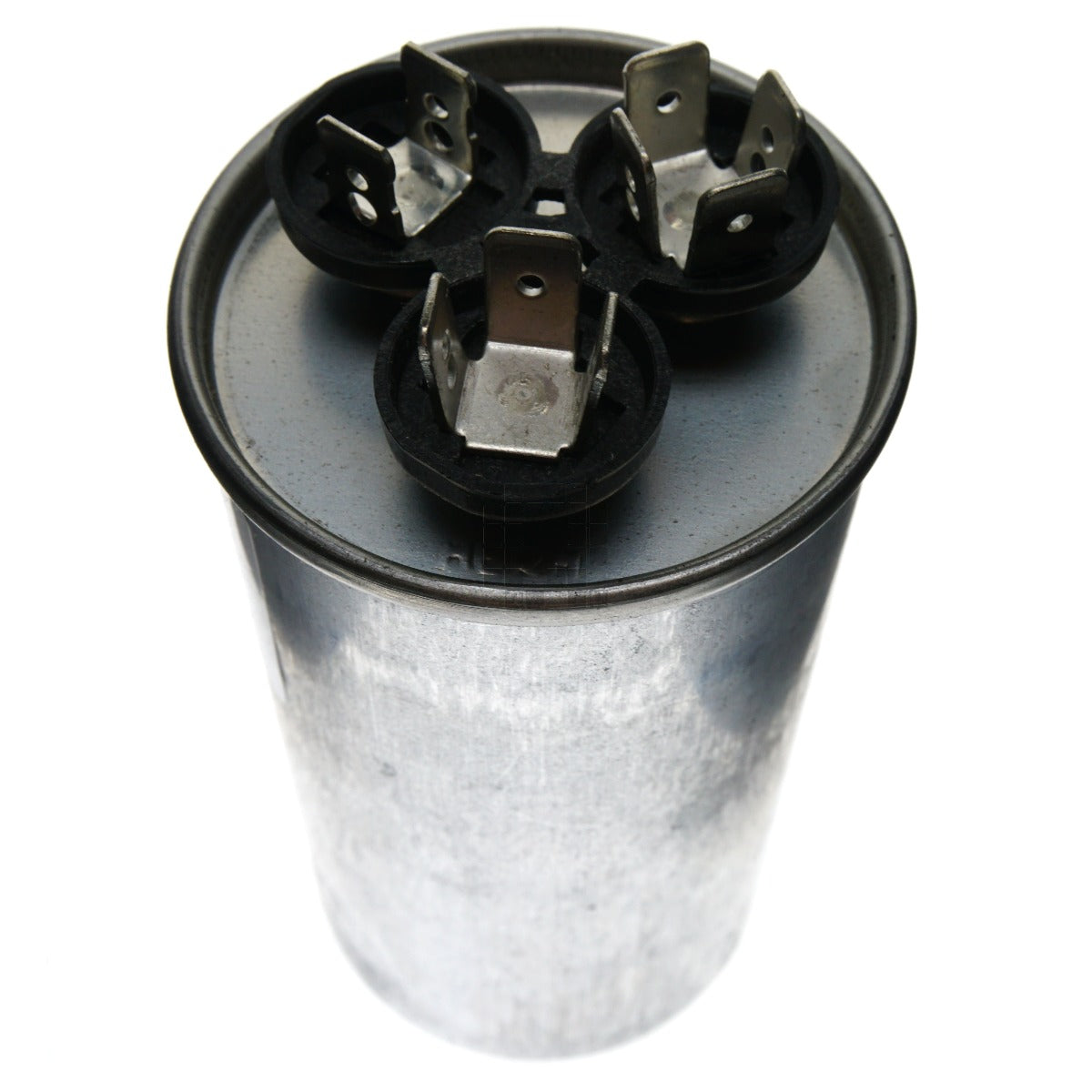

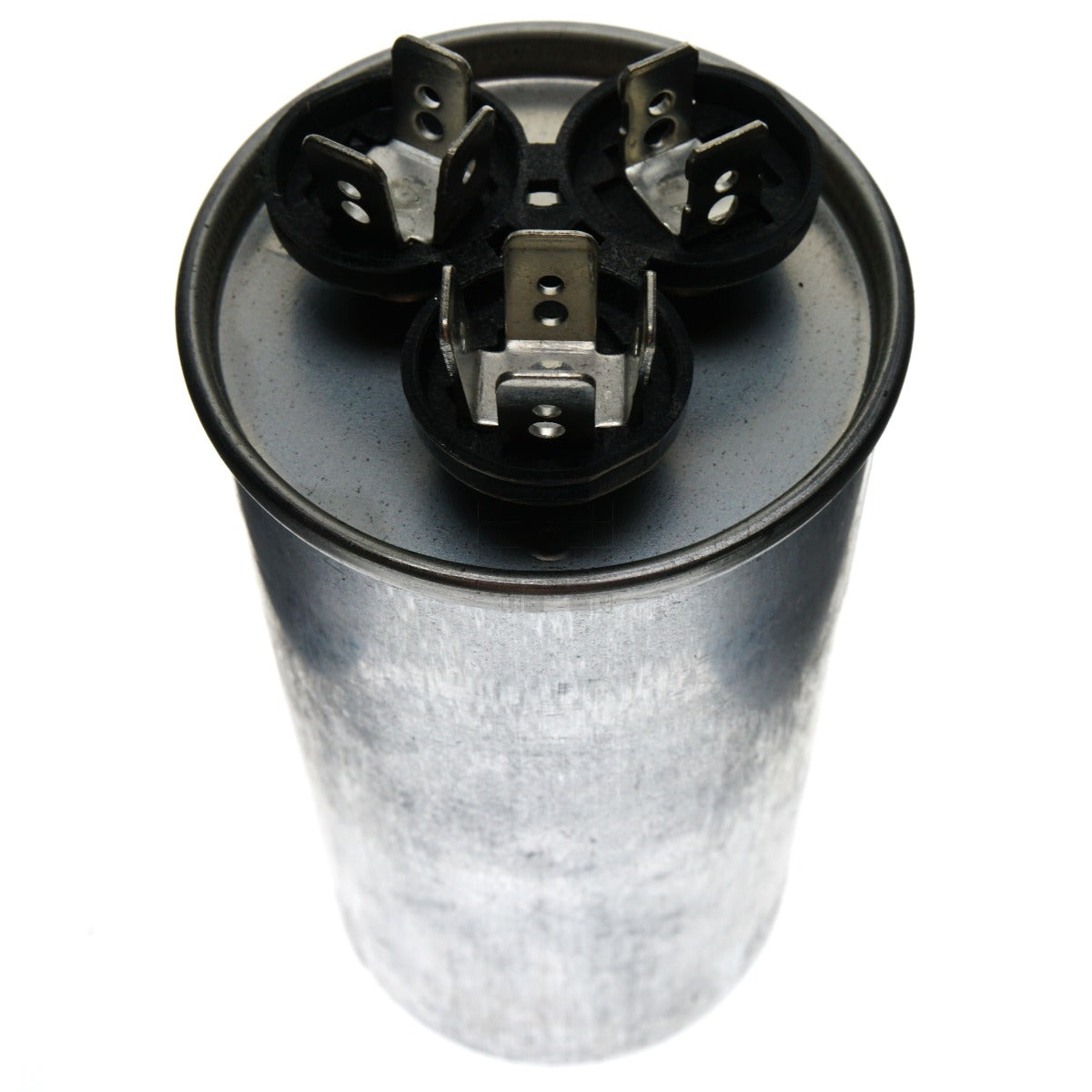

Connection	3 Posts Four 1/4” male spade terminals (C) Three 1/4” male spade terminals (HERM) Two 1/4” male spade terminals (FAN)
Resistor	None
Construction	Aluminum Case
Certifications/Approvals	UL, CUL, VDE 7 CE Approvals
Rated Life	60,000 Hours 94% Survival
Case Code
Dissipation Factor	0.1% @ 60Hz and 25°C 1% @ 1,000Hz and 25°C
UPC	None
Product Origin (COO)	Mexico

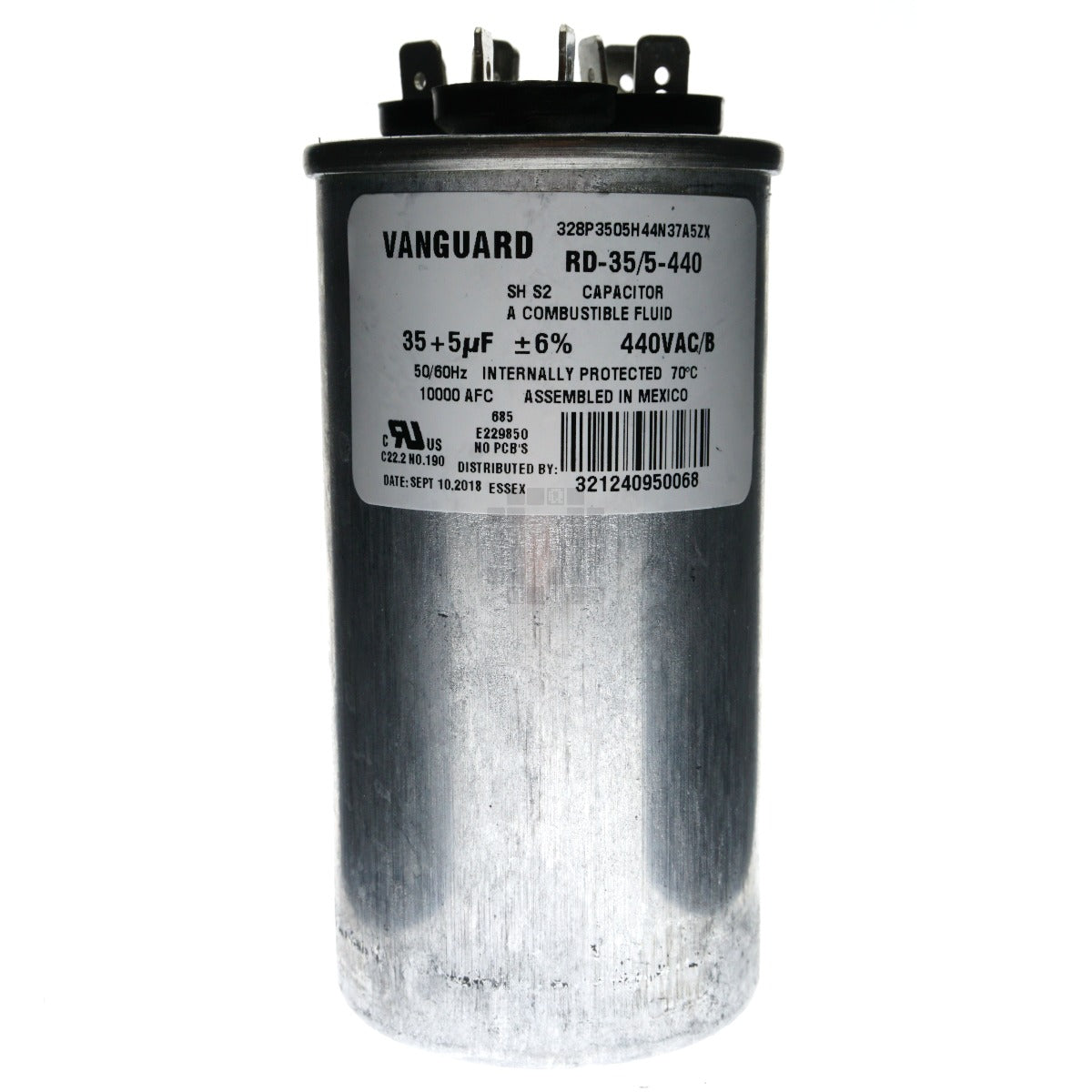

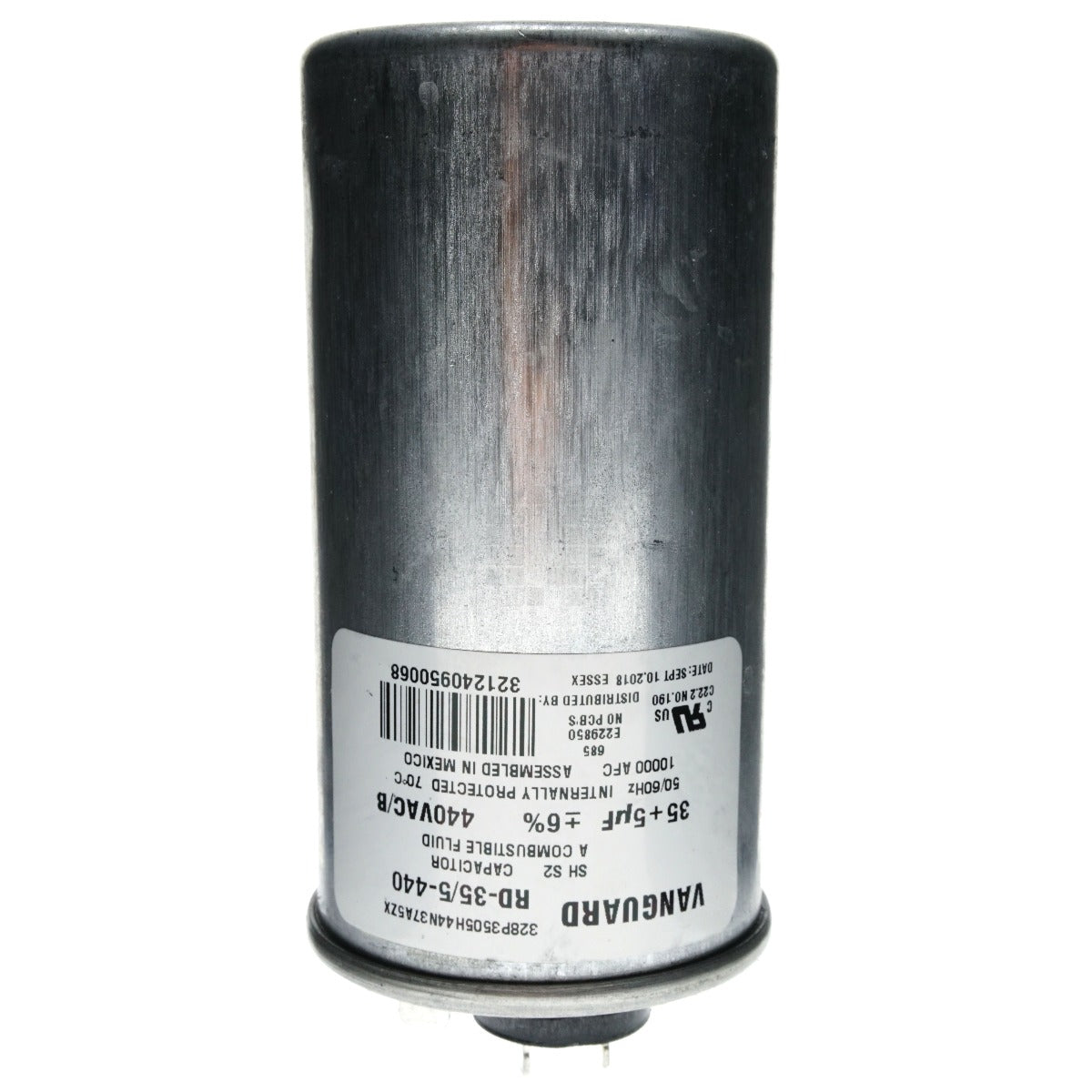

Product Label	Vanguard 328P3505H44N37A5ZX RD-35/5-440 SH S2 Capacitor A Combustible Fluid 35+5uF +/-6% 440VAC/B 50/60Hz Internally Protected 70°C 10000 AFC Assembled in Mexico No PCB's

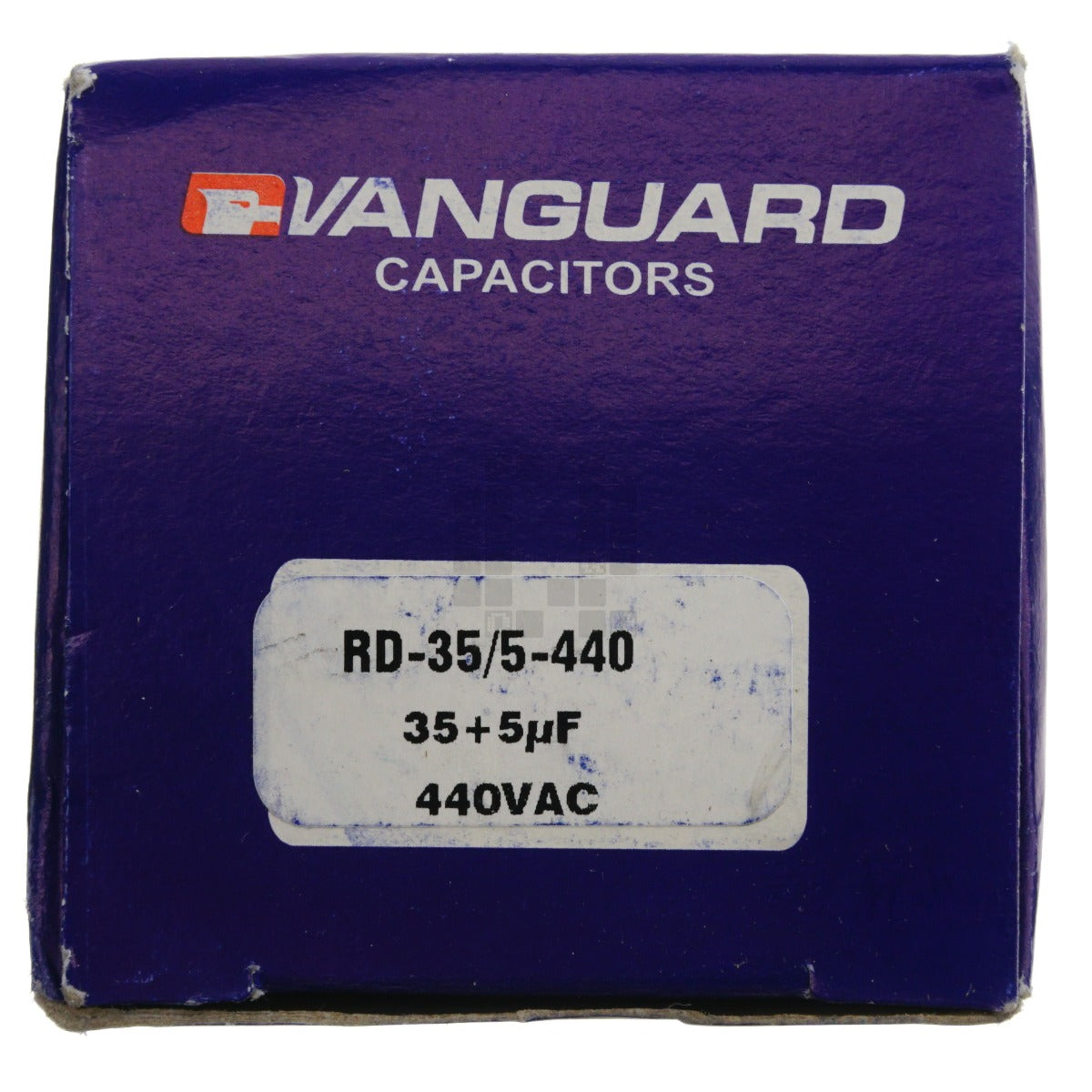

Package Label	Vanguard Capacitors RD-35/5-440 35+5uF 440VAC
Notes	An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.

Dimensions & Weights :

Product Color	Silver
Product Shape	Cylinder
Product Dimensions	2" Diameter 3.87" Height (Case Only) 4.34" Height (Case and Terminals)
Distance Between Terminals	0.81" +/-0.06"
Product Weight	9 oz
Package Dimensions (LxWxH)	2.25" x 2.25" x 4.50"
Package Weight	10 oz
