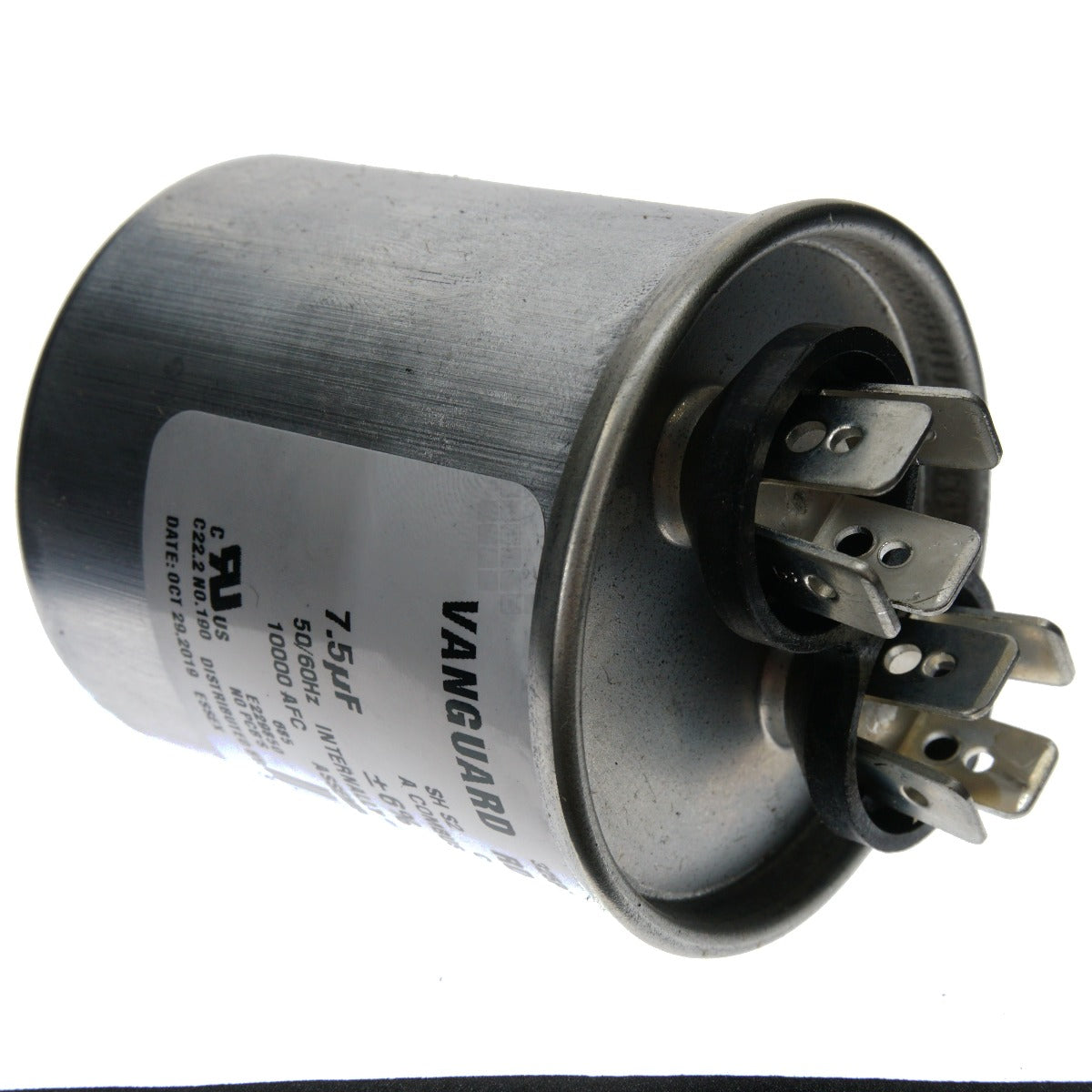

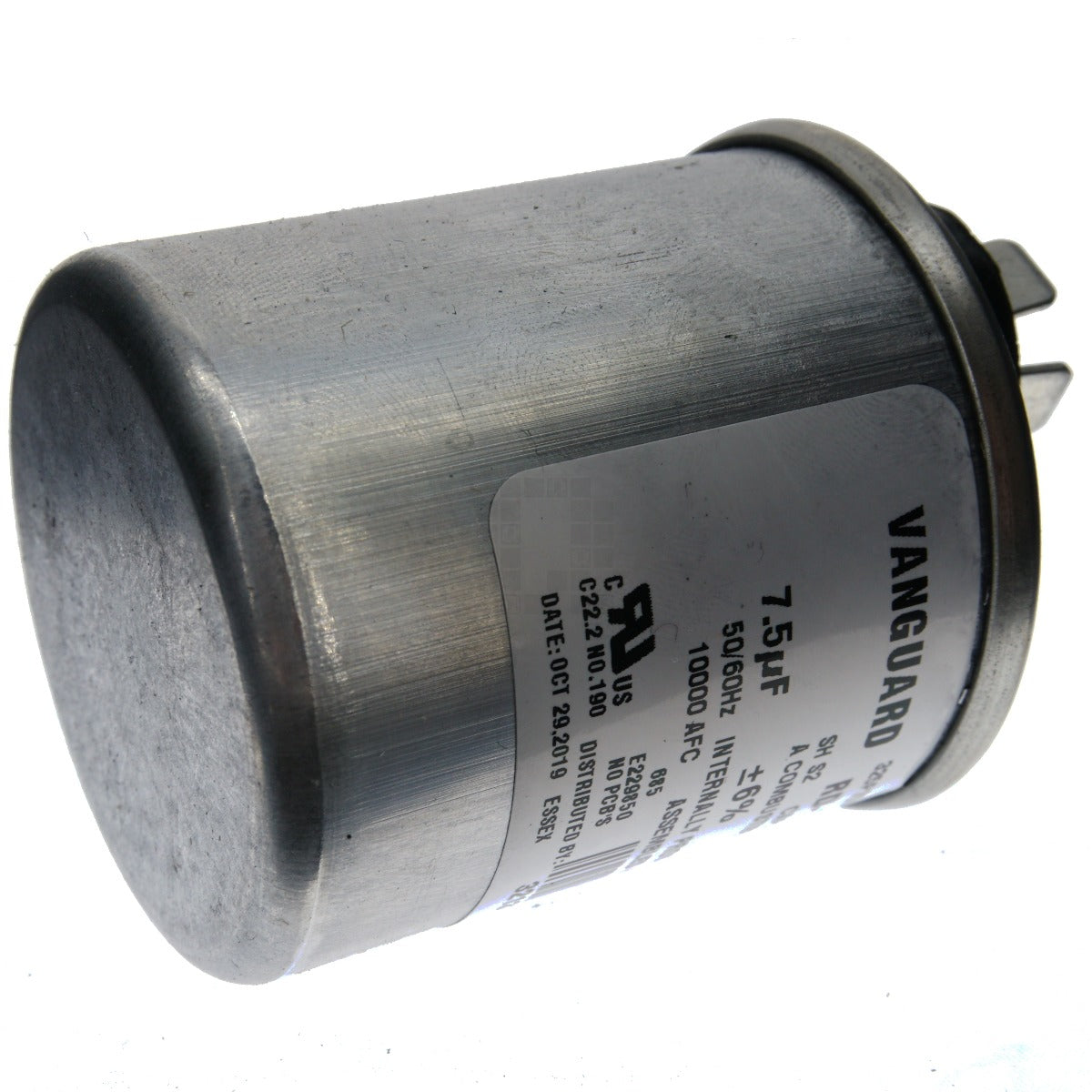

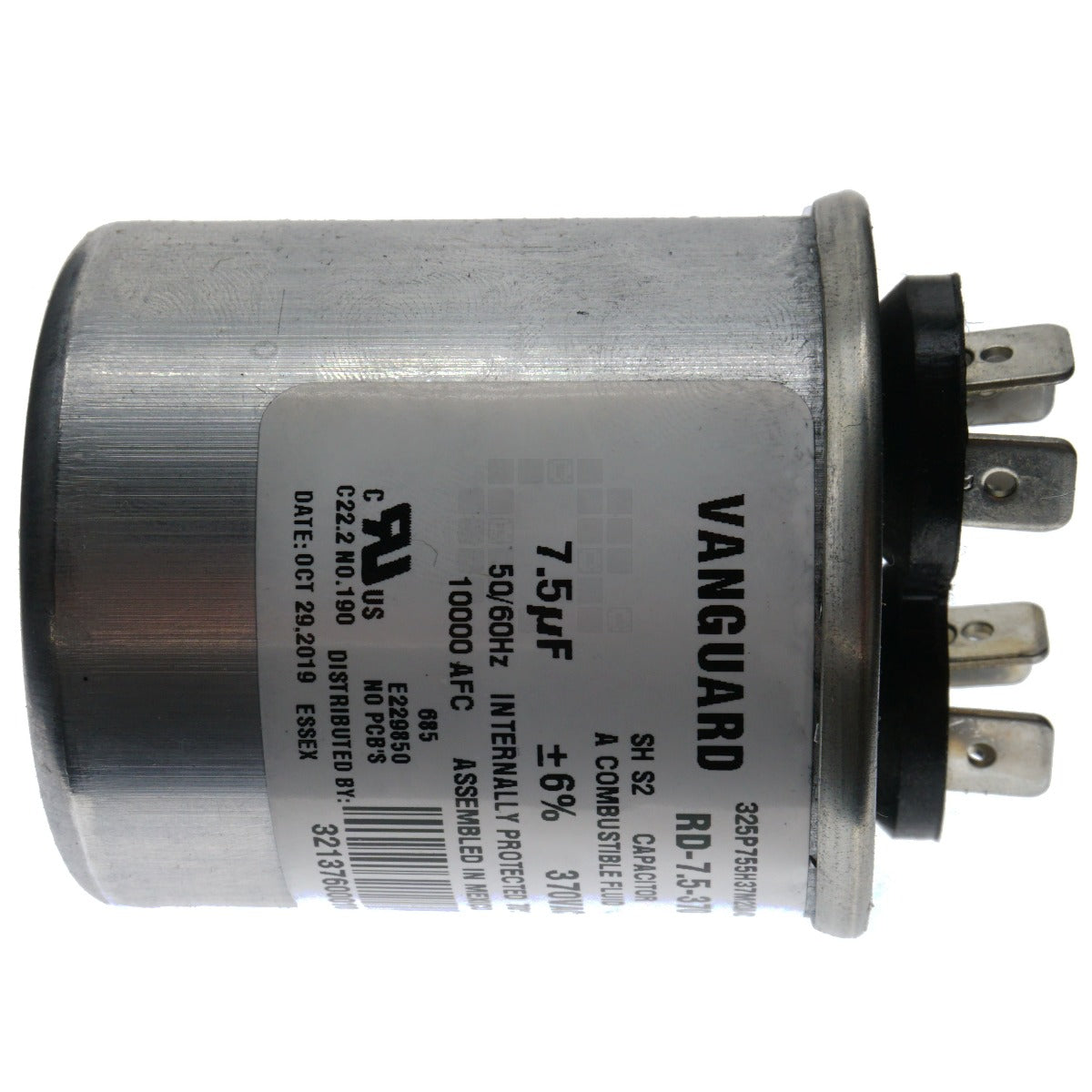

Vanguard RD-7.5-370 Electric Motor Run Capacitor, 7.5 uF, 370 VAC, 50-60Hz

(0)
Vanguard Capacitors logo essex brownell

Please note: While we strive for accuracy in our descriptions and images, the actual color and appearance of the items may vary slightly from the photographs due to lighting conditions or varying computer monitor settings.

Vanguard SKU: RD-7.5-370
$7.44 USD
In stock - 4 items available
Usually ships within 48 hours
  • Temperature range -40°C to 70°C
  • Suitable for 50 or 60 Hz
  • Metal Case
  • 1/4" spade terminals
  • UL Recognized Pressure Sensitive Interrupter

Product Information

Product Description Product Metafields About the Manufacturer Shipping & Handling
Brand Vanguard
manufactured by NGM
Manufacturer Part Number RD-7.5-370
325P755H37M20A4Z
325P755H37M20A4ZSX
Cross Reference (Fit/Form/Function)
Capacitance 7.5 uF +/-6%
Working Voltage 370 VAC
Frequency 50/60 Hz
Rated Life 60,000 Hours
Working Temperature Range -40°C to +70°C
Type Run Capacitor
Metallized Polypropylene Film

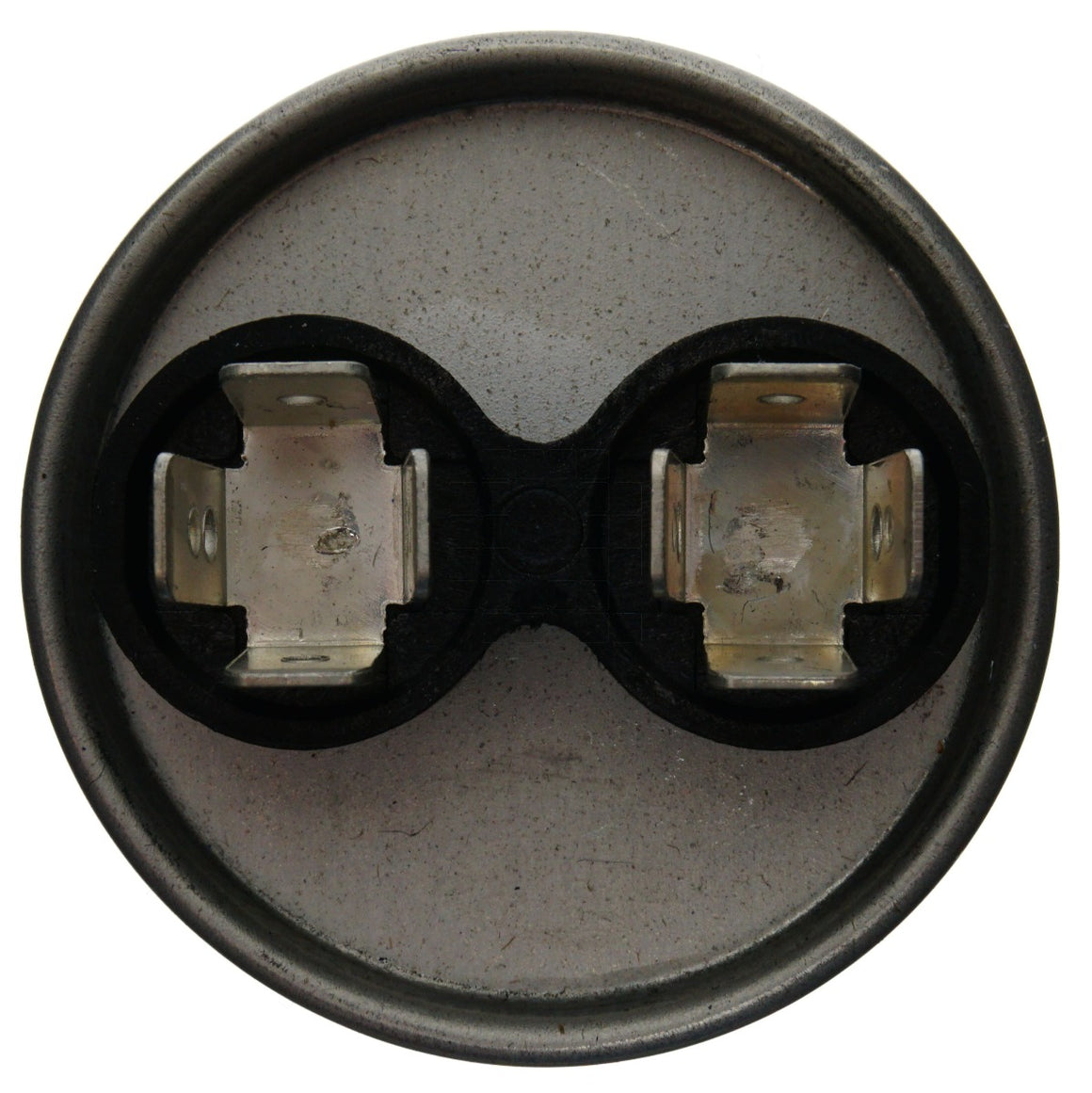

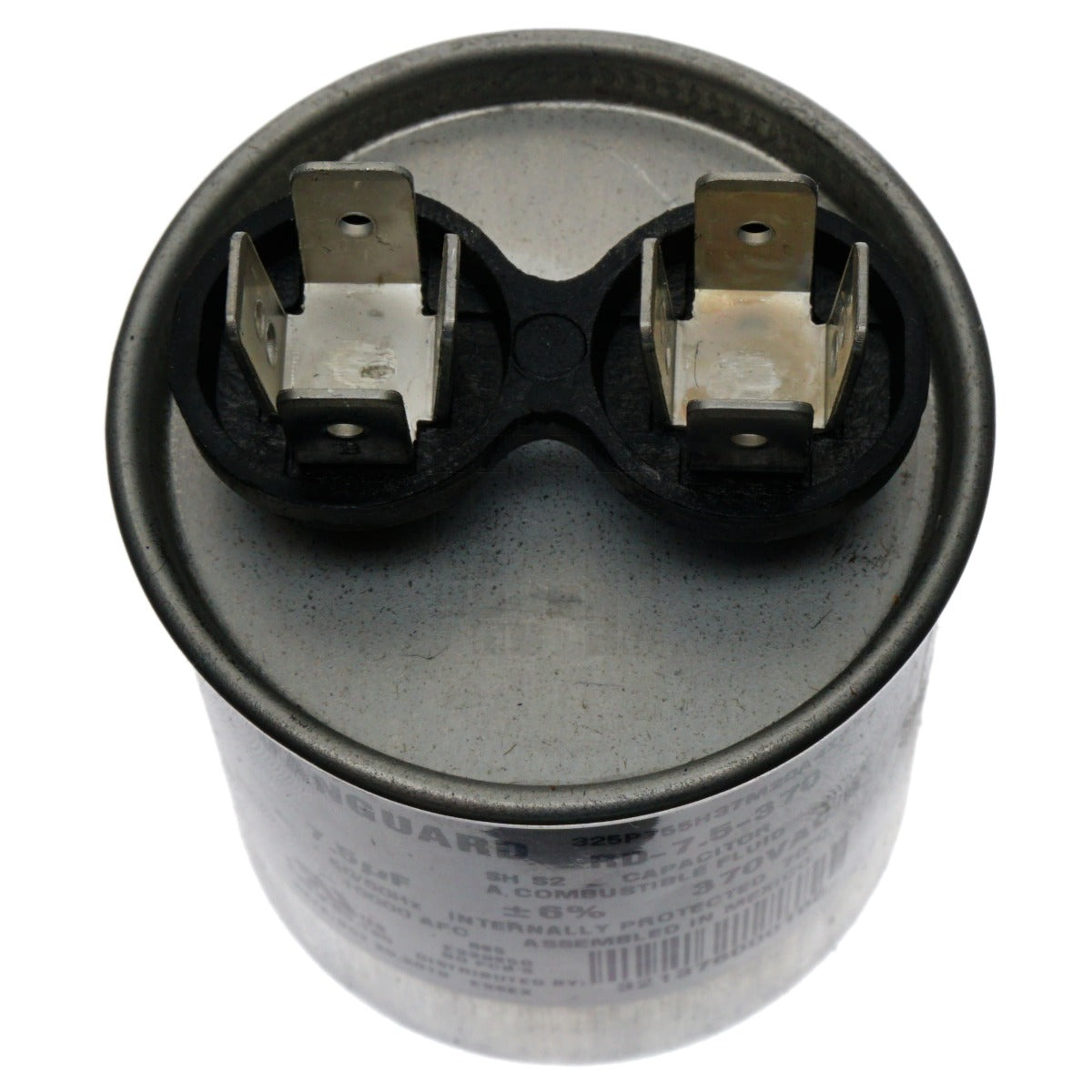

Connection 2 Posts

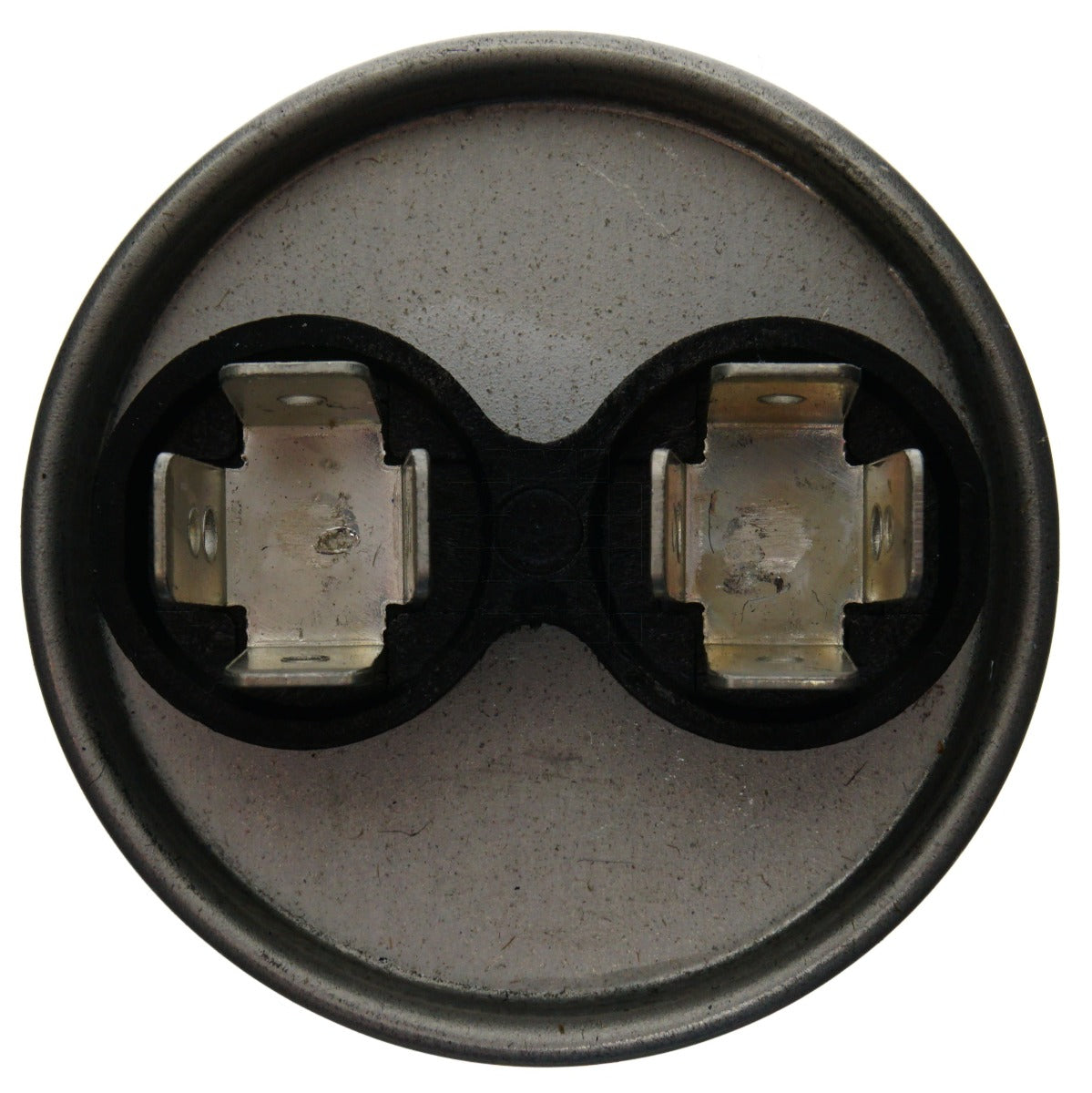

Four 1/4” male spade terminals on each post
Resistor None

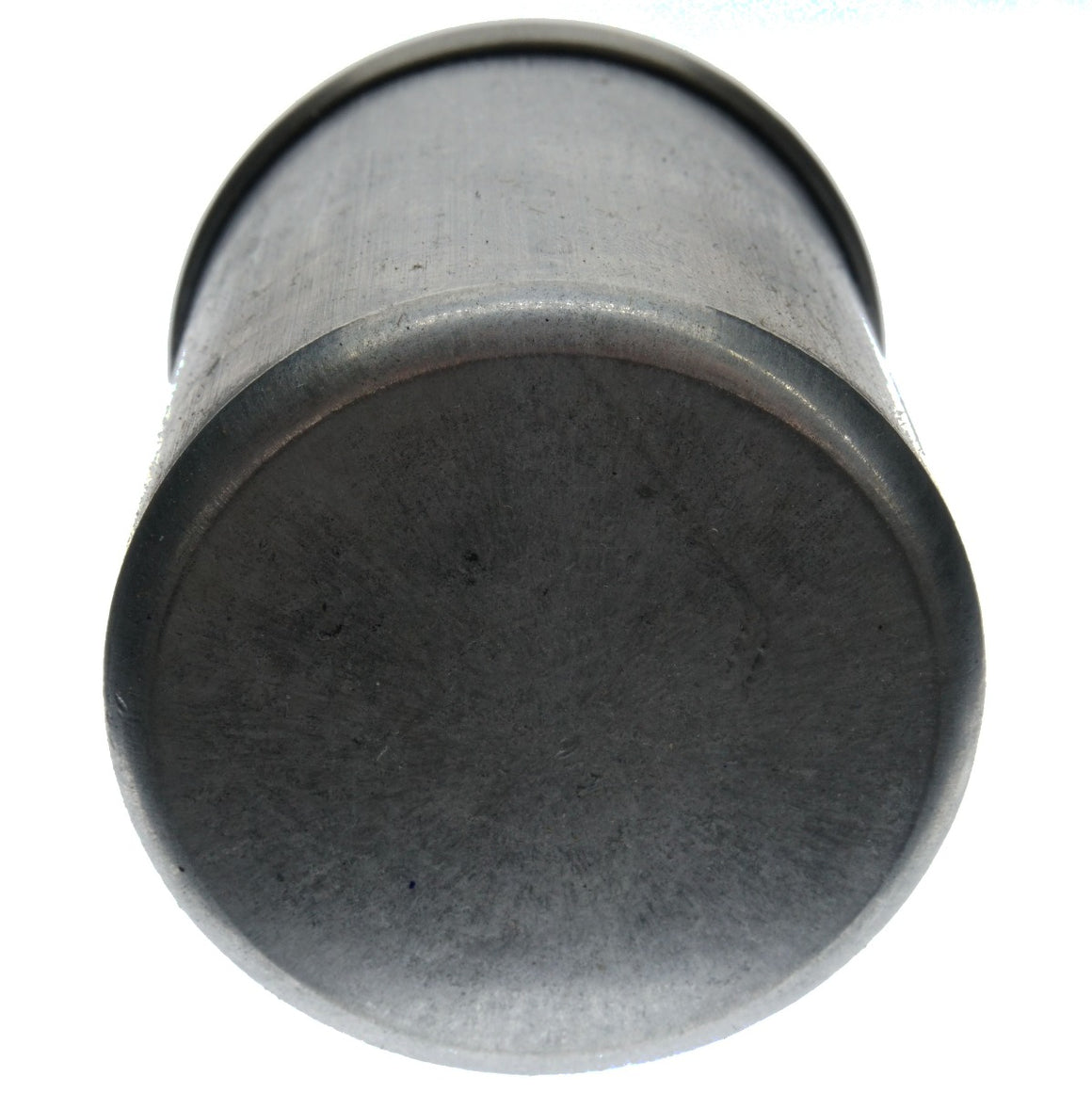

Construction Aluminum Case
Certifications/Approvals UL, CUL, VDE & CE Approvals
Maximum Fault Current 10,000 Amps
Case Code
Distance Between Terminals 0.81"
UPC None
Product Origin (COO) Mexico

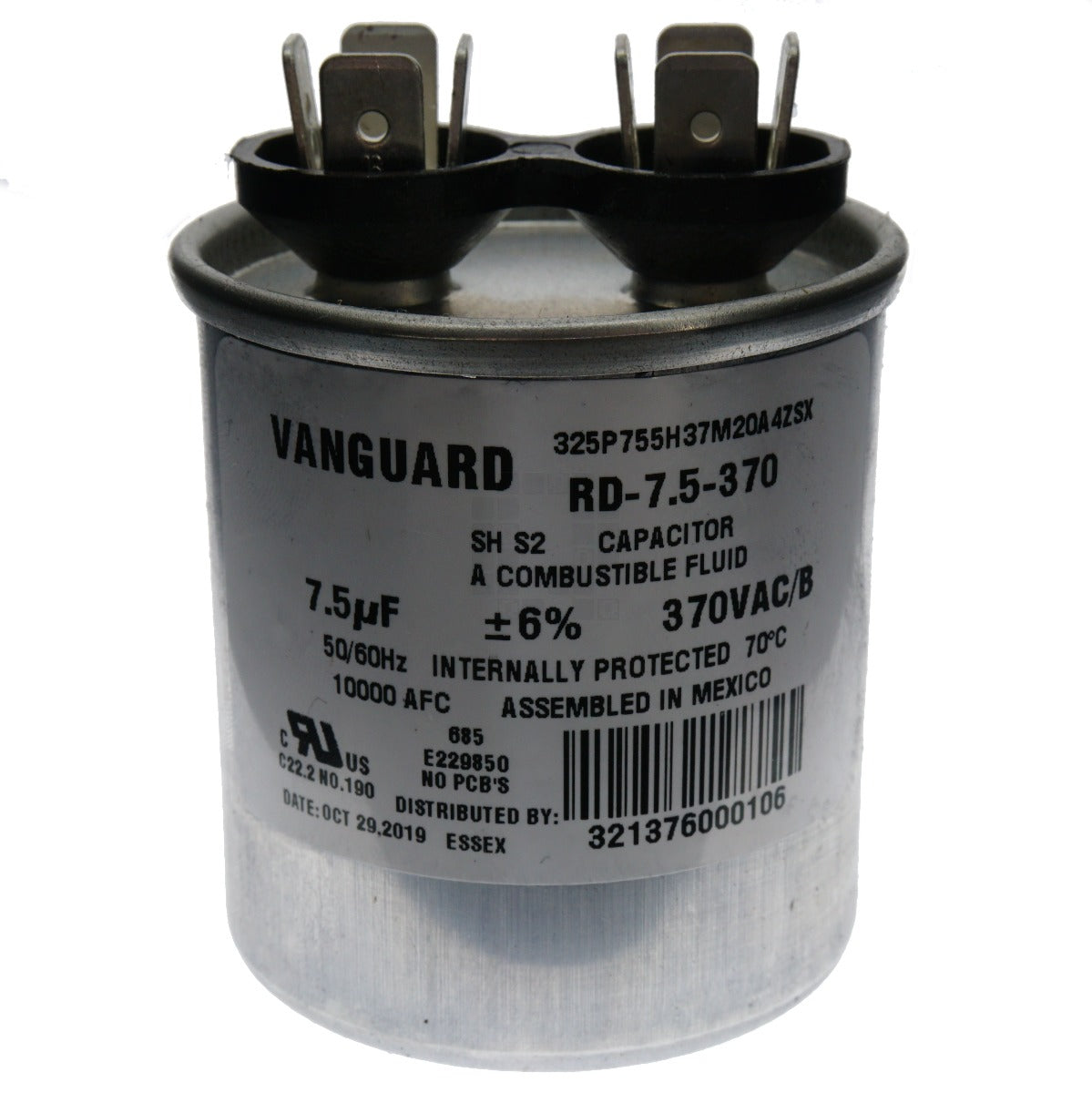

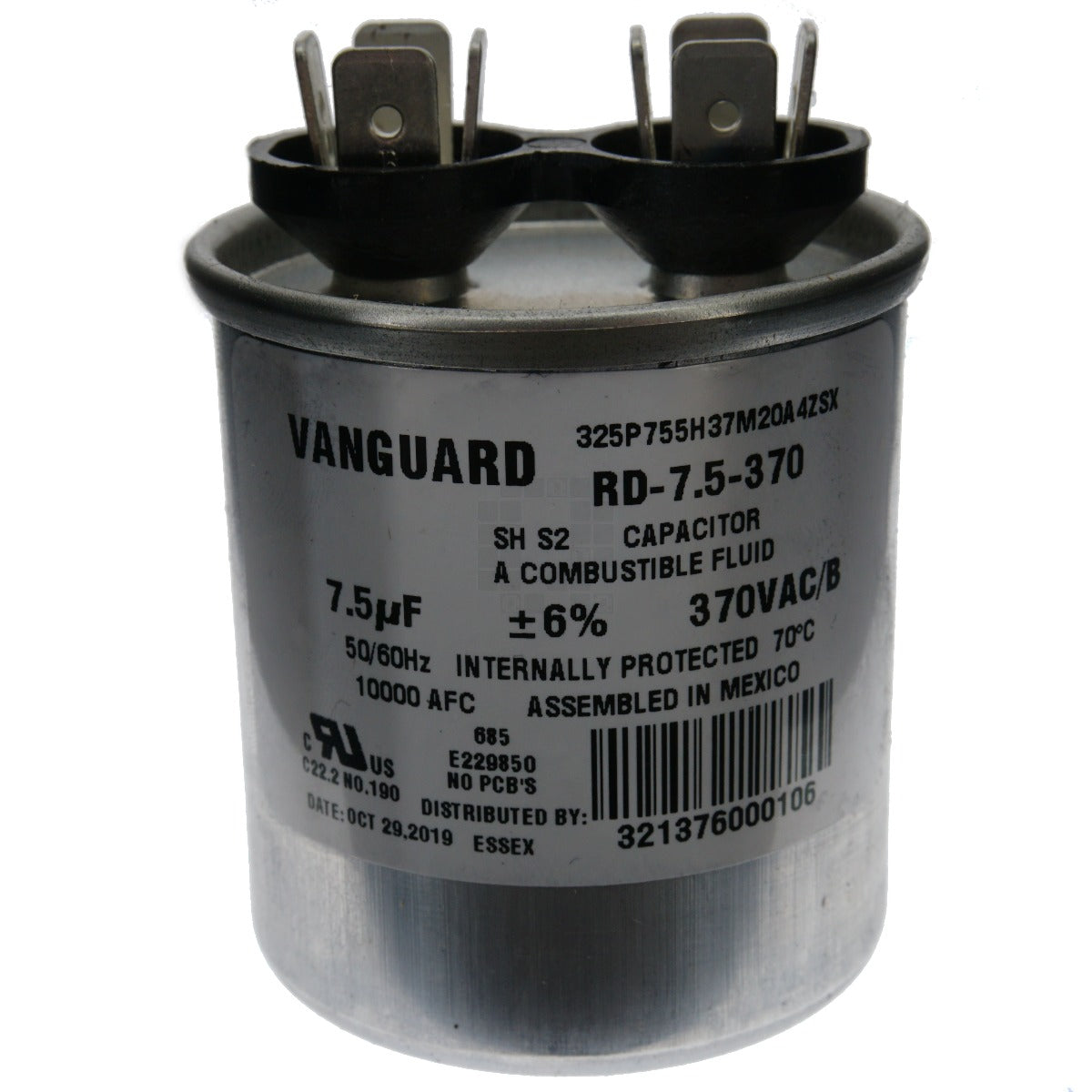

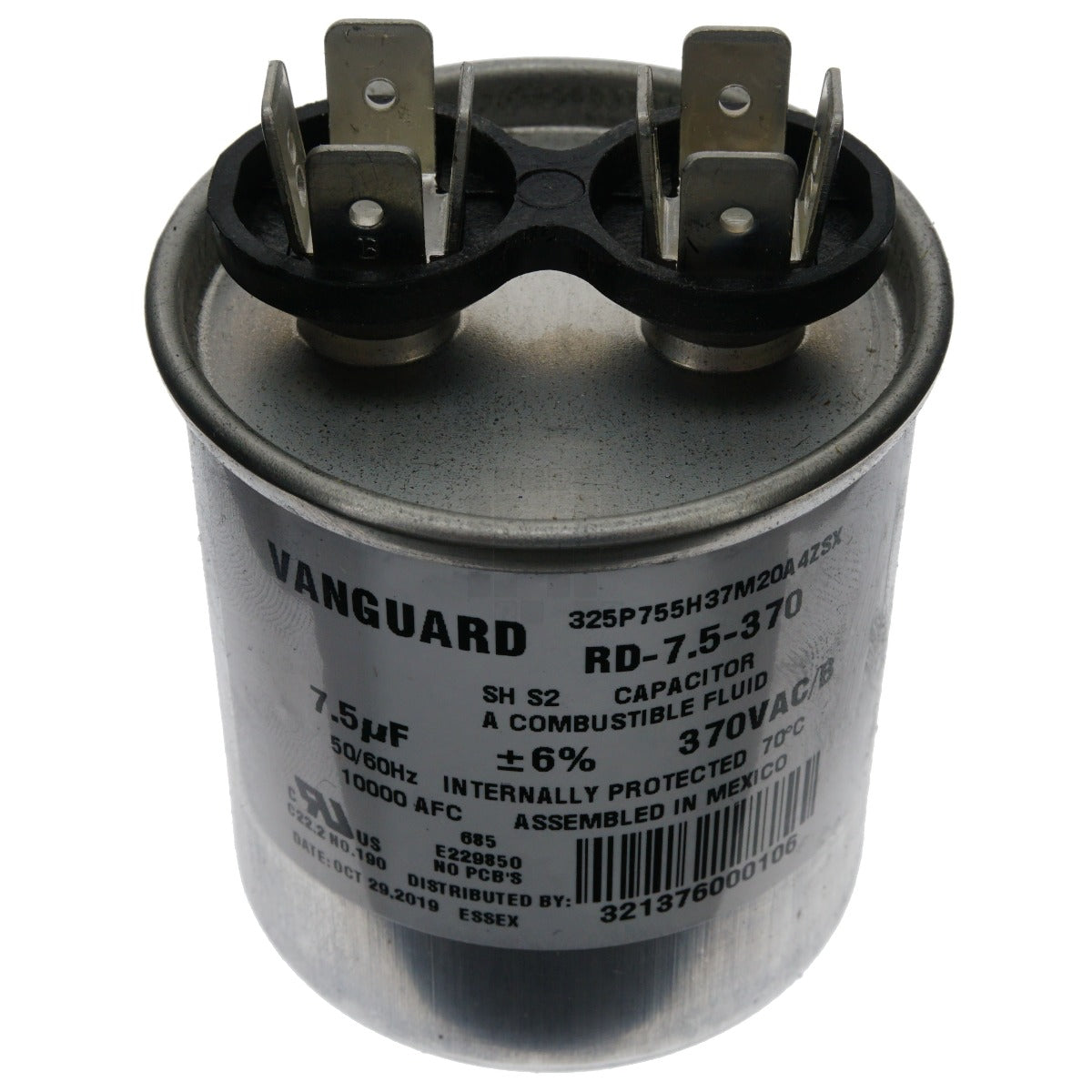

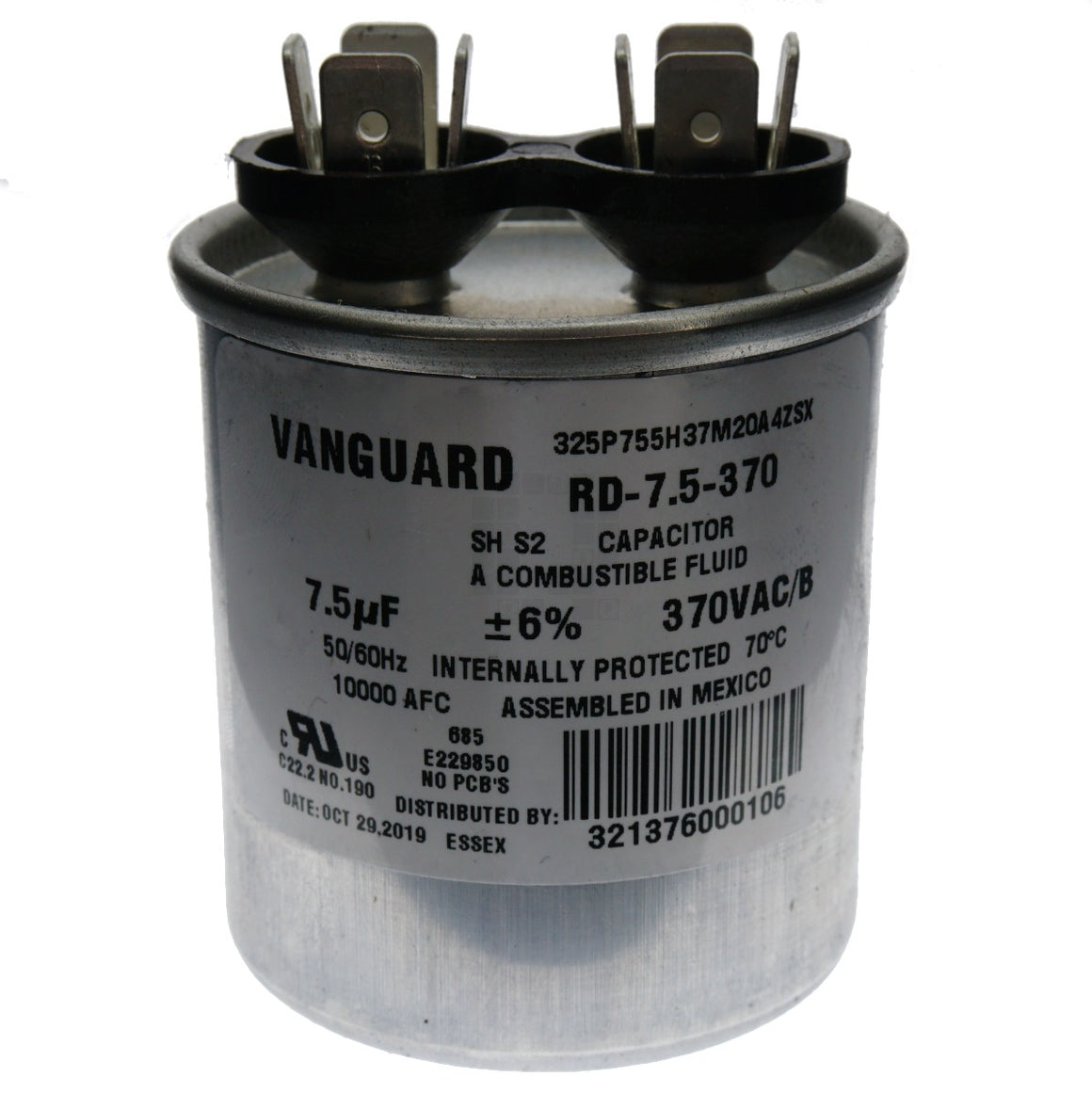

Product Label Vanguard 325P755H37M20A4ZSX
RD-7.5-370
SH S2 Capacitor
A Combustible Fluid
7.5 uF +/-6% 370VAC/B
50/60Hz Internally Protected 70°C
10000 AFC Assembled in Mexic
No PCB's

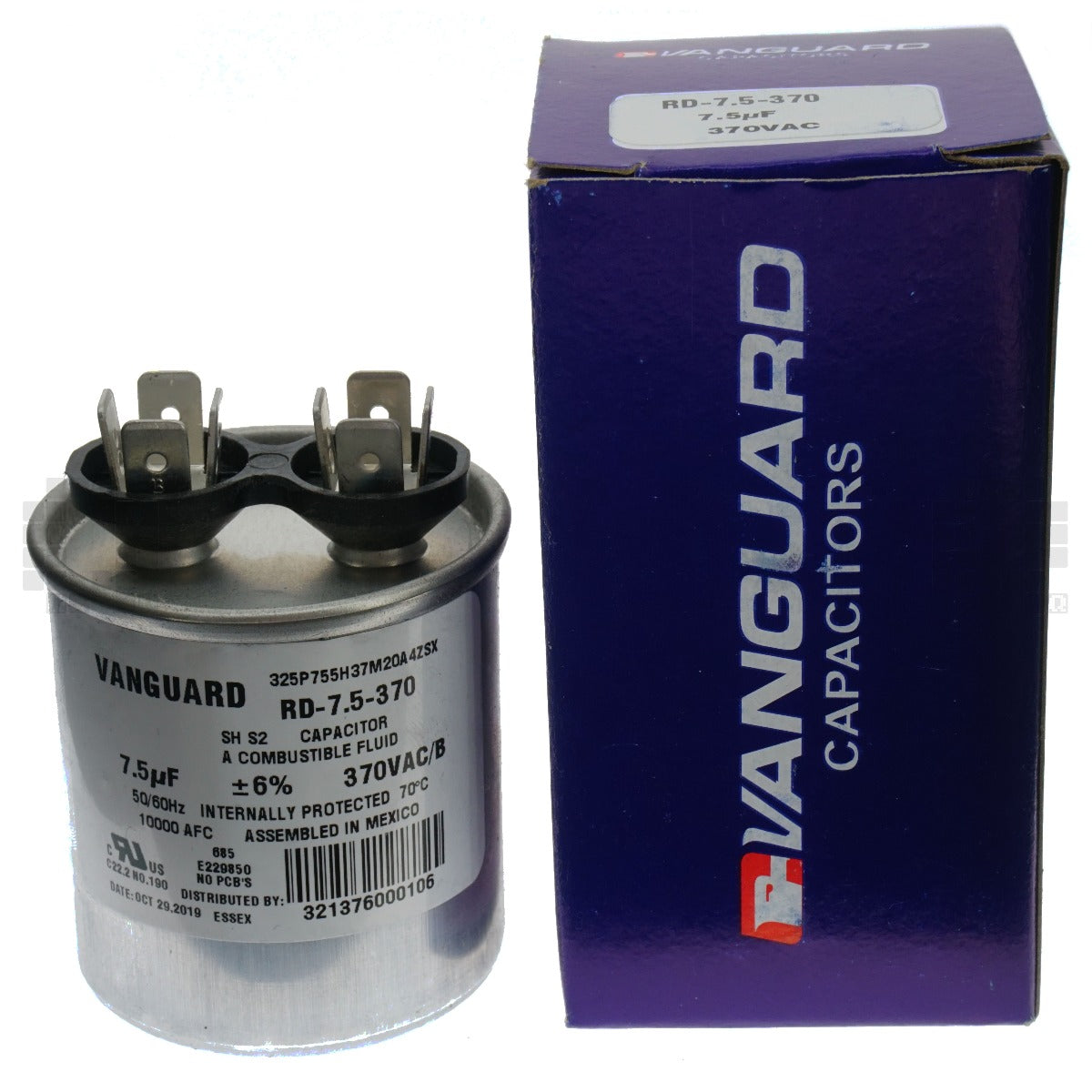

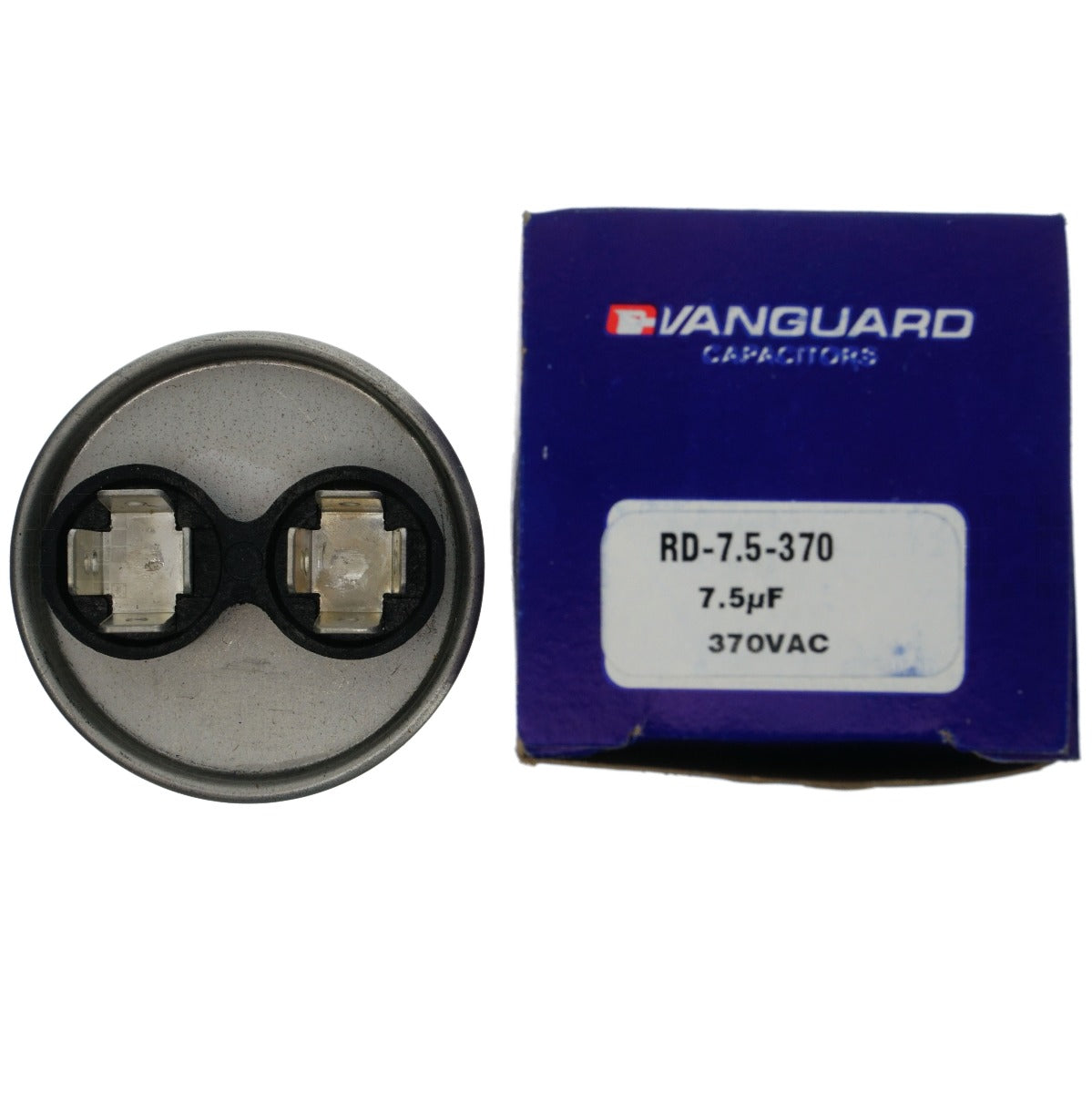

Package Label Vanguard Capacitors
RD-7.5-370
7.5 uF 370VAC
Notes An occasional dent in the aluminum housing may be present due to shipping and handling. This is a commercial part and cosmetic damage IS NOT considered a valid reason for a return.
